Removal [08/2019 - ]: Procedure

  1. TABLE OF BOLT, SCREW AND NUT

    HINT:

    All bolts, screws and nuts relevant to installing and removing the instrument panel are shown along with their alphabet codes in the table below.

    GTY754556Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. PRECAUTION
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work.

    Refer to PRECAUTION [08/2019 - ]

  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    WARNING:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    NOTE:

    When disconnecting the cable some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [08/2019 - ]

  4. REMOVE LOWER NO. 2 STEERING WHEEL COVER

    Refer to PROCEDURE - Step 4

  5. REMOVE LOWER NO. 3 STEERING WHEEL COVER

    Refer to PROCEDURE - Step 3

  6. REMOVE STEERING PAD

    Refer to PROCEDURE - Step 5

  7. REMOVE STEERING WHEEL ASSEMBLY

    Refer to PROCEDURE - Step 6

  8. REMOVE LOWER STEERING COLUMN COVER

    Refer to PROCEDURE - Step 8

  9. REMOVE UPPER STEERING COLUMN COVER

    Refer to PROCEDURE - Step 9

  10. REMOVE COMBINATION SWITCH WITH SPIRAL CABLE

    Refer to PROCEDURE - Step 10

  11. REMOVE FRONT DOOR SCUFF PLATE LH

    HINT:

    Use the same procedure described for RH sides.

    See step  11

  12. REMOVE COWL SIDE TRIM BOARD LH

    HINT:

    Use the same procedure described for RH sides.

    See step  13

  13. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH

    HINT:

    Use the same procedure described for RH sides.

    See step  15

  14. REMOVE FRONT PILLAR GARNISH LH

    HINT:

    Use the same procedure described for RH sides.

    See step  25

  15. REMOVE INSTRUMENT SIDE PANEL LH
    1. Using a moulding remover, detach the 7 claws and remove the instrument side panel LH.
      GTY228063Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3

  17. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LH
    1. Remove the 2 bolts <A>.
      GTY759575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the 9 clips and claw.
    3. Detach the 2 claws and remove the sensor.
      GTY310017Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the lower instrument panel finish panel sub-assembly LH and then disconnect the connectors.
  18. REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

    Refer to PROCEDURE - Step 7

  19. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

    See step  8

  20. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY

    See step  9

  21. REMOVE REAR CONSOLE BOX POCKET

    See step  11

  22. REMOVE REAR UPPER CONSOLE PANEL SUB-ASSEMBLY

    See step  10

  23. REMOVE CONSOLE BOX CARPET

    See step  12

  24. REMOVE REAR CONSOLE BOX ASSEMBLY

    See step  13

  25. REMOVE FRONT CONSOLE BOX

    See step  14

  26. REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
    GTY759578Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Detach the 4 claws and remove the instrument panel finish panel retainer.

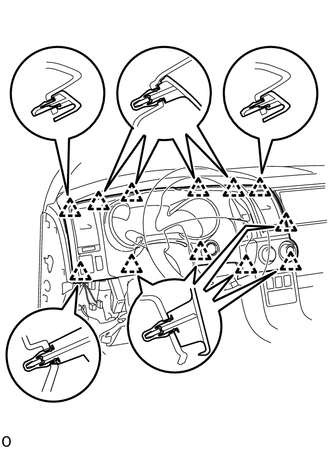

    2. Detach the 12 clips and remove the instrument panel finish panel sub-assembly.
      GTY909537Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect each connector and detach the wire harness clamp.
  27. REMOVE COMBINATION METER ASSEMBLY

    Refer to PROCEDURE - Step 8

  28. REMOVE CENTER LOWER INSTRUMENT PANEL FINISH PANEL

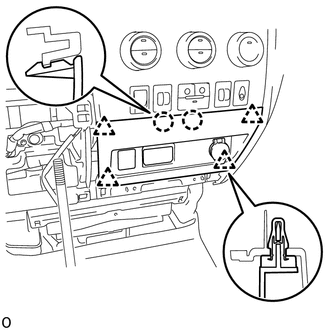

    1. Detach the 4 clips and 2 claws.
      GTY909556Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connectors and remove the center lower instrument panel finish panel.
  29. REMOVE INTEGRATION CONTROL AND PANEL ASSEMBLY

    Refer to PROCEDURE - Step 16

  30. REMOVE RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET (w/o Navigation System)

    Refer to PROCEDURE - Step 11

  31. REMOVE RADIO AND DISPLAY RECEIVER ASSEMBLY WITH NAVIGATION ECU (w/ Navigation System)

    Refer to PROCEDURE - Step 11

  32. REMOVE FRONT DOOR SCUFF PLATE RH

    See step  11

  33. REMOVE COWL SIDE TRIM BOARD RH

    See step  13

  34. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH

    See step  15

  35. REMOVE FRONT PILLAR GARNISH RH

    See step  25

  36. REMOVE INSTRUMENT SIDE PANEL RH
    1. Using a moulding remover D, detach the 6 claws and remove the instrument side panel RH.
      GTY211767Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  37. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
    GTY941915Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

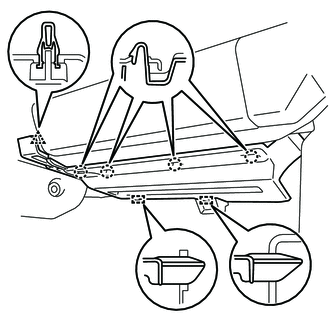

    1. Detach the clip and 4 claws.
    2. Detach the 2 guides and remove the No. 2 instrument panel under cover sub-assembly.
  38. REMOVE LOWER INSTRUMENT PANEL
    1. Remove the screw <D> and bolt <A>.
      GTY309195Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the 2 claws and remove the lower instrument panel.
  39. REMOVE LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY

    Refer to PROCEDURE - Step 8

  40. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY RH
    1. Remove the bolt <A> and 3 screws <D>.
      GTY309198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the 3 claws and remove the lower instrument panel finish panel sub-assembly RH.
    3. Disconnect the connector.
      GTY309027Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  41. REMOVE NO. 2 INSTRUMENT PANEL BOX DOOR SUB-ASSEMBLY
    1. Remove the 6 screws <B> or <H>.
      GTY309172Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the clip and remove the No. 2 instrument panel box door sub-assembly.
  42. REMOVE NO. 1 INSTRUMENT PANEL SPEAKER PANEL
    1. Apply protective tape, as shown in the illustration.
      GTY741278Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
    2. Using a moulding remover D, detach the 4 clips and claw, and remove the No. 1 instrument panel speaker panel.
  43. REMOVE FRONT NO. 2 SPEAKER ASSEMBLY LH

    Refer to PROCEDURE - Step 6

  44. REMOVE NO. 2 INSTRUMENT PANEL SPEAKER PANEL
    1. Apply protective tape, as shown in the illustration.
      GTY746470Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
    2. Using a moulding remover D, detach the 4 clips and claw, and remove the No. 2 instrument panel speaker panel.
  45. REMOVE FRONT NO. 2 SPEAKER ASSEMBLY RH

    Refer to PROCEDURE - Step 5

  46. REMOVE INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
    1. Apply protective tape, as shown in the illustration.
      GTY758733Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
    2. Using a moulding remover D, detach the 6 clips and 2 claws, and remove the instrument panel speaker panel sub-assembly.
  47. REMOVE FRONT NO. 4 SPEAKER ASSEMBLY (for 14 Speakers)

    Refer to PROCEDURE - Step 8

  48. REMOVE STEREO COMPONENT AMPLIFIER ASSEMBLY (for 14 Speakers)

    Refer to REMOVAL [08/2019 - ]

  49. REMOVE REAR NO. 4 AIR DUCT (for 14 Speakers)

    Refer to PROCEDURE - Step 71

  50. REMOVE INSTRUMENT PANEL SUB-ASSEMBLY
    1. w/ Mayday System:

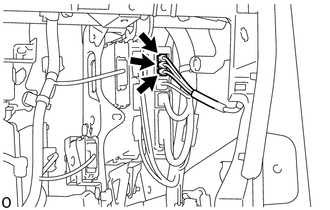

      1. Disconnect the 3 connectors.
        GTY909580Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Slide the slider and disconnect the 2 airbag connectors.
      GTY766559Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Slider
    3. for Front Pillar RH Side:
      1. Detach the clamp.
        GTY914061Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disconnect the 2 connectors.

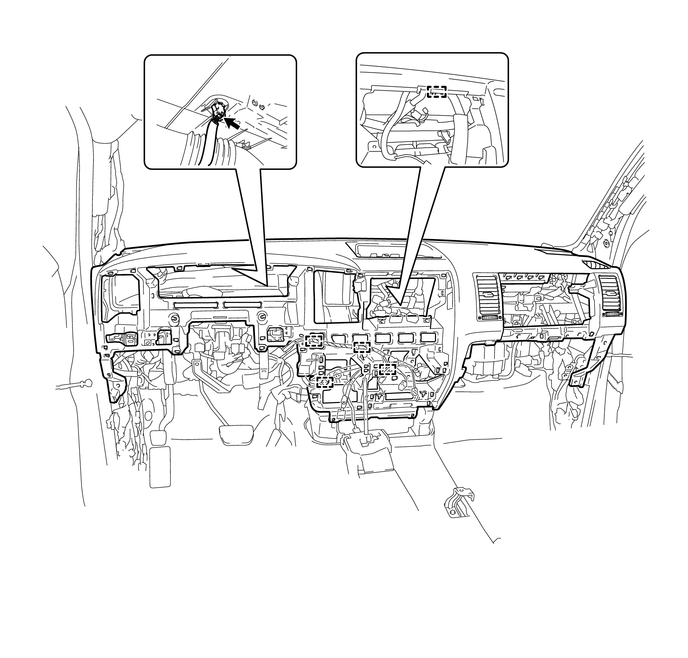

    4. Detach the wire harness clamps and disconnect the connectors.
      GTY881222Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the 2 passenger airbag bolts <F>.
    6. Remove the 3 bolts <C> and 2 nuts <E>.
      GTY872950Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Detach the 5 claws and remove the instrument panel sub-assembly.
      GTY308491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  51. REMOVE NO. 3 INSTRUMENT PANEL STAY
    1. Detach the 3 claws and remove the 3 No. 3 instrument panel stays.
      GTY309353Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  52. REMOVE NO. 1 INSTRUMENT PANEL CLIP
    1. Detach the 2 claws and remove the 2 No. 1 instrument panel clips.
      GTY309352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  53. REMOVE NO. 1 HEATER TO REGISTER DUCT
    1. Detach the clamp.
    2. Remove the 5 screws <G> or <H> and No. 1 heater to register duct.
      GTY310041Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  54. REMOVE NO. 1 SIDE DEFROSTER NOZZLE DUCT
    GTY308835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 2 screws <G> or <H>.
    2. Detach the 2 claws and remove the No. 1 side defroster nozzle duct.
  55. REMOVE NO. 2 SIDE DEFROSTER NOZZLE DUCT
    GTY309786Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 2 screws <G> or <H>.
    2. Detach the 2 claws and remove the No. 2 side defroster nozzle duct.
  56. REMOVE DEFROSTER NOZZLE ASSEMBLY
    GTY308834Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 3 screws <G> or <H> and the defroster nozzle assembly.
  57. REMOVE NO. 4 INSTRUMENT PANEL REGISTER ASSEMBLY
    GTY308833Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 3 screws <G> or <H> and the No. 4 instrument panel register assembly.
  58. REMOVE NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY
    GTY309980Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 3 screws <G> or <H> and the No. 3 instrument panel register assembly.
  59. REMOVE NAVIGATION ANTENNA ASSEMBLY WITH BRACKET (w/o Mayday System)

    Refer to PROCEDURE - Step 8

  60. REMOVE TELEPHONE AND GPS ANTENNA ASSEMBLY WITH BRACKET (w/ Mayday System)

    Refer to PROCEDURE - Step 8

  61. REMOVE ANTENNA CORD SUB-ASSEMBLY (w/o Mayday System)

    Refer to PROCEDURE - Step 8

  62. REMOVE TELEPHONE AND GPS ANTENNA CORD ASSEMBLY (w/ Mayday System)

    Refer to PROCEDURE - Step 8

  63. REMOVE FRONT PASSENGER AIRBAG ASSEMBLY

    Refer to PROCEDURE - Step 7

  64. REMOVE AUTOMATIC LIGHT CONTROL SENSOR
    GTY224970Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Detach the 2 claws and remove the automatic light control sensor.
  65. REMOVE NO. 1 INSTRUMENT PANEL PIN
    GTY309998Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 2 screws <G> or <H> and 2 No. 1 instrument panel pins.
