Removal [08/2019 - ]: Procedure

PRECAUTION
NOTE:
After turning the engine switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work.

Refer to PRECAUTION [08/2019 - ]
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

NOTE:
When disconnecting the cable some systems need to be initialized after the cable is reconnected.

Refer to INITIALIZATION [08/2019 - ]
REMOVE INSTRUMENT PANEL SUB-ASSEMBLY
Refer to REMOVAL [08/2019 - ]
REMOVE NO. 1 HEATER TO REGISTER DUCT
Refer to PROCEDURE - Step 53
REMOVE NO. 2 SIDE DEFROSTER NOZZLE DUCT
Refer to PROCEDURE - Step 55
REMOVE NO. 1 SIDE DEFROSTER NOZZLE DUCT
Refer to PROCEDURE - Step 54
REMOVE DEFROSTER NOZZLE ASSEMBLY
Refer to PROCEDURE - Step 56

REMOVE NAVIGATION ANTENNA ASSEMBLY WITH BRACKET

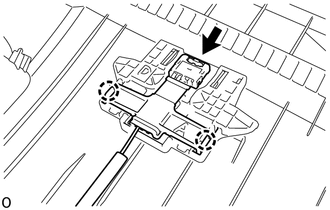

Disconnect the connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the 2 screws.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE NAVIGATION ANTENNA ASSEMBLY

Detach the 2 claws.

While moving the navigation antenna assembly in the direction indicated in the illustration, detach the 4 guides and remove the navigation antenna assembly from the navigation antenna bracket.
