Removal [08/2015 - ]: Procedure

REMOVE FRONT PILLAR GARNISH RH
Refer to PROCEDURE - Step 25 [08/2015 - 08/2017] , or refer to PROCEDURE - Step 25 [08/2017 - 08/2019] , or refer to PROCEDURE - Step 25 [08/2019 - ]
REMOVE FRONT PILLAR GARNISH LH
Refer to PROCEDURE - Step 26 [08/2015 - 08/2017] , or refer to PROCEDURE - Step 26 [08/2017 - 08/2019] , or refer to PROCEDURE - Step 26 [08/2019 - ]

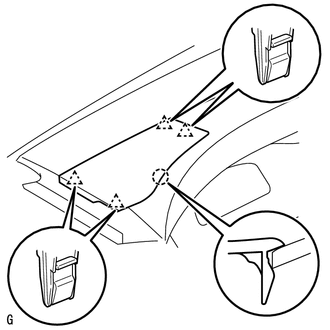

REMOVE NO. 2 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Disengage the 4 clips and claw and remove the speaker panel.

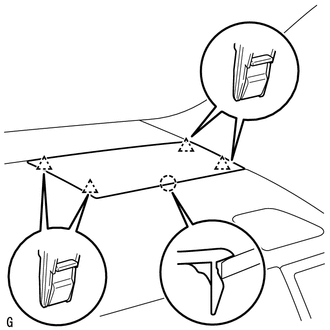

REMOVE NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Disengage the 4 clips and claw and remove the speaker panel.
REMOVE FRONT NO. 2 SPEAKER ASSEMBLY RH

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Remove the 2 bolts.
2. Remove the speaker and disconnect the connector.
  NOTE:
  Do not touch the cone part of the speaker.
REMOVE FRONT NO. 2 SPEAKER ASSEMBLY LH

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Remove the 2 bolts.
2. Remove the speaker and disconnect the connector.
  NOTE:
  Do not touch the cone part of the speaker.

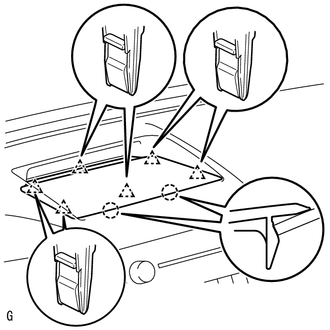

REMOVE NO. 3 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY (for 14 Speakers)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Disengage the 6 clips and 2 claws and remove the speaker panel.
REMOVE FRONT NO. 4 SPEAKER ASSEMBLY (for 14 Speakers)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Remove the 2 bolts.
2. Remove the speaker and disconnect the connector.
  NOTE:
  Do not touch the cone part of the speaker.
