Removal [08/2019 - ]: Procedure
WARNING: This page is about a different car, the 2022 Toyota Sequoia, 2021 Toyota Sequoia, and 2020 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
- PRECAUTION NOTE:
After turning the engine switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work.
Refer to PRECAUTION [08/2019 - ]
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
NOTE:When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
Refer to INITIALIZATION [08/2019 - ]
- REMOVE INSTRUMENT PANEL SAFETY PAD
Refer to REMOVAL [08/2019 - ]
- REMOVE NO. 1 HEATER TO REGISTER DUCT
Refer to PROCEDURE - Step 53
- REMOVE NO. 2 SIDE DEFROSTER NOZZLE DUCT
Refer to PROCEDURE - Step 55
- REMOVE NO. 1 SIDE DEFROSTER NOZZLE DUCT
Refer to PROCEDURE - Step 54
- REMOVE DEFROSTER NOZZLE ASSEMBLY
Refer to PROCEDURE - Step 56

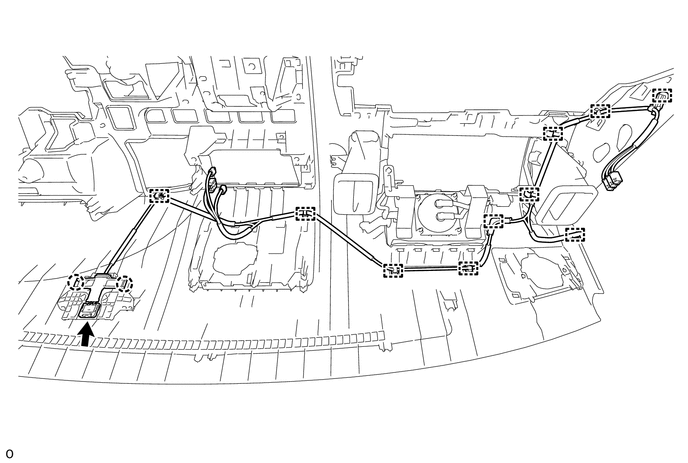

- REMOVE TELEPHONE AND GPS ANTENNA CORD ASSEMBLY
