Removal [12/2012 - ]: Procedure

  1. REMOVE THROTTLE WITH MOTOR BODY ASSEMBLY

    Refer to PROCEDURE - Step 4

  2. DISCONNECT FUEL TUBE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 7

  3. REMOVE WIRE HARNESS

    Refer to PROCEDURE - Step 8

  4. REMOVE FUEL DELIVERY PIPE

    Refer to PROCEDURE - Step 9

  5. DISCONNECT WIRE HARNESS

    Refer to PROCEDURE - Step 8

  6. DISCONNECT NO. 2 PCV HOSE

    Refer to PROCEDURE - Step 9

  7. REMOVE INTAKE MANIFOLD

    Refer to PROCEDURE - Step 10

  8. REMOVE ENGINE OIL LEVEL DIPSTICK GUIDE

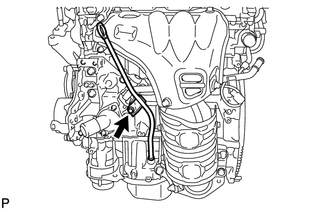

    1. Remove the engine oil level dipstick.
      GTY314347Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and engine oil level dipstick guide.
    3. Remove the O-ring from the engine oil level dipstick guide.
  9. REMOVE MANIFOLD STAY

    Refer to PROCEDURE - Step 6

  10. REMOVE NO. 2 MANIFOLD STAY

    Refer to PROCEDURE - Step 7

  11. REMOVE NO. 1 EXHAUST MANIFOLD HEAT INSULATOR

    Refer to PROCEDURE - Step 8

  12. REMOVE NO. 2 EXHAUST MANIFOLD HEAT INSULATOR

    Refer to PROCEDURE - Step 9

  13. REMOVE EXHAUST MANIFOLD CONVERTER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 10

  14. REMOVE COOLER COMPRESSOR ASSEMBLY

    Refer to PROCEDURE - Step 5

  15. REMOVE NO. 1 COMPRESSOR MOUNTING BRACKET

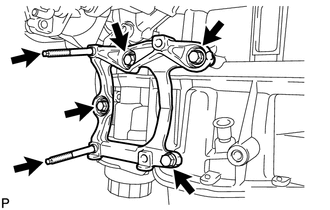

    1. Remove the 4 bolts and No. 1 compressor mounting bracket.
      GTY372171Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using an E6 "TORX" socket wrench, remove the 2 stud bolts from the No. 1 compressor mounting bracket.
  16. REMOVE WATER BY-PASS HOSE

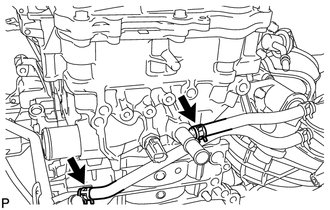

    1. Slide the clip and disconnect the No. 1 water by-pass hose from the cylinder head sub-assembly.
      GTY312188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Slide the clip and disconnect the No. 2 water by-pass hose from the No. 1 water by-pass pipe.
  17. REMOVE ENGINE OIL PRESSURE SWITCH ASSEMBLY

    Refer to PROCEDURE - Step 1

  18. REMOVE ENGINE COOLANT TEMPERATURE SENSOR

    Refer to PROCEDURE - Step 2

  19. REMOVE IGNITION COIL ASSEMBLY

    Refer to PROCEDURE - Step 2
