Removal [12/2012 - ]: Procedure

  1. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    See step  2

  2. REMOVE IGNITION COIL ASSEMBLY
    1. Disconnect the 4 ignition coil assembly connectors.

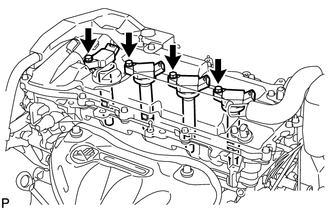

    2. GTY314640Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 4 bolts and 4 ignition coil assemblies.

  3. REMOVE SPARK PLUG

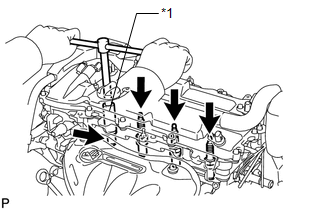

    1. GTY363830Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 16 mm Spark Plug Wrench

      Using a 16 mm spark plug wrench, remove the 4 spark plugs.
