Removal [12/2012 - ]: Procedure

  1. REMOVE ENGINE OIL PRESSURE SWITCH ASSEMBLY
    1. Disconnect the engine oil pressure switch connector.
      GTY310576Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

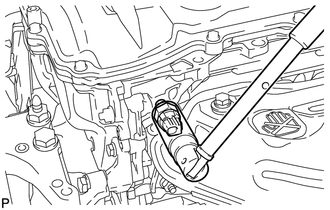

    2. Using a 24 mm deep socket wrench, remove the engine oil pressure switch assembly.
