Removal [12/2012 - ]: Procedure

DRAIN ENGINE COOLANT
Refer to PROCEDURE - Step 2

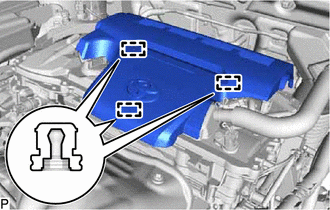

REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

Lift the rear of the No. 1 engine cover sub-assembly to detach the No. 1 engine cover sub-assembly from the 2 pins, and then lift the front of the No. 1 engine cover sub-assembly to detach the No. 1 engine cover sub-assembly from the pin and remove the No. 1 engine cover sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE AIR CLEANER CAP SUB-ASSEMBLY
See step 3

REMOVE THROTTLE WITH MOTOR BODY ASSEMBLY

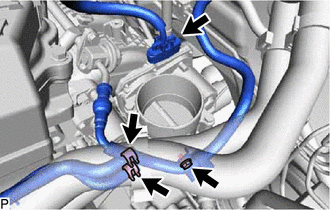

Slide the clamp and disconnect the No. 1 water by-pass hose from the throttle with motor body assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Slide the clamp and disconnect the No. 2 water by-pass hose from the throttle with motor body assembly.
Remove the bolt and disconnect the fuel hose bracket.
NOTE:
If the fuel hose is detached from the clamp shown in the illustration, the clamp cannot be reused.
Disconnect the throttle with motor body assembly connector.

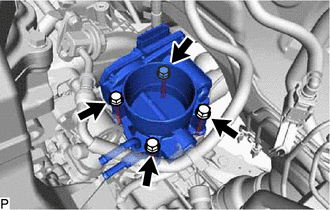

Remove the 4 bolts and throttle with motor body assembly.

Remove the gasket from the intake manifold.
