Removal [12/2012 - ]: Procedure

  1. RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM

    See step  1

  2. REMOVE V-RIBBED BELT

    Refer to REMOVAL [12/2012 - ]

  3. DISCONNECT DISCHARGE HOSE SUB-ASSEMBLY

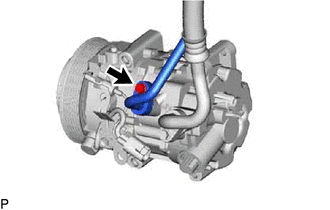

    1. Remove the bolt and disconnect the discharge hose sub-assembly from the compressor assembly with pulley.
      GTY363706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the O-ring from the discharge hose sub-assembly.
      NOTE:

      Seal the openings of the disconnected parts using vinyl tape to prevent entry of moisture and foreign matter.

  4. DISCONNECT SUCTION HOSE SUB-ASSEMBLY

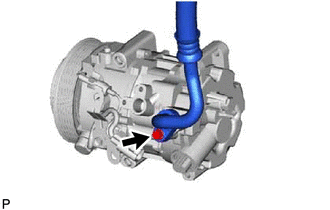

    1. Remove the bolt and disconnect the suction hose sub-assembly from the compressor assembly with pulley.
      GTY363709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the O-ring from the suction hose sub-assembly.
      NOTE:

      Seal the openings of the disconnected parts using vinyl tape to prevent entry of moisture and foreign matter.

  5. REMOVE COMPRESSOR ASSEMBLY WITH PULLEY

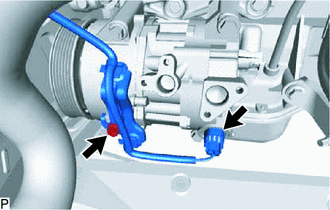

    1. w/ Pulley:

      Disconnect the connector.

      GTY363704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Pulley:

      Remove the bolt and disconnect the wire harness bracket.

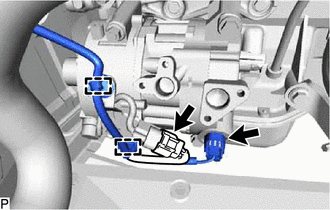

    3. w/ Magnet Clutch:

      Detach the 2 harness clamps and disconnect the 2 connectors.

      GTY363702Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

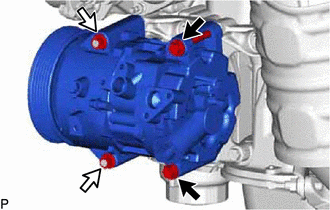

    4. Remove the 2 bolts and 2 nuts.
      GTY363446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Using an E8 "TORX" socket wrench, remove the 2 stud bolts and compressor assembly with pulley.
