Removal [11/2015 - ]: Procedure

(Refer to REMOVAL [11/2015 - 06/2017] , or refer to REMOVAL [06/2017 - ] )

Refer to PROCEDURE - Step 2

Refer to PROCEDURE - Step 8

Refer to PROCEDURE - Step 1

Refer to PROCEDURE - Step 3

Refer to PROCEDURE - Step 4

Refer to PROCEDURE - Step 1

Refer to PROCEDURE - Step 5

Refer to PROCEDURE - Step 12 , or refer to PROCEDURE - Step 12

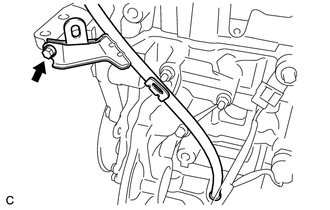

1. Remove the bolt and engine oil level dipstick guide.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.

2. Remove the O-ring from the engine oil level dipstick guide.

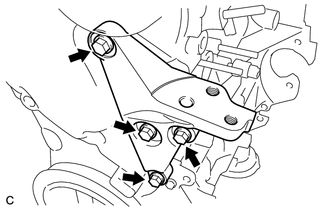

1. Remove the 4 bolts and engine mounting bracket RH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.

1. Using a 8 mm hexagon socket wrench, remove the screw plug.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.

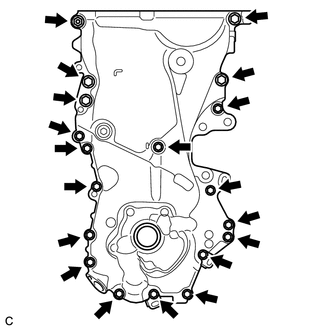

1. Remove the 18 bolts, nut and 2 wire harness clamp brackets.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.

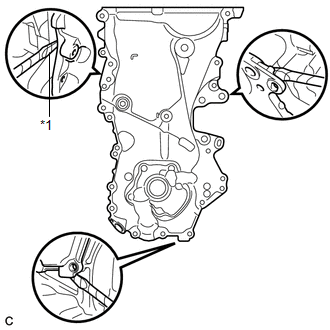

2. Remove the timing chain cover by prying between the timing chain cover and oil pan, cylinder head or cylinder block with a screwdriver.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.

   TEXT IN ILLUSTRATION



   *1	Protective Tape

   NOTE:

   Be careful not to damage the contact surfaces of the timing chain cover, oil pan, cylinder block, and cylinder head.

   HINT:

   Tape the screwdriver tip before use.

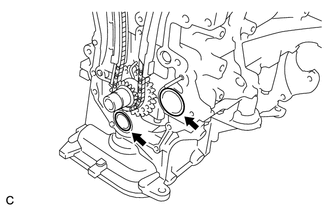

3. Remove the 2 O-rings from the cylinder block and oil pan.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.

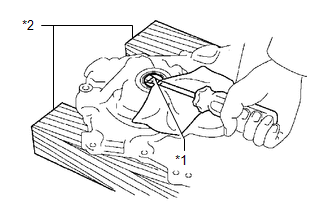

1. Using a screwdriver and wooden block, remove the oil pump seal.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.

   TEXT IN ILLUSTRATION



   *1	Protective Tape
   *2	Wooden Block

   NOTE:

   Do not damage the surface of the oil seal press fit hole.

   HINT:

   Tape the screwdriver tip before use.
