Removal [11/2015 - 06/2017]: Procedure

  1. REMOVE NO. 2 EGR PIPE

    Refer to PROCEDURE - Step 2

  2. REMOVE EGR COOLER ASSEMBLY

    Refer to PROCEDURE - Step 8

  3. REMOVE INTAKE MANIFOLD STAY

    Refer to PROCEDURE - Step 5

  4. REMOVE INTAKE MANIFOLD

    Refer to PROCEDURE - Step 6

  5. REMOVE NO. 1 EXHAUST MANIFOLD HEAT INSULATOR

    Refer to PROCEDURE - Step 4

  6. REMOVE MANIFOLD SUPPORT BRACKET

    Refer to PROCEDURE - Step 5

  7. REMOVE EXHAUST MANIFOLD

    Refer to PROCEDURE - Step 7

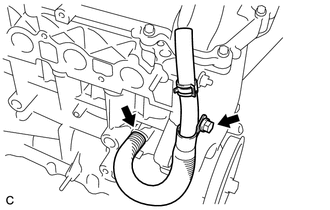

  8. REMOVE NO. 4 WATER BY-PASS HOSE
    1. Disconnect the No. 4 water by-pass hose.
      GTY334377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and No. 4 water by-pass hose.

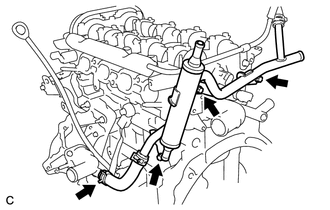

  9. REMOVE NO. 1 WATER BY-PASS PIPE
    1. Disconnect the water hose from the water inlet with thermostat sub-assembly.
      GTY325874Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 bolts and No. 1 water by-pass pipe.
  10. REMOVE WIRE HARNESS CLAMP BRACKET
    1. Remove the bolt and wire harness clamp bracket.
      GTY337386Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE STUD BOLT
    1. Using an E7 "TORX" socket wrench, remove the stud bolt.
      GTY324346Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE ENGINE OIL LEVEL DIPSTICK
    1. Remove the engine oil level dipstick.
  13. REMOVE NO. 1 IGNITION COIL

    Refer to PROCEDURE - Step 1
