Removal [11/2015 - ]: Procedure

  1. DRAIN COOLANT (for Engine)

    Refer to PROCEDURE - Step 1

  2. REMOVE NO. 2 EGR PIPE
    1. Disconnect the wire harness clamp.
      GTY736423Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.
    2. Disengage the clamp and disconnect the No. 2 water by-pass hose.
    3. Remove the 2 bolts and 2 nuts.
    4. Remove the No. 2 EGR pipe and 2 gaskets.
  3. REMOVE EGR VALVE ASSEMBLY
    1. Disconnect the 2 connectors and wire harness clamp.
      GTY738234Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.

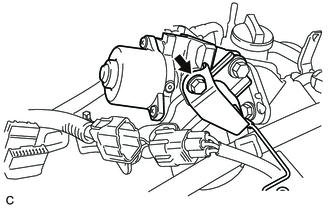

    2. Remove the bolt and wire harness clamp bracket.
      GTY719774Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.
    3. Disengage the clamp and disconnect the No. 5 water by-pass hose.
      GTY702484Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.
    4. Remove the 2 bolts, nut and EGR valve bracket.

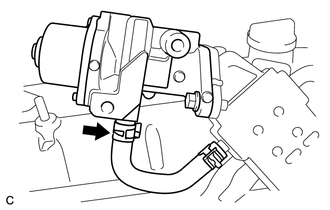

    5. Disconnect the No. 1 water by-pass hose.
      GTY326065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.

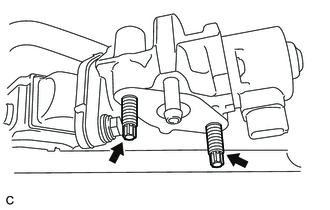

    6. Using an E8 "TORX" socket wrench, remove the 2 stud bolts.
      GTY339612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.

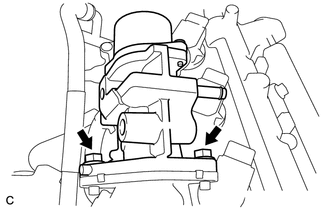

    7. Remove the 2 bolts, EGR valve assembly and gasket.
      GTY334282Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.
