Removal [08/2015 - ]: Procedure

  1. DISCHARGE FUEL SYSTEM PRESSURE
    1. Discharge the fuel system pressure (Refer to PRECAUTION [08/2015 - ] ).
  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [08/2015 - 08/2019] , or refer to INITIALIZATION [08/2019 - 08/2022] , or refer to INITIALIZATION [08/2022 - ] ).

  3. REMOVE INTAKE AIR SURGE TANK
    1. Remove the intake air surge tank (Refer to REMOVAL [08/2015 - ] ).
  4. DISCONNECT NO. 2 FUEL PIPE SUB-ASSEMBLY

    See step  4

  5. REMOVE FUEL PRESSURE REGULATOR ASSEMBLY
    1. Disconnect the vacuum hose.
    2. Remove the 2 bolts and fuel pressure regulator.

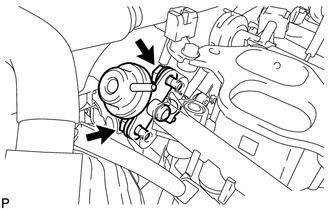

      GTY190164Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the O-ring from the fuel pressure regulator.
