Removal [08/2015 - ]: Procedure

  1. REMOVE UPPER RADIATOR SUPPORT SEAL

    Refer to PROCEDURE - Step 18

  2. REMOVE COOL AIR INTAKE DUCT (for 4WD with Intuitive Parking Assist System)

    Refer to PROCEDURE - Step 4 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 4 [08/2019 - 08/2021] , or refer to PROCEDURE - Step 4 [08/2021 - ]

  3. REMOVE FRONT LOWER BUMPER COVER (w/o Intuitive Parking Assist System)

    Refer to PROCEDURE - Step 7

  4. REMOVE FRONT LOWER BUMPER COVER (w/ Intuitive Parking Assist System)

    Refer to PROCEDURE - Step 8

  5. REMOVE AIR INTAKE DUCT LH (w/ Intuitive Parking Assist System)

    Refer to PROCEDURE - Step 9

  6. REMOVE AIR INTAKE DUCT RH (w/ Intuitive Parking Assist System)

    Refer to PROCEDURE - Step 10

  7. REMOVE NO. 1 ENGINE UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 11

  8. DRAIN ENGINE COOLANT

    See step  9

  9. REMOVE V-BANK COVER

    Refer to PROCEDURE - Step 10

  10. REMOVE FRONT BUMPER COVER

    w/o Intuitive Parking Assist System: (Refer to REMOVAL [08/2015 - 08/2019] , or refer to REMOVAL [08/2019 - 08/2020] , or refer to REMOVAL [08/2020 - 08/2021] , or refer to REMOVAL [08/2021 - ] )

    w/ Intuitive Parking Assist System: (Refer to REMOVAL [08/2015 - 08/2019] , or refer to REMOVAL [08/2019 - 08/2021] , or refer to REMOVAL [08/2021 - ] )

  11. REMOVE UPPER FRONT BUMPER RETAINER

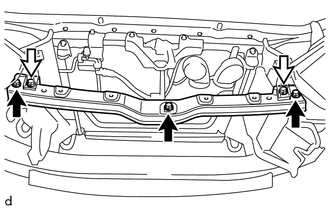

    1. Remove the 3 bolts, 2 screws and upper front bumper retainer.
      GTY432112Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      Bolt
      Screw
  12. REMOVE RADIATOR SIDE DEFLECTOR RH

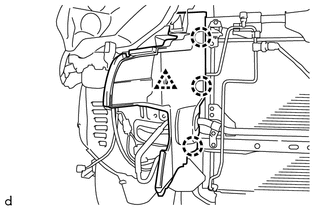

    1. Using a clip remover, detach the 3 claws and remove the clip. Then move the radiator side deflector RH so that the radiator can be removed in the step below.
      GTY432113Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE RADIATOR SIDE DEFLECTOR LH

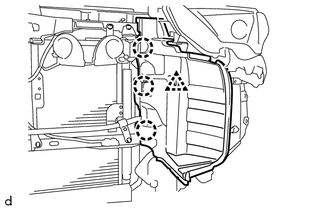

    1. Using a clip remover, detach the 3 claws and remove the clip. Then move the radiator side deflector LH so that the radiator can be removed in the step below.
      GTY432114Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE NO. 1 RADIATOR HOSE

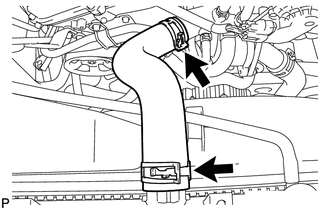

    1. Loosen the 2 clamps and remove the No. 1 radiator hose.
      GTY227761Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE NO. 2 RADIATOR HOSE

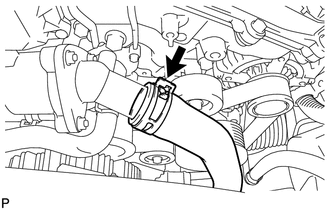

    1. Loosen the clamp and disconnect the No. 2 radiator hose from the water inlet.
      GTY738689Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

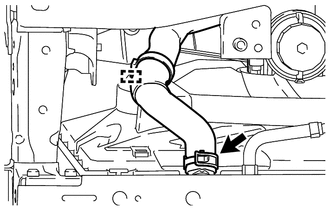

    2. Detach the clamp from the fan shroud.
      GTY439354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Loosen the clamp and remove the No. 2 radiator hose.
  16. REMOVE RADIATOR RESERVOIR TANK

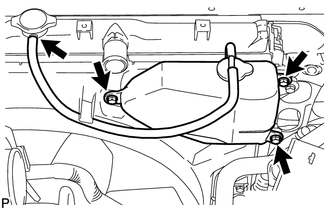

    1. Disconnect the reservoir hose from the upper side of the radiator tank.
      GTY227766Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 bolts and radiator reservoir tank.
  17. DISCONNECT OIL COOLER TUBE

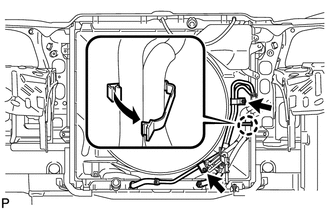

    1. Detach the claw to open the flexible hose clamp, and then remove the 2 bolts to disconnect the oil cooler tube from the fan shroud.
      GTY227770Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE FAN SHROUD

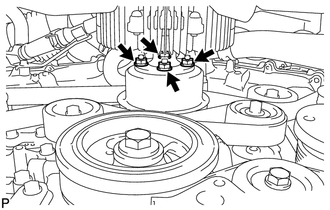

    1. Loosen the 4 nuts holding the fan with fluid coupling.
      GTY235901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the fan with fluid coupling and generator V-belt (Refer to REMOVAL [08/2015 - ] ).

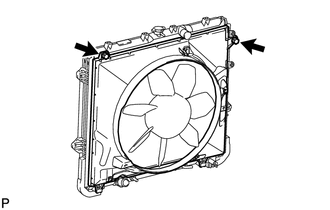

    3. Remove the 2 bolts holding the fan shroud.
      GTY227769Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 4 nuts of the fan with fluid coupling, and then remove the shroud together with the fan with fluid coupling.
      NOTE:

      Be careful not to damage the radiator core.

    5. Remove the fan pulley from the water pump.
  19. REMOVE RADIATOR ASSEMBLY

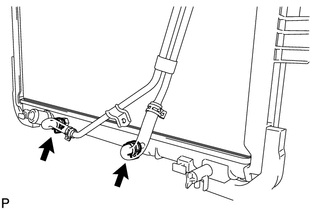

    1. Slide the 2 clamps and disconnect the 2 oil cooler hoses.
      GTY226874Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

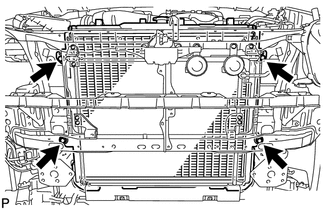

    2. Remove the 4 bolts and radiator.
      GTY226889Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE NO. 1 RADIATOR TO SUPPORT SEAL
    1. Remove the No. 1 radiator to support seal from the radiator assembly.
  21. REMOVE NO. 2 RADIATOR TO SUPPORT SEAL
    1. Remove the No. 2 radiator to support seal from the radiator assembly.
