Roof Headlining: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system (See AIRBAG SYSTEM ).
  2. REMOVE LOWER NO. 3 STEERING WHEEL COVER  (See REMOVAL )
  3. REMOVE LOWER NO. 2 STEERING WHEEL COVER  (See REMOVAL )
  4. REMOVE STEERING PAD  (See REMOVAL )
  5. REMOVE STEERING WHEEL ASSEMBLY  (See REMOVAL )
  6. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (See  REMOVAL  )
  7. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (See  DISASSEMBLY  )
  8. REMOVE METER HOOD SUB-ASSEMBLY  (See REMOVAL )
  9. REMOVE COMBINATION METER ASSEMBLY  (See REMOVAL )
  10. REMOVE FRONT DOOR SCUFF PLATE LH
    1. Disengage the 8 claws and remove the front door scuff plate LH.
    Fig 1: Identifying Front Door Scuff Plate LH And Claws
    G06037956Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE COWL SIDE TRIM BOARD LH
    1. Disengage the clip and claw, and remove the cowl side trim board LH.
    Fig 2: Identifying Cowl Side Trim Board LH Clip And Claw
    G06037957Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH
    1. Remove the front door opening trim weatherstrip LH.
    Fig 3: Identifying Front Door Opening Trim Weatherstrip LH
    G06037958Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE FRONT PILLAR GARNISH LH (w/o Curtain Shield Airbag)
    1. Pull the upper part of the garnish toward the inside of the cabin and disengage the 2 clips.
    2. Disengage the 2 guides and remove the front pillar garnish LH.

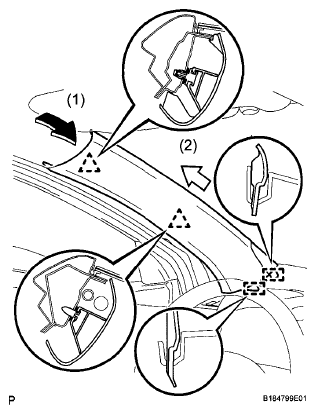

    Fig 4: Identifying Front Pillar Garnish LH And Clips (W/O Curtain Shield Airbag)
    G06037959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE FRONT PILLAR GARNISH LH (w/ Curtain Shield Airbag)
    1. Pull the upper part of the garnish toward the inside of the cabin and disengage the 2 clips.
    2. Cut off the clip <A>.
    3. Disengage the 2 guides and remove the front pillar garnish LH.
    4. Remove the clip <A> from the vehicle body.

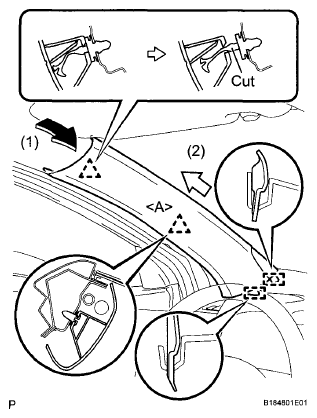

      Fig 5: Identifying Front Pillar Garnish LH And Clip (W/ Curtain Shield Airbag)
      G06037960Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Protect the curtain shield airbag assembly.
      1. Cover the airbag with a 700 mm (27.5 in.) x 120 mm (4.72 in.) cloth or piece of nylon and secure the ends of the cover with tape, as shown in the illustration.
      NOTE: Cover the curtain shield airbag with a protective cover as soon as the front pillar garnish is removed.
  15. REMOVE FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure for the RH side and LH side.

  16. REMOVE COWL SIDE TRIM BOARD RH

    HINT:

    Use the same procedure for the RH side and LH side.

  17. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH

    HINT:

    Use the same procedure for the RH side and LH side.

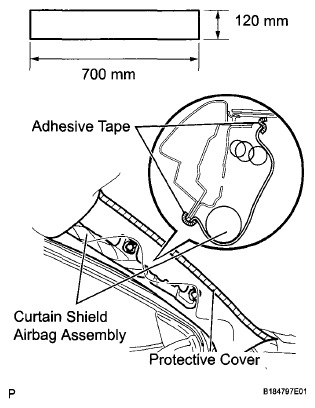

    Fig 6: Covering Curtain Shield Airbag With Protective Cover
    G06037961Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE FRONT PILLAR GARNISH RH (w/o Curtain Shield Airbag)

    HINT:

    Use the same procedure for the RH side and LH side.

  19. REMOVE FRONT PILLAR GARNISH RH (w/ Curtain Shield Airbag)
    1. Pull the upper part of the garnish toward the inside of the cabin and disengage the 2 clips.
    2. Cut off the clip <A>.
    3. Disengage the 2 guides and remove the front pillar garnish RH.
    4. Remove the clip <A> from the vehicle body.

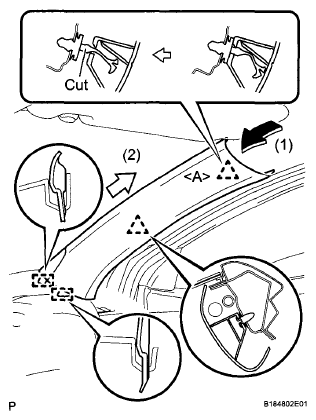

      Fig 7: Identifying Front Pillar Garnish RH And Clip (W/ Curtain Shield Airbag)
      G06037962Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Protect the curtain shield airbag assembly.
      1. Cover the airbag with a 700 mm (27.5 in.) x 120 mm (4.72 in.) cloth or piece of nylon and secure the ends of the cover with tape, as shown in the illustration.
      NOTE: Cover the curtain shield airbag with a protective cover as soon as the front pillar garnish is removed.
  20. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY (See  REMOVAL  )
  21. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle) (See  REMOVAL  )
  22. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transaxle) (See  REMOVAL  )
  23. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for Manual Transaxle) (See  REMOVAL  )
  24. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for Automatic Transaxle) (See  DISASSEMBLY  )

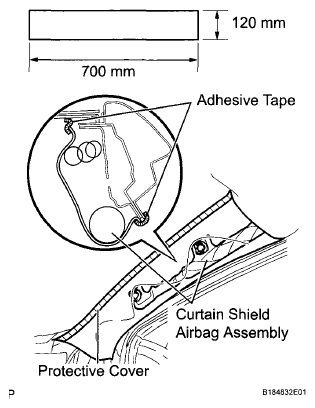

    Fig 8: Covering Curtain Shield Airbag With Protective Cover
    G06037963Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY (See  DISASSEMBLY  )
  26. REMOVE NO. 1 INSTRUMENT PANEL BOX DOOR SUB-ASSEMBLY (See  REMOVAL  )
  27. DISCONNECT INSTRUMENT PANEL WIRE ASSEMBLY  (See REMOVAL )
  28. REMOVE UPPER INSTRUMENT PANEL SUB-ASSEMBLY (See  REMOVAL  )
  29. REMOVE REAR DOOR SCUFF PLATE LH
    1. Disengage the 6 claws and remove the rear door scuff plate LH.
    Fig 9: Identifying Rear Door Scuff Plate LH And Claws
    G06037964Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH
    1. Remove the rear door opening trim weatherstrip LH.
  31. REMOVE LAP BELT OUTER ANCHOR COVER (for Driver Side)  (See REMOVAL )
  32. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY LH  (See REMOVAL )
    Fig 10: Identifying Rear Door Opening Trim Weatherstrip LH
    G06037965Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. REMOVE LOWER CENTER PILLAR GARNISH LH
    1. Disengage the 2 claws and 2 clips, and remove the lower center pillar garnish LH.
    Fig 11: Identifying Lower Center Pillar Garnish LH And Claws With Clips
    G06037966Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. REMOVE UPPER CENTER PILLAR GARNISH LH
    1. Remove the 2 screws.
    2. Using a clip remover, disengage the clip and remove the upper center pillar garnish LH.
  35. REMOVE REAR DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure for the RH side and LH side.

  36. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH

    HINT:

    Use the same procedure for the RH side and LH side.

  37. REMOVE LAP BELT OUTER ANCHOR COVER (for Front Passenger Side)  (See REMOVAL )
    Fig 12: Removing Upper Center Pillar Garnish LH Clip
    G06037967Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  38. REMOVE LOWER CENTER PILLAR GARNISH RH

    HINT:

    Use the same procedure for the RH side and LH side.

  39. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY RH  (See REMOVAL )
  40. REMOVE UPPER CENTER PILLAR GARNISH RH

    HINT:

    Use the same procedure for the RH side and LH side.

  41. REMOVE REAR SEAT CUSHION ASSEMBLY  (See REMOVAL )
  42. REMOVE REAR SEAT HEADREST ASSEMBLY (for LH Side)
  43. REMOVE REAR SEATBACK OUTER HINGE COVER (for LH Side)  (See REMOVAL )
  44. REMOVE REAR SEATBACK INNER HINGE COVER (for LH Side)  (See REMOVAL )
  45. REMOVE REAR SEATBACK ASSEMBLY LH  (See REMOVAL )
  46. REMOVE REAR SEAT HEADREST ASSEMBLY (for RH Side)
  47. REMOVE REAR SEAT CENTER HEADREST ASSEMBLY
  48. DISCONNECT REAR SEAT CENTER OUTER BELT ASSEMBLY  (See REMOVAL )
  49. REMOVE REAR SEATBACK OUTER HINGE COVER (for RH Side)  (See REMOVAL )
  50. REMOVE REAR SEATBACK INNER HINGE COVER (for RH Side)  (See REMOVAL )
  51. REMOVE REAR SEATBACK ASSEMBLY RH  (See DISASSEMBLY )
  52. REMOVE TONNEAU COVER ASSEMBLY (w/ Tonneau Cover)
  53. REMOVE DECK BOARD ASSEMBLY
    1. Disengage the 2 guides and remove the deck board assembly.

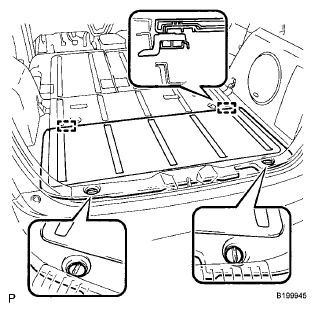

    Fig 13: Identifying Deck Board Assembly And Guides
    G06037968Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  54. REMOVE NO. 2 DECK BOARD
    1. Disengage the 2 guides and remove the No. 2 deck board.
  55. REMOVE JACK CARRIER ASSEMBLY

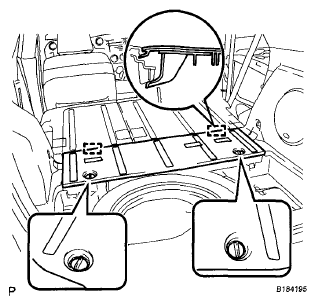

    Fig 14: Identifying No. 2 Deck Board And Guides
    G06037969Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  56. REMOVE JACK ASSEMBLY
    1. Remove the jack assembly.
    Fig 15: Identifying Jack Assembly
    G06037970Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  57. REMOVE DECK FLOOR BOX LH
    1. Remove the bolt.
    2. Disengage the 2 claws and remove the deck floor box LH.
    Fig 16: Identifying Deck Floor Box LH And Claws
    G06037971Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  58. REMOVE DECK FLOOR BOX RH
    1. Remove the bolt.
    2. Disengage the 2 claws and remove the deck floor box RH.
  59. REMOVE CHILD RESTRAINT SEAT TETHER ANCHOR  (See CHILD RESTRAINT SEAT TETHER ANCHOR )
    Fig 17: Identifying Deck Floor Box RH And Claws With Bolt
    G06037972Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  60. REMOVE LUGGAGE COMPARTMENT TRAY
    1. Remove the 2 bolts.
    2. Remove the luggage compartment tray.
    Fig 18: Identifying Luggage Compartment Tray And Bolts
    G06037973Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

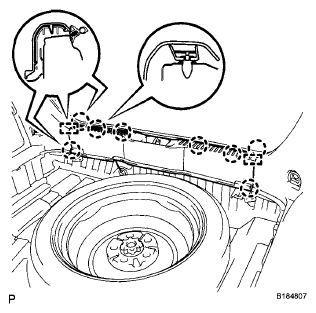

  61. REMOVE REAR DECK TRIM COVER
    1. Disengage the 8 claws and 2 guides, and remove the rear deck trim cover.
    Fig 19: Identifying Rear Deck Trim Cover And Claws With Guides
    G06037974Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  62. REMOVE REAR SEATBACK HINGE SUB-ASSEMBLY (for LH Side)
    1. Remove the bolt and rear seatback hinge sub-assembly.
    Fig 20: Locating Rear Seatback Hinge Sub-Assembly Bolt
    G06037975Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  63. REMOVE REAR SEAT SIDE GARNISH LH
    1. Disengage the 4 claws and clip and guide, and remove the rear seat side garnish LH.
  64. DISCONNECT REAR SEAT 3 POINT TYPE BELT ASSEMBLY LH  (See REMOVAL )

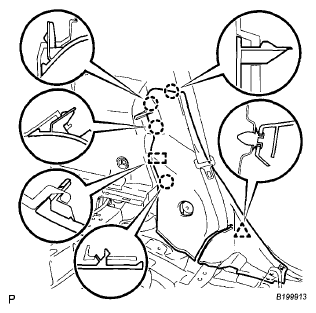

    Fig 21: Identifying Rear Seat Side Garnish LH, Claws, Clip And Guide
    G06037976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  65. REMOVE LUGGAGE HOLD BELT STRIKER ASSEMBLY (for LH Side)
    1. for front side:
      1. Remove the bolt and luggage hold belt striker assembly.
      Fig 22: Identifying Luggage Hold Belt Striker Assembly And Bolt (Front Side)
      G06037977Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. for rear side:
      1. Remove the bolt and luggage hold belt striker assembly.
      Fig 23: Identifying Luggage Hold Belt Striker Assembly And Bolt (Rear Side)
      G06037978Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  66. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK (for LH Side)
    1. Remove the 2 screws.
    2. Disengage the claws, and remove the 2 No. 1 luggage compartment trim hooks.
    Fig 24: Identifying No. 1 Luggage Compartment Trim Hook And Screws (LH Side)
    G06037979Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  67. REMOVE REAR COMBINATION LIGHT SERVICE COVER LH
    1. Disengage the 4 claws and 2 guides, and remove the rear combination light service cover LH.
    Fig 25: Removing Rear Combination Light Service Cover LH
    G06037980Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  68. REMOVE SIDE DECK TRIM PANEL ASSEMBLY LH
    1. Disengage the 5 claws and 3 clips, and remove the side deck trim panel assembly LH.

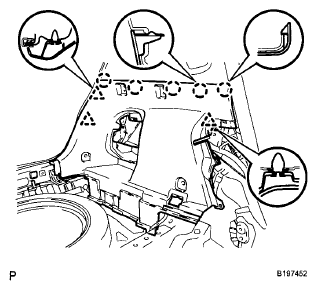

    Fig 26: Identifying Side Deck Trim Panel Assembly LH And Claws With Clips
    G06037981Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  69. REMOVE QUARTER PILLAR GARNISH LH
    1. Disengage the 2 claws, 3 clips and 2 guides, and remove the quarter pillar garnish LH.
    Fig 27: Identifying Quarter Pillar Garnish LH, Claws, Clips And Guides
    G06037982Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  70. REMOVE ROOF SIDE INNER GARNISH LH
    1. Disengage the 7 clips and remove the roof side inner garnish LH.
  71. REMOVE REAR SEATBACK HINGE SUB-ASSEMBLY (for RH Side)

    HINT:

    Use the same procedure for the RH side and LH side.

    Fig 28: Identifying Roof Side Inner Garnish LH And Clips
    G06037983Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  72. REMOVE REAR SEAT SIDE GARNISH RH
    1. Disengage the 4 claws and clip and guide, and remove the rear seat side garnish RH.
  73. DISCONNECT REAR SEAT 3 POINT TYPE BELT ASSEMBLY RH  (See REMOVAL )
  74. REMOVE LUGGAGE HOLD BELT STRIKER ASSEMBLY (for RH Side)

    HINT:

    Use the same procedure for the RH side and LH side.

  75. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK (for RH Side)

    HINT:

    Use the same procedure for the RH side and LH side.

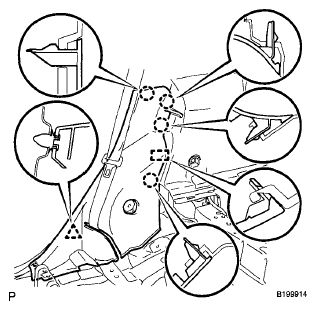

    Fig 29: Identifying Rear Seat Side Garnish RH, Claws, Clip And Guide
    G06037984Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  76. REMOVE REAR COMBINATION LIGHT SERVICE COVER RH (w/ Woofer)
    1. Disengage the 3 claws and 3 guides, and remove the rear combination light service cover RH.
    Fig 30: Removing Rear Combination Light Service Cover RH (W/ Woofer)
    G06037985Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  77. REMOVE SIDE DECK TRIM PANEL ASSEMBLY RH (w/o Woofer)
    1. Disengage the 5 claws and 3 clips, and remove the side deck trim panel assembly RH.
    Fig 31: Identifying Side Deck Trim Panel Assembly RH, Claws And Clips
    G06037986Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

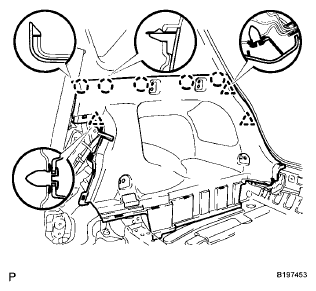

  78. REMOVE SIDE DECK TRIM PANEL ASSEMBLY RH (w/ Woofer)
    1. Disengage the 5 claws and 3 clips, and remove the side deck trim panel assembly RH.
  79. REMOVE QUARTER PILLAR GARNISH RH

    HINT:

    Use the same procedure for the RH side and LH side.

  80. REMOVE ROOF SIDE INNER GARNISH RH

    HINT:

    Use the same procedure for the RH side and LH side.

  81. REMOVE INNER REAR VIEW MIRROR COVER (w/ EC Mirror)  (See REMOVAL )
  82. REMOVE MAP LIGHT ASSEMBLY (w/o Sliding Roof)  (See REMOVAL )

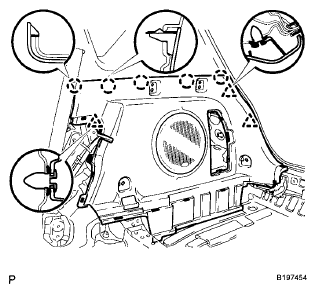

    Fig 32: Identifying Side Deck Trim Panel Assembly RH Claws And Clips
    G06037987Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  83. REMOVE MAP LIGHT ASSEMBLY (w/ Sliding Roof)  (See REMOVAL )
  84. REMOVE NO. 1 ROOM LIGHT ASSEMBLY  (See ROOM LIGHT (FOR CENTER) )
  85. REMOVE NO. 2 ROOM LIGHT ASSEMBLY  (See ROOM LIGHT (FOR REAR) )
  86. REMOVE SUN ROOF OPENING TRIM MOULDING (w/ Sliding Roof)
  87. REMOVE VISOR ASSEMBLY LH
    1. Using a moulding remover, disengage the 4 claws and remove the visor bracket cover.
      Fig 33: Identifying Visor Bracket Cover Claws
      G04982072Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 clips and remove the visor assembly LH.
    3. Remove the 2 clips from the vehicle body.
  88. REMOVE VISOR ASSEMBLY RH

    HINT:

    Use the same procedure for the RH side and LH side.

    Fig 34: Locating Visor Assembly Clip
    G06037989Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  89. REMOVE FRONT ASSIST GRIP SUB-ASSEMBLY (w/o Curtain Shield Airbag)
    1. Using a clip remover, disengage the 4 claws.
      NOTE: Do not forcibly pry the assist grip covers to prevent them from being deformed.

      HINT:

      • Gently pry on the assist grip covers as shown in the illustration to remove them.
      • Tape the clip remover tip before use.
    2. Pull off the 2 assist grip covers by hand.

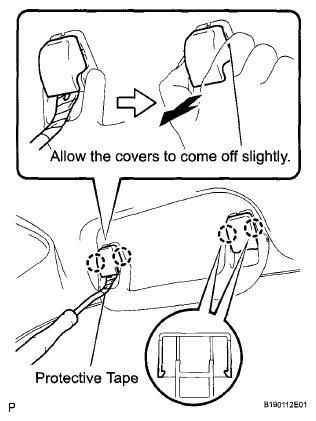

      Fig 35: Prying Front Assist Grip Cover (W/O Curtain Shield Airbag)
      G06037990Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 2 clips and remove the front assist grip sub-assembly.
    4. Remove the 2 clips from the vehicle body.
    Fig 36: Identifying Front Assist Grip Sub-Assembly Clips
    G06037991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  90. REMOVE FRONT ASSIST GRIP SUB-ASSEMBLY (w/ Curtain Shield Airbag)
    1. Using a clip remover, disengage the 4 claws.
      NOTE: Do not forcibly pry the assist grip covers to prevent them from being deformed.

      HINT:

      • Gently pry on the assist grip covers as shown in the illustration to remove them.
      • Tape the clip remover tip before use.
    2. Pull off the 2 assist grip covers by hand.
      Fig 37: Prying Front Assist Grip Cover (W/ Curtain Shield Airbag)
      G05422675Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 2 clips and remove the 2 front assist grip sub-assembly.
    4. Remove the 2 clips from the vehicle body.

      HINT:

      Use the same procedure for the RH side and the LH side.

    Fig 38: Identifying Front Assist Grip Sub-Assembly Clips
    G05422676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  91. REMOVE REAR ASSIST GRIP ASSEMBLY
    1. Using a clip remover, disengage the 4 claws.
      NOTE: Do not forcibly pry the assist grip covers to prevent them from being deformed.

      HINT:

      • Gently pry on the assist grip covers as shown in the illustration to remove them.
      • Tape the clip remover tip before use.
    2. Pull off the 2 assist grip covers by hand.
      Fig 39: Prying Rear Assist Grip Cover
      G05422677Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 2 clips and remove the rear assist grip assembly.
    4. Remove the 2 clips from the vehicle body.

      HINT:

      Use the same procedure for the RH side and LH side.

    Fig 40: Identifying Rear Assist Grip Assembly Clips
    G05422678Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  92. REMOVE VISOR HOLDER
    1. Turn the visor holder approximately 45° and pull it out as shown in the illustration.
    2. Disengage the 2 claws and remove the visor holder.

      HINT:

      Use the same procedure for the RH side and the LH side.

  93. REMOVE ROOF HEADLINING ASSEMBLY (w/o Sliding Roof)
    1. w/ EC Mirror:
      1. Disconnect the inner rear view mirror connector.
    2. Disengage each clamp from the front pillar LH.
    3. Disconnect the No. 1 roof wire connectors from the instrument panel junction block.
      Fig 41: Removing Visor Holder
      G06037996Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disconnect the antenna cord sub-assembly connector and disengage each clamp from the front pillar RH.
    5. Disconnect the antenna cord sub-assembly connectors and remove the bolt from the rear pillar RH.
    6. Remove the 2 clips.

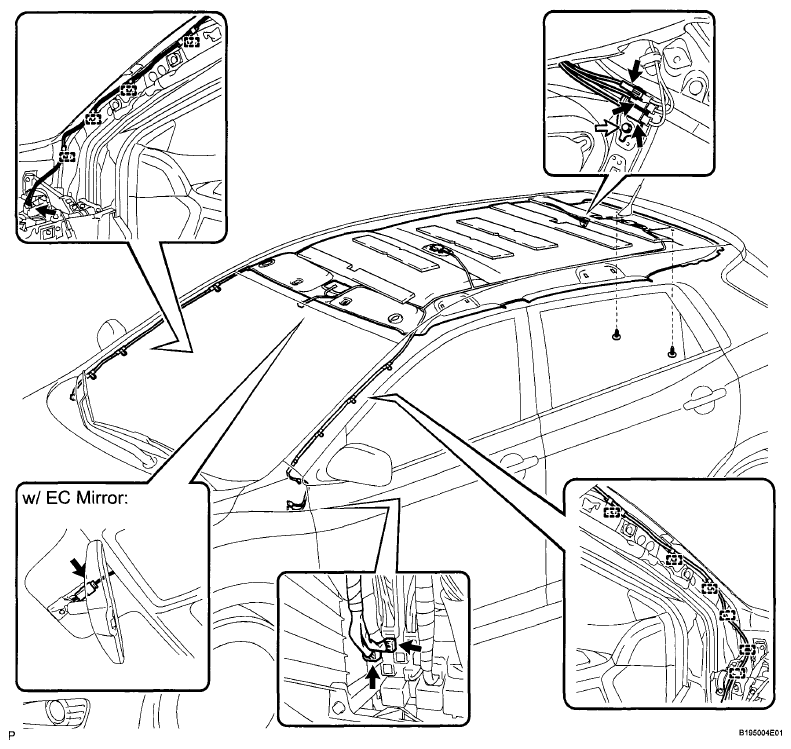

      Fig 42: Locating Antenna Cord Sub-Assembly Connector (W/ EC Mirror)
      G06037997Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Remove the roof headlining assembly from the vehicle through the back door.
    NOTE: Do not damage the roof headlining assembly or body interior.
  94. REMOVE ROOF HEADLINING ASSEMBLY (w/ Sliding Roof)
    1. w/ EC Mirror:
      1. Disconnect the inner rear view mirror connector.
    2. Disengage each clamp from the front pillar LH.
      Fig 43: Removing Roof Headlining Assembly
      G06037998Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the No. 1 roof wire connectors from the instrument panel junction block.
    4. Disconnect the antenna cord sub-assembly connector and disengage each clamp from the front pillar RH.
    5. Disconnect the antenna cord sub-assembly connectors and remove the bolt from the rear pillar RH.
    6. Disconnect the sliding roof drive gear connector.
    7. Remove the 2 clips.

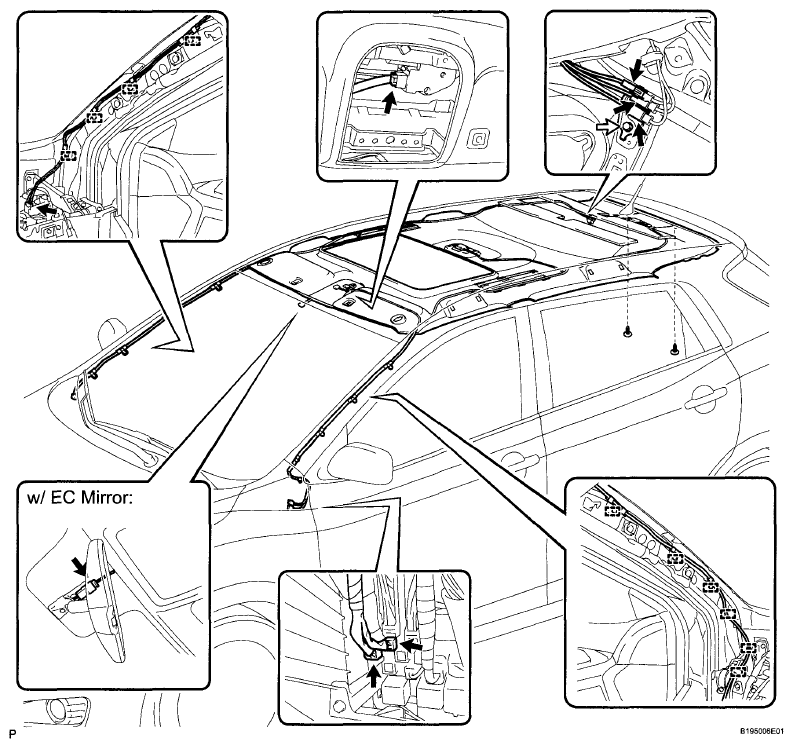

      Fig 44: Locating Antenna Cord Sub-Assembly Connector (W/ EC Mirror)
      G06037999Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Remove the roof headlining assembly from the vehicle through the back door.
    NOTE: Do not damage the roof headlining assembly or body interior.
    Fig 45: Removing Roof Headlining Assembly
    G06038000Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  95. REMOVE NO. 1 ROOF SILENCER PAD (w/o Sliding Roof)
    1. Remove the 3 No. 1 roof silencer pads from the roof headlining assembly.

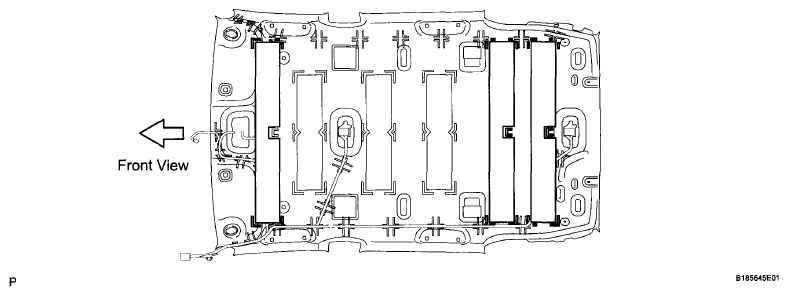

    Fig 46: Identifying No. 1 Roof Silencer Pad (W/O Sliding Roof)
    G06038001Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  96. REMOVE NO. 1 ROOF SILENCER PAD (w/ Sliding Roof)
    1. Remove the 2 No. 1 roof silencer pads from the roof headlining assembly.

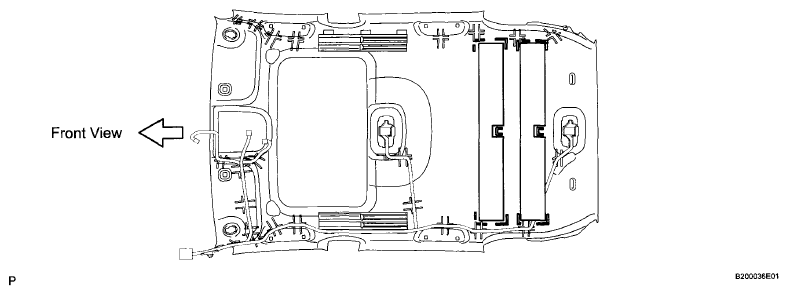

    Fig 47: Identifying No. 1 Roof Silencer Pad (W/ Sliding Roof)
    G06038002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  97. REMOVE NO. 2 ROOF SILENCER PAD (w/o Sliding Roof)
    1. Remove the 3 No. 2 roof silencer pads from the roof headlining assembly.

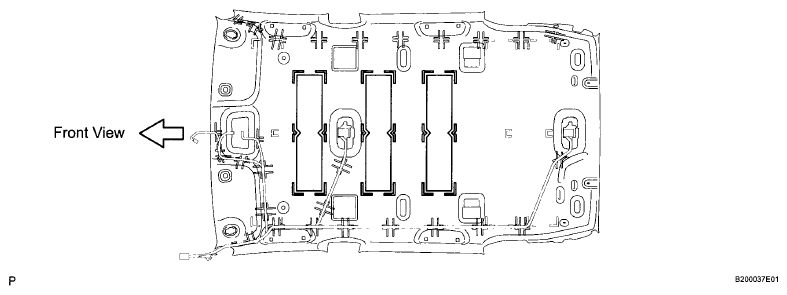

    Fig 48: Identifying No. 2 Roof Silencer Pad (W/O Sliding Roof)
    G06038003Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  98. REMOVE ANTENNA CORD SUB-ASSEMBLY (w/o Sliding Roof)  (See REMOVAL )
  99. REMOVE ANTENNA CORD SUB-ASSEMBLY (w/ Sliding Roof)  (See REMOVAL )
  100. REMOVE NO. 1 ROOF WIRE (w/o Sliding Roof)
    1. Remove the adhesive tape from the roof headlining assembly.
    2. Remove the No. 1 roof wire from the roof headlining assembly.

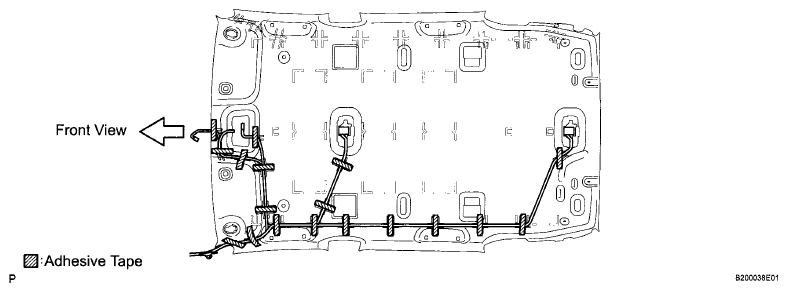

    Fig 49: Identifying Adhesive Tape Applying Area To Roof Headlining Assembly (W/O Sliding Roof)
    G06038004Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  101. REMOVE NO. 1 ROOF WIRE (w/ Sliding Roof)
    1. Remove the adhesive tape from the roof headlining assembly.
    2. Disengage the 3 clamps, and remove the No. 1 roof wire from the roof headlining assembly.

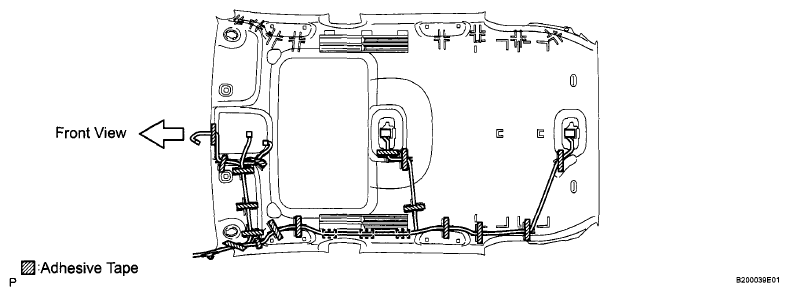

    Fig 50: Identifying Adhesive Tape Applying Area To Roof Headlining Assembly (W/ Sliding Roof)
    G06038005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
scientia non olet · About LEMON Manuals
