Upper Instrument Panel: Disassembly

REMOVE DEFROSTER NOZZLE ASSEMBLY
1. Remove the 3 screws <B>.
2. Disengage the 4 guides and remove the defroster nozzle assembly.
Fig 1: Identifying Defroster Nozzle Assembly And Guides
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE HEATER TO REGISTER DUCT ASSEMBLY
1. Remove the 2 screws <B>.
2. Disengage the 2 guides and remove the heater to register duct assembly.
Fig 2: Identifying Register Duct Assembly And Guides
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 2 INSTRUMENT PANEL CUSHION (a) Remove the No. 2 instrument panel cushion .
NOTE: The No. 2 instrument panel cushion can be reused. However, if the double-sided tape does not have enough adhesion or was torn when the cushion was removed, replace the cushion with a new one.

Fig 3: Identifying No. 2 Instrument Panel Cushion
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 3 INSTRUMENT PANEL CUSHION
1. Remove the No. 3 instrument panel cushion.
NOTE: The No. 3 instrument panel cushion can be reused. However, if the double-sided tape does not have enough adhesion or was torn when the cushion was removed, replace the cushion with a new one.

Fig 4: Identifying No. 3 Instrument Panel Cushion
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 2 INSTRUMENT PANEL WIRE (for 4 Speakers)
1. Disconnect the connector.
2. Disengage the clamp and remove the No. 2 instrument panel wire.
Fig 5: Locating No. 2 Instrument Panel Wire And Connector With Clamp
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 2 INSTRUMENT PANEL WIRE (for 6 Speakers)
1. Disconnect the connector.
2. Disengage the clamp and remove the No. 2 instrument panel wire.
Fig 6: Locating No. 2 Instrument Panel Wire And Connector With Clamp
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 2 INSTRUMENT PANEL WIRE (for 7 Speakers)
1. Disconnect each connector.
2. Disengage the clamp and remove the No. 2 instrument panel wire.
REMOVE NAVIGATION ANTENNA ASSEMBLY (w/ Navigation System) (See REMOVAL )
REMOVE FRONT NO. 3 SPEAKER ASSEMBLY LH (for 7 Speakers) (See REMOVAL )

Fig 7: Locating No. 2 Instrument Panel Wire And Connector With Clamp
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT NO. 3 SPEAKER ASSEMBLY RH (for 7 Speakers)
HINT:

Use the same procedure for the RH side and LH side.
REMOVE FRONT PASSENGER AIRBAG ASSEMBLY (See REMOVAL )
REMOVE NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY LH
1. Disengage the 3 claws and remove the No. 1 instrument panel register assembly.
Fig 8: Identifying No. 1 Instrument Panel Register Assembly LH And Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY RH
1. Disengage the 3 claws and remove the No. 1 instrument panel register assembly.
Fig 9: Identifying No. 1 Instrument Panel Register Assembly RH And Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE AUTOMATIC LIGHT CONTROL SENSOR
1. Disengage the 2 claws and remove the automatic light control sensor.
Fig 10: Removing Automatic Light Control Sensor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY (for 7 Speakers)
1. Disengage the 7 claws and remove the No. 1 instrument panel speaker panel sub-assembly.

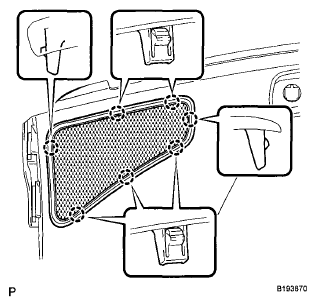

Fig 11: Identifying No. 1 Instrument Panel Speaker Panel Sub-Assembly And Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 2 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY (for 7 Speakers)
1. Disengage the 7 claws and remove the No. 2 instrument panel speaker panel sub-assembly.

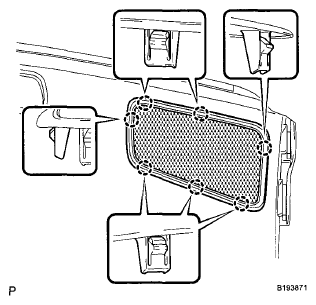

Fig 12: Identifying No. 2 Instrument Panel Speaker Panel Sub-Assembly And Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 1 INSTRUMENT PANEL CUSHION
1. Remove the No. 1 instrument panel cushion.
NOTE: The No. 1 instrument panel cushion can be reused. However, if the double-sided tape does not have enough adhesion or was torn when the cushion was removed, replace the cushion with a new one.

Fig 13: Identifying No. 1 Instrument Panel Cushion
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
