Radio Antenna Cord: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system (See AIRBAG SYSTEM ).
  2. REMOVE LOWER NO. 3 STEERING WHEEL COVER  (See REMOVAL )
  3. REMOVE LOWER NO. 2 STEERING WHEEL COVER  (See REMOVAL )
  4. REMOVE STEERING PAD  (See REMOVAL )
  5. REMOVE STEERING WHEEL ASSEMBLY  (See REMOVAL )
  6. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY  (See REMOVAL )
  7. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY  (See REMOVAL )
  8. REMOVE METER HOOD SUB-ASSEMBLY  (See COMBINATION METER )
  9. REMOVE COMBINATION METER ASSEMBLY  (See COMBINATION METER )
  10. REMOVE FRONT DOOR SCUFF PLATE LH  (See REMOVAL )
  11. REMOVE COWL SIDE TRIM BOARD LH  (See REMOVAL )
  12. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH  (See REMOVAL )
  13. REMOVE FRONT PILLAR GARNISH LH (w/o Curtain Shield Airbag)  (See REMOVAL )
  14. REMOVE FRONT PILLAR GARNISH LH (w/ Curtain Shield Airbag)  (See REMOVAL )
  15. REMOVE FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure for the RH side and LH side.

  16. REMOVE COWL SIDE TRIM BOARD RH

    HINT:

    Use the same procedure for the RH side and LH side.

  17. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH

    HINT:

    Use the same procedure for the RH side and LH side.

  18. REMOVE FRONT PILLAR GARNISH RH (w/o Curtain Shield Airbag)

    HINT:

    Use the same procedure for the RH side and LH side.

  19. REMOVE FRONT PILLAR GARNISH RH (w/ Curtain Shield Airbag)  (See REMOVAL )
  20. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY  (See REMOVAL )
  21. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)  (See REMOVAL )
  22. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transaxle)  (See REMOVAL )
  23. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for Manual Transaxle)  (See REMOVAL )
  24. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for Automatic Transaxle)  (See REMOVAL )
  25. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY  (See REMOVAL )
  26. REMOVE NO. 1 INSTRUMENT PANEL BOX DOOR SUB-ASSEMBLY  (See REMOVAL )
  27. DISCONNECT INSTRUMENT PANEL WIRE ASSEMBLY  (See REMOVAL )
  28. REMOVE UPPER INSTRUMENT PANEL SUB-ASSEMBLY  (See REMOVAL )
  29. REMOVE RADIO WIRE SUB-ASSEMBLY
    1. Disconnect the connector.
    2. Using a screwdriver, disengage the claw and remove the radio wire connector.

      HINT:

      Tape the screwdriver tip before use.

    3. Disconnect the connector and remove the bolt.

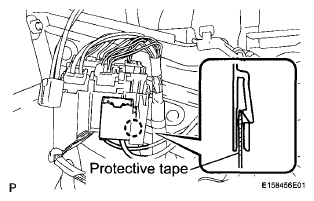

      Fig 1: Identifying Radio Wire Connector Claw
      G06035806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

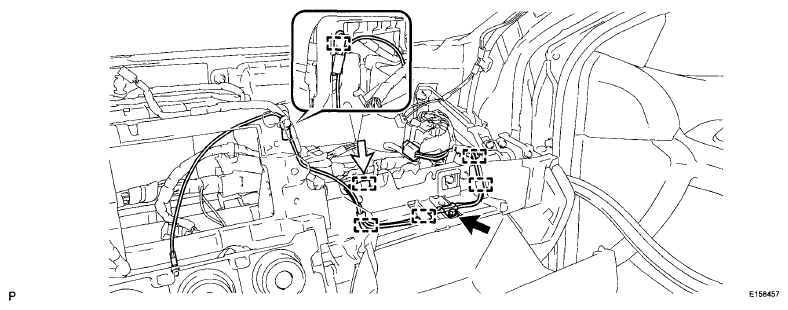

      Fig 2: Locating Radio Wire Clamp
      G06035807Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disengage the 6 clamps and remove the radio wire sub-assembly.
  30. REMOVE REAR DOOR SCUFF PLATE LH  (See REMOVAL )
  31. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH  (See REMOVAL )
  32. REMOVE LAP BELT OUTER ANCHOR COVER (for Driver Side)  (See REMOVAL )
  33. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY LH  (See REMOVAL )
  34. REMOVE LOWER CENTER PILLAR GARNISH LH  (See REMOVAL )
  35. REMOVE UPPER CENTER PILLAR GARNISH LH  (See REMOVAL )
  36. REMOVE REAR DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure for the RH side and LH side.

  37. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH

    HINT:

    Use the same procedure for the RH side and LH side.

  38. REMOVE LAP BELT OUTER ANCHOR COVER (for Front Passenger Side)  (See REMOVAL )
  39. REMOVE LOWER CENTER PILLAR GARNISH RH

    HINT:

    Use the same procedure for the RH side and LH side.

  40. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY RH  (See REMOVAL )
  41. REMOVE UPPER CENTER PILLAR GARNISH RH

    HINT:

    Use the same procedure for the RH side and LH side.

  42. REMOVE REAR SEAT CUSHION ASSEMBLY  (See REMOVAL )
  43. REMOVE REAR SEAT HEADREST ASSEMBLY (for LH Side)
  44. REMOVE REAR SEATBACK OUTER HINGE COVER (for LH Side)  (See REMOVAL )
  45. REMOVE REAR SEATBACK INNER HINGE COVER (for LH Side)  (See REMOVAL )
  46. REMOVE REAR SEATBACK ASSEMBLY LH  (See REMOVAL )
  47. REMOVE REAR SEAT HEADREST ASSEMBLY (for RH Side)
  48. REMOVE REAR SEAT CENTER HEADREST ASSEMBLY
  49. DISCONNECT REAR SEAT CENTER OUTER BELT ASSEMBLY  (See REMOVAL )
  50. REMOVE REAR SEATBACK OUTER HINGE COVER (for RH Side)  (See REMOVAL )
  51. REMOVE REAR SEATBACK INNER HINGE COVER (for RH Side)  (See REMOVAL )
  52. REMOVE REAR SEATBACK ASSEMBLY RH  (See DISASSEMBLY )
  53. REMOVE TONNEAU COVER ASSEMBLY (w/ Tonneau Cover)
  54. REMOVE DECK BOARD ASSEMBLY  (See REMOVAL )
  55. REMOVE NO. 2 DECK BOARD  (See REMOVAL )
  56. REMOVE JACK CARRIER ASSEMBLY
  57. REMOVE JACK ASSEMBLY  (See REMOVAL )
  58. REMOVE DECK FLOOR BOX LH  (See REMOVAL )
  59. REMOVE DECK FLOOR BOX RH  (See REMOVAL )
  60. REMOVE CHILD RESTRAINT SEAT TETHER ANCHOR  (See CHILD RESTRAINT SEAT TETHER ANCHOR )
  61. REMOVE LUGGAGE COMPARTMENT TRAY  (See REMOVAL )
  62. REMOVE REAR DECK TRIM COVER  (See REMOVAL )
  63. REMOVE REAR SEATBACK HINGE SUB-ASSEMBLY (for LH Side)  (See REMOVAL )
  64. REMOVE REAR SEAT SIDE GARNISH LH  (See REMOVAL )
  65. DISCONNECT REAR SEAT 3 POINT TYPE BELT ASSEMBLY LH  (See REMOVAL )
  66. REMOVE LUGGAGE HOLD BELT STRIKER ASSEMBLY (for LH Side)  (See REMOVAL )
  67. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK (for LH Side)  (See REMOVAL )
  68. REMOVE REAR COMBINATION LIGHT SERVICE COVER LH  (See REMOVAL )
  69. REMOVE SIDE DECK TRIM PANEL ASSEMBLY LH  (See REMOVAL )
  70. REMOVE QUARTER PILLAR GARNISH LH  (See REMOVAL )
  71. REMOVE ROOF SIDE INNER GARNISH LH  (See REMOVAL )
  72. REMOVE REAR SEATBACK HINGE SUB-ASSEMBLY (for RH Side)

    HINT:

    Use the same procedure for the RH side and LH side.

  73. REMOVE REAR SEAT SIDE GARNISH RH  (See REMOVAL )
  74. DISCONNECT REAR SEAT 3 POINT TYPE BELT ASSEMBLY RH  (See REMOVAL )
  75. REMOVE LUGGAGE HOLD BELT STRIKER ASSEMBLY (for RH Side)
  76. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK (for RH Side)

    HINT:

    Use the same procedure for the RH side and LH side.

  77. REMOVE REAR COMBINATION LIGHT SERVICE COVER RH (w/ Woofer)  (See REMOVAL )
  78. REMOVE SIDE DECK TRIM PANEL ASSEMBLY RH (w/o Woofer)  (See REMOVAL )
  79. REMOVE SIDE DECK TRIM PANEL ASSEMBLY RH (w/ Woofer)  (See REMOVAL )
  80. REMOVE QUARTER PILLAR GARNISH RH

    HINT:

    Use the same procedure for the RH side and LH side.

  81. REMOVE ROOF SIDE INNER GARNISH RH

    HINT:

    Use the same procedure for the RH side and LH side.

  82. REMOVE INNER REAR VIEW MIRROR COVER (w/ EC Mirror)  (See REMOVAL )
  83. REMOVE MAP LIGHT ASSEMBLY (w/o Sliding Roof)  (See REMOVAL )
  84. REMOVE MAP LIGHT ASSEMBLY (w/ Sliding Roof)  (See REMOVAL )
  85. REMOVE NO. 1 ROOM LIGHT ASSEMBLY  (See ROOM LIGHT (FOR CENTER) )
  86. REMOVE NO. 2 ROOM LIGHT ASSEMBLY  (See ROOM LIGHT (FOR REAR) )
  87. REMOVE SUN ROOF OPENING TRIM MOULDING (w/ Sliding Roof)
  88. REMOVE VISOR ASSEMBLY LH  (See REMOVAL )
  89. REMOVE VISOR ASSEMBLY RH

    HINT:

    Use the same procedure for the RH side and LH side.

  90. REMOVE FRONT ASSIST GRIP SUB-ASSEMBLY (w/o Curtain Shield Airbag)  (See REMOVAL )
  91. REMOVE FRONT ASSIST GRIP SUB-ASSEMBLY (w/ Curtain Shield Airbag)  (See REMOVAL )
  92. REMOVE REAR ASSIST GRIP ASSEMBLY  (See REMOVAL )
  93. REMOVE VISOR HOLDER  (See REMOVAL )
  94. REMOVE ROOF HEADLINING ASSEMBLY (w/o Sliding Roof)  (See REMOVAL )
  95. REMOVE ROOF HEADLINING ASSEMBLY (w/ Sliding Roof)  (See REMOVAL )
  96. REMOVE ANTENNA CORD SUB-ASSEMBLY (w/o Sliding Roof)
    1. Peel the strips of the tape used to secure the antenna cord only to the extent that allows removal of the antenna cord.

      HINT:

      Tape is not available as a supply part. Try to leave as much tape as possible on the roof headlining so that the tape can be reused.

    2. Pull out the antenna cord from the slit and then remove the antenna cord from the roof headlining.

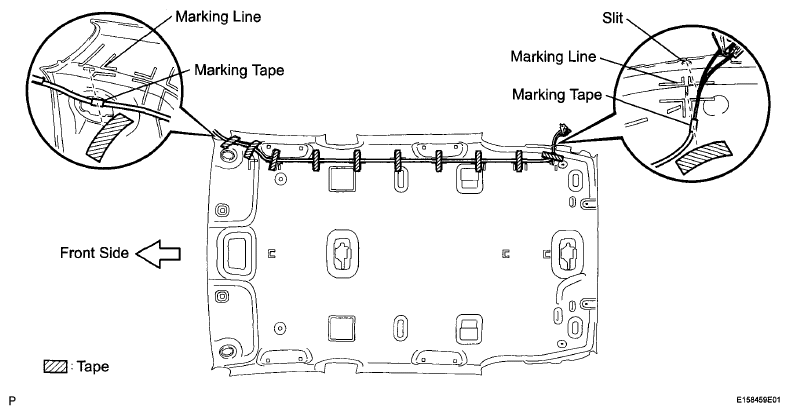

      Fig 3: Identifying Tape Location On Antenna Cord Sub-Assembly (W/O Sliding Roof)
      G06035808Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  97. REMOVE ANTENNA CORD SUB-ASSEMBLY (w/ Sliding Roof)
    1. Peel the strips of the tape used to secure the antenna cord only to the extent that allows removal of the antenna cord.

      HINT:

      Tape is not available as a supply part. Try to leave as much tape as possible on the roof headlining so that the tape can be reused.

    2. Pull out the antenna cord from the slit.
    3. Disengage the 3 clamps and remove the antenna cord from the roof headlining.

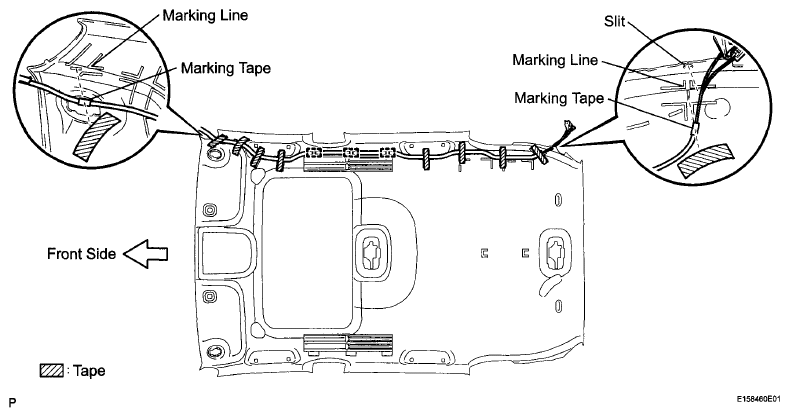

      Fig 4: Identifying Tape Location On Antenna Cord Sub-Assembly (W/ Sliding Roof)
      G06035809Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
