Steering Column Assembly: Installation

  1. INSTALL STEERING INTERMEDIATE SHAFT SUB-ASSEMBLY
    1. Align the matchmarks on the steering intermediate shaft sub-assembly and the steering column assembly.
      Fig 1: Identifying Matchmarks On Steering Intermediate Shaft Sub-Assembly
      G05418199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install a new bolt.

      Torque: 35 N*m (360 kgf*cm, 26 ft.*lbf)

      Fig 2: Identifying Steering Intermediate Shaft Sub-Assembly And Bolt
      G05418198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL STEERING COLUMN ASSEMBLY
    1. Check that the 2 bushings are securely installed to the steering column assembly.

      HINT:

      If the bushings are missing or damaged, replace the steering column assembly with a new one.

      Fig 3: Identifying Steering Column Assembly And Bushings
      G05418221Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the steering column assembly with the bolt and 2 nuts.

      Torque: 25 N*m (255 kgf*cm, 18 ft.*lbf)

    3. Connect the connectors and engage the wire harness clamps to the steering column assembly.

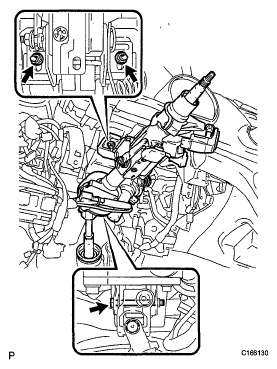

      Fig 4: Locating Bolt And Nuts With Steering Column Assembly
      G05418197Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Connect the connector to the power steering ECU assembly.
      Fig 5: Locating Power Steering ECU Assembly And Connector
      G05418196Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Connect the connector to the power steering ECU assembly.

      HINT:

      As shown in the illustration, securely return the lock lever to its original position to connect the connector.

      Fig 6: Identifying Power Steering ECU Assembly And Connector
      G05418224Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. CONNECT STEERING INTERMEDIATE SHAFT SUB-ASSEMBLY
    1. Align the matchmarks on the steering intermediate shaft sub-assembly and the power steering link assembly.
      Fig 7: Identifying Matchmarks On Steering Intermediate Shaft Sub-Assembly
      G05418194Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install a new bolt.

      Torque: 35 N*m (360 kgf*cm, 26 ft.*lbf)

      Fig 8: Identifying Steering Intermediate Shaft Sub-Assembly And Bolt
      G05418193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the steering intermediate shaft sub-assembly to the steering column hole shield.
      Fig 9: Steering Intermediate Shaft Sub-Assembly To Steering Column Hole Shield
      G05418227Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Tighten the bolt.
      Fig 10: Locating Bolt And Steering Intermediate Shaft Sub-Assembly
      G05418192Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL NO. 1 AIR DUCT SUB-ASSEMBLY
    1. Engage the 2 claws to install the No. 1 air duct sub-assembly.
  5. POSITION FRONT WHEELS STRAIGHT AHEAD
    Fig 11: Identifying No. 1 Air Duct Sub-Assembly And Claws
    G05418191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY
    1. Using pliers, engage the claw. Install the turn signal switch assembly with spiral cable sub-assembly to the steering column assembly.
    2. Connect the connectors to the turn signal switch assembly with spiral cable sub-assembly.
      Fig 12: Identifying Spiral Cable Sub-Assembly With Claws And Clip
      G05418190Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL STEERING COLUMN COVER
    1. Engage the claw to install the upper steering column cover.
      Fig 13: Identifying Upper Steering Column Cover And Claw
      G05418189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 2 claws to install the lower steering column cover.
      Fig 14: Identifying Lower Steering Column Cover And Claws
      G05418188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the 2 screws.

      Torque: 2.0 N*m (20 kgf*cm, 18 in.*lbf)

  8. INSTALL BRAKE PEDAL SUPPORT SUB-ASSEMBLY  (See INSTALLATION )
  9. CONNECT BRAKE MASTER CYLINDER PUSH ROD CLEVIS  (See INSTALLATION )
  10. INSTALL BRAKE PEDAL RETURN SPRING  (See INSTALLATION )
    Fig 15: Identifying Steering Column Cover And Screws
    G05418187Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL STOP LIGHT SWITCH ASSEMBLY  (See INSTALLATION )
  12. INSPECT AND ADJUST BRAKE PEDAL HEIGHT  (See ADJUSTMENT )
  13. INSPECT BRAKE PEDAL FREE PLAY  (See ADJUSTMENT )
  14. INSPECT BRAKE PEDAL RESERVE DISTANCE  (See ADJUSTMENT )
  15. INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY  (See INSTALLATION )
  16. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY (for Manual Air Conditioning System)  (See INSTALLATION )
  17. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY (for Automatic Air Conditioning System)  (See INSTALLATION )
  18. INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH  (See INSTALLATION )
  19. INSTALL FRONT DOOR SCUFF PLATE LH  (See INSTALLATION )
  20. ADJUST SPIRAL CABLE  (See INSTALLATION )
  21. INSTALL STEERING WHEEL ASSEMBLY  (See INSTALLATION  )
  22. INSPECT STEERING WHEEL CENTER POINT
  23. INSTALL STEERING PAD  (See INSTALLATION )
  24. INSTALL LOWER NO. 3 STEERING WHEEL COVER  (See INSTALLATION )
  25. INSTALL LOWER NO. 2 STEERING WHEEL COVER  (See INSTALLATION )
  26. INSTALL FRONT WHEEL LH

    Torque: 103 N*m (1050 kgf*cm, 76 ft.*lbf)

  27. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE:
    • Make sure that the cable has been disconnected from the battery terminal for at least 2 seconds before reconnecting the cable.
    • Connect the cable to the negative (-) battery terminal with the front wheels facing straight ahead.
    • When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See INITIALIZATION ).
  28. INSPECT STEERING PAD  (See INSTALLATION )
  29. INSPECT SRS WARNING LIGHT

    HINT:

    (See DIAGNOSIS SYSTEM )
