Roof Headlining: Installation

INSTALL REAR ROOF SIDE RAIL PAD LH (w/ Sliding Roof)
1. Align the markings on the roof headlining assembly with the rear roof side rail pad LH and install the pad using hot melt glue as shown in the illustration.

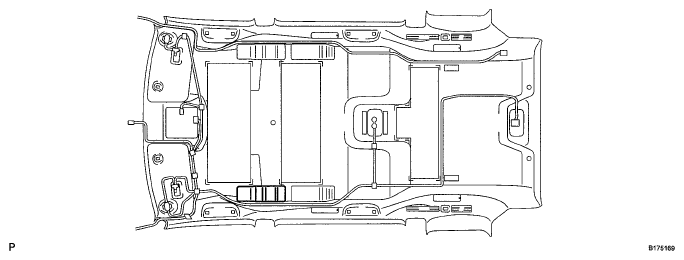

  Fig 1: Identifying Rear Roof Side Rail Pad LH (w/ Sliding Roof)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR ROOF SIDE RAIL PAD RH (w/ Sliding Roof)
1. Align the markings on the roof headlining assembly with the rear roof side rail pad RH and install the pad using hot melt glue as shown in the illustration.

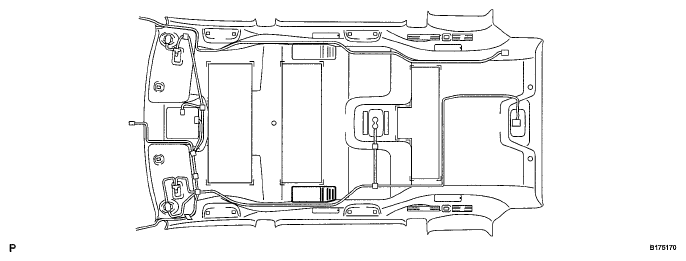

  Fig 2: Identifying Rear Roof Side Rail Pad RH (w/ Sliding Roof)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ROOF SIDE RAIL GARNISH PAD LH (w/ Sliding Roof)
1. Align the markings on the roof headlining assembly with the roof side rail garnish pad LH and install the pad using hot melt glue as shown in the illustration.

  Fig 3: Identifying Roof Side Rail Garnish Pad LH (w/ Sliding Roof)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ROOF SIDE RAIL GARNISH PAD RH (w/ Sliding Roof)
1. Align the markings on the roof headlining assembly with the roof side rail garnish pad RH and install the pad using hot melt glue as shown in the illustration.

  Fig 4: Identifying Roof Side Rail Garnish Pad RH (w/ Sliding Roof)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 2 ANTENNA CORD SUB-ASSEMBLY (See INSTALLATION )
INSTALL NO. 1 ROOF WIRE
1. Peel off the release paper from the double-sided tape.

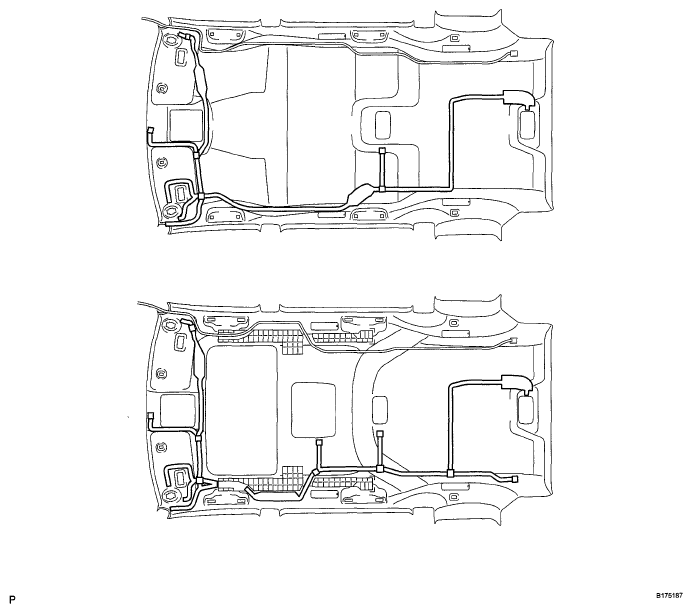

  Fig 5: Identifying No. 1 Roof Wire
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

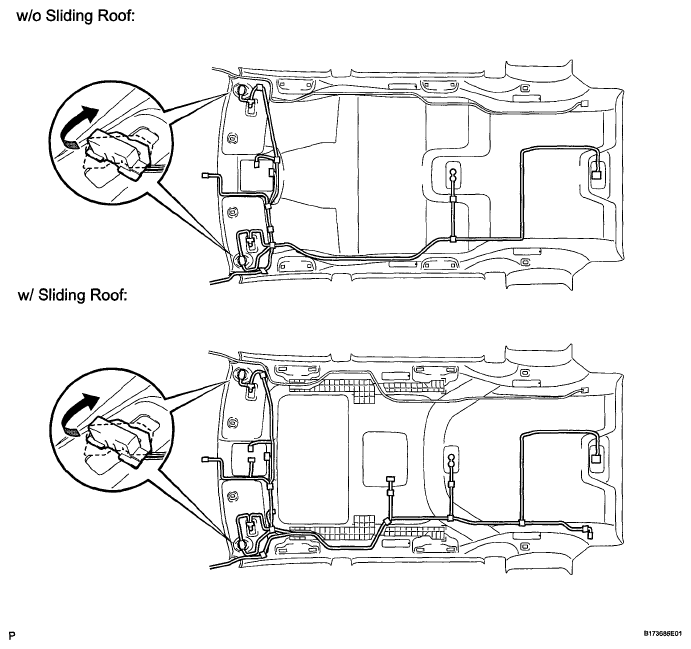

2. w/ Vanity Light:
  1. Turn the visor connectors clockwise approximately 90° to install the connectors to the roof headlining.
3. Attach the No. 1 roof wire along the double-sided tape so that the marking surface of the wire harness faces downward.
  NOTE: Securely attach the No. 1 roof wire. Failure to do so may cause abnormal noise.

  Fig 6: Attaching No. 1 Roof Wire Marking Surface Of Wire Harness
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 AIR OUTLET REGISTER ASSEMBLY (w/ Rear Air Conditioning System)
1. Engage the 10 claws and install the No. 1 air outlet register assembly into the roof side air outlet register.
INSTALL NO. 2 ROOF HEADLINING SUPPORT
1. Align the markings on the roof headlining assembly with the No. 2 roof headlining supports and install the headlining supports using hot melt glue as shown in the illustration.

  Fig 7: Identifying No. 1 Air Outlet Register Assembly And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

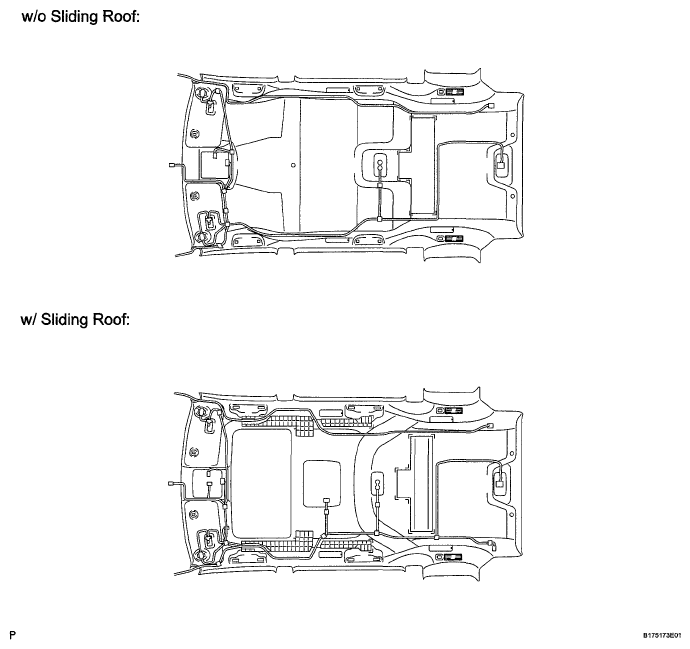

  Fig 8: Identifying No. 2 Roof Headlining Supports
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

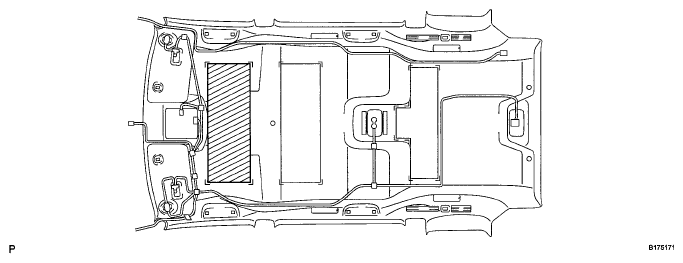

INSTALL NO. 4 ROOF SILENCER PAD
1. Align the markings on the roof headlining assembly with the No. 4 roof silencer pad and install the silencer pad using hot melt glue as shown in the illustration.

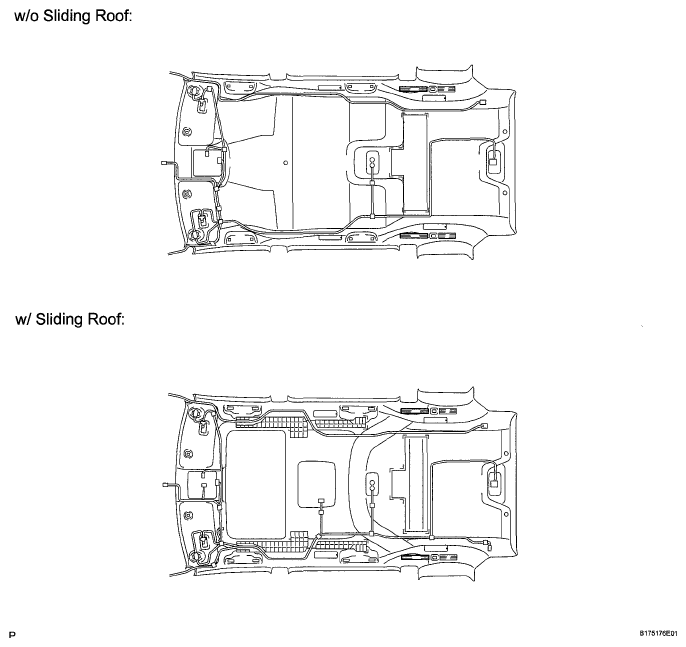

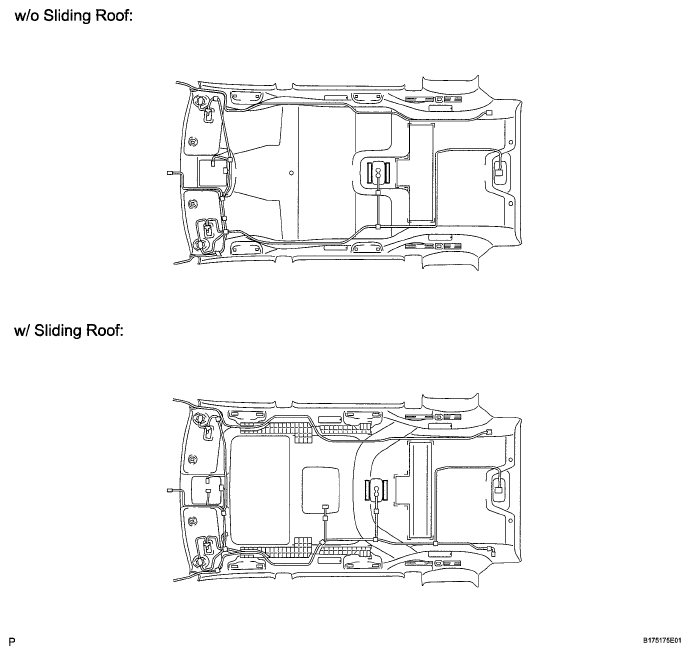

  Fig 9: Identifying Markings On Roof Headlining Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

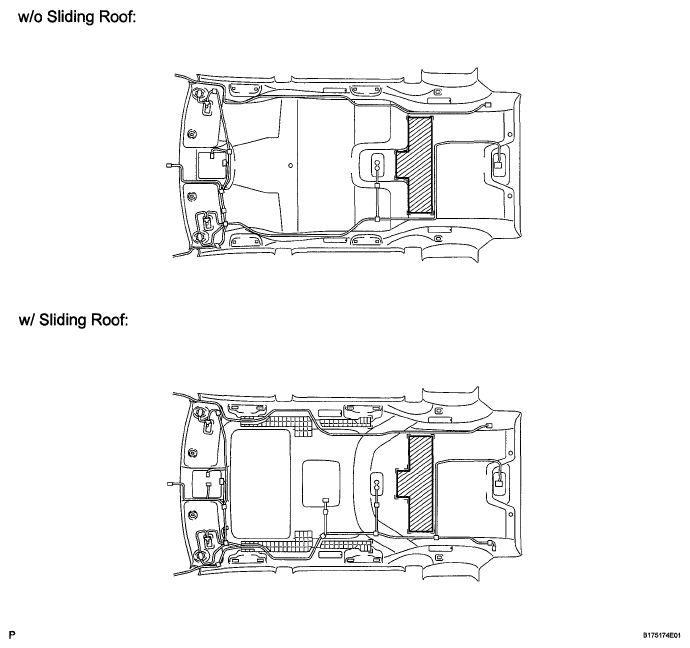

INSTALL NO. 2 ROOF HEADLINING PAD
1. Align the markings on the roof headlining assembly with the 2 No. 2 roof headlining pads and install the pads using hot melt glue as shown in the illustration.

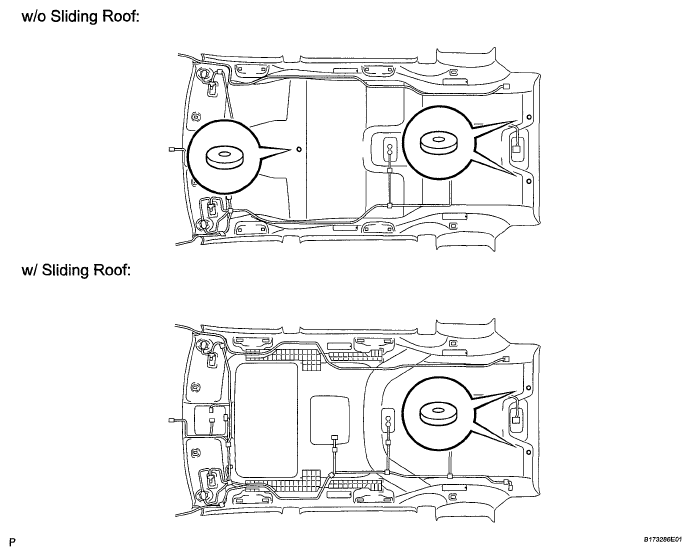

  Fig 10: Identifying No. 2 Roof Headlining Pads
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ROOF HEADLINING PAD
1. Align the markings on the roof headlining assembly with the 2 roof headlining pads and install the pads using hot melt glue as shown in the illustration.

  Fig 11: Identifying Roof Headlining Pads
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 ROOF HEADLINING SUPPORT
1. Align the markings on the roof headlining assembly with the 2 No. 1 roof headlining supports and install the headlining supports using hot melt glue as shown in the illustration.

  Fig 12: Identifying No. 1 Roof Headlining Supports
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 2 ROOF SILENCER PAD (w/o Sliding Roof)
1. Align the markings on the roof headlining assembly with the No. 2 roof silencer pad and install the silencer pad using hot melt glue as shown in the illustration.

  Fig 13: Identifying No. 2 Roof Silencer Pad (w/o Sliding Roof)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 ROOF SILENCER PAD (w/o Sliding Roof)
1. Align the markings on the roof headlining assembly with the No. 1 roof silencer pad and install the silencer pad using hot melt glue as shown in the illustration.

  Fig 14: Identifying No. 1 Roof Silencer Pad (w/o Sliding Roof)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR NO. 2 SIDE RAIL SPACER LH (w/o Sliding Roof)
1. Align the markings on the roof headlining assembly with the rear No. 2 side rail spacer LH and install the spacer using hot melt glue as shown in the illustration.

  Fig 15: Identifying Rear No. 2 Side Rail Spacer LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR NO. 2 SIDE RAIL SPACER RH (w/o Sliding Roof)
HINT:

Use the same procedure for the RH side and the LH side.
INSTALL FRONT SIDE RAIL SPACER LH (w/o Sliding Roof)
1. Align the markings on the roof headlining assembly with the front side rail spacer LH and install the spacer using hot melt glue as shown in the illustration.

  Fig 16: Identifying Front Side Rail Spacer LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT SIDE RAIL SPACER RH (w/o Sliding Roof)
HINT:

Use the same procedure for the RH side and the LH side.
INSTALL VANITY LIGHT ASSEMBLY (w/ Vanity Light)
1. Engage the 3 claws and install the vanity light assembly.

  Fig 17: Identifying Vanity Light Assembly And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

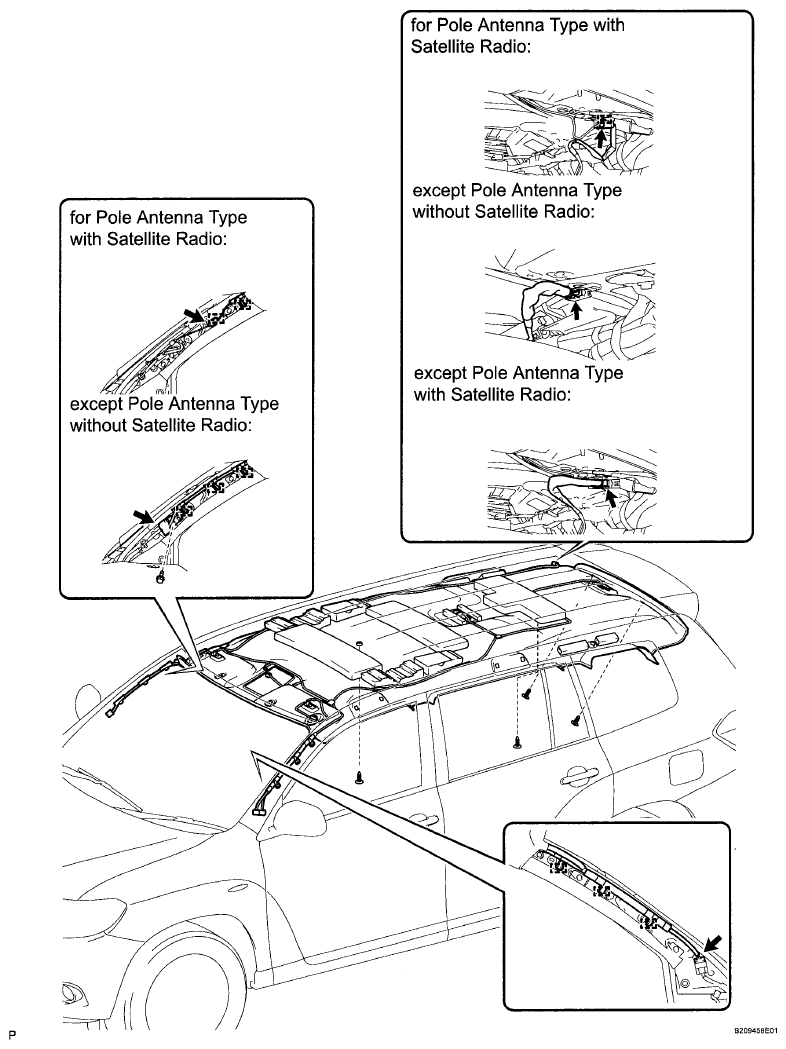

INSTALL ROOF HEADLINING ASSEMBLY (w/o Sliding Roof)
1. Pull the roof headlining assembly into the vehicle through the back door.
  NOTE: Do not damage the roof headlining assembly or body interior.

  Fig 18: Pulling Roof Headlining Assembly Into Back Door
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the 4 clips.

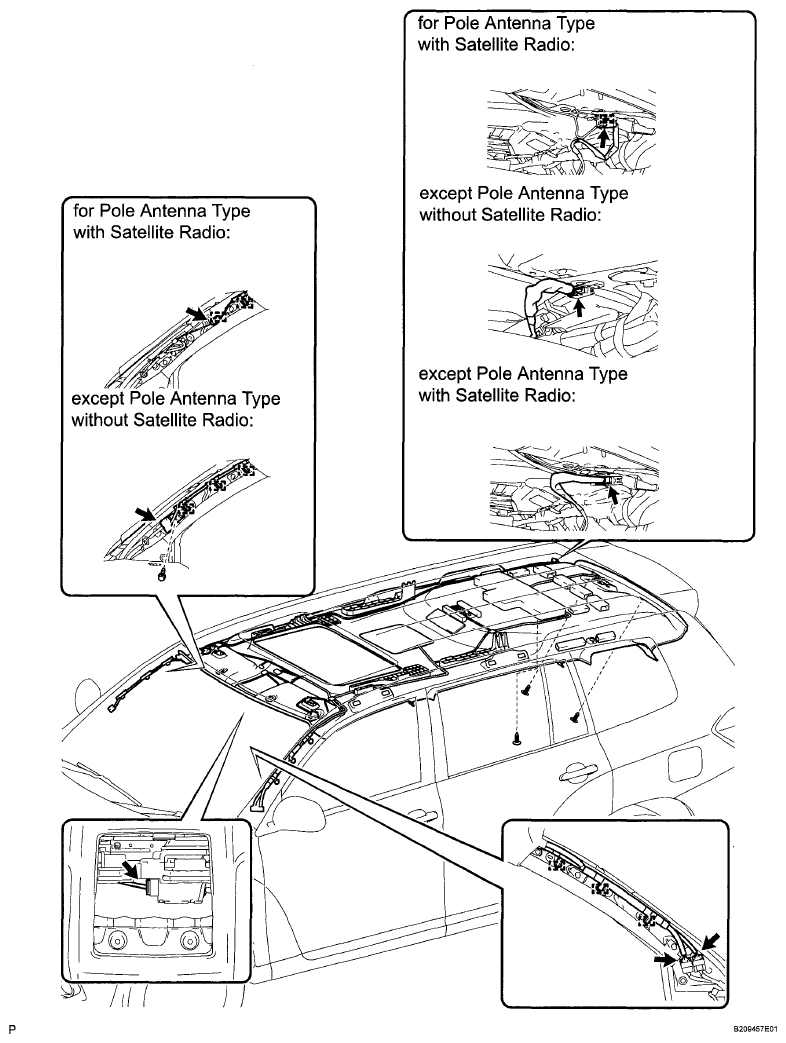

3. for Pole Antenna Type with Satellite Radio:
  1. Connect the No. 2 antenna cord sub-assembly connector and engage the clamp to the rear pillar RH.
4. except Pole Antenna Type without Satellite Radio:
  1. Connect the No. 2 antenna cord sub-assembly connector to the rear pillar RH.
5. except Pole Antenna Type with Satellite Radio:
  1. Connect the No. 2 antenna cord sub-assembly connectors and engage the clamp to the rear pillar RH.
6. for Pole Antenna Type with Satellite Radio:
  1. Connect the No. 2 antenna cord sub-assembly connector and engage the 2 clamps to the front pillar RH.
7. except Pole Antenna without Satellite Radio:
  1. Connect the No. 2 antenna cord sub-assembly connector and engage the 3 clamps to the front pillar RH.
  2. Install the No. 2 antenna cord sub-assembly to the front pillar RH with the bolt.
8. Connect the No. 1 roof wire connector and engage the 3 clamps to the front pillar LH.

  Fig 19: Identifying Roof Handling Clips Location
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: After installation, make sure that the back door weatherstrip does not interfere with the roof headlining assembly.
INSTALL ROOF HEADLINING ASSEMBLY (w/ Sliding Roof)
1. Pull the roof headlining assembly into the vehicle through the back door.
  NOTE: Do not damage the roof headlining assembly or body interior.

  Fig 20: Pulling Roof Headlining Assembly Into Back Door
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the 3 clips.
3. for Pole Antenna Type with Satellite Radio:
  1. Connect the No. 2 antenna cord sub-assembly connector and engage the clamp to the rear pillar RH.
4. except Pole Antenna Type without Satellite Radio:
  1. Connect the No. 2 antenna cord sub-assembly connector to the rear pillar RH.
5. except Pole Antenna Type with Satellite Radio:
  1. Connect the No. 2 antenna cord sub-assembly connectors and engage the clamp to the rear pillar RH.
6. for Pole Antenna Type with Satellite Radio:
  1. Connect the No. 2 antenna cord sub-assembly connector and engage the 2 clamps to the front pillar RH.
7. except Pole Antenna without Satellite Radio:
  1. Connect the No. 2 antenna cord sub-assembly connector and engage the 3 clamps to the front pillar RH.
  2. Install the No. 2 antenna cord sub-assembly to the front pillar RH with the bolt.
8. w/ Rear Seat Entertainment System:
  1. Connect the No. 1 roof wire connector to the rear pillar LH.
9. Connect the No. 1 roof wire connectors and engage the 3 clamps to the front pillar LH.

  Fig 21: Identifying Roof Handling Clip Location
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: After installation, make sure that the back door weatherstrip does not interfere with the roof headlining assembly.
INSTALL VISOR HOLDER
1. Engage the 2 claws.
2. Push in the visor holder as shown in the illustration.
  HINT:

  Use the same procedure for the RH side and the LH side.

  Fig 22: Pushing Visor Holder
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SUN ROOF OPENING TRIM MOULDING (w/ Sliding Roof)
1. Align the joining point of the moulding with the notch of the roof headlining assembly, and install the sun roof opening trim moulding.
  NOTE: After installation, check that the corners fit correctly.

  Fig 23: Aligning Joining Point Of Moulding
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ROOF HEADLINING TRIM CLIP STOPPER
1. Install the roof headlining trim clip stopper with the bolt.
2. Engage the 3 claws.
  HINT:

  Use the same procedure for the RH side and the LH side.

  Fig 24: Installing Roof Headlining Trim Clip Stopper With Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ASSIST GRIP ASSEMBLY (w/ Sliding Roof)
1. Assemble the assist grip assembly as shown in the illustration.

  Fig 25: Identifying Assist Grip Assembly (w/ Sliding Roof)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the assist grip assembly.
  HINT:

  Use the same procedure for the other 4 assist grips.

  Fig 26: Identifying Assist Grip Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR ASSIST GRIP SUB-ASSEMBLY (w/o Sliding Roof)
1. Assemble the rear assist grip sub-assembly as shown in the illustration.

  Fig 27: Identifying Assist Grip Assembly (w/o Sliding Roof)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the rear assist grip sub-assembly.
  HINT:

  Use the same procedure for the RH side and the LH side.

  Fig 28: Identifying Rear Assist Grip Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT ASSIST GRIP SUB-ASSEMBLY (w/o Sliding Roof)
1. Assemble the front assist grip sub-assembly as shown in the illustration.

  Fig 29: Identifying Front Assist Grip Sub-Assembly (w/o Sliding Roof)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the front assist grip sub-assembly.
  HINT:

  Use the same procedure for the RH side and the LH side.
INSTALL TELEVISION DISPLAY ASSEMBLY (w/ Rear Seat Entertainment System) (See INSTALLATION )
INSTALL TELEVISION BASE (w/ Rear Seat Entertainment System) (See INSTALLATION )

Fig 30: Identifying Front Assist Grip Sub-Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 2 ROOM LIGHT ASSEMBLY
1. Engage the 4 claws and install the lens cover.

  Fig 31: Identifying Lens Cover And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the 4 claws and install the room light switch base to the No. 2 room light assembly.

  Fig 32: Identifying Room Light Switch Assembly And Claw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Engage the 4 claws and install the No. 2 room light assembly.

  Fig 33: Identifying No. 2 Room Light Assembly And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 ROOM LIGHT ASSEMBLY (for Standard)
1. Engage the 4 claws and install the lens cover.

  Fig 34: Identifying Lens Cover And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the 4 claws and install the room light switch base to the No. 1 room light assembly.

  Fig 35: Identifying Room Light Switch Assembly And Claw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Engage the 4 claws and install the No. 1 room light assembly.

  Fig 36: Identifying No. 1 Room Light Assembly And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 ROOM LIGHT ASSEMBLY (for Independent Type)
1. Engage the 4 claws and install the lens cover.

  Fig 37: Identifying No. 1 Room Light Assembly And Claws (For Independent Type)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the 8 claws and install the room light switch base to the No. 1 room light assembly.

  Fig 38: Identifying No. 1 Room Light Assembly And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Engage the 4 claws and install the No. 1 room light assembly.
INSTALL INNER REAR VIEW MIRROR STAY HOLDER COVER (w/ EC Mirror) (See INSTALLATION )

Fig 39: Identifying No. 1 Room Light Assembly And Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL VISOR ASSEMBLY LH
1. Install the visor assembly LH with the 2 screws.

  Fig 40: Identifying Visor Bracket Cover (For LH Side)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL VISOR BRACKET COVER (for LH Side)
1. Engage the 4 claws and install the visor bracket cover.
INSTALL VISOR ASSEMBLY RH
HINT:

Use the same procedure for the RH side and the LH side.

Fig 41: Identifying Visor Bracket Cover And Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL VISOR BRACKET COVER (for RH Side)
HINT:

Use the same procedure for the RH side and the LH side.
INSTALL ROOF CONSOLE BOX ASSEMBLY
1. Connect the connector.
2. Engage the 3 guides, 2 clips, fastener, and install the roof console box assembly.

  Fig 42: Installing Roof Console Box Assembly, Clips, Guide And Fastener
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ROOF SIDE INNER GARNISH ASSEMBLY LH (w/o Power Back Door)
1. w/ Rear No. 2 Seat:
  1. Engage the 2 guides and 5 clips.
  2. Install the roof side inner garnish assembly LH with the bolt.

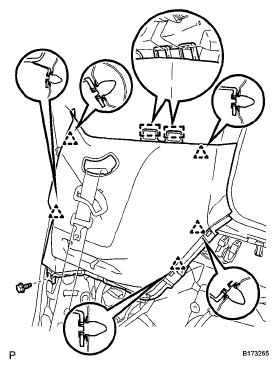

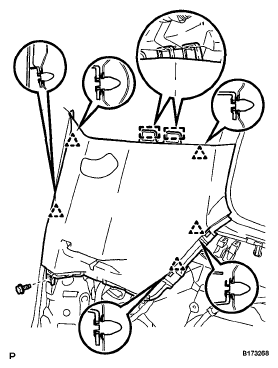

    Fig 43: Identifying Roof Side Inner Garnish Assembly LH, Clips And Guide
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Engage the 2 guides and the 2 claws, and install the No. 2 seat outer belt guide.

    Fig 44: Identifying No. 2 Seat Outer Belt Guide And Claws
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. w/o Rear No. 2 Seat:
  1. Engage the 2 guides and 5 clips.
  2. Install the roof side inner garnish assembly LH with the bolt.

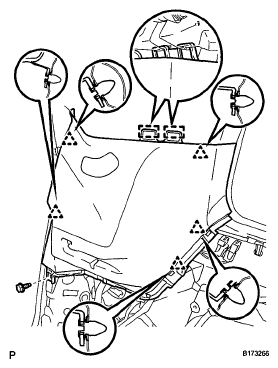

    Fig 45: Identifying Roof Side Inner Garnish Assembly LH, Clip And Guide
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ROOF SIDE INNER GARNISH ASSEMBLY LH (w/ Power Back Door)
1. w/ Rear No. 2 Seat:
  1. Engage the 2 guides and 5 clips.
  2. Install the roof side inner garnish assembly LH with the bolt.

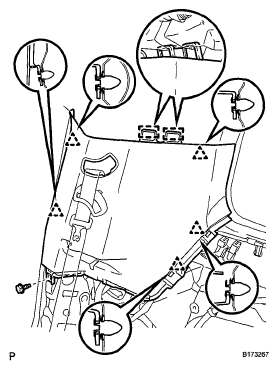

    Fig 46: Identifying Roof Side Inner Garnish Assembly LH, Clips And Guide
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Engage the 2 guides and the 2 claws, and install the No. 2 seat outer belt guide.

    Fig 47: Identifying No. 2 Seat Outer Belt Guide And Claws
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. w/o Rear No. 2 Seat:
  1. Engage the 2 guides and 5 clips.
  2. Install the roof side inner garnish assembly LH with the bolt.

    Fig 48: Identifying Roof Side Inner Garnish Assembly LH, Clips And Guide
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL QUARTER PILLAR GARNISH LH
1. Engage the 2 guides and the 2 clips, and install the quarter pillar garnish LH as shown in the illustration.

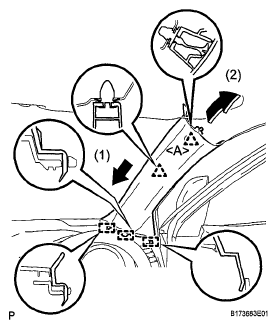

  Fig 49: Identifying Quarter Pillar Garnish LH, Guides And Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the 2 guides and the 2 claws, and install the No. 1 seat outer belt guide.
INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH
1. Engage the 4 clips and the 7 claws.
2. Install the 2 clips.

  Fig 50: Identifying No. 1 Seat Outer Belt Guide And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the deck trim side panel assembly LH with the 2 bolts.

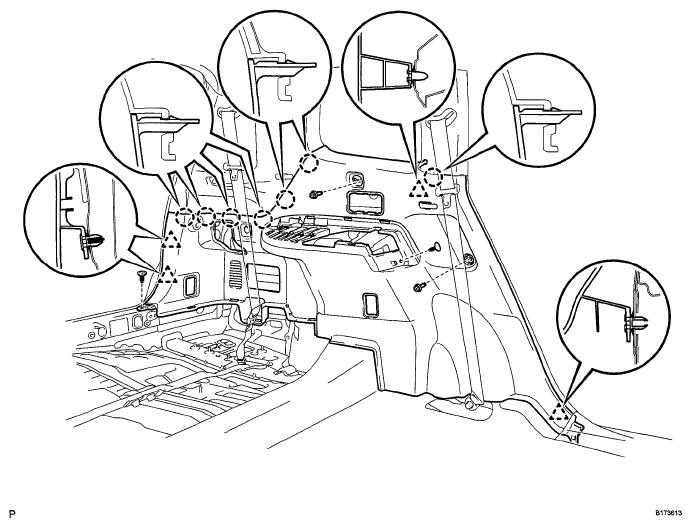

  Fig 51: Identifying Deck Trim Side Panel Assembly LH, Clips And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT REAR NO. 1 SEAT OUTER BELT ASSEMBLY LH (See INSTALLATION )
INSTALL FRONT DECK SIDE TRIM COVER LH
1. Engage the 4 claws and install the 2 front deck side trim covers LH.

  Fig 52: Identifying Front Deck Side Trim Covers LH And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 2 DECK SIDE TRIM HOOK
1. Install the No. 2 deck side trim hook with the screw.

  Fig 53: Identifying No. 2 Deck Side Trim Hook And Screw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ROPE HOOK ASSEMBLY (for LH Side)
1. for Front Side:
  1. Install the rope hook assembly with the bolt.
    Torque: 6.5 N*m (66 kgf*cm, 58 in.*lbf)
  2. Engage the 2 claws.

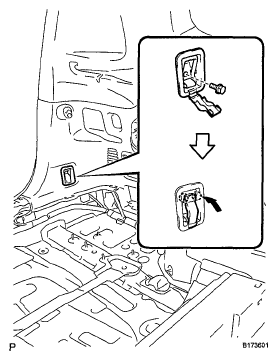

    Fig 54: Identifying Rope Hook Assembly And Bolt
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. for Rear Side:
  1. Install the rope hook assembly with the bolt.
    Torque: 6.5 N*m (66 kgf*cm, 58 in.*lbf)
  2. Engage the 2 claws.

    Fig 55: Identifying Rope Hook Assembly And Bolt
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR DECK TRIM COVER (w/o Remote Folding Function)
1. Engage the 10 claws and install the rear deck trim cover.

  Fig 56: Identifying Rear Deck Trim Cover And Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL RECLINING REMOTE CONTROL LEVER BEZEL LH (w/ Remote Folding Function)
1. Engage the 5 claws and install the reclining remote control bezel LH.
INSTALL REAR POWER OUTLET SOCKET COVER (See INSTALLATION )
INSTALL REAR POWER POINT SOCKET ASSEMBLY (See INSTALLATION )

Fig 57: Identifying Reclining Remote Control Bezel LH And Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR COMBINATION LIGHT SERVICE COVER LH
1. Engage the 2 guides and 6 claws, and install the rear combination light service cover LH.

  Fig 58: Identifying Rear Combination Light Service Cover LH, Guides And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SIDE TRIM COVER LH (w/o Rear Seat Entertainment System)
1. Engage the 10 claws and install the side trim cover LH.

  Fig 59: Identifying Side Trim Cover LH And Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL POWER OUTLET SOCKET BEZEL (w/ Rear Seat Entertainment System)
1. Connect each connector.

  Fig 60: Identifying Power Outlet Socket Bezel (w/ Rear Seat Entertainment System)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the 4 claws and install the power outlet socket bezel.

  Fig 61: Identifying Power Outlet Socket Bezel And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL DECK SIDE TRIM LH
1. Engage the 3 guides and 4 claws as shown in the illustration.

  Fig 62: Identifying Deck Side Trim LH, Guide And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the deck side trim LH with the bolt.

  Fig 63: Identifying Deck Side Trim LH And Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL DECK SIDE TRIM COVER LH
1. Engage the 2 claws and install the deck side trim cover LH.
INSTALL ROOF SIDE INNER GARNISH ASSEMBLY RH (w/o Rear No. 2 Seat)
HINT:

Use the same procedure for the RH side and the LH side.

Fig 64: Identifying Deck Side Trim Cover LH And Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ROOF SIDE INNER GARNISH ASSEMBLY RH (w/ Rear No. 2 Seat)
HINT:

Use the same procedure for the RH side and the LH side.
INSTALL QUARTER PILLAR GARNISH RH
HINT:

Use the same procedure for the RH side and the LH side.
INSTALL DECK TRIM SIDE PANEL ASSEMBLY RH
1. Engage the 4 clips and the 7 claws.
2. Install the 2 clips.
3. Install the deck trim side panel assembly RH with the 3 bolts.

  Fig 65: Identifying Deck Trim Side Panel Assembly RH, Clips And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT REAR NO. 1 SEAT OUTER BELT ASSEMBLY RH
HINT:

Use the same procedure for the RH side and the LH side.
INSTALL FRONT DECK SIDE TRIM COVER RH
HINT:

Use the same procedure for the RH side and the LH side.
INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM HOOK
HINT:

Use the same procedure for the No. 1 luggage compartment trim hook and the No. 2 deck side trim hook.
INSTALL ROPE HOOK ASSEMBLY (for RH Side)
HINT:

Use the same procedure for the RH side and the LH side.
INSTALL REAR COMBINATION LIGHT SERVICE COVER RH
1. Engage the 2 guides and 6 claws, and install the rear combination light service cover RH.
INSTALL REAR ROOM TEMPERATURE SENSOR (w/ Rear Automatic Air Conditioning System) (See INSPECTION )

Fig 66: Identifying Rear Combination Light Service Cover RH, Claw And Guides
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SIDE TRIM COVER RH (w/o Rear Automatic Air Conditioning System)
1. Engage the 4 claws, and install the side trim cover RH.
INSTALL DECK SIDE TRIM RH
HINT:

Use the same procedure for the RH side and the LH side.
INSTALL DECK SIDE TRIM COVER RH
HINT:

Use the same procedure for the RH side and the LH side.

Fig 67: Identifying Side Trim Cover RH And Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SEAT SIDE GARNISH CAP (w/o Rear Air Conditioning System)
1. Engage the guide and the 8 claws, and install the rear seat side garnish cap.

  Fig 68: Identifying Rear Seat Side Garnish Cap, Claws And Guide
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SEAT SIDE GARNISH CAP (w/ Rear Air Conditioning System)
1. Engage the guide and the 6 claws.
2. Install the rear seat side garnish cap with the screw.

  Fig 69: Identifying Rear Seat Side Garnish Cap, Screw And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR FLOOR FINISH PLATE
1. Engage the 4 clips and the 4 claws, and install the rear floor finish plate.

  Fig 70: Identifying Rear Floor Finish Plate, Clips And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR NO. 2 SEAT ASSEMBLY (w/ Rear No. 2 Seat) (See INSTALLATION )
CONNECT REAR SEAT LAP TYPE BELT ASSEMBLY LH (w/ Rear No. 2 Seat) (See INSTALLATION )
CONNECT REAR SEAT LAP TYPE BELT ASSEMBLY RH (w/ Rear No. 2 Seat) (See INSTALLATION )
INSTALL REAR NO. 2 SEAT INNER BELT ASSEMBLY (w/ Rear No. 2 Seat) (See INSTALLATION )
INSTALL NO. 1 DECK BOARD (w/o Rear No. 2 Seat)
1. Engage the 3 clips and install the rear floor board spacer to the No. 1 deck board.

  Fig 71: Identifying No. 1 Deck Board And Clips (w/o Rear No. 2 Seat)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 DECK BOARD (w/ Rear No. 2 Seat)
1. Engage the 5 clips and install the deck floor box to the No. 1 deck board.

  Fig 72: Identifying No. 1 Deck Board And Clips (w/ Rear No. 2 Seat)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

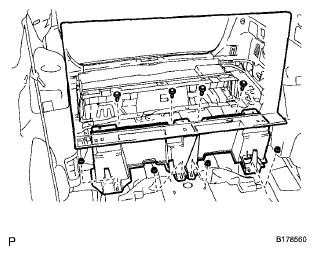

INSTALL REAR DECK FLOOR BOX (w/o Rear No. 2 Seat)
1. Install the rear deck floor box with the 2 nuts.

  Fig 73: Identifying Deck Floor Box And Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL DECK FLOOR BOARD ASSEMBLY (w/o Rear No. 2 Seat)
1. Install the rear deck floor board assembly with the 4 nuts and 4 bolts.

  Fig 74: Identifying Deck Floor Board Assembly And Nuts (w/o Rear No.2 Seat)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR MAT
1. Install the rear mat.

  Fig 75: Identifying Rear Mat
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL DECK FLOOR BOARD ASSEMBLY (w/ Rear No. 2 Seat)
1. Install the 2 nuts and the deck floor board assembly.
2. Engage the 3 claws.
INSTALL DECK SIDE TRIM BOX LH

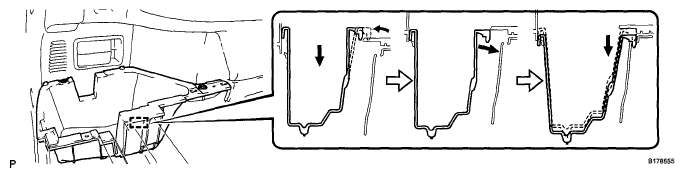

1. Install the deck side trim box LH as shown in the illustration.

  Fig 76: Identifying Deck Floor Board Assembly And Nuts (w/ Rear No.2 Seat)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

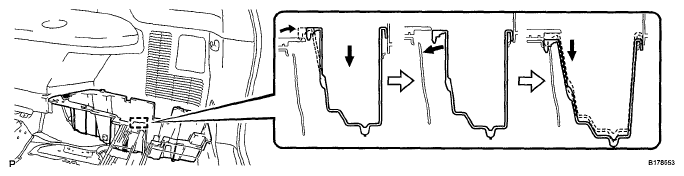

  Fig 77: Identifying Deck Side Trim Box LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the 2 deck side trim clip and the clips.

  Fig 78: Identifying Deck Side Trim Clip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SEAT SIDE COVER LH (w/ Rear No. 2 Seat)
1. Engage the 2 clips and install the rear seat side cover LH.
INSTALL DECK SIDE TRIM BOX RH
1. Install the deck side trim box RH as shown in the illustration.

  Fig 79: Identifying Rear Seat Side Cover LH And Clips (w/ Rear No. 2 Seat)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Fig 80: Identifying Deck Side Trim Box RH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the 2 deck side trim clip and the clip.

  Fig 81: Identifying Deck Side Trim Clip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL JACK CARRIER ASSEMBLY
1. Engage the 3 claws, and install the jack carrier assembly.

  Fig 82: Identifying Jack Carrier Assembly And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL JACK ASSEMBLY
1. Install the jack assembly.

  Fig 83: Identifying Jack Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL JACK CARRIER CUSHION
1. Install the jack carrier cushion.
INSTALL JACK CARRIER SUPPORT

Fig 84: Identifying Jack Carrier Cushion
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SEAT SIDE COVER RH (w/ Rear No. 2 Seat)
1. Engage the 2 clips and install the rear seat side cover RH.

  Fig 85: Identifying Rear Seat Side Cover RH And Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR NO. 1 FLOOR BOARD (w/o Rear No. 2 Seat)
1. Engage the 3 guides and 3 clips and install the rear No. 1 floor board.
INSTALL TONNEAU COVER ASSEMBLY (w/ Tonneau Cover)
1. Install the tonneau cover assembly.

  Fig 86: Identifying Rear No. 1 Floor Board, Clips And Guide
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 2 DECK BOARD SUB-ASSEMBLY
1. Engage the 2 guides and install the No. 2 deck board sub-assembly.

  Fig 87: Identifying No. 2 Deck Board Sub-Assembly And Guides
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 3 DECK BOARD SUB-ASSEMBLY
1. Engage the 2 guides and install the No. 3 deck board sub-assembly.

  Fig 88: Identifying No. 3 Deck Board Sub-Assembly And Guides
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL DECK BOARD ASSEMBLY
1. Install the deck board sub-assembly.

  Fig 89: Identifying Deck Board Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CENTER PILLAR GARNISH LH
1. Engage the 2 guides and the clip.
2. Install the center pillar garnish LH with the clip and screw.
CONNECT FRONT SEAT OUTER BELT ASSEMBLY LH (See INSTALLATION )

Fig 90: Identifying Center Pillar Garnish LH, Clip And Guide
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL LOWER CENTER PILLAR GARNISH LH
1. Engage the 2 claws and the 2 clips, and install the lower center pillar garnish LH.

  Fig 91: Identifying Lower Center Pillar Garnish LH, Claws And Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH
1. Align the alignment mark (red) on the weatherstrip with the protruding portion on the body indicated by the arrow in the illustration, and install the rear door opening trim weatherstrip LH.
  NOTE: After installation, check that the corners fit correctly.

  Fig 92: Identifying Alignment Mark On Weatherstrip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR DOOR SCUFF PLATE LH
1. Engage the guide, 3 clips and 5 claws, and install the rear door scuff plate LH.

  Fig 93: Identifying Rear Door Scuff Plate LH And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT PILLAR GARNISH LH
1. Remove the protective cover.

  Fig 94: Identifying Curtain Shield Airbag Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install a new clip < A > on the front pillar garnish LH.
3. Engage the 3 guides and 2 clips, then install the front pillar garnish LH.

  Fig 95: Identifying Front Pillar Garnish LH, Clip And Guides
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH
1. Align the alignment mark (blue) on the weatherstrip with the protruding portion on the body indicated by the arrow in the illustration, and install the front door opening trim weatherstrip LH.
  NOTE: After installation, check that the corners fit correctly.

  Fig 96: Identifying Alignment Mark On Weatherstrip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH
1. Engage the claw and clip, install the cowl side trim sub-assembly LH.
2. Install the clip.

  Fig 97: Identifying Cowl Side Trim Sub-Assembly LH, Clip And Claw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT DOOR SCUFF PLATE LH
1. Engage the guide and the 8 claws, and install the front door scuff plate LH.
INSTALL CENTER PILLAR GARNISH RH
HINT:

Use the same procedure for the RH side and the LH side.

Fig 98: Identifying Front Door Scuff Plate LH, Claws And Guide
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT FRONT SEAT OUTER BELT ASSEMBLY RH
HINT:

Use the same procedure for the RH side and the LH side.
INSTALL LOWER CENTER PILLAR GARNISH RH
HINT:

Use the same procedure for the RH side and the LH side.
INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP RH
1. Align the alignment mark (green) on the weatherstrip with the protruding portion on the body indicated by the arrow in the illustration, and install the rear door opening trim weatherstrip RH.
  NOTE: After installation, check that the corners fit correctly.
INSTALL REAR DOOR SCUFF PLATE RH
HINT:

Use the same procedure for the RH side and the LH side.

Fig 99: Identifying Rear Door Scuff Plate RH
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT PILLAR GARNISH RH
1. Remove the protective cover.

  Fig 100: Identifying Curtain Shield Airbag Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install a new clip < A > on the front pillar garnish RH.
3. Engage the 3 guides and 2 clips, then install the front pillar garnish RH.

  Fig 101: Identifying Front Pillar Garnish RH, Clip And Guides
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH
1. Align the alignment mark (pink) on the weatherstrip with the protruding portion on the body indicated by the arrow in the illustration, and install the front door opening trim weatherstrip RH.
  NOTE: After installation, check that the corners fit correctly.

  Fig 102: Identifying Alignment Mark On Weatherstrip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH
HINT:

Use the same procedure for the RH side and the LH side.
INSTALL FRONT DOOR SCUFF PLATE RH
HINT:

Use the same procedure for the RH side and the LH side.
INSTALL REAR NO. 1 SEAT ASSEMBLY LH (See INSTALLATION )
CONNECT REAR NO. 1 SEAT LOCK CABLE ASSEMBLY LH (w/ Remote Folding Function) (See INSTALLATION )
INSPECT REAR SEAT SLIDE ADJUSTER LOCK (for LH Side) (See INSTALLATION )
INSTALL REAR SEAT LEG SIDE COVER LH (See INSTALLATION )
INSTALL REAR INNER TRACK BRACKET COVER LH (See INSTALLATION )
INSTALL REAR OUTER TRACK BRACKET COVER LH (See INSTALLATION )
INSTALL REAR SEAT TRACK BRACKET COVER LH (See INSTALLATION )
INSTALL REAR SEAT HEADREST ASSEMBLY (for LH Side) (See INSTALLATION )
INSTALL REAR CENTER SEAT ASSEMBLY
INSTALL REAR NO. 1 SEAT ASSEMBLY RH (See INSTALLATION )
CONNECT REAR NO. 1 SEAT LOCK CABLE ASSEMBLY RH (w/ Remote Folding Function)
HINT:

Use the same procedure for the RH side and the LH side.
INSPECT REAR SEAT SLIDE ADJUSTER LOCK (for RH Side) (See INSTALLATION )
INSTALL REAR SEAT LEG SIDE COVER RH (See INSTALLATION )
INSTALL REAR INNER TRACK BRACKET COVER RH (See INSTALLATION )
INSTALL REAR OUTER TRACK BRACKET COVER RH (See INSTALLATION )
INSTALL REAR SEAT TRACK BRACKET COVER RH (See INSTALLATION )
INSTALL REAR SEAT HEADREST ASSEMBLY (for RH Side) (See INSTALLATION )
