Roof Headlining: Removal

  1. REMOVE REAR CENTER SEAT ASSEMBLY
  2. REMOVE REAR SEAT HEADREST ASSEMBLY (for LH Side)  (See REMOVAL )
  3. REMOVE REAR SEAT TRACK BRACKET COVER LH  (See REMOVAL )
  4. REMOVE REAR OUTER TRACK BRACKET COVER LH  (See REMOVAL )
  5. REMOVE REAR INNER TRACK BRACKET COVER LH  (See REMOVAL )
  6. REMOVE REAR SEAT LEG SIDE COVER LH  (See REMOVAL )
  7. DISCONNECT REAR NO. 1 SEAT LOCK CABLE ASSEMBLY LH (w/ Remote Folding Function)  (See REMOVAL )
  8. REMOVE REAR NO. 1 SEAT ASSEMBLY LH  (See DISASSEMBLY )
  9. REMOVE REAR SEAT HEADREST ASSEMBLY (for RH Side)  (See REMOVAL )
  10. REMOVE REAR SEAT TRACK BRACKET COVER RH  (See REMOVAL )
  11. REMOVE REAR OUTER TRACK BRACKET COVER RH  (See REMOVAL )
  12. REMOVE REAR INNER TRACK BRACKET COVER RH  (See REMOVAL )
  13. REMOVE REAR SEAT LEG SIDE COVER RH  (See REMOVAL )
  14. DISCONNECT REAR NO. 1 SEAT LOCK CABLE ASSEMBLY RH (w/ Remote Folding Function)

    HINT:

    Use the same procedure for the RH side and the LH side.

  15. REMOVE REAR NO. 1 SEAT ASSEMBLY RH  (See DISASSEMBLY )
  16. REMOVE FRONT DOOR SCUFF PLATE LH
    1. Disengage the 8 claws and guide, and remove the front door scuff plate LH.
      Fig 1: Identifying Front Door Scuff Plate LH, Claws And Guide
      G05422605Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH
    1. Remove the clip.
    2. Disengage the clip and claw, and remove the cowl side trim sub-assembly LH.
      Fig 2: Identifying Cowl Side Trim Sub-Assembly LH, Clip And Claw
      G05422606Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH
    1. Remove the front door opening trim weatherstrip LH.
      Fig 3: Identifying Front Door Opening Trim Weatherstrip LH
      G05422607Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE FRONT PILLAR GARNISH LH
    1. Pull the upper part of the garnish toward the inside of the cabin and disengage the 2 clips.
    2. Cut off the clip < A >.
    3. Disengage the 3 guides and remove the front pillar garnish LH.
    4. Remove the clip < A >.

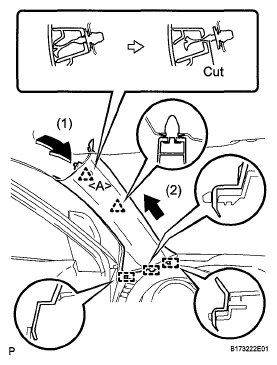

      Fig 4: Identifying Front Pillar Garnish LH And Clip
      G05422608Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Protect the curtain shield airbag assembly.
      1. Cover the airbag with a 700 mm (27.56 in.) x 120 mm (4.72 in.) cloth or piece of nylon and fix the ends of the cover with tape, as shown in the illustration.
        NOTE: Cover the curtain shield airbag with a protective cover as soon as the front pillar garnish is removed.

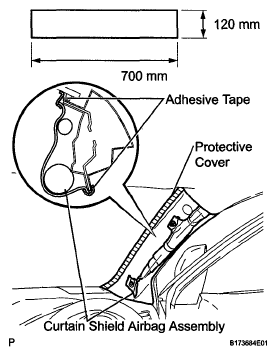

        Fig 5: Identifying Curtain Shield Airbag Assembly
        G05422609Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE REAR DOOR SCUFF PLATE LH
    1. Disengage the 5 claws, 3 clips and guide, and remove the rear door scuff plate LH.
      Fig 6: Identifying Rear Door Scuff Plate LH And Claws
      G05422610Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH
    1. Remove the rear door opening trim weatherstrip LH.
      Fig 7: Identifying Rear Door Opening Trim Weatherstrip LH
      G05422611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE LOWER CENTER PILLAR GARNISH LH
    1. Disengage the 2 claws and 2 clips, and remove the lower center pillar garnish LH.
  23. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY LH  (See REMOVAL )
    Fig 8: Removing Lower Center Pillar Garnish LH, Claws And Clips
    G05422612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. REMOVE CENTER PILLAR GARNISH LH
    1. Remove the screw and clip.
    2. Disengage the 2 guides and clip, and remove the center pillar garnish LH.
  25. REMOVE FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure for the RH side and the LH side.

    Fig 9: Identifying Center Pillar Garnish LH, Clip And Guide
    G05422613Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. REMOVE COWL SIDE TRIM SUB-ASSEMBLY RH

    HINT:

    Use the same procedure for the RH side and the LH side.

  27. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH

    HINT:

    Use the same procedure for the RH side and the LH side.

  28. REMOVE FRONT PILLAR GARNISH RH
    1. Pull the upper part of the garnish toward the inside of the cabin and disengage the 2 clips.
    2. Cut off the clip < A >.
    3. Disengage the 3 guides and remove the front pillar garnish RH.
    4. Remove the clip < A >.
      Fig 10: Removing Front Pillar Garnish RH Clips, Claws And Guide
      G05422614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Protect the curtain shield airbag assembly.
      1. Cover the airbag with a 700 mm (27.56 in.) x 120 mm (4.72 in.) cloth or piece of nylon and fix the ends of the cover with tape, as shown in the illustration.
        NOTE: Cover the curtain shield airbag with a protective cover as soon as the front pillar garnish is removed.
        Fig 11: Identifying Curtain Shield Airbag Assembly
        G05422615Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. REMOVE REAR DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure for the RH side and the LH side.

  30. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH

    HINT:

    Use the same procedure for the RH side and the LH side.

  31. REMOVE LOWER CENTER PILLAR GARNISH RH

    HINT:

    Use the same procedure for the RH side and the LH side.

  32. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY RH

    HINT:

    Use the same procedure for the RH side and the LH side.

  33. REMOVE CENTER PILLAR GARNISH RH

    HINT:

    Use the same procedure for the RH side and the LH side.

  34. REMOVE DECK BOARD ASSEMBLY
    1. Remove the deck board assembly.
      Fig 12: Identifying Deck Board Assembly
      G05422616Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. REMOVE NO. 3 DECK BOARD SUB-ASSEMBLY
    1. Disengage the 2 guides and remove the No. 3 deck board sub-assembly.
      Fig 13: Identifying No. 3 Deck Board Sub-Assembly And Guides
      G05422617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  36. REMOVE NO. 2 DECK BOARD SUB-ASSEMBLY
    1. Disengage the 2 guides and remove the No. 2 deck board sub-assembly.
  37. REMOVE TONNEAU COVER ASSEMBLY (w/ Tonneau Cover)
    1. Remove the tonneau cover assembly.
      Fig 14: Identifying No. 2 Deck Board Sub-Assembly And Guides
      G05422618Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  38. REMOVE REAR NO. 1 FLOOR BOARD (w/o Rear No. 2 Seat)
    1. Disengage the 3 clips and the 3 guides, and remove the rear No. 1 floor board.
      Fig 15: Identifying Rear No. 1 Floor Board, Clips And Guide
      G05422619Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  39. REMOVE REAR SEAT SIDE COVER LH (w/ Rear No. 2 Seat)
    1. Disengage the 2 clips and remove the rear seat side cover LH.
      Fig 16: Identifying Rear Seat Side Cover LH And Clips
      G05422620Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  40. REMOVE DECK SIDE TRIM BOX LH
    1. Remove the 2 deck side trim clips and clip.
    2. Remove the deck side trim box LH as shown in the illustration.
      Fig 17: Identifying Deck Side Trim Clips
      G05422621Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

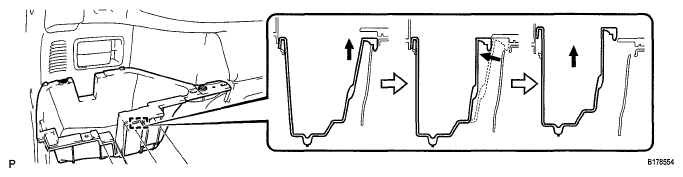

      Fig 18: Identifying Deck Side Trim Box LH
      G05422622Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  41. REMOVE REAR SEAT SIDE COVER RH (w/ Rear No. 2 Seat)
    1. Disengage the 2 clips and remove the rear seat side cover RH.
  42. REMOVE JACK CARRIER SUPPORT
    Fig 19: Identifying Rear Seat Side Cover RH And Clips
    G05422623Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  43. REMOVE JACK CARRIER CUSHION
    1. Remove the jack carrier cushion.
      Fig 20: Identifying Jack Carrier Cushion
      G05422624Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  44. REMOVE JACK ASSEMBLY
    1. Remove the jack assembly.
      Fig 21: Identifying Jack Assembly
      G05422625Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  45. REMOVE JACK CARRIER ASSEMBLY
    1. Using a screwdriver, disengage the 3 claws and remove the jack carrier assembly.
      Fig 22: Identifying Jack Carrier Assembly And Claw
      G05422626Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  46. REMOVE DECK SIDE TRIM BOX RH
    1. Remove the 2 deck side trim clips and clip.
    2. Remove the deck side trim box RH as shown in the illustration.
      Fig 23: Identifying Deck Side Trim Clip
      G05422627Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

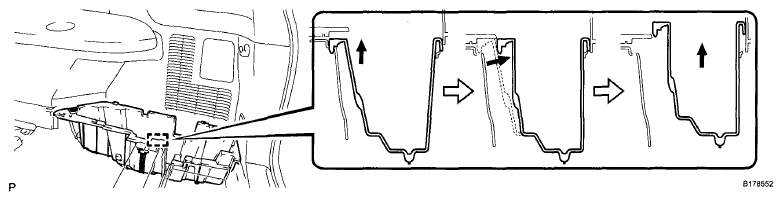

      Fig 24: Identifying Deck Side Trim Clip Location
      G06114570Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  47. REMOVE DECK FLOOR BOARD ASSEMBLY (w/o Rear No. 2 Seat)
    1. Remove the 4 bolts and 4 nuts.
    2. Remove the deck floor board assembly.
      Fig 25: Identifying Deck Floor Board Assembly, Bolts And Nuts
      G05422629Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  48. REMOVE REAR MAT
    1. Remove the rear mat.
      Fig 26: Identifying Rear Mat
      G05422630Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  49. REMOVE DECK FLOOR BOARD ASSEMBLY (w/ Rear No. 2 Seat)
    1. Disengage the 3 claws.
    2. Remove the 2 nuts and the deck floor board assembly.
      Fig 27: Identifying Deck Floor Board Assembly, Claw And Nut
      G05422631Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  50. REMOVE REAR DECK FLOOR BOX (w/o Rear No. 2 Seat)
    1. Remove the 2 nuts and the deck floor box.
      Fig 28: Identifying Deck Floor Box And Nuts
      G05422632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  51. REMOVE NO. 1 DECK BOARD (w/o Rear No. 2 Seat)
    1. Disengage the 3 clips and remove the No. 1 deck board from the rear floor board spacer.
      Fig 29: Identifying Rear Floor Board Spacer And Clips
      G05422633Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  52. REMOVE NO. 1 DECK BOARD (w/ Rear No. 2 Seat)
    1. Disengage the 5 clips and remove the No. 1 deck board from the rear deck floor box.
  53. REMOVE REAR NO. 2 SEAT INNER BELT ASSEMBLY (w/ Rear No. 2 Seat)  (See INSTALLATION )
  54. DISCONNECT REAR SEAT LAP TYPE BELT ASSEMBLY LH (w/ Rear No. 2 Seat)  (See REMOVAL )
  55. DISCONNECT REAR SEAT LAP TYPE BELT ASSEMBLY RH (w/ Rear No. 2 Seat)  (See REMOVAL )
  56. REMOVE REAR NO. 2 SEAT ASSEMBLY (w/ Rear No. 2 Seat)  (See DISASSEMBLY )
    Fig 30: Identifying Rear Deck Floor Box And Clips
    G05422634Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  57. REMOVE REAR FLOOR FINISH PLATE
    1. Disengage the 4 clips and the 4 claws, and remove the rear floor finish plate.
      Fig 31: Identifying Rear Floor Finish Plate, Clips And Claws
      G05422635Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  58. REMOVE DECK SIDE TRIM COVER LH
    1. Using a screwdriver, disengage the 2 claws and remove the deck side trim cover LH.

      HINT:

      Tape the screwdriver tip before use.

      Fig 32: Removing Deck Side Trim Cover LH
      G05422636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  59. REMOVE DECK SIDE TRIM LH
    1. Remove the bolt.
      Fig 33: Identifying Deck Side Trim LH And Bolt
      G06114579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 4 claws and the 3 guides, and remove the deck side trim LH as shown in the illustration.
      Fig 34: Identifying Deck Side Trim LH, Claw And Guide
      G05422638Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  60. REMOVE SIDE TRIM COVER LH (w/o Rear Seat Entertainment System)
    1. Disengage the 10 claws and remove the side trim cover LH.
      Fig 35: Identifying Side Trim Cover LH And Clips
      G05422639Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  61. REMOVE POWER OUTLET SOCKET BEZEL (w/ Rear Seat Entertainment System)
    1. Disengage the 4 claws.
      Fig 36: Identifying Power Outlet Socket Bezel And Claw
      G05422640Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect each connector and remove the power outlet socket bezel.
      Fig 37: Identifying Power Outlet Socket Bezel
      G05422641Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  62. REMOVE REAR COMBINATION LIGHT SERVICE COVER LH
    1. Using a screwdriver, disengage the 6 claws and 2 guides, and remove the rear combination light service cover LH.

      HINT:

      Tape the screwdriver tip before use.

  63. REMOVE REAR POWER POINT SOCKET ASSEMBLY  (See REAR POWER OUTLET SOCKET )
  64. REMOVE REAR POWER OUTLET SOCKET COVER  (See INSTALLATION )
    Fig 38: Removing Rear Combination Light Service Cover LH, Claws And Guide
    G05422642Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  65. REMOVE REAR DECK TRIM COVER (w/o Remote Folding Function)
    1. Disengage the 10 claws and remove the rear deck trim cover.
      Fig 39: Identifying Rear Deck Trim Cover And Clips
      G05422643Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  66. REMOVE RECLINING REMOTE CONTROL LEVER BEZEL LH (w/ Remote Folding Function)
    1. Disengage the 5 claws and remove the reclining remote control bezel LH.
      Fig 40: Identifying Reclining Remote Control Bezel LH And Claws
      G05422644Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  67. REMOVE ROPE HOOK ASSEMBLY (for LH Side)
    1. for Front Side:
      1. Using a screwdriver, disengage the 2 claws.

        HINT:

        Tape the screwdriver tip before use.

      2. Remove the bolt and the rope hook assembly.
        Fig 41: Removing Rope Hook Assembly (For Front Side)
        G05422645Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. for Rear Side:
      1. Using a screwdriver, disengage the 2 claws.

        HINT:

        Tape the screwdriver tip before use.

      2. Remove the bolt and rope hook assembly.
        Fig 42: Removing Rope Hook Assembly (For Rear Side)
        G05422646Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  68. REMOVE NO. 2 DECK SIDE TRIM HOOK
    1. Remove the screw and the No. 2 deck side trim hook.
      Fig 43: Identifying No. 2 Deck Side Trim Hook And Screw
      G05422647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  69. REMOVE FRONT DECK SIDE TRIM COVER LH
    1. Using a screwdriver, disengage the 4 claws and remove the 2 front deck side trim covers LH.

      HINT:

      Tape the screwdriver tip before use.

  70. DISCONNECT REAR NO. 1 SEAT OUTER BELT ASSEMBLY LH  (See REMOVAL )
  71. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH
    1. Remove the 2 bolts.
    2. Remove the 2 clips.
      Fig 44: Removing Front Deck Side Trim Cover LH And Claws
      G05422648Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 7 claws and 4 clips, and remove the deck trim side panel assembly LH.
      Fig 45: Identifying Deck Trim Side Panel Assembly LH, Clips And Claws
      G05422649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  72. REMOVE QUARTER PILLAR GARNISH LH
    1. Disengage the 2 claws and 2 guides, and remove the No. 1 seat outer belt guide.
      Fig 46: Identifying No. 1 Seat Outer Belt Guide And Claws
      G05422650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 clips and the 2 guides, and remove the quarter pillar garnish LH.
      Fig 47: Identifying Quarter Pillar Garnish LH, Clip And Guide
      G05422651Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  73. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY LH (w/o Power Back Door)
    1. w/o Rear No. 2 Seat:
      1. Remove the bolt.
      2. Disengage the 5 clips and 2 guides, and remove the roof side inner garnish assembly LH.
        Fig 48: Identifying Roof Side Inner Garnish Assembly LH, Clip And Guide
        G05422652Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Rear No. 2 Seat:
      1. Disengage the 2 claws and 2 guides, and remove the rear No. 2 seat outer belt guide.
        Fig 49: Identifying Rear No. 2 Seat Outer Belt Guide And Claws
        G05422653Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Remove the bolt.
      3. Disengage the 5 clips and 2 guides, and remove the roof side inner garnish assembly LH.
        Fig 50: Identifying Roof Side Inner Garnish Assembly LH, Clips And Guide
        G05422654Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  74. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY LH (w/ Power Back Door)
    1. w/o Rear No. 2 Seat:
      1. Remove the bolt.
      2. Disengage the 5 clips and 2 guides, and remove the roof side inner garnish assembly LH.
        Fig 51: Identifying Roof Side Inner Garnish Assembly LH, Clips And Guide
        G05422655Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Rear No. 2 Seat:
      1. Disengage the 2 claws and 2 guides, and remove the rear No. 2 seat outer belt guide.
        Fig 52: Identifying Rear No. 2 Seat Outer Belt Guide And Claws
        G05422653Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Remove the bolt.
      3. Disengage the 5 clips and 2 guides, and remove the roof side inner garnish assembly LH.
        Fig 53: Identifying Roof Side Inner Garnish Assembly LH, Clips And Guide
        G05422657Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  75. REMOVE REAR SEAT SIDE GARNISH CAP (w/o Rear Air Conditioning System)
    1. Disengage the 8 claws and guide, and remove the rear seat side garnish cap.
      Fig 54: Identifying Rear Seat Side Garnish Cap, Claws And Guide
      G05422658Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  76. REMOVE REAR SEAT SIDE GARNISH CAP (w/ Rear Air Conditioning System)
    1. Remove the screw.
    2. Disengage the 6 claws and the guide, and remove the rear seat side garnish cap.
  77. REMOVE DECK SIDE TRIM COVER RH

    HINT:

    Use the same procedure for the RH side and the LH side.

    Fig 55: Removing Rear Seat Side Garnish Cap, Claw And Guide
    G05422659Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  78. REMOVE DECK SIDE TRIM RH

    HINT:

    Use the same procedure for the RH side and the LH side.

  79. REMOVE SIDE TRIM COVER RH (w/o Rear Automatic Air Conditioning System)
    1. Disengage the 4 claws and remove the side trim cover RH.
  80. REMOVE REAR ROOM TEMPERATURE SENSOR (w/ Rear Automatic Air Conditioning System)  (See ROOM TEMPERATURE SENSOR (FOR REAR) )
    Fig 56: Identifying Side Trim Cover RH And Claws
    G05422660Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  81. REMOVE REAR COMBINATION LIGHT SERVICE COVER RH
    1. Using a screwdriver, disengage the 6 claws and the 2 guides, and remove the rear combination light service cover RH.

      HINT:

      Tape the screwdriver tip before use.

      Fig 57: Removing Rear Combination Light Service Cover RH
      G05422661Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  82. REMOVE ROPE HOOK ASSEMBLY (for RH Side)

    HINT:

    Use the same procedure for the RH side and the LH side.

  83. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK

    HINT:

    Use the same procedure for the No. 1 luggage compartment trim hook and the No. 2 deck side trim hook.

  84. REMOVE FRONT DECK SIDE TRIM COVER RH

    HINT:

    Use the same procedure for the RH side and the LH side.

  85. DISCONNECT REAR NO. 1 SEAT OUTER BELT ASSEMBLY RH

    HINT:

    Use the same procedure for the RH side and the LH side.

  86. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH
    1. Remove the 3 bolts.
    2. Remove the 2 clips.
    3. Disengage the 7 claws and 4 clips, and remove the deck trim side panel assembly RH.
      Fig 58: Identifying Deck Trim Side Panel Assembly RH, Clips And Claws
      G05422662Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  87. REMOVE QUARTER PILLAR GARNISH RH

    HINT:

    Use the same procedure for the RH side and the LH side.

  88. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY RH (w/o Rear No. 2 Seat)

    HINT:

    Use the same procedure for the RH side and the LH side.

  89. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY RH (w/ Rear No. 2 Seat)

    HINT:

    Use the same procedure for the RH side and the LH side.

  90. REMOVE ROOF CONSOLE BOX ASSEMBLY
    1. Using a moulding remover, disengage the 2 clips, 3 guides and fastener.
    2. Disconnect the connector and remove the roof console box assembly.
      Fig 59: Removing Roof Console Box Assembly
      G05421017Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  91. REMOVE VISOR BRACKET COVER (for LH Side)
    1. Using a moulding remover, disengage the 4 claws and remove the visor bracket cover.
      Fig 60: Identifying Visor Bracket Cover (For LH Side)
      G04982072Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  92. REMOVE VISOR ASSEMBLY LH
    1. Remove the 2 screws and remove the visor assembly LH.
  93. REMOVE VISOR BRACKET COVER (for RH Side)

    HINT:

    Use the same procedure for the RH side and the LH side.

    Fig 61: Identifying Visor Bracket Cover (For RH Side)
    G05422665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  94. REMOVE VISOR ASSEMBLY RH

    HINT:

    Use the same procedure for the RH side and the LH side.

  95. REMOVE INNER REAR VIEW MIRROR STAY HOLDER COVER (w/ EC Mirror)  (See REMOVAL )
  96. REMOVE NO. 1 ROOM LIGHT ASSEMBLY (for Standard)
    1. Using a screwdriver, disengage the 4 claws and remove the lens cover.

      HINT:

      Tape the screwdriver tip before use.

      Fig 62: Identifying Lens Cover And Claws
      G04982077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a screwdriver, disengage the 2 claws < A > as shown in the illustration.

      HINT:

      Tape the screwdriver tip before use.

    3. Disengage the 2 claws < B >.
      Fig 63: Disengaging Claws
      G04982078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Using a screwdriver, disengage the 4 claws and remove the No. 1 room light assembly.
      Fig 64: Identifying No. 1 Room Light Assembly And Claws
      G05422668Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  97. REMOVE NO. 1 ROOM LIGHT ASSEMBLY (for Independent Type)
    1. Using a screwdriver, disengage the 4 claws and remove the lens cover.

      HINT:

      Tape the screwdriver tip before use.

      Fig 65: Identifying Lens Cover And Claws
      G05422669Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a screwdriver, disengage the 2 claws < A > as shown in the illustration.

      HINT:

      Tape the screwdriver tip before use.

    3. Disengage the 2 claws < B >.
      Fig 66: Disengaging Claws
      G05422670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Using a screwdriver, disengage the 8 claws and remove the No. 1 room light assembly.
      Fig 67: Identifying No. 1 Room Light Assembly And Claws
      G05422671Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  98. REMOVE NO. 2 ROOM LIGHT ASSEMBLY
    1. Using a screwdriver, disengage the 4 claws and remove the lens cover.

      HINT:

      Tape the screwdriver tip before use.

      Fig 68: Identifying Lens Cover And Claws
      G04982077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a screwdriver, disengage the 2 claws < A > as shown in the illustration.

      HINT:

      Tape the screwdriver tip before use.

    3. Disengage the 2 claws < B >.
      Fig 69: Disengaging Claws
      G04982078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Using a screwdriver, disengage the 4 claws and remove the No. 2 room light assembly.
  99. REMOVE TELEVISION BASE (w/ Rear Seat Entertainment System)  (See TELEVISION DISPLAY )
  100. REMOVE TELEVISION DISPLAY ASSEMBLY (w/ Rear Seat Entertainment System)  (See TELEVISION DISPLAY )
    Fig 70: Identifying No. 2 Room Light Assembly And Claws
    G05422668Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  101. REMOVE FRONT ASSIST GRIP SUB-ASSEMBLY (w/o Sliding Roof)
    1. Using a clip remover, disengage the 4 claws.
      NOTE: Do not forcibly pry the assist grip covers to prevent them from being deformed.

      HINT:

      • Gently pry on the assist grip covers as shown in the illustration to remove them.
      • Tape the clip remover tip before use.
        Fig 71: Removing Front Assist Grip Sub-Assembly (W/O Sliding Roof)
        G05422675Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pull off the 2 assist grip covers by hand.
    3. Disengage the 2 clips and remove the front assist grip sub-assembly.
    4. Remove the 2 clips from the vehicle body.

      HINT:

      Use the same procedure for the RH side and the LH side.

      Fig 72: Identifying Front Assist Grip Sub-Assembly
      G05422676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  102. REMOVE REAR ASSIST GRIP SUB-ASSEMBLY (w/o Sliding Roof)
    1. Using a clip remover, disengage the 4 claws.
      NOTE: Do not forcibly pry the assist grip covers to prevent them from being deformed.

      HINT:

      • Gently pry on the assist grip covers as shown in the illustration to remove them.
      • Tape the clip remover tip before use.
    2. Pull off the 2 assist grip covers by hand.
      Fig 73: Removing Rear Assist Grip Sub-Assembly (w/o Sliding Roof)
      G05422677Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 2 clips and remove the rear assist grip sub-assembly.
    4. Remove the 2 clips from the vehicle body.

      HINT:

      Use the same procedure for the RH side and the LH side.

      Fig 74: Identifying Rear Assist Grip Sub-Assembly And Clip
      G05422678Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  103. REMOVE ASSIST GRIP ASSEMBLY (w/ Sliding Roof)
    1. Using a screwdriver, disengage the 6 claws and remove the 2 assist grip covers.
      NOTE: Do not forcibly pry the assist grip covers to prevent them from being deformed.

      HINT:

      Tape the screwdriver tip before use.

      Fig 75: Removing Assist Grip Covers And Claws
      G05421188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 4 clips and remove the assist grip assembly.
    3. Remove the 4 clips from the vehicle body.

      HINT:

      Use the same procedure for the other 4 assist grips.

      Fig 76: Identifying Assist Grip Assembly And Clips
      G05421189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  104. REMOVE ROOF HEADLINING TRIM CLIP STOPPER
    1. Using a screwdriver, disengage the 3 claws.

      HINT:

      Tape the screwdriver tip before use.

    2. Remove the bolt and the roof headlining trim clip stopper.

      HINT:

      Use the same procedure for the RH side and the LH side.

  105. REMOVE SUN ROOF OPENING TRIM MOULDING (w/ Sliding Roof)
    Fig 77: Removing Roof Headlining Trim Clip Stopper And Claws
    G05422681Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  106. REMOVE VISOR HOLDER
    1. Turn the visor holder approximately 45° and pull it out as shown in the illustration.
    2. Disengage the 2 claws and remove the visor holder.

      HINT:

      Use the same procedure for the RH side and the LH side.

  107. REMOVE ROOF HEADLINING ASSEMBLY (w/o Sliding Roof)
    1. Disconnect the No. 1 roof wire connector and disengage the 3 clamps from the front pillar LH.
    2. for Pole Antenna Type with Satellite Radio:
      1. Disconnect the No. 2 antenna cord sub-assembly connector and disengage the 2 clamps from the front pillar RH.
        Fig 78: Turning Visor Holder
        G05391902Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. except Pole Antenna Type without Satellite Radio:
      1. Disconnect the No. 2 antenna cord sub-assembly connector, disengage the 3 clamps and remove the bolt from the front pillar RH.
    4. for Pole Antenna Type with Satellite Radio:
      1. Disconnect the No. 2 antenna cord sub-assembly connector and disengage the clamp from the rear pillar RH.
    5. except Pole Antenna Type without Satellite Radio:
      1. Disconnect the No. 2 antenna cord sub-assembly connector from the rear pillar RH.
    6. except Pole Antenna Type with Satellite Radio:
      1. Disconnect the No. 2 antenna cord sub-assembly each connector and disengage the clamp from the rear pillar RH.
    7. Remove the 4 clips.
      Fig 79: Identifying Roof Handling Clips Location
      G06114625Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Remove the roof headlining assembly from the vehicle through the back door.
      NOTE: Do not damage the roof headlining assembly or body interior.
      Fig 80: Removing Roof Headlining Assembly
      G05422684Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  108. REMOVE ROOF HEADLINING ASSEMBLY (w/ Sliding Roof)
    1. Disconnect the No. 1 roof wire connectors and disengage the 3 clamps from the front pillar LH.
    2. w/ Rear Seat Entertainment System:
      1. Disconnect the No. 1 roof wire connector from the rear pillar LH.
    3. for Pole Antenna Type with Satellite Radio:
      1. Disconnect the No. 2 antenna cord sub-assembly connector and disengage the 2 clamps from the front pillar RH.
    4. except Pole Antenna Type with Satellite Radio:
      1. Disconnect the No. 2 antenna cord sub-assembly connector and disengage the 3 clamps, and remove the bolt from the front pillar RH.
    5. for Pole Antenna Type with Satellite Radio:
      1. Disconnect the No. 2 antenna cord sub-assembly connector and disengage the clamp from the rear pillar RH.
    6. except Pole Antenna Type with Satellite Radio:
      1. Disconnect the No. 2 antenna cord sub-assembly connector from the rear pillar RH.
    7. except Pole Antenna Type with Satellite Radio:
      1. Disconnect the No. 2 antenna cord sub-assembly each connector and disengage the clamp from the rear pillar RH.
    8. Disconnect the sliding roof drive gear connector.
    9. Remove the 3 clips.
      Fig 81: Identifying Roof Handling Clip Location
      G06114627Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    10. Remove the roof headlining assembly from the vehicle through the back door.
      NOTE: Do not damage the roof headlining assembly or body interior.
      Fig 82: Removing Roof Headlining Assembly
      G05422686Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  109. REMOVE VANITY LIGHT ASSEMBLY (w/ Vanity Light)
    1. Disengage the 2 claws < A > and separate the bulb holder from the vanity light assembly as shown in the illustration.
    2. Disengage the claw < B > and remove the vanity light assembly.

      HINT:

      Use the same procedure to remove the light on the other side.

      Fig 83: Removing Vanity Light Assembly, Clip And Claws
      G05422687Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  110. REMOVE FRONT SIDE RAIL SPACER LH (w/o Sliding Roof)
    1. Remove the front side rail spacer LH.
      Fig 84: Identifying Front Side Rail Spacer LH
      G05422688Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  111. REMOVE FRONT SIDE RAIL SPACER RH (w/o Sliding Roof)

    HINT:

    Use the same procedure for the RH side and the LH side.

  112. REMOVE REAR NO. 2 SIDE RAIL SPACER LH (w/o Sliding Roof)
    1. Remove the rear No. 2 side rail spacer LH.
      Fig 85: Identifying Rear No. 2 Side Rail Spacer LH
      G05422689Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  113. REMOVE REAR NO. 2 SIDE RAIL SPACER RH (w/o Sliding Roof)

    HINT:

    Use the same procedure for the RH side and the LH side.

  114. REMOVE NO. 1 ROOF SILENCER PAD (w/o Sliding Roof)
    1. Remove the No. 1 roof silencer pad.
      Fig 86: Identifying No. 1 Roof Silencer Pad (w/o Sliding Roof)
      G05422690Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  115. REMOVE NO. 2 ROOF SILENCER PAD (w/o Sliding Roof)
    1. Remove the No. 2 roof silencer pad.
      Fig 87: Identifying No. 2 Roof Silencer Pad (w/o Sliding Roof)
      G05422691Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  116. REMOVE NO. 1 ROOF HEADLINING SUPPORT
    1. Remove the 2 No. 1 roof headlining supports.
      Fig 88: Identifying No. 1 Roof Headlining Supports
      G05422692Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  117. REMOVE ROOF HEADLINING PAD
    1. Remove the 2 roof headlining pads.
      Fig 89: Identifying Roof Headlining Pads
      G05422693Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  118. REMOVE NO. 2 ROOF HEADLINING PAD
    1. Remove the 2 No. 2 roof headlining pads.
      Fig 90: Identifying No. 2 Roof Headlining Pads
      G05422694Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  119. REMOVE NO. 4 ROOF SILENCER PAD
    1. Remove the No. 4 roof silencer pad.
      Fig 91: Identifying No. 4 Roof Silencer Pad
      G05422695Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  120. REMOVE NO. 2 ROOF HEADLINING SUPPORT
    1. Remove each No. 2 roof headlining support.
      Fig 92: Identifying No. 2 Roof Headlining Support
      G05422696Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  121. REMOVE NO. 1 AIR OUTLET REGISTER ASSEMBLY (w/ Rear Air Conditioning System)
    1. Disengage the 10 claws, and remove the No. 1 air outlet register assembly from the roof side outlet register.
  122. REMOVE NO. 1 ROOF WIRE
    1. w/ Vanity Light:
      1. Turn the visor connectors counterclockwise approximately 90° and disconnect the connectors from the roof headlining assembly.
        Fig 93: Identifying No. 1 Air Outlet Register Assembly And Claw
        G05422697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the No. 1 roof wire from the roof headlining assembly.
      Fig 94: Identifying No. 1 Roof Wire And Roof Headlining Assembly
      G05422698Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the double-sided tape from the roof headlining assembly.
  123. REMOVE NO. 2 ANTENNA CORD SUB-ASSEMBLY  (See REMOVAL )
  124. REMOVE ROOF SIDE RAIL GARNISH PAD RH (w/ Sliding Roof)
    1. Remove the roof side rail garnish pad RH.
      Fig 95: Identifying Roof Side Rail Garnish Pad RH (w/ Sliding Roof)
      G05422706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  125. REMOVE ROOF SIDE RAIL GARNISH PAD LH (w/ Sliding Roof)
    1. Remove the roof side rail garnish pad LH.
      Fig 96: Identifying Roof Side Rail Garnish Pad LH (w/ Sliding Roof)
      G05422700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  126. REMOVE REAR ROOF SIDE RAIL PAD RH (w/ Sliding Roof)
    1. Remove the rear roof side rail pad RH.
      Fig 97: Identifying Rear Roof Side Rail Pad RH (w/ Sliding Roof)
      G05422701Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  127. REMOVE REAR ROOF SIDE RAIL PAD LH (w/ Sliding Roof)
    1. Remove the rear roof side rail pad LH.
      Fig 98: Identifying Rear Roof Side Rail Pad LH (w/ Sliding Roof)
      G05422702Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
scientia non olet · About LEMON Manuals
