Instrument Panel Safety Pad: Installation

  1. INSTALL NO. 2 CONSOLE BOX CUP HOLDER
    1. Install the No. 2 console box cup holder.
      Fig 1: Identifying No. 2 Console Box Cup Holder
      G05421392Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL INSTRUMENT PANEL CUP HOLDER ASSEMBLY
    1. Install the instrument panel cup holder assembly with the 4 screws < G >.
      Fig 2: Identifying Instrument Panel Cup Holder Assembly Screws
      G05421391Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL CONSOLE BOX CUP HOLDER
    1. Install the 2 console box cup holders.
      Fig 3: Identifying Console Box Cup Holders
      G05421390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL NO. 3 INSTRUMENT PANEL STAY
    1. Engage the claw and install the 5 No. 3 instrument panel stays.
      Fig 4: Identifying No. 3 Instrument Panel Stays & Claw
      G05421416Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL INSTRUMENT PANEL SAFETY PAD ASSEMBLY (for Pole Antenna Type)
    1. Engage the 5 claws.
      NOTE: Do not allow the wire harness to get caught in the claws.
    2. Install the 2 bolts < D > and nut < H >.
    3. Install the 2 clips.
      Fig 5: Identifying Instrument Panel Safety Pad Assembly & Claws
      G05421386Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Engage each clamp.
    5. Install the 2 passenger airbag bolts < A >.

      Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

    6. Install the bolt < E >.
    7. Connect each connector and install the instrument panel safety pad assembly.

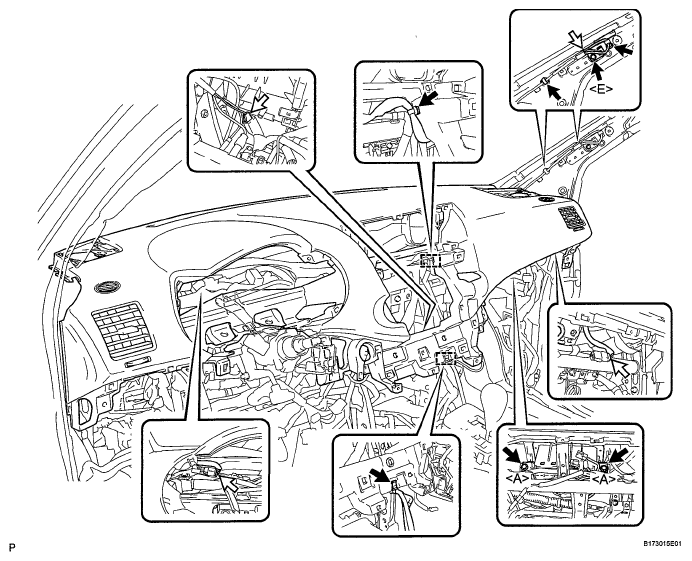

      Fig 6: Identifying Instrument Panel Safety Pad Assembly (For Pole Antenna Type)
      G05421385Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL INSTRUMENT PANEL SAFETY PAD ASSEMBLY (for Glass Antenna Type)
    1. Engage the 5 claws.
      NOTE: Do not allow the wire harness to get caught in the claws.
    2. Install the 2 bolts < D > and nut < H >.
    3. Install the 2 clips.
      Fig 7: Identifying Instrument Panel Safety Pad Assembly & Claws
      G05421386Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Engage each clamp.
    5. Install the 2 passenger airbag bolts < A >.

      Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

    6. Connect each connector and install the instrument panel safety pad assembly.
      Fig 8: Identifying Instrument Panel Safety Pad Assembly (For Glass Antenna Type)
      G05421387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. CONNECT INSTRUMENT PANEL WIRE ASSEMBLY  (See INSTALLATION )
  8. INSTALL FRONT NO. 2 SPEAKER ASSEMBLY (for LH Side) (See  INSTALLATION  )
  9. INSTALL NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
    1. Engage the 2 guides.
    2. Engage the 2 claws and 2 clips, and install the No. 1 instrument panel speaker panel sub-assembly.
      Fig 9: Identifying No. 1 Instrument Panel Speaker Panel Sub-Assembly, Clips & Claws
      G05421383Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL FRONT NO. 2 SPEAKER ASSEMBLY (for RH Side)

    HINT:

    Use the same procedures for the RH side and the LH side.

  11. INSTALL NO. 2 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
    1. Engage the 2 guides.
    2. Engage the 2 claws and 2 clips, and install the No. 2 instrument panel speaker panel sub-assembly.
      Fig 10: Identifying No. 2 Instrument Panel Speaker Panel Sub-Assembly, Clips & Claws
      G05421384Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL FRONT PILLAR GARNISH RH  (See INSTALLATION )
  13. CONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP RH  (See INSTALLATION )
  14. INSTALL FRONT PILLAR GARNISH LH  (See INSTALLATION )
  15. CONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP LH  (See INSTALLATION )
  16. INSTALL ENGINE SWITCH (w/ Smart Key System)  (See INSTALLATION )
  17. INSTALL FRONT NO. 2 CONSOLE BOX INSERT
    1. Engage the claw and 2 guides.
    2. Install the front No. 2 console box insert with the 3 screws < F > and clip.
      Fig 11: Identifying Front No. 2 Console Box Insert, Clips & Screws
      G05421382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. INSTALL FRONT NO. 1 CONSOLE BOX INSERT
    1. Engage the claw and 2 guides.
    2. Install the front No. 1 console box insert with the 3 screws < F > and 2 clips.
      Fig 12: Identifying Front No. 1 Console Box Insert, Clips & Screws
      G05421381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. INSTALL CONSOLE BOX ASSEMBLY (w/o Rear Air Conditioning System)  (See INSTALLATION )
  20. INSTALL CONSOLE BOX ASSEMBLY (w/ Rear Air Conditioning System)  (See INSTALLATION )
  21. INSTALL LOWER REAR CONSOLE BOX  (See INSTALLATION )
  22. INSTALL NO. 2 CONSOLE BOX DUCT (w/o Rear Air Conditioning System)
    1. Install the No. 2 console box duct as shown below.
      Fig 13: Identifying No. 2 Console Box Duct (W/O Rear Air Conditioning System)
      G05421425Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY
    1. Connect the connector.
    2. Engage the 4 claws and 4 clips, and install the upper console panel sub-assembly.
      Fig 14: Identifying Upper Console Panel Sub-Assembly, Clips & Claws
      G05421379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY
    1. Connect each connector and clamp.
    2. Engage the 4 claws and 3 clips.
    3. Install the lower instrument panel sub-assembly with the 2 bolts < B > and 3 screws < F >.
      Fig 15: Identifying Lower Instrument Panel Sub-Assembly, Bolts & Screws
      G05421378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
    1. Engage the 2 guides.
    2. Engage the 3 claws and install the No. 2 instrument panel under cover sub-assembly.
      Fig 16: Identifying No. 2 Instrument Panel Under Cover Sub-Assembly Claws
      G05421428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH  (See INSTALLATION )
  27. INSTALL FRONT DOOR SCUFF PLATE RH  (See INSTALLATION )
  28. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY (for Manual Air Conditioning System)
    1. Connect the hood lock control cable assembly.
    2. Connect each connector.
    3. Engage the 3 claws and 10 clips.
    4. Install the lower instrument panel finish panel sub-assembly with the 2 bolts < B >.
      Fig 17: Identifying Lower Instrument Panel Finish Panel Sub-Assembly (For Manual Air Conditioning System)
      G05421374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY (for Automatic Air Conditioning System)
    1. Connect the hood lock control cable assembly.
    2. Connect each connector and the aspirator duct.
      Fig 18: Identifying Connector & Aspirator Duct
      G05421376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Engage the 3 claws and 10 clips.
    4. Install the lower instrument panel finish panel sub-assembly with the 2 bolts < B >.
      Fig 19: Identifying Lower Instrument Panel Finish Panel Sub-Assembly (For Automatic Air Conditioning System)
      G05421375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH  (See INSTALLATION )
  31. INSTALL FRONT DOOR SCUFF PLATE LH  (See INSTALLATION )
  32. INSTALL RADIO RECEIVER ASSEMBLY WITH BRACKET (w/o Navigation System)  (See INSTALLATION )
  33. INSTALL NAVIGATION RECEIVER ASSEMBLY WITH BRACKET (w/ Navigation System)  (See INSTALLATION )
  34. INSTALL HEATER CONTROL AND ACCESSORY ASSEMBLY (for Manual Air Conditioning System)  (See INSTALLATION )
  35. INSTALL AIR CONDITIONING CONTROL ASSEMBLY (for Automatic Air Conditioning System)  (See INSTALLATION )
  36. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (w/o Smart Key System)

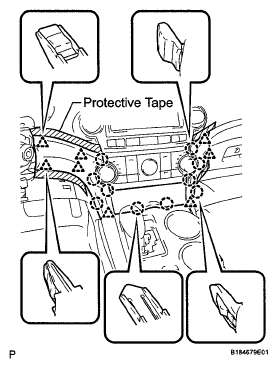

    1. Apply protective tape to the areas shown below.
    2. Connect each connector.
    3. Engage the 10 claws and 8 clips, and install the center instrument cluster finish panel assembly.
      NOTE: Do not the damage the instrument panel safety pad assembly and lower instrument panel finish panel sub-assembly.
      Fig 20: Identifying Instrument Panel Safety Pad Assembly, Clips & Claws
      G05421432Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  37. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (w/ Smart Key System)
    1. Apply protective tape to the areas shown below.
    2. Connect each connector.
    3. Engage the 10 claws and 8 clips, and install the center instrument cluster finish panel assembly.
      NOTE: Do not the damage the instrument panel safety pad assembly and lower instrument panel finish panel sub-assembly.
      Fig 21: Identifying Center Instrument Cluster Finish Panel Assembly (W/ Smart Key System)
      G05421433Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  38. INSTALL CENTER INSTRUMENT PANEL REGISTER ASSEMBLY
    1. Engage the 2 claws and 5 clips, and install the center instrument panel register assembly.
      Fig 22: Identifying Center Instrument Panel Register Assembly, Clips & Claws
      G05421434Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  39. INSTALL COMBINATION METER ASSEMBLY
    1. Connect the connector.
    2. Install the combination meter assembly with the 4 screws < F >.
      Fig 23: Identifying Combination Meter Assembly Screws
      G05421370Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  40. INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY
    1. Engage the 4 claws and 4 clips, and install the instrument cluster finish panel assembly.
      Fig 24: Identifying Instrument Cluster Finish Panel Assembly, Claws & Clips
      G05421369Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  41. POSITION FRONT WHEELS STRAIGHT AHEAD
  42. INSTALL TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY  (See INSTALLATION )
  43. INSTALL STEERING COLUMN COVER  (See INSTALLATION )
  44. ADJUST SPIRAL CABLE SUB-ASSEMBLY  (See INSTALLATION )
  45. INSTALL STEERING WHEEL ASSEMBLY  (See INSTALLATION )
  46. INSPECT STEERING WHEEL CENTER POINT
  47. INSTALL STEERING PAD  (See INSTALLATION )
  48. INSTALL LOWER NO. 2 STEERING WHEEL COVER  (See INSTALLATION )
  49. INSTALL LOWER NO. 3 STEERING WHEEL COVER  (See INSTALLATION )
  50. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See INITIALIZATION ).
  51. INSPECT STEERING PAD  (See ON-VEHICLE INSPECTION )
  52. INSPECT SRS WARNING LIGHT

    (See DIAGNOSIS SYSTEM )
