Roof Headlining: Installation

INSTALL REAR ROOF SIDE RAIL PAD LH (w/ Sliding Roof)
1. Align the markings on the roof headlining assembly with the rear roof side rail pad LH and install the pad using hot melt glue as shown below.

  Fig 1: Identifying Rear Roof Side Rail Pad LH (With Sliding Roof)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR ROOF SIDE RAIL PAD RH (w/ Sliding Roof)
1. Align the markings on the roof headlining assembly with the rear roof side rail pad RH and install the pad using hot melt glue as shown below.

  Fig 2: Identifying Rear Roof Side Rail Pad RH (With Sliding Roof)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ROOF SIDE RAIL GARNISH PAD LH (w/ Sliding Roof)
1. Align the markings on the roof headlining assembly with the roof side rail garnish pad LH and install the pad using hot melt glue as shown below.

  Fig 3: Identifying Roof Side Rail Garnish Pad LH (With Sliding Roof)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ROOF SIDE RAIL GARNISH PAD RH (w/ Sliding Roof)
1. Align the markings on the roof headlining assembly with the roof side rail garnish pad RH and install the pad using hot melt glue as shown below.

  Fig 4: Identifying Roof Side Rail Garnish Pad RH (With Sliding Roof)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 2 ANTENNA CORD SUB-ASSEMBLY (See INSTALLATION )
INSTALL NO. 1 ROOF WIRE
1. Peel off the release paper from the double-sided tape.

  Fig 5: Identifying No. 1 Roof Wire
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. w/ Vanity Light:
  1. Turn the visor connectors clockwise approximately 90° to install the connectors to the roof headlining.
3. Attach the No. 1 roof wire along the double-sided tape so that the marking surface of the wire harness faces downward.
  NOTE: Securely attach the No. 1 roof wire. Failure to do so may cause abnormal noise.

  Fig 6: Identifying No. 1 Roof Wire (With Vanity Light)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 AIR OUTLET REGISTER ASSEMBLY (w/ Rear Air Conditioning System)
1. Engage the 10 claws and install the No. 1 air outlet register assembly into the roof side air outlet register.

  Fig 7: Identifying No. 1 Air Outlet Register Assembly Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 2 ROOF HEADLINING SUPPORT
1. Align the markings on the roof headlining assembly with the No. 2 roof headlining supports and install the headlining supports using hot melt glue as shown below.

  Fig 8: Identifying No. 2 Roof Headlining Support
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 4 ROOF SILENCER PAD
1. Align the markings on the roof headlining assembly with the No. 4 roof silencer pad and install the silencer pad using hot melt glue as shown below.

  Fig 9: Identifying No. 4 Roof Silencer Pad
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 2 ROOF HEADLINING PAD
1. Align the markings on the roof headlining assembly with the 2 No. 2 roof headlining pads and install the pads using hot melt glue as shown below.

  Fig 10: Identifying No. 2 Roof Headlining Pads
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ROOF HEADLINING PAD
1. Align the markings on the roof headlining assembly with the 2 roof headlining pads and install the pads using hot melt glue as shown below.

  Fig 11: Identifying Roof Headlining Pads
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 ROOF HEADLINING SUPPORT
1. Align the markings on the roof headlining assembly with the 2 No. 1 roof headlining supports and install the headlining supports using hot melt glue as shown below.

  Fig 12: Identifying No. 1 Roof Headlining Supports
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 2 ROOF SILENCER PAD (w/o Sliding Roof)
1. Align the markings on the roof headlining assembly with the No. 2 roof silencer pad and install the silencer pad using hot melt glue as shown below.

  Fig 13: Identifying No. 2 Roof Silencer Pad (Without Sliding Roof)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 ROOF SILENCER PAD (w/o Sliding Roof)
1. Align the markings on the roof headlining assembly with the No. 1 roof silencer pad and install the silencer pad using hot melt glue as shown below.

  Fig 14: Identifying No. 1 Roof Silencer Pad (Without Sliding Roof)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR NO. 2 SIDE RAIL SPACER LH (w/o Sliding Roof)
1. Align the markings on the roof headlining assembly with the rear No. 2 side rail spacer LH and install the spacer using hot melt glue as shown below.

  Fig 15: Identifying Rear No. 2 Side Rail Spacer LH (Without Sliding Roof)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR NO. 2 SIDE RAIL SPACER RH (w/o Sliding Roof)
HINT:

Use the same procedure for the RH side and the LH side.
INSTALL FRONT SIDE RAIL SPACER LH (w/o Sliding Roof)
1. Align the markings on the roof headlining assembly with the front side rail spacer LH and install the spacer using hot melt glue as shown below.

  Fig 16: Identifying Rear No. 2 Side Rail Spacer RH (Without Sliding Roof)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT SIDE RAIL SPACER RH (w/o Sliding Roof)
HINT:

Use the same procedure for the RH side and the LH side.
INSTALL VANITY LIGHT ASSEMBLY (w/ Vanity Light)
1. Engage the 3 claws and install the vanity light assembly.

  Fig 17: Identifying Vanity Light Assembly Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ROOF HEADLINING ASSEMBLY (w/o Sliding Roof)
1. Pull the roof headlining assembly into the vehicle through the back door.
  NOTE: Do not damage the roof headlining assembly or body interior.

  Fig 18: Pulling Roof Headlining Assembly Into Vehicle Through Back Door
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the 4 clips.
3. Connect the No. 2 antenna cord sub-assembly connector to the rear pillar RH.
4. Connect the No. 2 antenna cord sub-assembly connectors and engage the 3 clamps to the front pillar RH.
5. Install the No. 2 antenna cord sub-assembly to the front pillar RH with the bolt.
6. Connect the No. 1 roof wire connector and engage the 3 clamps to the front pillar LH.
  NOTE: After installation, make sure that the back door weatherstrip does not interfere with the roof headlining assembly.

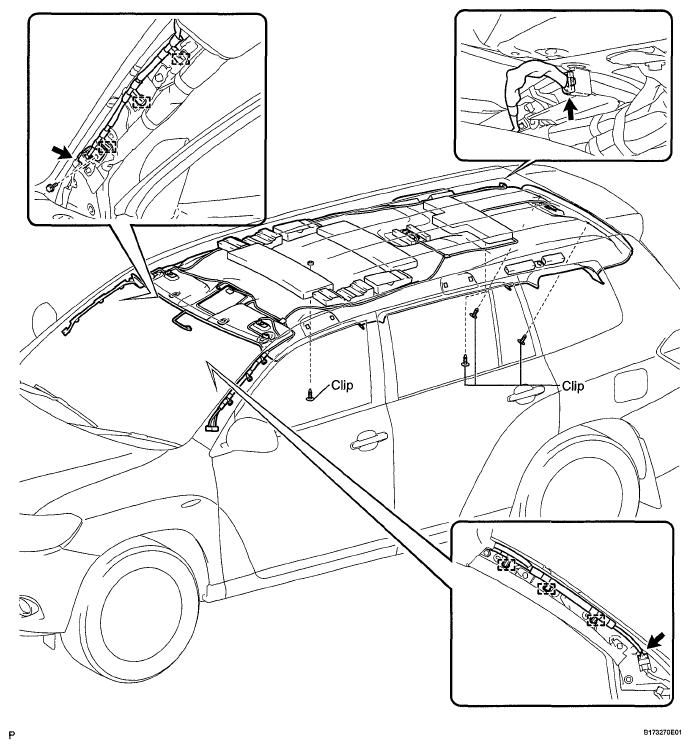

  Fig 19: Identifying No. 1 Roof Wire Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ROOF HEADLINING ASSEMBLY (w/ Sliding Roof)
1. Pull the roof headlining assembly into the vehicle through the back door.
  NOTE: Do not damage the roof headlining assembly or body interior.

  Fig 20: Pulling Roof Headlining Assembly Into Vehicle Through Back Door
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the 3 clips.
3. Connect the sliding roof drive gear connector.
4. Connect the No. 2 antenna cord sub-assembly connector to the rear pillar RH.
5. Connect the No. 2 antenna cord sub-assembly connector and engage the 3 clamps to the front pillar RH.
6. Install the No. 2 antenna cord sub-assembly to the front pillar RH with the bolt.
7. w/ Rear Seat Entertainment System:
  1. Connect the No. 1 roof wire connector to the rear pillar LH.
8. Connect the No. 1 roof wire connectors and engage the 3 clamps to the front pillar LH.

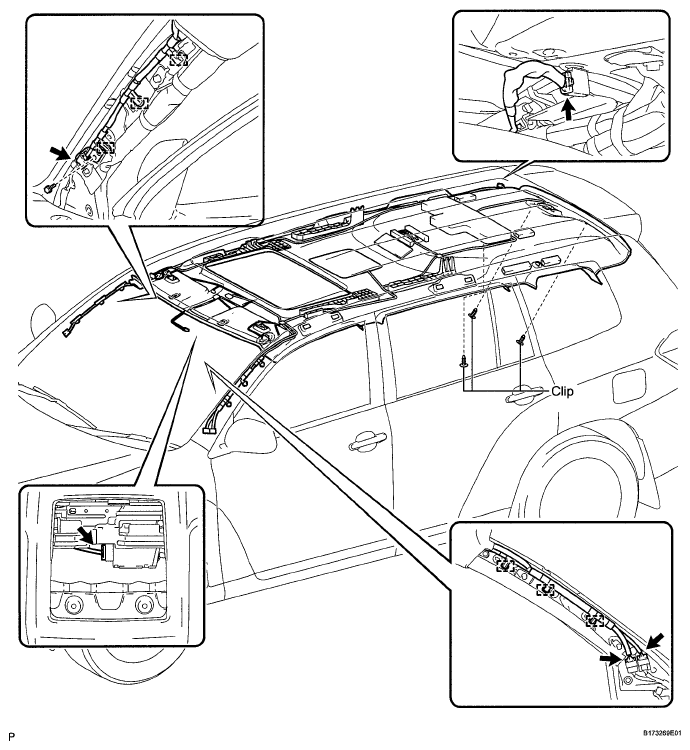

  Fig 21: Identifying No. 1 Roof Wire Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: After installation, make sure that the back door weatherstrip does not interfere with the roof headlining assembly.
INSTALL VISOR HOLDER
1. Engage the 2 claws.
2. Push in the visor holder as shown below.
  HINT:

  Use the same procedure for the RH side and the LH side.

  Fig 22: Identifying Visor Holder
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SUN ROOF OPENING TRIM MOLDING (w/ Sliding Roof)
1. Align the joining point of the molding with the notch of the roof headlining assembly, and install the sun roof opening trim molding.
  NOTE: After installation, check that the corners fit correctly.

  Fig 23: Identifying Sun Roof Opening Trim Molding
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ROOF HEADLINING TRIM CLIP STOPPER
1. Install the roof headlining trim clip stopper with the bolt.
2. Engage the 3 claws.
  HINT:

  Use the same procedure for the RH side and the LH side.

  Fig 24: Identifying Roof Headlining Trim Clip Stopper
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ASSIST GRIP ASSEMBLY (w/ Sliding Roof)
1. Assemble the assist grip assembly as shown below.

  Fig 25: Assembling Assist Grip Assembly (With Sliding Roof
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the assist grip assembly.
  HINT:

  Use the same procedure for the other 4 assist grips.

  Fig 26: Identifying Assist Grip Assembly (With Sliding Roof)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR ASSIST GRIP SUB-ASSEMBLY (w/o Sliding Roof)
1. Assemble the rear assist grip sub-assembly as shown below.

  Fig 27: Assembling Rear Assist Grip Sub-Assembly (Without Sliding Roof)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the rear assist grip sub-assembly.
  HINT:

  Use the same procedure for the RH side and the LH side.

  Fig 28: Identifying Rear Assist Grip Sub-Assembly (Without Sliding Roof)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT ASSIST GRIP SUB-ASSEMBLY (w/o Sliding Roof)
1. Assemble the front assist grip sub-assembly as shown below.

  Fig 29: Assembling Front Assist Grip Sub-Assembly (Without Sliding Roof)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the front assist grip sub-assembly.
  HINT:

  Use the same procedure for the RH side and the LH side.

  Fig 30: Identifying Front Assist Grip Sub-Assembly (Without Sliding Roof)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL TELEVISION DISPLAY ASSEMBLY (w/ Rear Seat Entertainment System) (See INSTALLATION )
INSTALL TELEVISION BASE (w/ Rear Seat Entertainment System) (See INSTALLATION )
INSTALL NO. 2 ROOM LIGHT ASSEMBLY
1. Engage the 4 claws and install the lens cover.

  Fig 31: Identifying Lens Cover Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the 4 claws and install the room light switch base to the No. 2 room light assembly.

  Fig 32: Identifying Room Light Switch Base Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Engage the 4 claws and install the No. 2 room light assembly.

  Fig 33: Identifying No. 2 Room Light Assembly Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 ROOM LIGHT ASSEMBLY (for Standard)
1. Engage the 4 claws and install the lens cover.

  Fig 34: Identifying Lens Cover Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the 4 claws and install the room light switch base to the No. 1 room light assembly.

  Fig 35: Identifying Room Light Switch Base Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Engage the 4 claws and install the No. 1 room light assembly.

  Fig 36: Identifying No. 1 Room Light Assembly Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 ROOM LIGHT ASSEMBLY (for Independent Type)
1. Engage the 4 claws and install the lens cover.

  Fig 37: Identifying Lens Cover Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the 8 claws and install the room light switch base to the No. 1 room light assembly.

  Fig 38: Identifying Room Light Switch Base Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Engage the 4 claws and install the No. 1 room light assembly.

  Fig 39: Identifying No. 1 Room Light Assembly Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INNER REAR VIEW MIRROR STAY HOLDER COVER (w/ EC Mirror) (See INSTALLATION )
INSTALL VISOR ASSEMBLY LH
1. Install the visor assembly LH with the 2 screws.

  Fig 40: Identifying Visor Assembly LH Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL VISOR BRACKET COVER (for LH Side)
1. Engage the 4 claws and install the visor bracket cover.

  Fig 41: Identifying Visor Bracket Cover Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL VISOR ASSEMBLY RH
HINT:

Use the same procedure for the RH side and the LH side.
INSTALL VISOR BRACKET COVER (for RH Side)
HINT:

Use the same procedure for the RH side and the LH side.
INSTALL ROOF CONSOLE BOX ASSEMBLY
1. Connect the connector.
2. Engage the 3 guides, 2 clips, fastener, and install the roof console box assembly.

  Fig 42: Identifying Roof Console Box Assembly Clips & Guides
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ROOF SIDE INNER GARNISH ASSEMBLY LH (w/o Power Back Door)
1. w/ Rear No. 2 Seat:
  1. Engage the 2 guides and 5 clips.
  2. Install the roof side inner garnish assembly LH with the bolt.

    Fig 43: Identifying Roof Side Inner Garnish Assembly LH Clips & Guides
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Engage the 2 guides and the 2 claws, and install the No. 2 seat outer belt guide.

    Fig 44: Identifying No. 2 Seat Outer Belt Guide Guides & Claws
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. w/o Rear No. 2 Seat:
  1. Engage the 2 guides and 5 clips.
  2. Install the roof side inner garnish assembly LH with the bolt.

    Fig 45: Identifying Roof Side Inner Garnish Assembly LH Clips
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ROOF SIDE INNER GARNISH ASSEMBLY LH (w/ Power Back Door)
1. w/ Rear No. 2 Seat:
  1. Engage the 2 guides and 5 clips.
  2. Install the roof side inner garnish assembly LH with the bolt.

    Fig 46: Identifying Roof Side Inner Garnish Assembly LH Clips & Guides
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Engage the 2 guides and the 2 claws, and install the No. 2 seat outer belt guide.

    Fig 47: Identifying No. 2 Seat Outer Belt Guide With Guides & Claws
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. w/o Rear No. 2 Seat:
  1. Engage the 2 guides and 5 clips.
  2. Install the roof side inner garnish assembly LH with the bolt.

    Fig 48: Identifying Roof Side Inner Garnish Assembly LH Clips & Guides
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL QUARTER PILLAR GARNISH LH
1. Engage the 2 guides and the 2 clips, and install the quarter pillar garnish LH as shown below.

  Fig 49: Installing Quarter Pillar Garnish LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the 2 guides and the 2 claws, and install the No. 1 seat outer belt guide.

  Fig 50: Identifying No. 1 Seat Outer Belt Guide Claws & Guides
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH
1. Engage the 4 clips and the 7 claws.
2. Install the 2 clips.
3. Install the deck trim side panel assembly LH with the, 2 bolts.
CONNECT REAR NO. 1 SEAT OUTER BELT ASSEMBLY LH (See INSTALLATION )
INSTALL FRONT DECK SIDE TRIM COVER LH
1. Engage the 4 claws and install the 2 front deck side trim covers LH.

  Fig 52: Identifying Front Deck Side Trim Covers LH Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 2 DECK SIDE TRIM HOOK
1. Install the No. 2 deck side trim hook with the screw.

  Fig 53: Identifying No. 2 Deck Side Trim Hook Screw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ROPE HOOK ASSEMBLY (for LH Side)
1. for Front Side:
  1. Install the rope hook assembly with the bolt.
    Torque: 6.5 N*m (66 kgf*cm, 58 in.*lbf)
  2. Engage the 2 claws.

    Fig 54: Identifying Rope Hook Assembly (Front Side)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. for Rear Side:
  1. Install the rope hook assembly with the bolt.
    Torque: 6.5 N*m (66 kgf*cm, 58 in.*lbf)
  2. Engage the 2 claws.

    Fig 55: Identifying Rope Hook Assembly (Rear Side)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR DECK TRIM COVER (w/o Remote Folding Function)
1. Engage the 10 claws and install the rear deck trim cover.

  Fig 56: Identifying Rear Deck Trim Cover Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL RECLINING REMOTE CONTROL LEVER BEZEL LH (w/ Remote Folding Function)
1. Engage the 5 claws and install the reclining remote control bezel LH.

  Fig 57: Identifying Reclining Remote Control Bezel LH Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR POWER OUTLET SOCKET COVER (See INSTALLATION )
INSTALL REAR POWER POINT SOCKET ASSEMBLY (See INSTALLATION )
INSTALL REAR COMBINATION LIGHT SERVICE COVER LH
1. Engage the 2 guides and 6 claws, and install the rear combination light service cover LH.

  Fig 58: Identifying Rear Combination Light Service Cover LH Guides & Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SIDE TRIM COVER LH (w/o Rear Seat Entertainment System)
1. Engage the 10 claws and install the side trim cover LH.

  Fig 59: Identifying Side Trim Cover LH Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL POWER OUTLET SOCKET BEZEL (w/ Rear Seat Entertainment System)
1. Connect each connector.

  Fig 60: Identifying Power Outlet Socket Bezel (With Rear Seat Entertainment System)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the 4 claws and install the power outlet socket bezel.

  Fig 61: Identifying Power Outlet Socket Bezel Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL DECK SIDE TRIM LH
1. Engage the 3 guides and 4 claws as shown below.

  Fig 62: Identifying Deck Side Trim LH Guides & Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the deck side trim LH with the bolt.

  Fig 63: Identifying Deck Side Trim LH Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL DECK SIDE TRIM COVER LH
1. Engage the 2 claws and install the deck side trim cover LH.

  Fig 64: Identifying Deck Side Trim Cover LH Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ROOF SIDE INNER GARNISH ASSEMBLY RH (w/o Rear No. 2 Seat)
HINT:

Use the same procedure for the RH side and the LH side.
INSTALL ROOF SIDE INNER GARNISH ASSEMBLY RH (w/ Rear No. 2 Seat)
HINT:

Use the same procedure for the RH side and the LH side.
INSTALL QUARTER PILLAR GARNISH RH
HINT:

Use the same procedure for the RH side and the LH side.
INSTALL DECK TRIM SIDE PANEL ASSEMBLY RH
1. Engage the 4 clips and the 7 claws.
2. Install the 2 clips.
3. Install the deck trim side panel assembly RH with the 3 bolts.
CONNECT REAR NO. 1 SEAT OUTER BELT ASSEMBLY RH
HINT:

Use the same procedure for the RH side and the LH side.
INSTALL FRONT DECK SIDE TRIM COVER RH
HINT:

Use the same procedure for the RH side and the LH side.
INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM HOOK
HINT:

Use the same procedure for the No. 1 luggage compartment trim hook and the No. 2 deck side trim hook.
INSTALL ROPE HOOK ASSEMBLY (for RH Side)
HINT:

Use the same procedure for the RH side and the LH side.
INSTALL REAR COMBINATION LIGHT SERVICE COVER RH
1. Engage the 2 guides and 6 claws, and install the rear combination light service cover RH.

  Fig 66: Identifying Rear Combination Light Service Cover RH Guides & Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR ROOM TEMPERATURE SENSOR (w/ Rear Automatic Air Conditioning System) (See INSTALLATION )
INSTALL SIDE TRIM COVER RH (w/o Rear Automatic Air Conditioning System)
1. Engage the 4 claws, and install the side trim cover RH.

  Fig 67: Identifying Side Trim Cover RH Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL DECK SIDE TRIM RH
HINT:

Use the same procedure for the RH side and the LH side.
INSTALL DECK SIDE TRIM COVER RH
HINT:

Use the same procedure for the RH side and the LH side.
INSTALL REAR SEAT SIDE GARNISH CAP (w/o Rear Air Conditioning System)
1. Engage the guide and the 8 claws, and install the rear seat side garnish cap.

  Fig 68: Identifying Rear Seat Side Garnish Cap (Without Rear Air Conditioning System)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SEAT SIDE GARNISH CAP (w/ Rear Air Conditioning System)
1. Engage the guide and the 6 claws.
2. Install the rear seat side garnish cap with the screw.

  Fig 69: Identifying Rear Seat Side Garnish Cap (With Rear Air Conditioning System)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR FLOOR FINISH PLATE
1. Engage the 4 clips and the 4 claws, and install the rear floor finish plate.

  Fig 70: Identifying Rear Floor Finish Plate Clips & Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR NO. 2 SEAT ASSEMBLY (w/ Rear No. 2 Seat) (See INSTALLATION )
CONNECT REAR SEAT LAP TYPE BELT ASSEMBLY LH (w/ Rear No. 2 Seat) (See INSTALLATION )
CONNECT REAR SEAT LAP TYPE BELT ASSEMBLY RH (w/ Rear No. 2 Seat) (See INSTALLATION )
INSTALL REAR NO. 2 SEAT INNER BELT ASSEMBLY (w/ Rear No. 2 Seat) (See INSTALLATION )
INSTALL NO. 1 DECK BOARD (w/o Rear No. 2 Seat)
1. Engage the 3 clips and install the rear floor board spacer to the No. 1 deck board.

  Fig 71: Identifying Rear Floor Board Spacer To No. 1 Deck Board Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 DECK BOARD (w/ Rear No. 2 Seat)
1. Engage the 5 clips and install the deck floor box to the No. 1 deck board.

  Fig 72: Identifying Deck Floor Box To No. 1 Deck Board Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR DECK FLOOR BOX (w/o Rear No. 2 Seat)
1. Install the rear deck floor box with the 2 nuts.

  Fig 73: Identifying Rear Deck Floor Box Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL DECK FLOOR BOARD ASSEMBLY (w/o Rear No. 2 Seat)
1. Install the rear deck floor board assembly with the 4 nuts and 4 bolts.

  Fig 74: Identifying Rear Deck Floor Board Assembly Bolts & Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR MAT
1. Install the rear mat.

  Fig 75: Identifying Rear Mat
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL DECK FLOOR BOARD ASSEMBLY (w/ Rear No. 2 Seat)
1. Install the 2 nuts and the deck floor board assembly.
2. Engage the 3 claws.
INSTALL DECK SIDE TRIM BOX LH
1. Install the deck side trim box LH as shown below.

  Fig 77: Identifying Deck Side Trim Box LH Clip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the 2 deck side trim clip and the clips.

  Fig 78: Identifying Deck Side Trim Clip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SEAT SIDE COVER LH (w/ Rear No. 2 Seat)
1. Engage the 2 clips and install the rear seat side cover LH.

  Fig 79: Identifying Rear Seat Side Cover LH Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL DECK SIDE TRIM BOX RH
1. Install the deck side trim box RH as shown below.

  Fig 80: Identifying Deck Side Trim Box RH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the 2 deck side trim clip and the clip.

  Fig 81: Identifying Deck Side Trim Clip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL JACK CARRIER ASSEMBLY
1. Engage the 3 claws, and install the jack carrier assembly.

  Fig 82: Identifying Jack Carrier Assembly Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL JACK ASSEMBLY
1. Install the jack assembly.

  Fig 83: Identifying Jack Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL JACK CARRIER CUSHION
1. Install the jack carrier cushion.

  Fig 84: Identifying Jack Carrier Cushion
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL JACK CARRIER SUPPORT
INSTALL REAR SEAT SIDE COVER RH (w/ Rear No. 2 Seat)
1. Engage the 2 clips and install the rear seat side cover RH.

  Fig 85: Identifying Rear Seat Side Cover RH Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR NO. 1 FLOOR BOARD (w/o Rear No. 2 Seat)
1. Engage the 3 guides and 3 clips and install the rear No. 1 floor board.

  Fig 86: Identifying Rear No. 1 Floor Board Clips & Guides (Without Rear No. 2 Seat)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL TONNEAU COVER ASSEMBLY (w/ Tonneau Cover)
1. Install the tonneau cover assembly.
INSTALL NO. 2 DECK BOARD SUB-ASSEMBLY
1. Engage the 2 guides and install the No. 2 deck board sub-assembly.

  Fig 87: Identifying No. 2 Deck Board Sub-Assembly Guides
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 3 DECK BOARD SUB-ASSEMBLY
1. Engage the 2 guides and install the No. 3 deck board sub-assembly.

  Fig 88: Identifying No. 3 Deck Board Sub-Assembly Guides
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL DECK BOARD ASSEMBLY
1. Install the deck board sub-assembly.

  Fig 89: Identifying Deck Board Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CENTER PILLAR GARNISH LH
1. Engage the 2 guides and the clip.
2. Install the center pillar garnish LH with the clip and screw.
CONNECT FRONT SEAT OUTER BELT ASSEMBLY LH (See INSTALLATION )
INSTALL LOWER CENTER PILLAR GARNISH LH
1. Engage the 2 claws and the 2 clips, and install the lower center pillar garnish LH.

  Fig 91: Identifying Lower Center Pillar Garnish LH Claws & Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH
1. Align the alignment mark (red) on the weatherstrip with the protruding portion on the body indicated by the arrow shown below, and install the rear door opening trim weatherstrip LH.
  NOTE: After installation, check that the corners fit correctly.

  Fig 92: Aligning Alignment Mark (Red) On Weatherstrip With Protruding Portion On Body
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR DOOR SCUFF PLATE LH
1. Engage the guide, 3 clips and 5 claws, and install the rear door scuff plate LH.

  Fig 93: Identifying Rear Door Scuff Plate LH Claws & Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT PILLAR GARNISH LH
1. Remove the protective cover.

  Fig 94: Identifying Protective Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install a new clip < A > on the front pillar garnish LH.
3. Engage the 3 guides and 2 clips, then install the front pillar garnish LH.

  Fig 95: Identifying Front Pillar Garnish LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH
1. Align the alignment mark (blue) on the weatherstrip with the protruding portion on the body indicated by the arrow shown below, and install the front door opening trim weatherstrip LH.
  NOTE: After installation, check that the corners fit correctly.

  Fig 96: Aligning Alignment Mark On Weatherstrip With Protruding Portion On Body
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH
1. Engage the claw and clip, install the cowl side trim sub-assembly LH.
2. Install the clip.

  Fig 97: Identifying Cowl Side Trim Sub-Assembly LH Claw & Clip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT DOOR SCUFF PLATE LH
1. Engage the guide and the 8 claws, and install the front door scuff plate LH.

  Fig 98: Identifying Front Door Scuff Plate LH Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CENTER PILLAR GARNISH RH
HINT:

Use the same procedure for the RH side and the LH side.
CONNECT FRONT SEAT OUTER BELT ASSEMBLY RH
HINT:

Use the same procedure for the RH side and the LH side.
INSTALL LOWER CENTER PILLAR GARNISH RH
HINT:

Use the same procedure for the RH side and the LH side.
INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP RH
1. Align the alignment mark (green) on the weatherstrip with the protruding portion on the body indicated by the arrow shown below, and install the rear door opening trim weatherstrip RH.
  NOTE: After installation, check that the corners fit correctly.

  Fig 99: Aligning Alignment Mark On Weatherstrip With Protruding Portion On Body
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR DOOR SCUFF PLATE RH
HINT:

Use the same procedure for the RH side and the LH side.
INSTALL FRONT PILLAR GARNISH RH
1. Remove the protective cover.

  Fig 100: Identifying Protective Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install a new clip < A > on the front pillar garnish RH.
3. Engage the 3 guides and 2 clips, then install the front pillar garnish RH.

  Fig 101: Identifying Front Pillar Garnish RH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH
1. Align the alignment mark (pink) on the weatherstrip with the protruding portion on the body indicated by the arrow shown below, and install the front door opening trim weatherstrip RH.
  NOTE: After installation, check that the corners fit correctly.

  Fig 102: Aligning Alignment Mark On Weatherstrip With Protruding Portion On Body
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH
HINT:

Use the same procedure for the RH side and the LH side.
INSTALL FRONT DOOR SCUFF PLATE RH
HINT:

Use the same procedure for the RH side and the LH side.
INSTALL REAR NO. 1 SEAT ASSEMBLY LH (See INSTALLATION )
CONNECT REAR NO. 1 SEAT LOCK CABLE ASSEMBLY LH (w/ Remote Folding Function) (See INSTALLATION )
INSPECT REAR SEAT SLIDE ADJUSTER LOCK (for LH Side) (See INSTALLATION )
INSTALL REAR SEAT LEG SIDE COVER LH (See INSTALLATION )
INSTALL REAR INNER TRACK BRACKET COVER LH (See INSTALLATION )
INSTALL REAR OUTER TRACK BRACKET COVER LH (See INSTALLATION )
INSTALL REAR SEAT TRACK BRACKET COVER LH (See INSTALLATION )
INSTALL REAR SEAT HEADREST ASSEMBLY (for LH Side) (See INSTALLATION )
INSTALL REAR CENTER SEAT ASSEMBLY
INSTALL REAR NO. 1 SEAT ASSEMBLY RH (See INSTALLATION )
CONNECT REAR NO. 1 SEAT LOCK CABLE ASSEMBLY RH (w/ Remote Folding Function)
HINT:

Use the same procedure for the RH side and the LH side.
INSPECT REAR SEAT SLIDE ADJUSTER LOCK (for RH Side) (See INSTALLATION )
INSTALL REAR SEAT LEG SIDE COVER RH (See INSTALLATION )
INSTALL REAR INNER TRACK BRACKET COVER RH (See INSTALLATION )
INSTALL REAR OUTER TRACK BRACKET COVER RH (See INSTALLATION )
INSTALL REAR SEAT TRACK BRACKET COVER RH (See INSTALLATION )
INSTALL REAR SEAT HEADREST ASSEMBLY (for RH Side) (See INSTALLATION )
