Differential Mount Cushion: Installation

  1. INSTALL REAR NO. 1 DIFFERENTIAL MOUNT CUSHION
    1. Using SST, install a new rear No. 1 differential mount cushion.

      SST 09570-24011

      (A):

      2.2 +/- 0.5 mm (0.09 +/- 0.02 in.)

      (B):

      0° +/- 3°

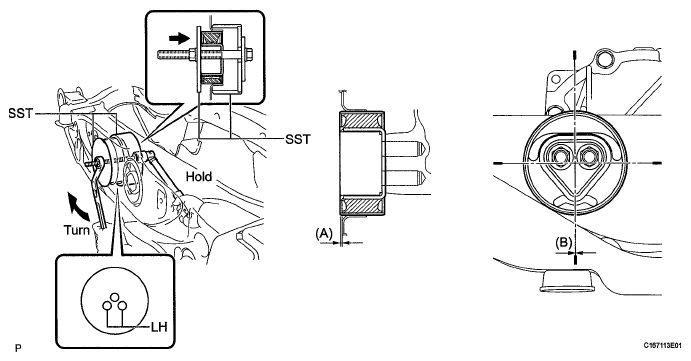

    Fig 1: Identifying Rear No. 1 Differential Mount Cushion
    G05611242Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE: Do not set SST in the wrong direction.

    HINT:

    Perform this operation only when the No. 1 rear differential mount cushion is replaced.

  2. INSTALL REAR NO. 2 DIFFERENTIAL MOUNT CUSHION
    1. Using SST, install a new rear No. 2 differential mount cushion.

      SST 09570-24011,09316-12010

      (A):

      4.7 +/- 0.5 mm (0.19 +/- 0.02 in.)

      (B):

      0° +/- 3°

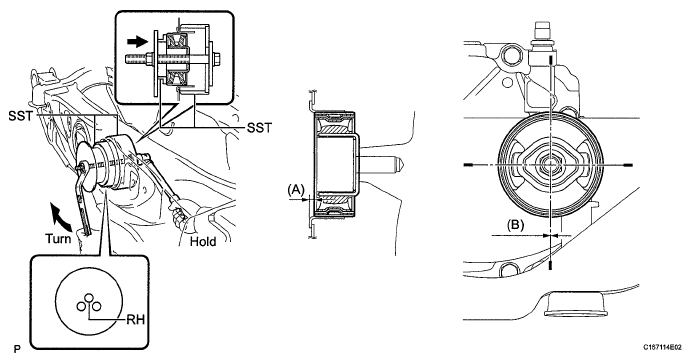

      Fig 2: Identifying Rear No. 2 Differential Mount Cushion
      G05611243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: Do not set SST in the wrong direction.

      HINT:

      Perform this operation only when the No. 2 rear differential mount cushion is replaced.

  3. INSTALL REAR DIFFERENTIAL CARRIER ASSEMBLY  (See INSTALLATION  )
  4. INSTALL REAR SUSPENSION MEMBER  (See INSTALLATION )
  5. INSTALL REAR DRIVE SHAFT SNAP RING LH  (See INSTALLATION )
  6. INSTALL REAR DRIVE SHAFT SNAP RING RH

    HINT:

    Perform the same procedure as the LH side.

  7. INSTALL REAR DRIVE SHAFT ASSEMBLY LH  (See INSTALLATION )
  8. INSTALL REAR DRIVE SHAFT ASSEMBLY RH

    HINT:

    Perform the same procedure as the LH side.

  9. TEMPORARILY INSTALL REAR NO. 1 SUSPENSION ARM ASSEMBLY RH  (See INSTALLATION )
  10. TEMPORARILY INSTALL REAR NO. 2 SUSPENSION ARM ASSEMBLY LH  (See INSTALLATION )
  11. TEMPORARILY INSTALL REAR NO. 2 SUSPENSION ARM ASSEMBLY RH

    HINT:

    Perform the same procedure as the LH side.

  12. INSTALL REAR AXLE CARRIER SUB-ASSEMBLY LH  (See INSTALLATION )
  13. INSTALL REAR AXLE CARRIER SUB-ASSEMBLY RH

    HINT:

    Perform the same procedure as the LH side.

  14. TEMPORARILY INSTALL REAR STRUT ROD ASSEMBLY (for LH Side)  (See INSTALLATION )
  15. TEMPORARILY INSTALL REAR STRUT ROD ASSEMBLY (for RH Side)

    HINT:

    Perform the same procedure as the LH side.

  16. INSTALL REAR AXLE HUB AND BEARING ASSEMBLY LH  (See INSTALLATION )
  17. INSTALL REAR AXLE HUB AND BEARING ASSEMBLY RH

    HINT:

    Perform the same procedure as the LH side.

  18. INSTALL REAR DISC (for LH Side)  (See REASSEMBLY )
  19. INSTALL REAR DISC (for RH Side)

    HINT:

    Perform the same procedure as the LH side.

  20. INSTALL REAR DISC BRAKE CALIPER ASSEMBLY LH  (See REPLACEMENT )
  21. INSTALL REAR DISC BRAKE CALIPER ASSEMBLY RH
  22. TEMPORARILY INSTALL REAR AXLE SHAFT NUT LH  (See INSTALLATION )
  23. TEMPORARILY INSTALL REAR AXLE SHAFT NUT RH

    HINT:

    Perform the same procedure as the LH side.

  24. INSTALL REAR SPEED SENSOR LH  (See INSTALLATION )
  25. INSTALL REAR SPEED SENSOR RH

    HINT:

    Perform the same procedure as the LH side.

  26. STABILIZE SUSPENSION  (See INSTALLATION )
  27. FULLY TIGHTEN REAR NO. 1 SUSPENSION ARM ASSEMBLY LH  (See INSTALLATION )
  28. FULLY TIGHTEN REAR NO. 1 SUSPENSION ARM ASSEMBLY RH

    HINT:

    Perform the same procedure as the LH side.

  29. FULLY TIGHTEN REAR NO. 2 SUSPENSION ARM ASSEMBLY LH  (See INSTALLATION )
  30. FULLY TIGHTEN REAR NO. 2 SUSPENSION ARM ASSEMBLY RH

    HINT:

    Perform the same procedure as the LH side.

  31. FULLY TIGHTEN REAR STRUT ROD ASSEMBLY (for LH Side)  (See INSTALLATION )
  32. FULLY TIGHTEN REAR STRUT ROD ASSEMBLY (for RH Side)

    HINT:

    Perform the same procedure as the LH side.

  33. INSTALL NO. 3 PARKING BRAKE CABLE ASSEMBLY  (See INSTALLATION )
  34. INSTALL NO. 2 PARKING BRAKE CABLE ASSEMBLY

    HINT:

    Perform the same procedure as the No. 3 parking brake cable assembly.

  35. SEPARATE REAR DISC BRAKE CALIPER ASSEMBLY LH  (See REPLACEMENT )
  36. SEPARATE REAR DISC BRAKE CALIPER ASSEMBLY RH

    HINT:

    Perform the same procedure as the LH side.

  37. REMOVE REAR DISC (for LH Side)  (See DISASSEMBLY )
  38. REMOVE REAR DISC (for RH Side)

    HINT:

    Perform the same procedure as the LH side.

  39. INSPECT REAR AXLE HUB BEARING LOOSENESS (for LH Side)  (See ON-VEHICLE INSPECTION )
  40. INSPECT REAR AXLE HUB BEARING LOOSENESS (for RH Side)

    HINT:

    Perform the same procedure as the LH side.

  41. INSPECT REAR AXLE HUB RUNOUT (for LH Side)  (See ON-VEHICLE INSPECTION )
  42. INSPECT REAR AXLE HUB RUNOUT (for RH Side)

    HINT:

    Perform the same procedure as the LH side.

  43. INSTALL REAR DISC (for LH Side)  (See REASSEMBLY )
  44. INSTALL REAR DISC (for RH Side)

    HINT:

    Perform the same procedure as the LH side.

  45. INSTALL REAR DISC BRAKE CALIPER ASSEMBLY LH  (See REPLACEMENT )
  46. INSTALL REAR DISC BRAKE CALIPER ASSEMBLY RH

    HINT:

    Perform the same procedure as the LH side.

  47. INSTALL REAR AXLE SHAFT NUT LH  (See INSTALLATION )
  48. INSTALL REAR AXLE SHAFT NUT RH

    HINT:

    Perform the same procedure as the LH side.

  49. TEMPORARILY TIGHTEN PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY  (See INSTALLATION )
  50. FULLY TIGHTEN PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY  (See INSTALLATION )
  51. INSTALL CENTER EXHAUST PIPE ASSEMBLY  (See INSTALLATION )
  52. INSTALL TAIL EXHAUST PIPE ASSEMBLY  (See INSTALLATION )
  53. INSPECT AND ADJUST TRANSFER OIL  (See ON-VEHICLE INSPECTION )
  54. INSTALL REAR WHEELS

    Torque: 103 N*m (1050 kgf*cm, 76 ft.*lbf)

  55. INSPECT REAR WHEEL ALIGNMENT

    (See ADJUSTMENT )

  56. CHECK FOR REAR SPEED SENSOR SIGNAL

    (See TEST MODE PROCEDURE )

  57. INSPECT FOR EXHAUST GAS LEAK  (See INSTALLATION )
