Engine Assembly: Removal

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
  1. DISCHARGE FUEL SYSTEM PRESSURE (see appropriate step(s) under  REMOVAL  )
  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  3. REMOVE HOOD SUB-ASSEMBLY (see appropriate step(s) under  HOOD  )
  4. REMOVE RADIATOR SUPPORT OPENING COVER
  5. REMOVE BATTERY CLAMP SUB-ASSEMBLY
    1. Loosen the bolt and nut, and remove the battery clamp.
  6. REMOVE BATTERY
  7. REMOVE BATTERY TRAY
  8. REMOVE FRONT WHEEL
  9. REMOVE NO. 1 ENGINE UNDER COVER
  10. REMOVE NO. 2 ENGINE UNDER COVER
  11. REMOVE FRONT FENDER APRON RH
  12. REMOVE NO. 1 ENGINE COVER (see appropriate step(s) under  REMOVAL  )
  13. DRAIN ENGINE COOLANT (see appropriate step(s) under  COOLANT  )
  14. DRAIN AUTOMATIC TRANSAXLE FLUID
    1. Drain automatic transaxle fluid for U241E (2WD), (see appropriate step(s) under REMOVAL ).
    2. Drain automatic transaxle fluid for U140F (4WD), (see appropriate step(s) under REMOVAL ).
  15. REMOVE RADIATOR ASSEMBLY
    1. Remove the radiator (see appropriate step(s) under REMOVAL ).

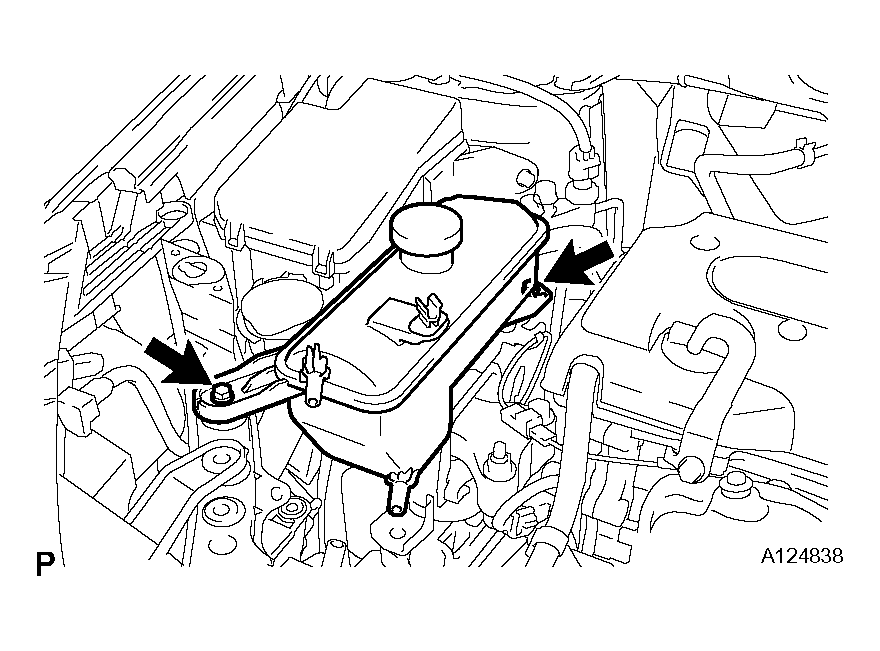

  16. REMOVE RADIATOR RESERVOIR
    1. Remove the 2 bolts and reservoir.
      Fig 1: Identifying Bolts And Reservoir
      G04484831Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE PURGE VSV (see appropriate step(s) under  REMOVAL  )
  18. REMOVE AIR CLEANER CAP (see appropriate step(s) under  REMOVAL  )
  19. REMOVE AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY

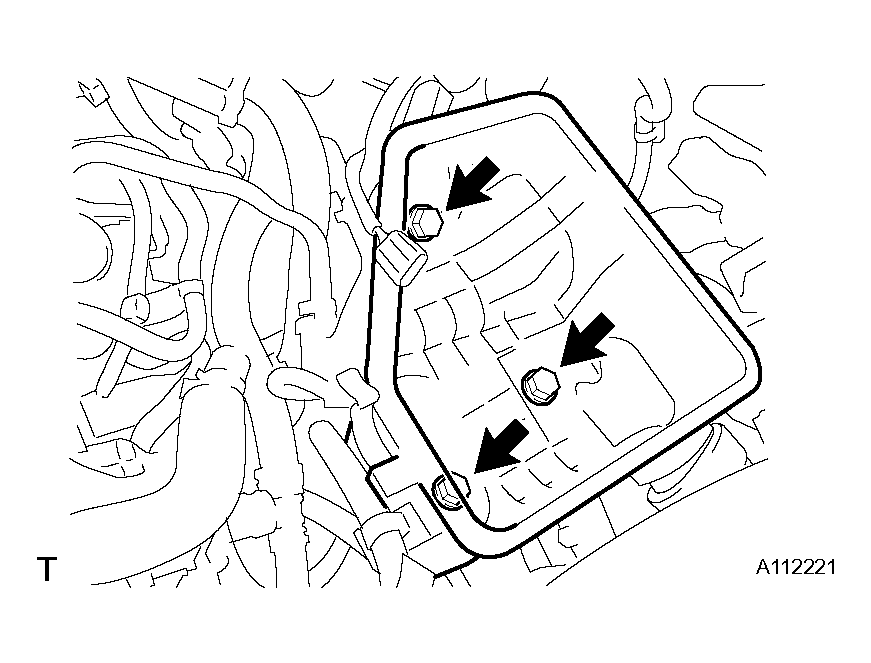

  20. REMOVE AIR CLEANER CASE SUB-ASSEMBLY
    1. Remove the 3 bolts from the air cleaner case.
    2. Disconnect the case from the No. 1 air cleaner inlet.
    Fig 2: Identifying Bolts From Air Cleaner Case
    G04484832Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE FRONT BATTERY CARRIER
    1. Disconnect the 2 clamps of the engine wire.
    2. Remove the 4 bolts and front battery carrier.

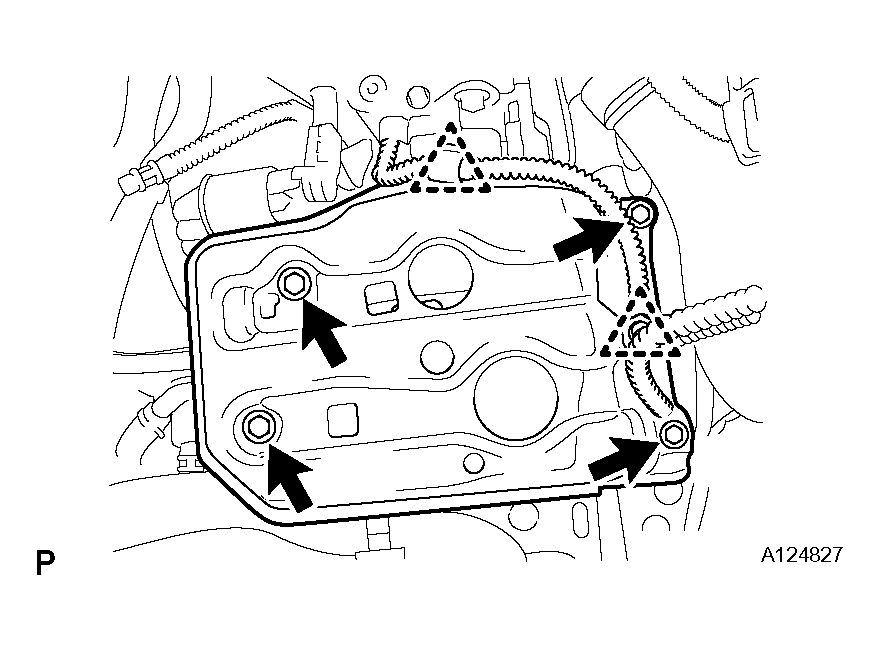

      Fig 3: Identifying Bolts And Front Battery Carrier
      G04484833Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE BATTERY BRACKET REINFORCEMENT
    1. Remove the 2 bolts and battery bracket reinforcement.

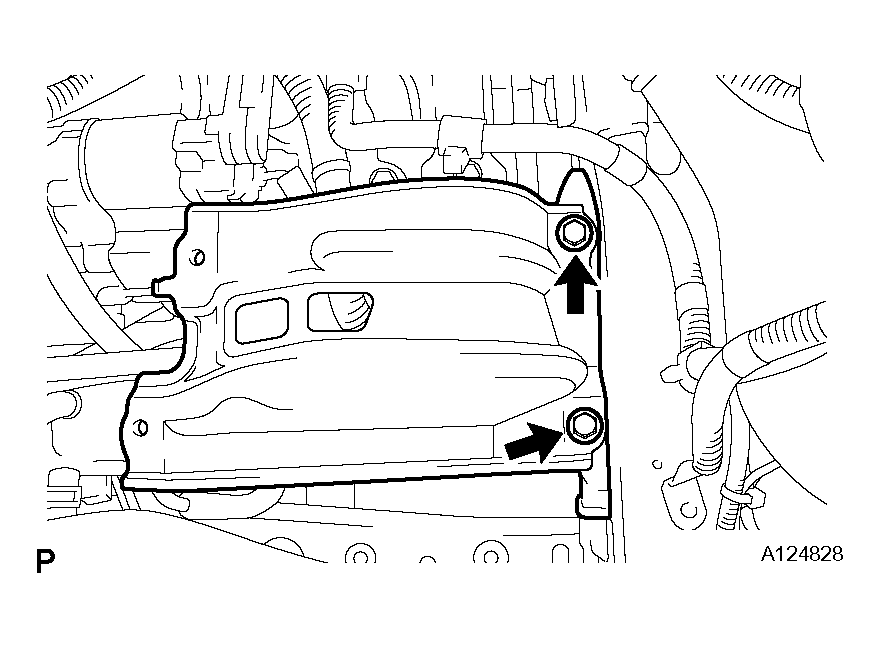

      Fig 4: Identifying Bolts And Battery Bracket Reinforcement
      G04484834Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE BATTERY CARRIER BRACKET
    1. Remove the 2 bolts, nut and battery carrier bracket.
      Fig 5: Identifying Battery Carrier Bracket Bolts
      G04484835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. DISCONNECT UNION TO CONNECTOR TUBE HOSE
    1. Disconnect the 2 union to connector tube hoses from the booster vacuum tube.

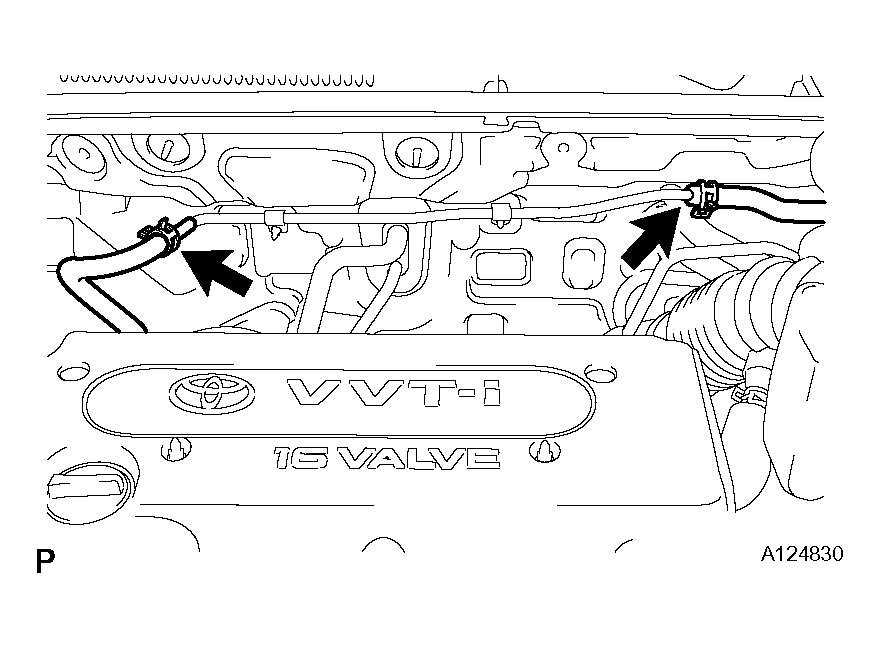

      Fig 6: Disconnecting Union To Connector Tube Hose
      G04484836Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. DISCONNECT HEATER WATER INLET HOSE
    1. Disconnect the heater water inlet hose from the heater unit.
      Fig 7: Identifying Heater Water Inlet Hose
      G04484837Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

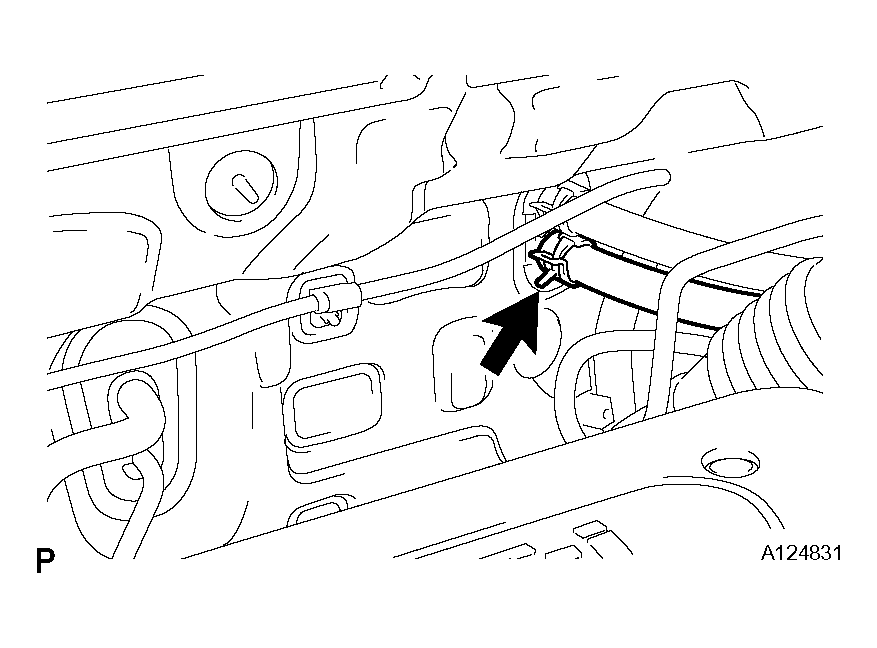

  26. DISCONNECT HEATER WATER OUTLET HOSE
    1. Disconnect the heater water outlet hose from the heater unit.

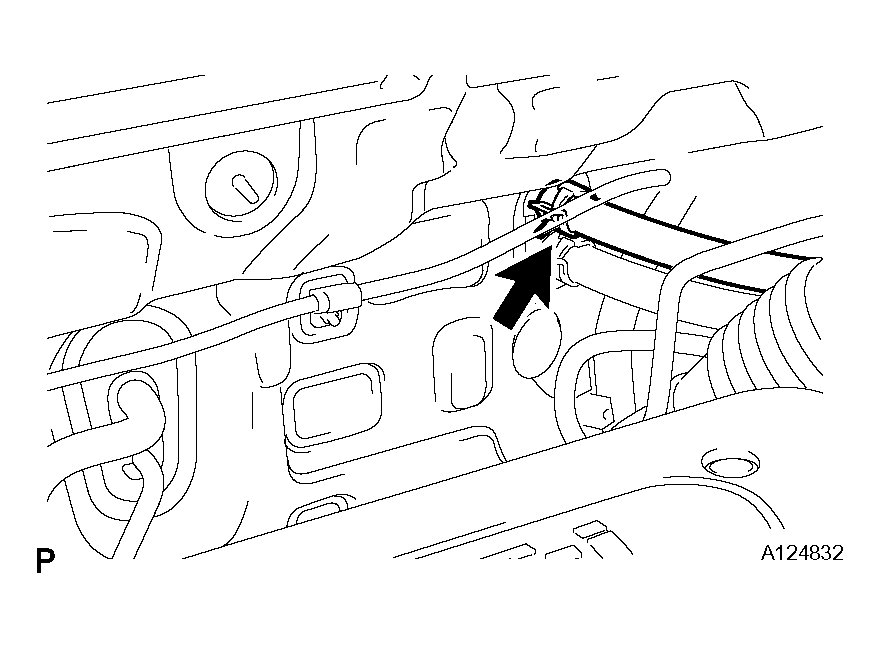

      Fig 8: Identifying Heater Water Outlet Hose
      G04484838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. DISCONNECT FUEL TUBE (see appropriate step(s) under  REMOVAL  )
  28. REMOVE THROTTLE BODY (see appropriate step(s) under  REMOVAL  )
  29. DISCONNECT NO. 2 VENTILATION HOSE (see appropriate step(s) under  REMOVAL  )
  30. REMOVE FUEL DELIVERY PIPE SUB-ASSEMBLY (see appropriate step(s) under  REMOVAL  )
  31. REMOVE INTAKE MANIFOLD (see appropriate step(s) under  REMOVAL  )
  32. REMOVE INTAKE MANIFOLD INSULATOR (see appropriate step(s) under  REMOVAL  )
  33. REMOVE TRANSAXLE CONTROL CABLE ASSEMBLY
    1. Remove the transaxle control cable for U241E (2WD) (see appropriate step(s) under REPLACEMENT ).
    2. Remove the transaxle control cable for U140F (4WD) (see appropriate step(s) under REPLACEMENT ).
  34. REMOVE FRONT SUSPENSION MEMBER REINFORCEMENT RH (see appropriate step(s) under  REMOVAL  )
  35. REMOVE FAN AND GENERATOR V BELT (see appropriate step(s) under  REMOVAL  )
  36. REMOVE GENERATOR ASSEMBLY (see  REMOVAL  )
  37. REMOVE COOLER COMPRESSOR ASSEMBLY
    1. Remove the cooler compressor (see appropriate step(s) under REMOVAL ).

      HINT:

      Disconnect the compressor together with the low-pressure and high-pressure hoses, then secure it to the vehicle side using rope.

  38. REMOVE ECM (see appropriate step(s) under  REMOVAL  )
  39. DISCONNECT ENGINE WIRE
    1. Remove the engine room relay block cover.
    2. Remove the nut and disconnect the 2 engine wire connectors.

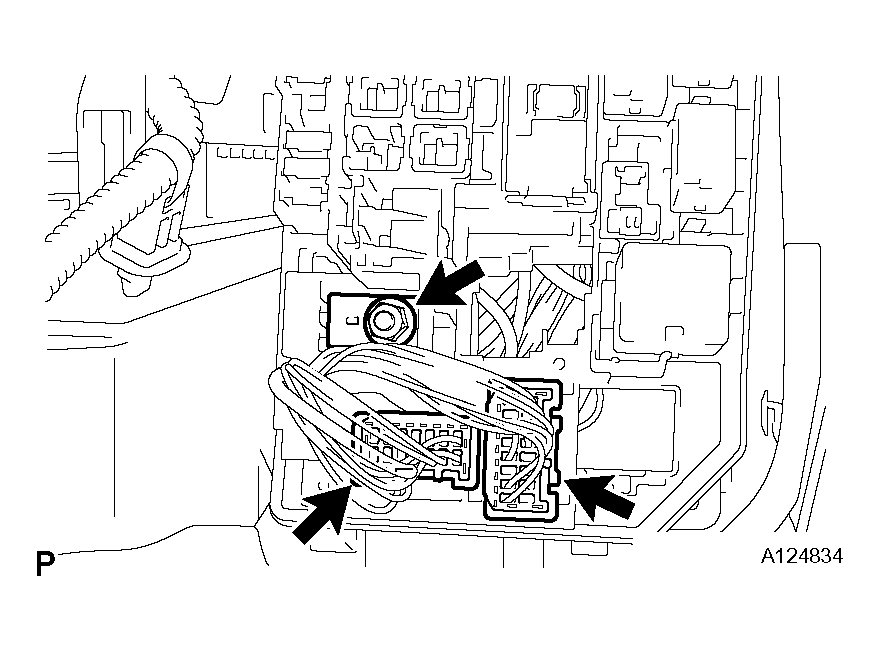

      Fig 9: Identifying Engine Wire Connectors Nut
      G04484839Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

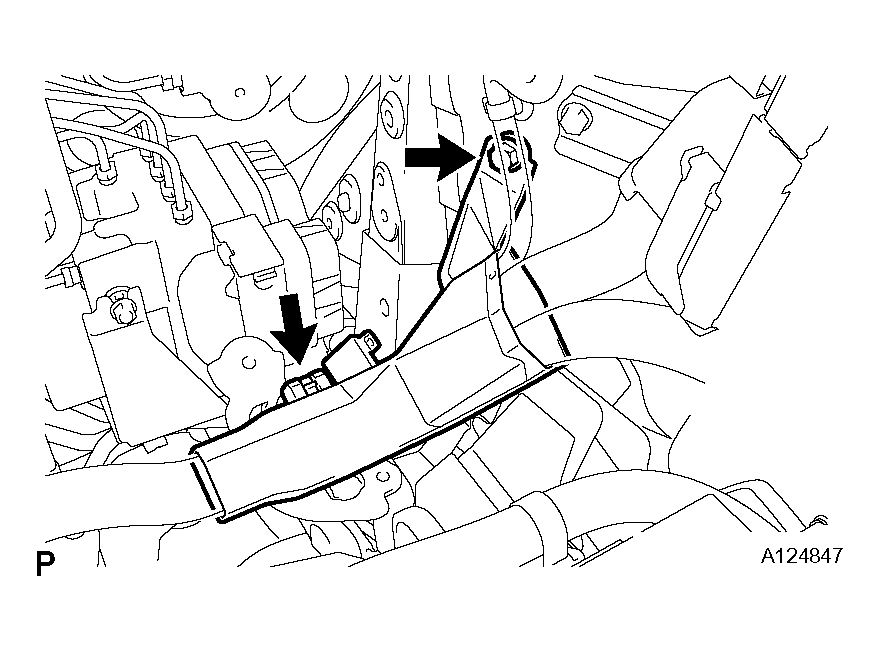

    3. Remove the bolt and engine wire cover. Then disconnect the engine wire from the engine wire cover.
      Fig 10: Identifying Engine Wire Cover Bolt
      G04484840Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disconnect the ground cable connector.

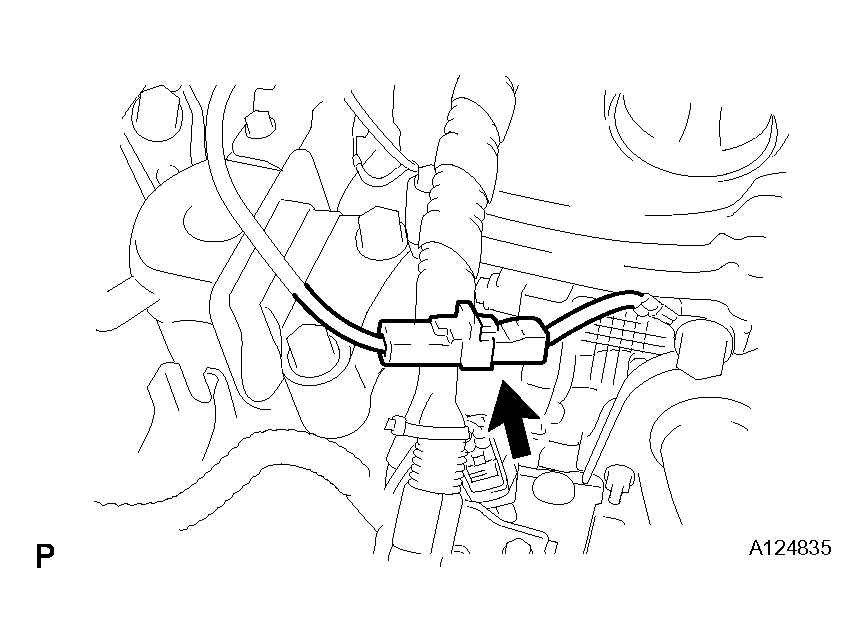

      Fig 11: Identifying Ground Cable Connector
      G04484841Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

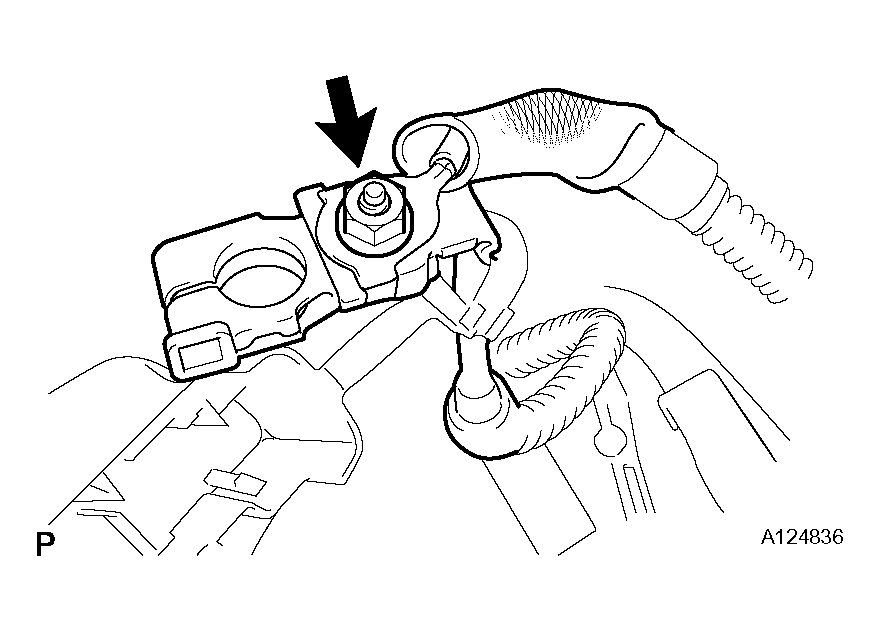

    5. Remove the nut from the positive (+) battery terminal to disconnect the engine wire.
      Fig 12: Identifying Nut From Positive Battery Terminal
      G04484842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Disconnect the ground cable from the clamp located near the starter.
      Fig 13: Identifying Ground Cable Located Near Starter
      G04484843Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Remove the bolt and ground cable located near the starter.
  40. REMOVE FRONT EXHAUST PIPE ASSEMBLY (see appropriate step(s) under  EXHAUST (2AZ-FE)  )
  41. REMOVE FRONT DRIVE SHAFT ASSEMBLY
    1. Remove the front drive shaft (for 2WD), (see appropriate step(s) under REMOVAL ).
    2. Remove the front drive shaft (for 4WD), (see appropriate step(s) under REMOVAL ).
  42. REMOVE PROPELLER SHAFT ASSEMBLY (for 4WD), (see appropriate step(s) under  PROPELLER SHAFT  )
  43. REMOVE ENGINE MOUNTING INSULATOR FR
    1. Remove the through bolt and nut.

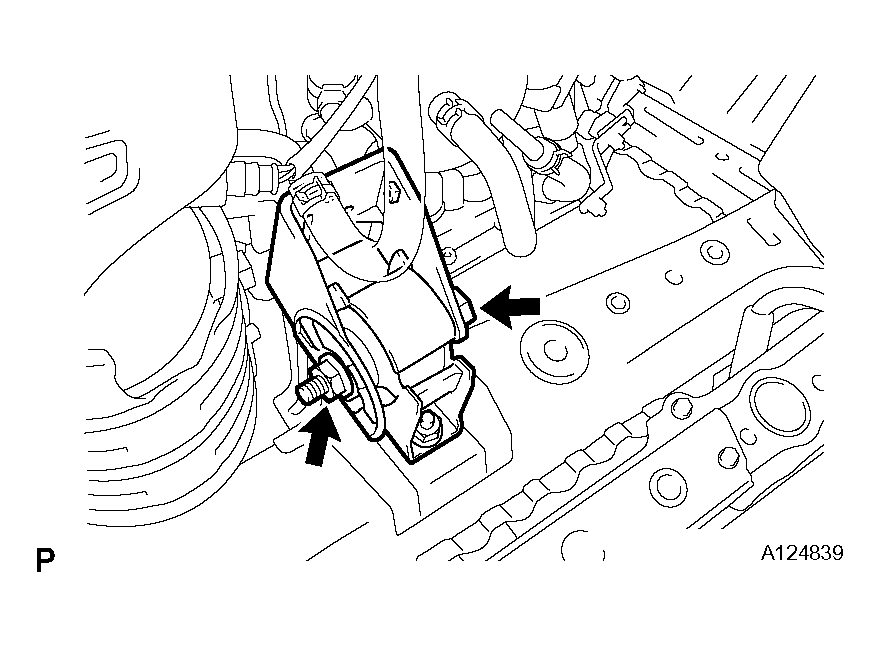

      Fig 14: Identifying Through Bolt And Nut
      G04484844Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts and engine mounting insulator FR.

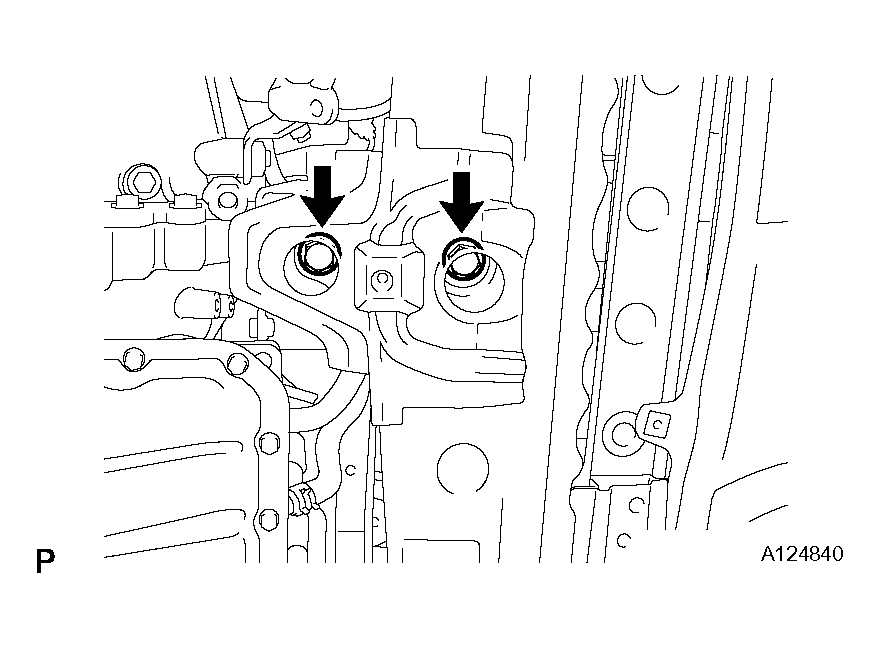

      Fig 15: Identifying Engine Mounting Insulator FR
      G04484845Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  44. REMOVE ENGINE MOUNTING INSULATOR RR
    1. Remove the through bolt.

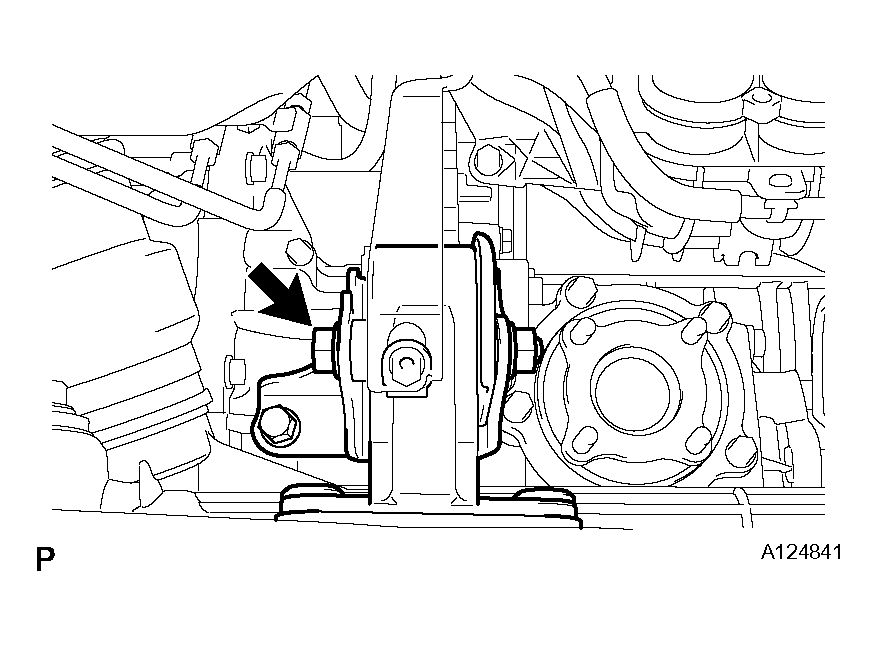

      Fig 16: Identifying Through Bolt
      G04484846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 nuts, 2 bolts and engine mounting insulator RR.

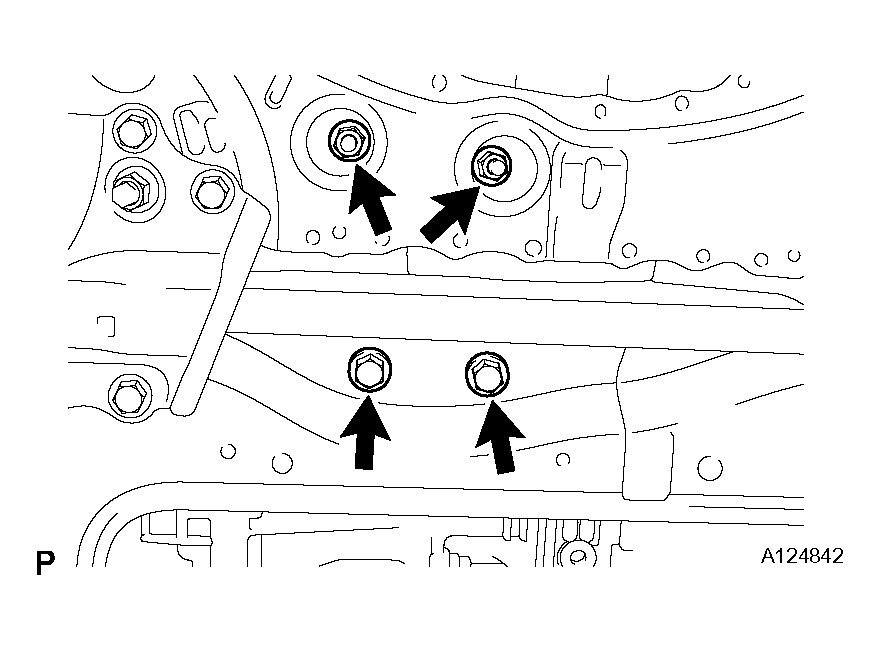

      Fig 17: Identifying Bolts And Engine Mounting Insulator (RR)
      G04484847Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  45. REMOVE ENGINE ASSEMBLY WITH TRANSAXLE
    1. Install the No. 1 and No. 2 engine hangers with the bolts as shown in the figure below.

      Torque: 38 N*m (387 kgf*cm, 28 ft.*lbf)

      Part No.

      ENGINE HANGER PART NO. REFERENCE

      Item Part No.
      No. 1 engine hanger 12281-28010
      No. 2 engine hanger 12282-28010
      Bolt 91512-61020

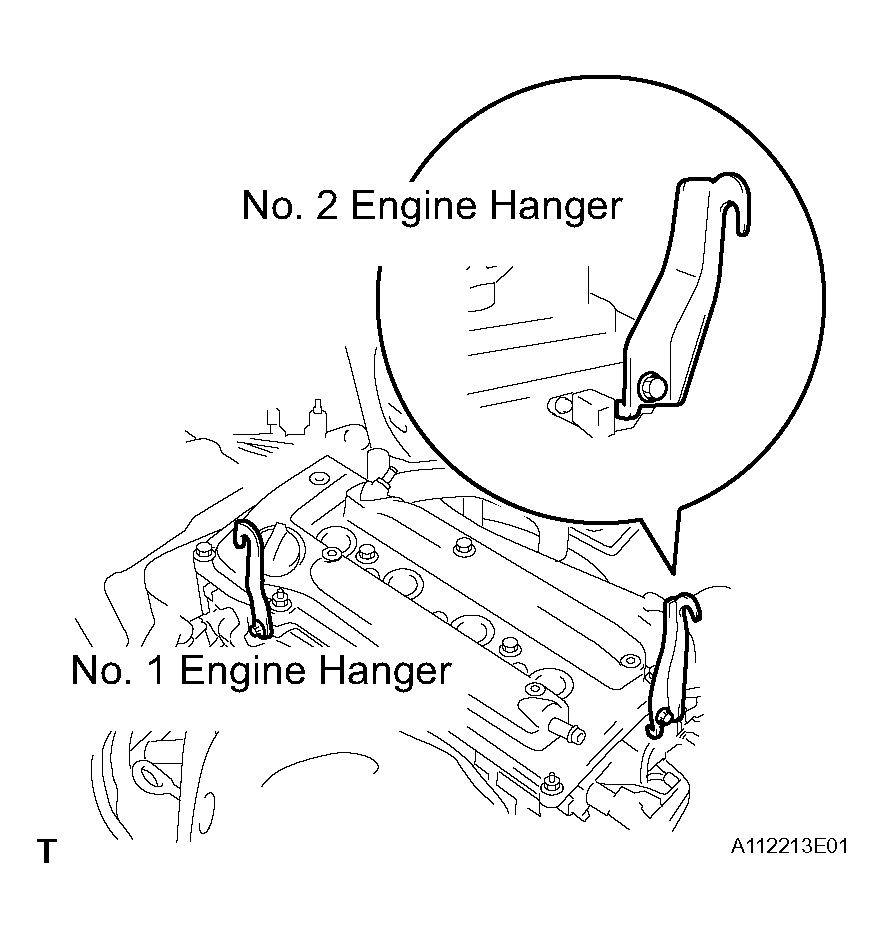

      Fig 18: Identifying Engine Hangers
      G04484848Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Attach the sling device to the engine hangers and chain block.
      Fig 19: Attaching Sling Device To Engine Hangers And Chain Block
      G04484849Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Carefully remove the engine with transaxle from the vehicle.

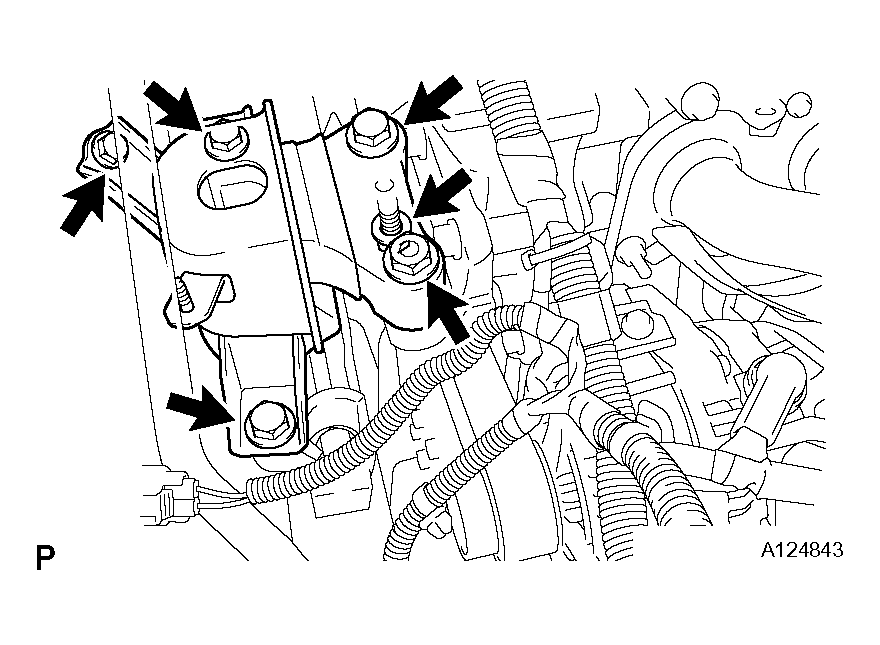

  46. REMOVE ENGINE MOUNTING INSULATOR RH
    1. Remove the 2 nuts, 4 bolts and engine mounting insulator RH.
      Fig 20: Identifying Engine Mounting Insulator RH Bolts And Nuts
      G04484850Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  47. REMOVE ENGINE MOUNTING INSULATOR LH
    1. Remove the through bolt and nut.

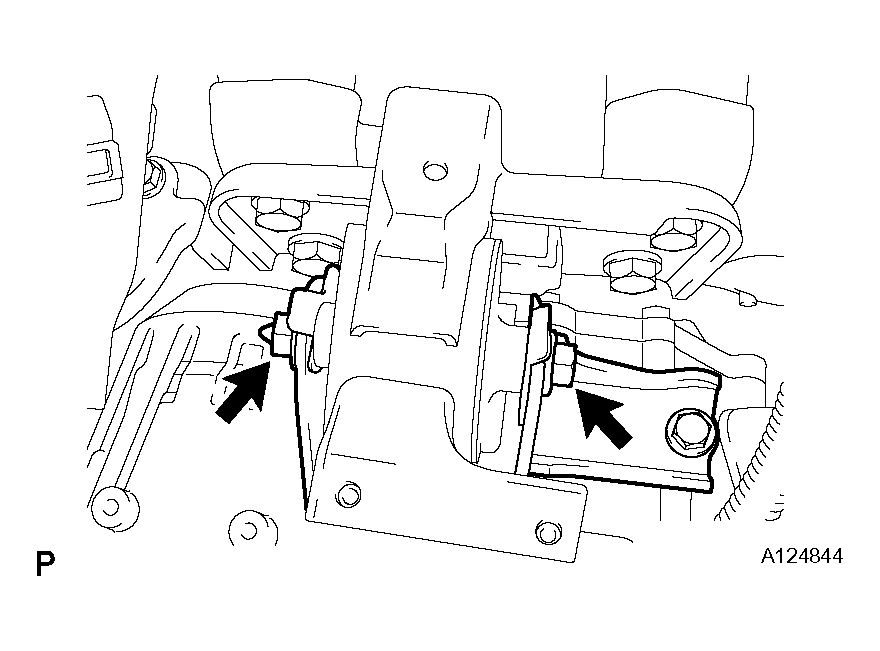

      Fig 21: Identifying Through Bolt And Nut
      G04484851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 bolts and engine mounting insulator LH.

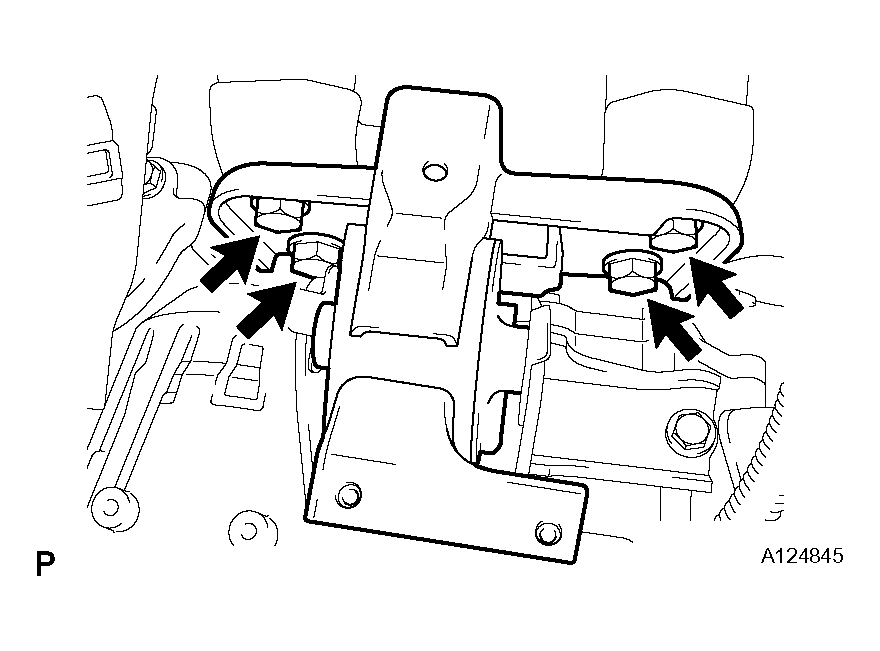

      Fig 22: Identifying Engine Mounting Insulator LH Bolts
      G04484852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

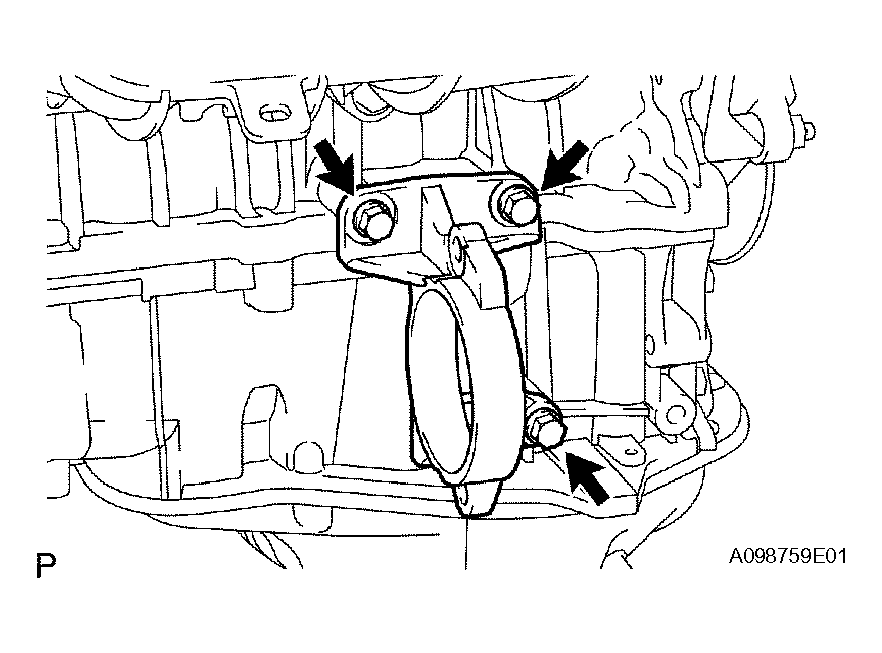

  48. REMOVE DRIVE SHAFT BEARING BRACKET (for 2WD)
    1. Remove the 3 bolts and bracket.
      Fig 23: Identifying Drive Shaft Bearing Bracket Bolts (For 2WD)
      G04484853Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  49. REMOVE DRIVE SHAFT BEARING BRACKET (for 4WD)
    1. Remove the 3 bolts and bracket.

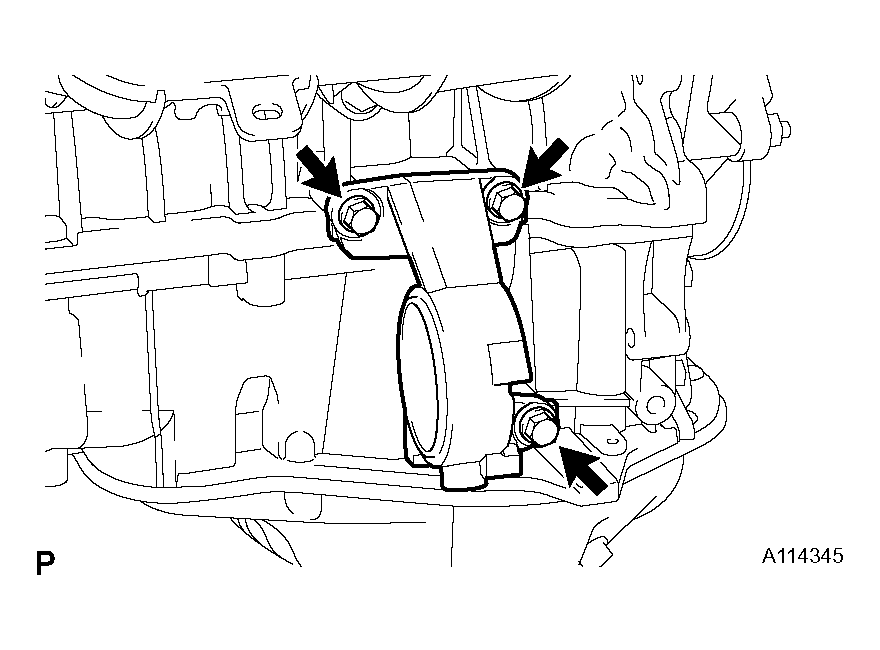

      Fig 24: Identifying Drive Shaft Bearing Bracket Bolts (For 4WD)
      G04484854Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  50. REMOVE TRANSFER ASSEMBLY (for 4WD) (see appropriate step(s) under  REMOVAL  )
  51. REMOVE STARTER ASSEMBLY (see appropriate step(s) under  DISASSEMBLY  )
  52. REMOVE AUTOMATIC TRANSAXLE ASSEMBLY
    1. Remove the automatic transaxle for U241E (2WD), (see appropriate step(s) under REMOVAL ).
    2. Remove the automatic transaxle for U140F (4WD), (see appropriate step(s) under REMOVAL ).
  53. REMOVE TORQUE CONVERTER CLUTCH ASSEMBLY
    1. Remove the torque converter clutch for U241E (2WD), (see appropriate step(s) under REMOVAL ).
    2. Remove the torque converter clutch for U140F (4WD), (see appropriate step(s) under REMOVAL ).
  54. REMOVE DRIVE PLATE SUB-ASSEMBLY

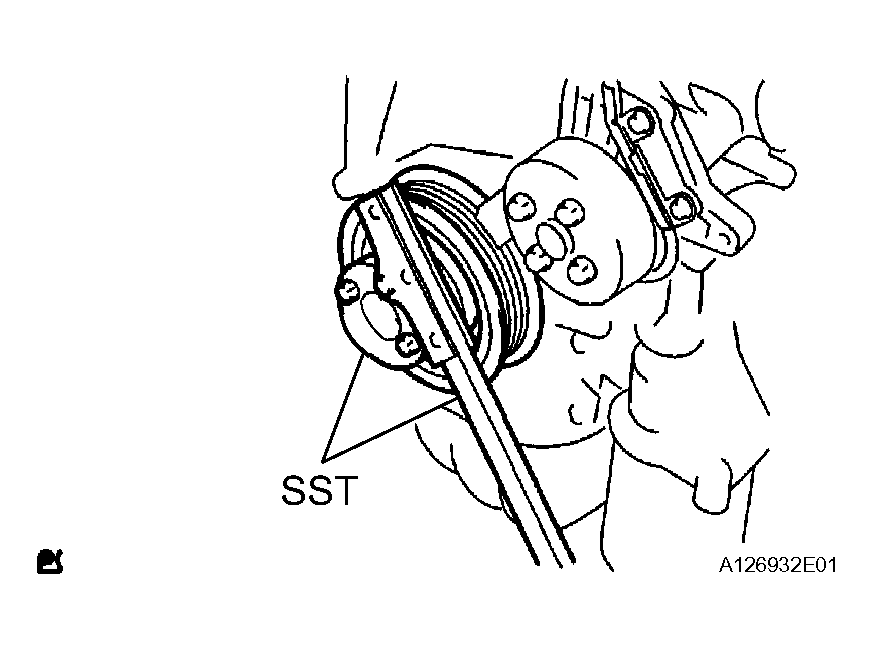

    1. Using SST, hold the crankshaft.

      SST 09213-54015 (91651-60855), 09330-00021

      Fig 25: Holding Crankshaft Using SST
      G04484855Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 8 bolts, rear spacer, drive plate and front spacer.

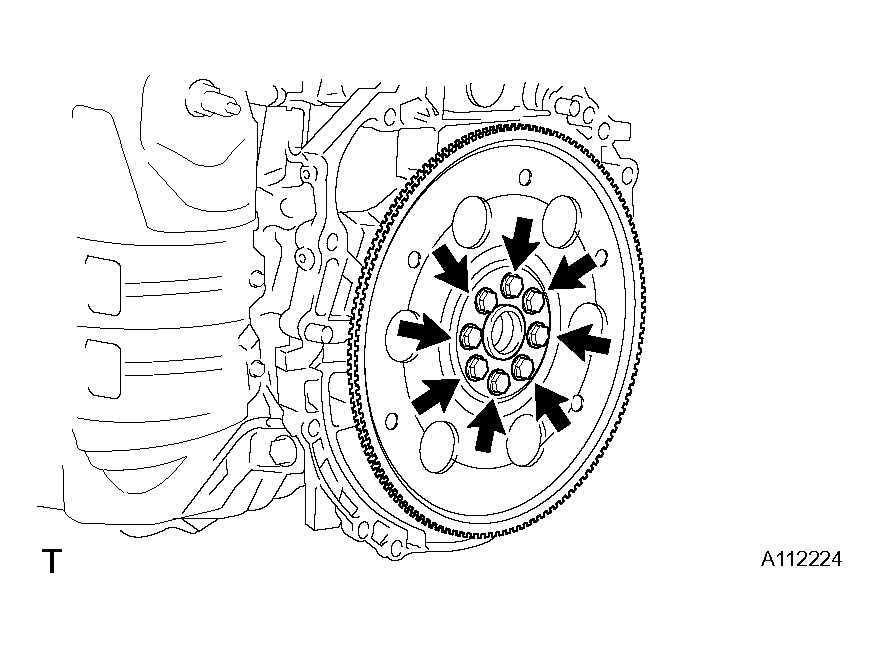

      Fig 26: Identifying Rear Spacer, Drive Plate & Front Spacer
      G04484856Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
