Transfer Assembly: Removal

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. REMOVE ENGINE ASSEMBLY WITH AUTOMATIC TRANSAXLE
    1. for 2AZ-FE:

      Remove the engine with automatic transaxle (see REMOVAL ).

    2. for 2GR-FE:

      Remove the engine with automatic transaxle (see REMOVAL )

  3. REMOVE REAR ENGINE MOUNTING BRACKET (for 2GR-FE)  (See REMOVAL )
  4. REMOVE REAR ENGINE MOUNTING BRACKET (for 2AZ-FE)  (See REMOVAL )
  5. REMOVE TRANSFER ASSEMBLY
    1. Remove the 6 nuts, 2 bolts and transfer from the transaxle.

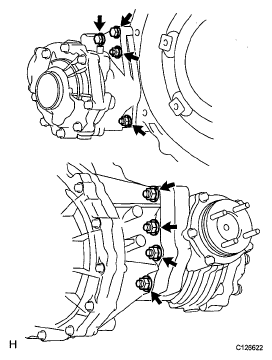

      Fig 1: Locating Transfer Assembly Nuts And Bolts
      G05584685Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
