Section 165 (Charging System (2AZ-FE)): Generator: Removal

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
REMOVE FAN AND GENERATOR V BELT
1. Remove the belt (see REMOVAL ).
REMOVE GENERATOR ASSEMBLY
1. Disconnect the generator connector.
2. Remove the terminal cap.
3. Remove the nut and disconnect the generator wire.
4. Remove the bolt and wire harness clamp bracket.
5. Remove the wire harness clamps.

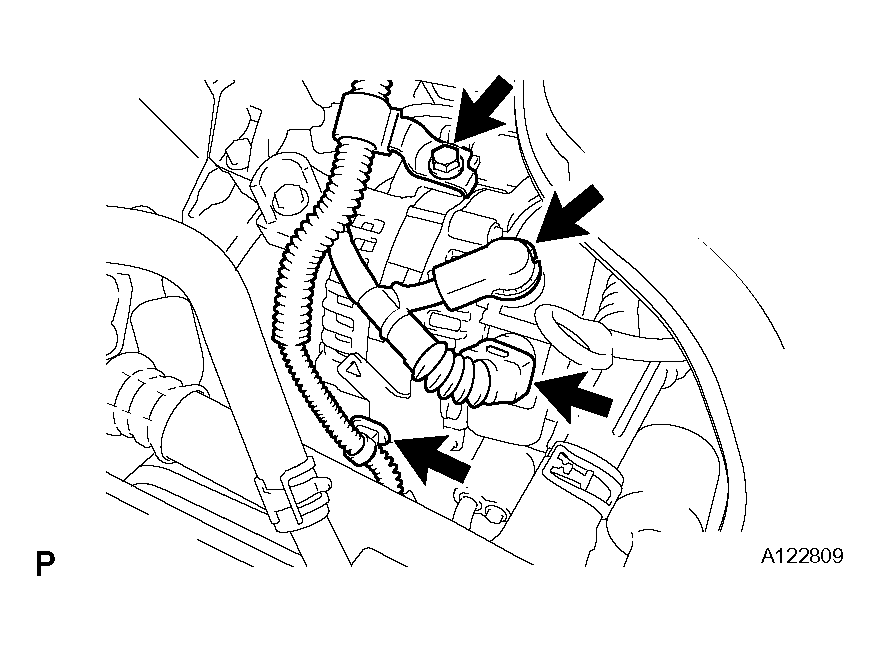

  Fig 1: Removing Generator Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Remove the 2 bolts and generator.

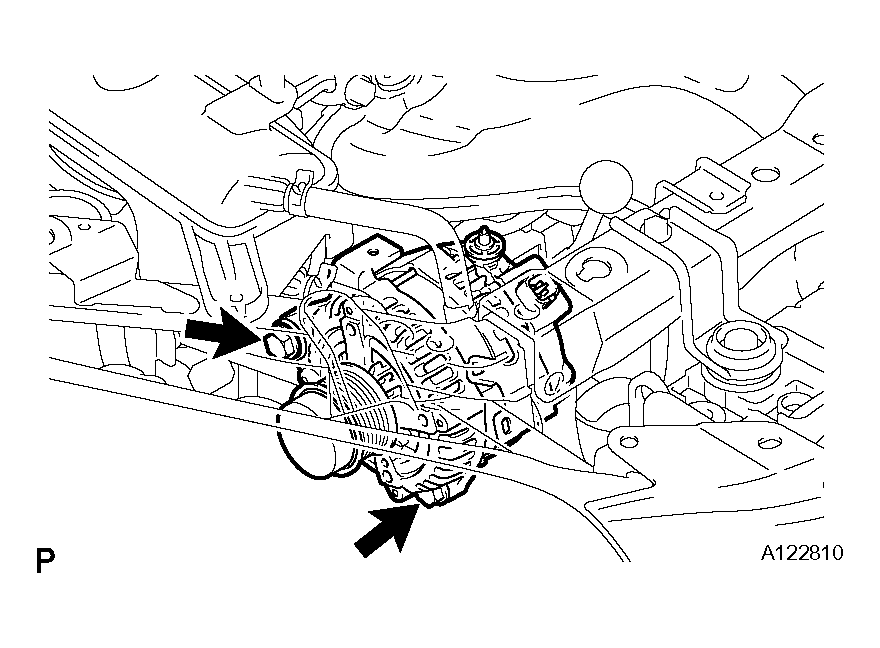

  Fig 2: Removing Generator Fasteners
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
