Rear Axle Carrier Sub-ASSY LH: Replacement

HINT:

COMPONENTS: see COMPONENTS

• Use the same procedures for the RH side and LH side.
• The procedures listed below are for the LH side.

1. REMOVE REAR WHEEL
2. SEPARATE REAR DISC BRAKE CALIPER ASSY LH
   1. Remove the bolt, and separate the flexible hose from the shock absorber.

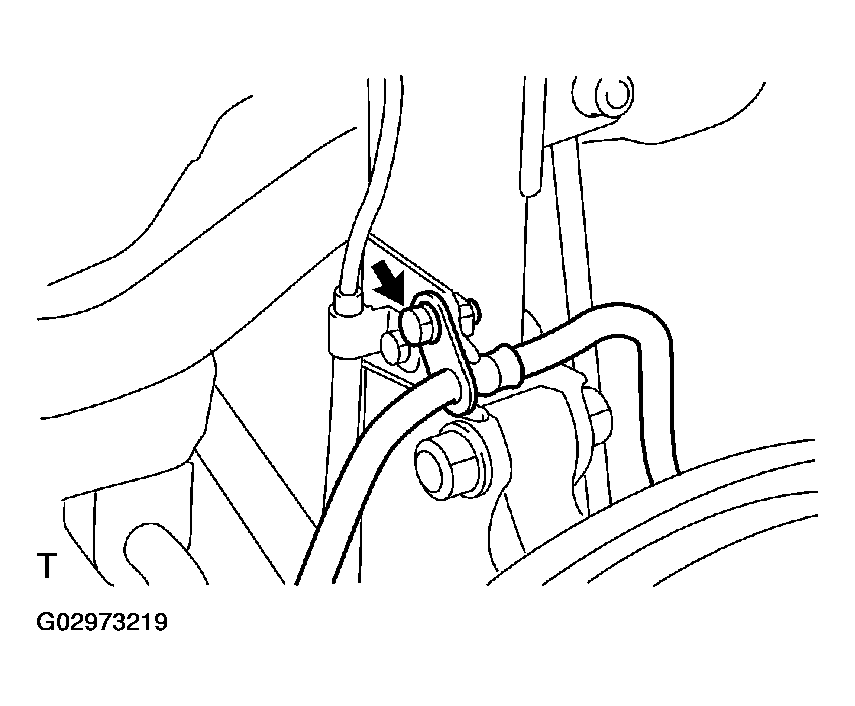

      Fig 1: Removing Bolt, & Separating Flexible Hose From Shock Absorber

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Remove the 2 bolts and separate the rear disc brake caliper assy LH.
      NOTE: Use a wire or an equivalent to keep the brake caliper from hanging down by the flexible hose.
      Fig 2: Removing Bolts & Separate Rear Disc Brake Caliper Assy LH

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. REMOVE REAR DISC (SEE  OVERHAUL  )
4. DISCONNECT SKID CONTROL SENSOR
   1. Disconnect the skid control sensor connector.
5. REMOVE REAR AXLE HUB & BEARING ASSY LH
   1. Remove the 4 bolts and rear axle hub & bearing assy LH.

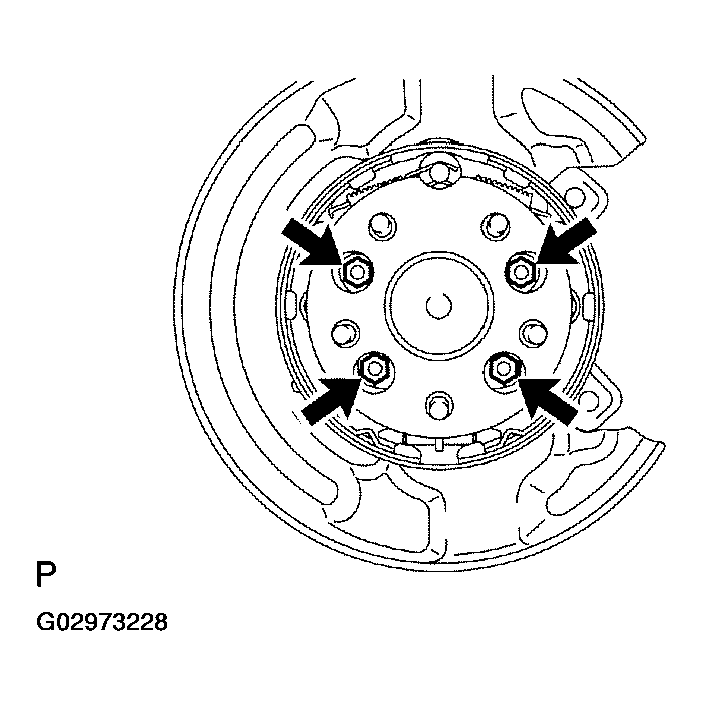

      Fig 3: Removing Rear Axle Hub & Bearing Assy LH

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. SEPARATE STRUT ROD ASSY REAR
   1. Remove the bolt and nut, and the strut rod assy rear (rear axle carrier side) from the rear axle carrier sub-assy LH.

      HINT:

      When removing the bolt, keep the nut from rotating.

7. SEPARATE REAR SUSPENSION ARM ASSY NO.2 LH
   1. Remove the bolt and nut, and separate the rear suspension arm assy No.2 LH (rear axle carrier side) from the rear axle carrier sub-assy LH.

      HINT:

      When removing the bolt, keep the nut from rotating.

      Fig 4: Separating Rear Suspension Arm Assy No.2 LH

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. SEPARATE REAR SUSPENSION ARM ASSY NO.1 LH
   1. Remove the bolt and nut, separate the rear suspension arm assy No.1 LH (rear axle carrier side) from the rear axle carrier sub-assy.

      HINT:

      When removing the bolt, keep the nut from rotating.

      Fig 5: Separating Rear Suspension Arm Assy No.1 LH

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. REMOVE REAR AXLE CARRIER SUB-ASSY LH
   1. Remove the 2 bolts and 2 nuts, and remove the rear axle carrier sub-assy LH from the shock absorber.

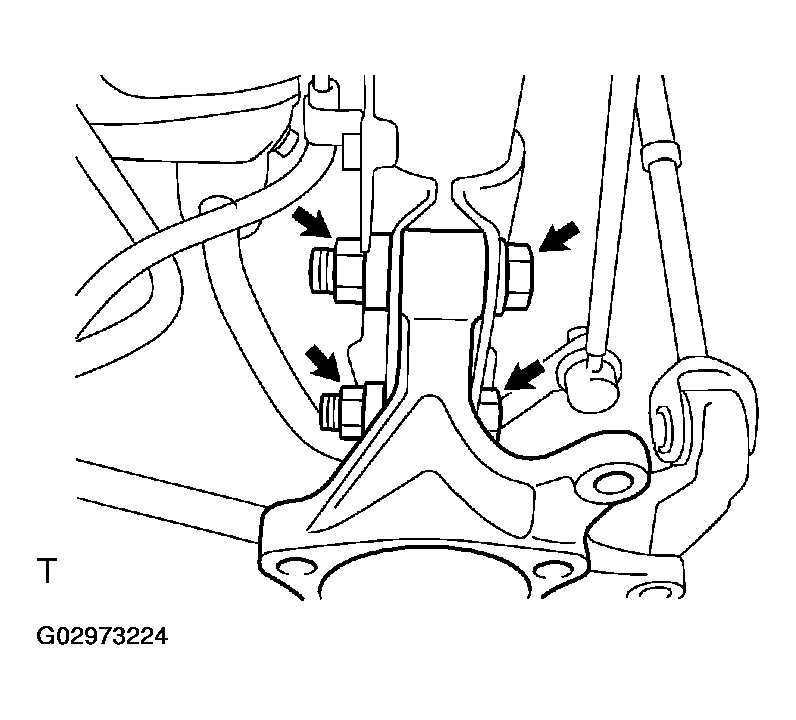

      Fig 6: Removing Rear Axle Carrier Sub-Assy LH

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
10. INSTALL REAR AXLE CARRIER SUB-ASSY LH
    1. Install the rear axle carrier sub-assy LH with the 2 bolts and 2 nuts to the shock absorber.

       Torque: 255 N.m (2,600 kgf.cm, 188 ft.lbf)

       Fig 7: Installing Rear Axle Carrier Sub-Assy LH

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
11. TEMPORARILY TIGHTEN REAR SUSPENSION ARM ASSY NO.1 LH
    1. Temporarily tighten the rear suspension arm assy No.1 LH with the bolt and nut.

       HINT:

       Insert the bolt from the rear side of the vehicle and temporarily tighten the bolt.

       Fig 8: Tightening Rear Suspension Arm Assy No.1 LH

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
12. TEMPORARILY TIGHTEN REAR SUSPENSION ARM ASSY NO.2 LH
    1. Temporarily tighten the rear suspension arm assy No.2 LH with the bolt and nut.

       HINT:

       Insert the bolt from the rear side of the vehicle and temporarily tighten the bolt.

       Fig 9: Tightening Rear Suspension Arm Assy No.2 LH

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
13. TEMPORARILY TIGHTEN STRUT ROD ASSY REAR
    1. Temporarily tighten the strut rod assy rear with the bolt and nut.

       HINT:

       Insert the bolt from the inside of the vehicle and temporarily tighten the bolt.

14. INSTALL REAR AXLE HUB & BEARING ASSY LH
    1. Install the hub & bearing assy LH with the 4 bolts.

       Torque: 80 N.m (816 kgf.cm, 59 ft.lbf)

       Fig 10: Installing Hub & Bearing Assy LH With Bolts

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
15. INSPECT REAR AXLE HUB BEARING LOOSENESS (SEE  ON-VEHICLE INSPECTION  )
16. INSPECT REAR AXLE HUB RUNOUT (SEE  ON-VEHICLE INSPECTION  )
17. CONNECT SKID CONTROL SENSOR
    1. Connect the skid control sensor connector.
       NOTE: Do not twist the sensor wire when connecting it.
18. INSTALL REAR DISC (SEE  OVERHAUL  )
19. INSTALL REAR DISC BRAKE CALIPER ASSY LH
    1. Install the rear disc brake caliper with the 2 bolts.

       Torque: 62 N.m (632 kgf.cm, 46 ft.lbf)

       NOTE: Do not twist the brake hose when installing the rear disc brake caliper assy LH.
       Fig 11: Installing Rear Disc Brake Caliper With Bolts

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the rear flexible hose with the bolt.

       Torque: 19 N.m (192 kgf.cm, 14 ft.lbf)

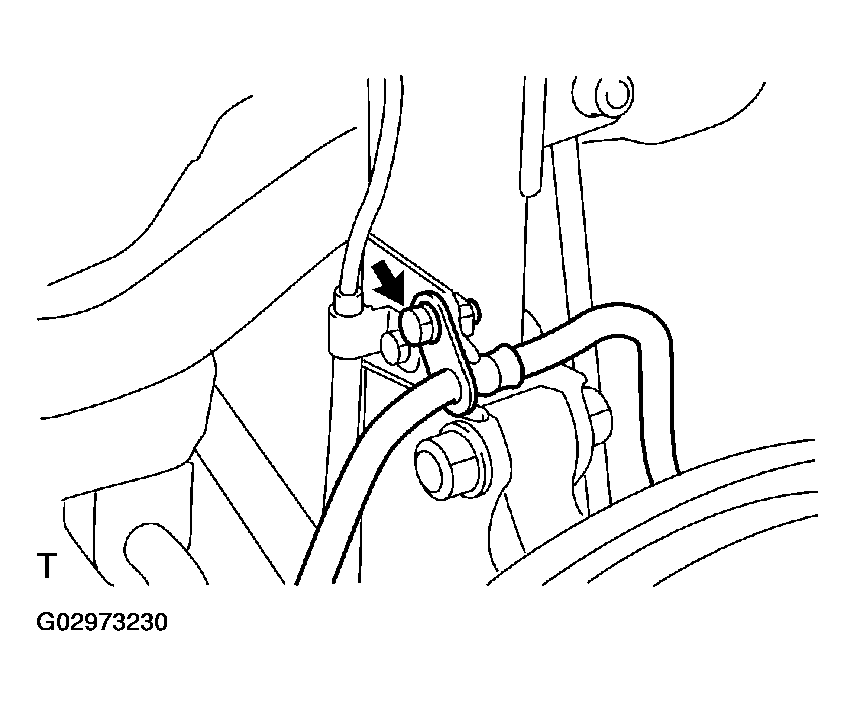

       Fig 12: Installing Rear Flexible Hose With Bolt

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
20. INSTALL REAR WHEEL

    Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)

21. STABILIZE SUSPENSION (SEE  REPLACEMENT  )
22. FULLY TIGHTEN REAR SUSPENSION ARM ASSY NO.1 LH (SEE  REPLACEMENT  )
23. FULLY TIGHTEN REAR SUSPENSION ARM ASSY NO.2 LH (SEE  REPLACEMENT  )
24. FULLY TIGHTEN STRUT ROD ASSY REAR (SEE  REPLACEMENT  )
25. INSPECT AND ADJUST REAR WHEEL ALIGNMENT (SEE  ADJUSTMENT  )
26. CHECK ABS SPEED SENSOR SIGNAL
    1. ABS WITH EBD & TRAC & VSC SYSTEM (see TEST MODE PROCEDURE )
    2. ABS WITH EBD SYSTEM (see TEST MODE PROCEDURE )
