On-Vehicle Inspection

  1. REMOVE FRONT WHEEL
  2. SEPARATE FRONT DISC BRAKE CALIPER ASSY LH (SEE  REPLACEMENT  )
  3. REMOVE FRONT DISC (SEE  OVERHAUL  )
  4. INSPECT FRONT AXLE HUB BEARING LOOSENESS
    1. Using a dial indicator, check for looseness near the center of the axle hub.

      Maximum: 0.05 mm (0.0020 in.)

      NOTE: Ensure that the dial indicator is set at right angles to the measurement surface.

      If looseness exceeds the maximum, replace the bearing.

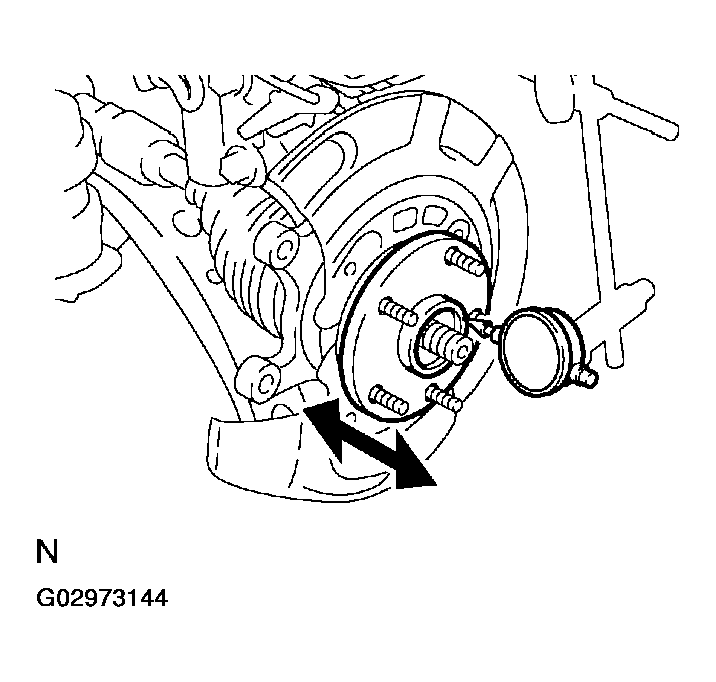

      Fig 1: Checking For Looseness Near Center Of Axle Hub Using A Dial Indicator
      G02973144Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSPECT FRONT AXLE HUB RUNOUT
    1. Using a dial indicator, check for runout on the surface of the axle hub outside the hub bolt.

      Maximum: 0.05 mm (0.0020 in.)

      NOTE: Ensure that the dial indicator is set at right angles to the measurement surface.

      If runout exceeds the maximum, replace the axle hub.

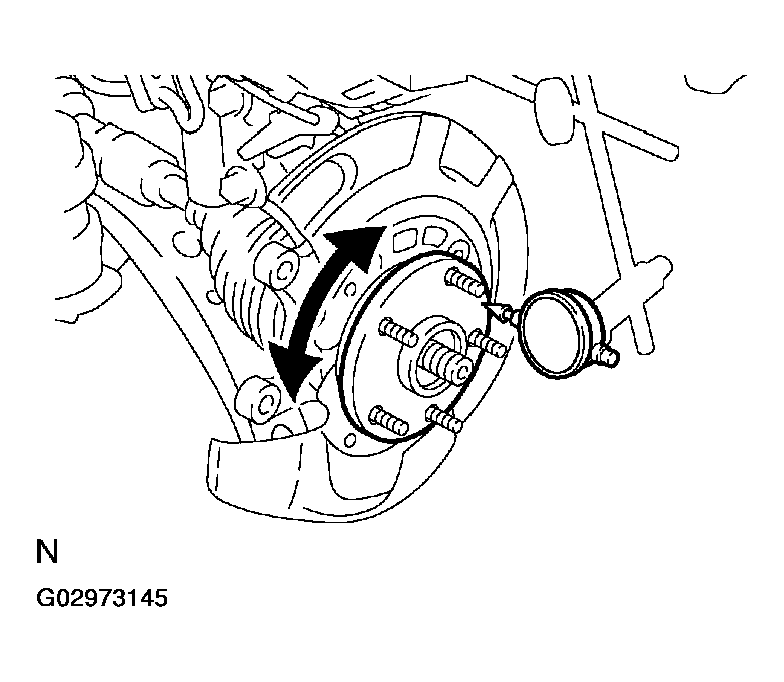

      Fig 2: Checking For Runout On Surface Of Axle Hub Outside Hub Bolt Using A Dial Indicator
      G02973145Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL FRONT DISC (SEE  OVERHAUL  )
  7. INSTALL FRONT DISC CALIPER ASSY LH (SEE  REPLACEMENT  )
  8. INSTALL FRONT WHEEL

    Torque: 103 N.m (1050 kgf.cm, 76 ft.lbf)

  9. REMOVE REAR WHEEL
  10. SEPARATE REAR DISC BRAKE CALIPER ASSY LH (SEE  REPLACEMENT  )
  11. REMOVE REAR DISC (SEE  OVERHAUL  )
  12. INSPECT REAR AXLE HUB BEARING LOOSENESS
    1. Using a dial indicator, check for looseness near the center of the axle hub.

      Maximum: 0.05 mm (0.0020 in.)

      NOTE: Ensure that the dial indicator is set at right angles to the measurement surface.

      If looseness exceeds the maximum, replace the axle hub assy.

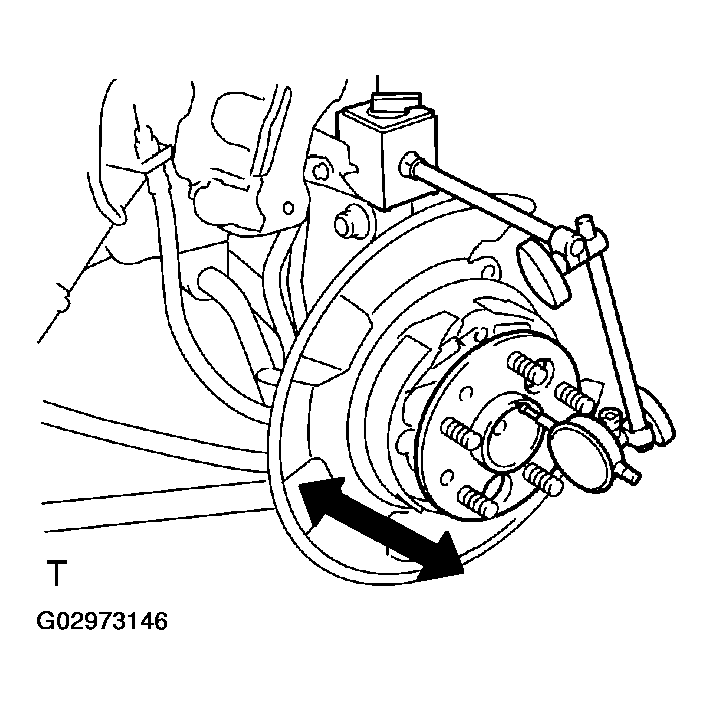

      Fig 3: Checking For Looseness Near Center Of Axle Hub Using A Dial Indicator
      G02973146Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. INSPECT REAR AXLE HUB RUNOUT
    1. Using a dial indicator, check for runout on the surface of the axle hub outside the hub bolt.

      Maximum: 0.07 mm (0.0027 in.)

      NOTE: Ensure that the dial indicator is set at right angles to the measurement surface.

      If runout exceeds the maximum, replace the axle hub assy.

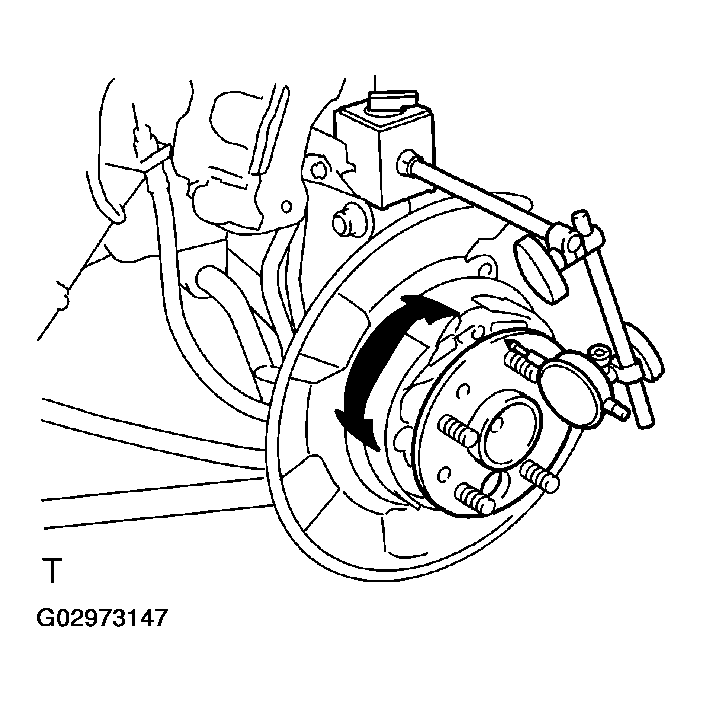

      Fig 4: Inspecting Rear Axle Hub Runout
      G02973147Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. INSTALL REAR DISC (SEE  OVERHAUL  )
  15. INSTALL REAR DISC BRAKE CALIPER ASSY LH (SEE  REPLACEMENT  )
  16. INSTALL REAR WHEEL

    Torque: 103 N.m (1050 kgf.cm, 76 ft.lbf)
