Rear Wheel Alignment: Adjustment

INSPECT TIRE (SEE INSPECTION )
MEASURE VEHICLE HEIGHT (SEE ADJUSTMENT )
NOTE: Before inspecting wheel alignment, adjust the vehicle height to the specified value.

INSPECT TOE-IN

TOE-IN SPECIFICATION

Toe-in (total)	A + B: 0° 24' +/- 12' (0.40° +/- 0.20°)
Toe-in (total)	C - D: 4 +/-2 mm (0.16 +/- 0.08 in.)

HINT:

Measure "C - D" only when "A + B" cannot be measured.
If toe-in is not within the specified range, inspect the suspension parts and replace them if necessary.

Fig 1: Inspecting Toe-In
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ADJUST TOE-IN
1. Measure the lengths of the right and left No. 2 suspension arms.
  No. 2 suspension arm length difference:

  1.5 mm (0.06 in.) or less

  If the left-right difference is larger than 1.5 mm (0.06 in.), adjust it by following the procedures below.

  Fig 2: Measuring Lengths Of Right & Left No 2 Suspension Arms
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Loosen the 2 lock nuts.
3. Turn the right and left adjusting tubes by an equal amount to adjust toe-in.
  HINT:
  - Try to adjust toe-in to the center value.
  - One turn of each adjusting tube will adjust toe-in by approximately 1.2° (1°12'), 10.8 mm (0.425 in.).
4. Torque the 2 lock nuts.
  Torque: 56 N.m (570 kgf.cm, 41 ft.lbf)

  Fig 3: Loosening Lock Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT CAMBER

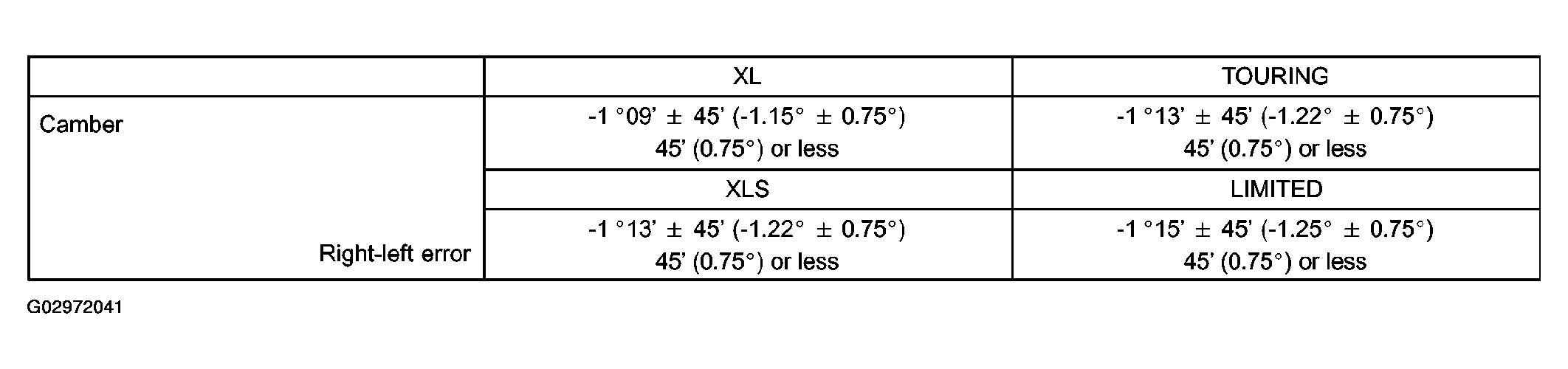

Fig 4: Camber Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Camber is not adjustable. If the measurement is not within the specification, inspect the suspension parts for damage and/or wear, and replace them if necessary.
