Rear Axle Carrier Sub-ASSY LH: Components

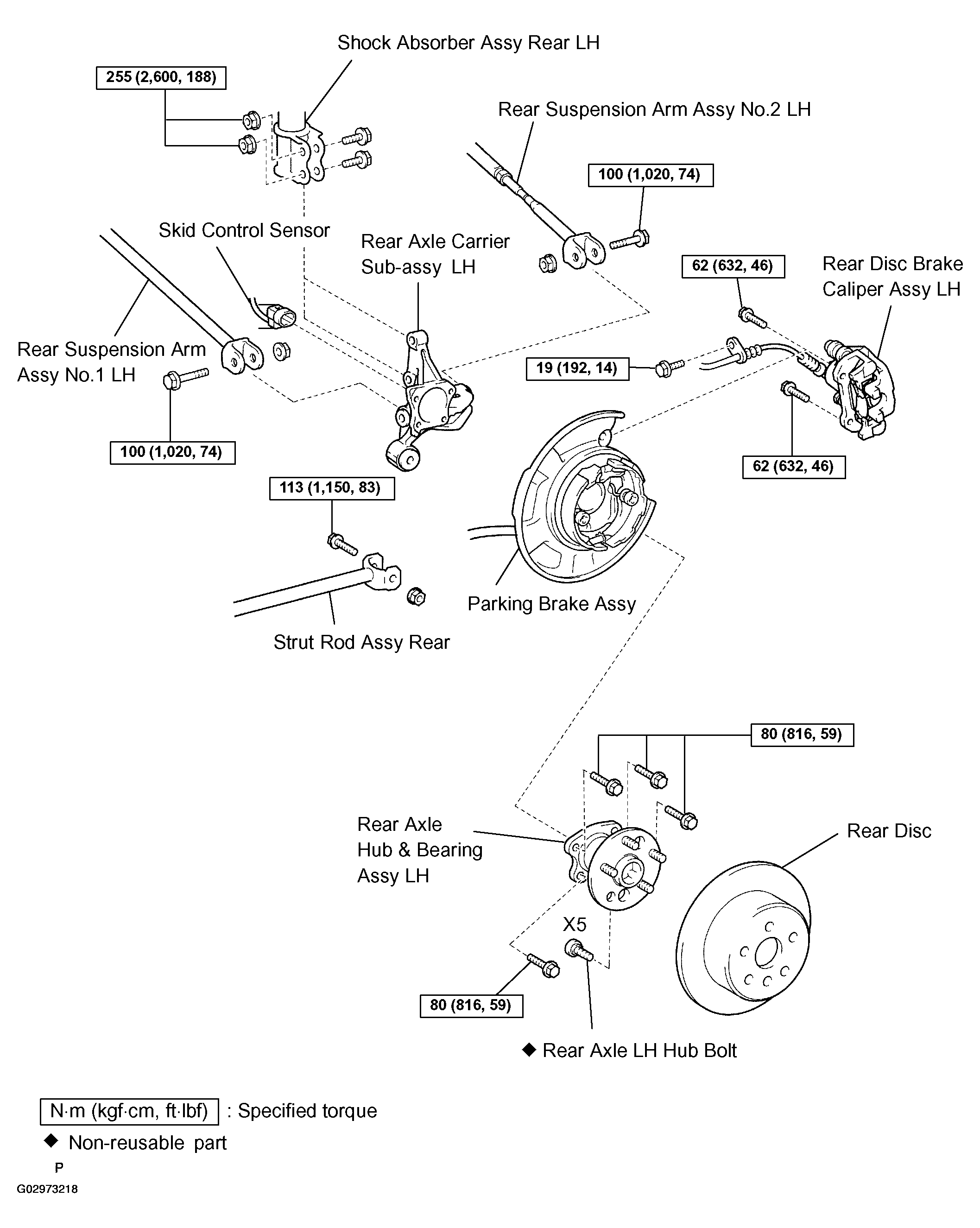

Fig 1: Identifying Rear Axle Carrier Sub-Assy LH Components

G02973218

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
