Rear Suspension Arm ASSY No. 1: Replacement
HINT:
- COMPONENTS: See COMPONENTS .
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.
- REMOVE REAR WHEEL
- REMOVE EXHAUST PIPE ASSY CENTER (SEE REPLACEMENT )
- REMOVE STABILIZER BAR REAR (SEE REPLACEMENT )
- REMOVE STRUT ROD ASSY REAR (SEE REPLACEMENT )
- SEPARATE HEIGHT CONTROL SENSOR SUB-ASSY REAR RH (w/DISCHARGE HEAD LIGHT)

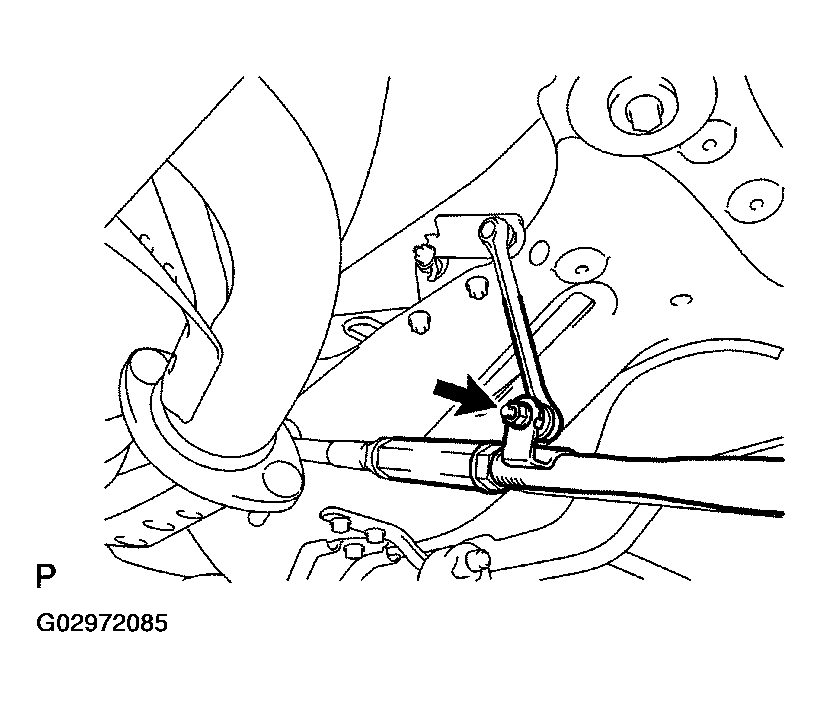

- The height control sensor sub-assy rear (w/discharge heard light) is on the RH side only. Remove the nut, and separate the height control sensor sub-assy rear RH.
- SEPARATE REAR SUSPENSION ARM ASSY NO. 2 LH

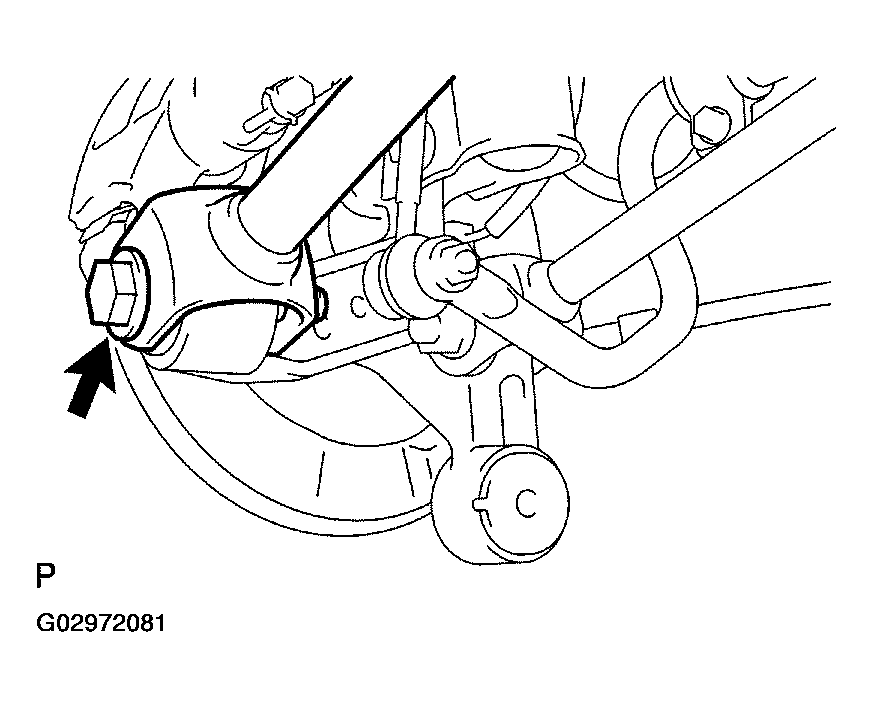

- Remove the bolt, nut and the rear suspension arm No. 2 (outer side) from the rear axle carrier.NOTE: When removing the bolt, keep the nut from rotating.
- Remove the bolt, nut and the rear suspension arm No. 2 (outer side) from the rear axle carrier.
- SEPARATE REAR SUSPENSION ARM ASSY NO. 2 RH
HINT:
Separate the RH side using the same procedures as for the LH side.
- SEPARATE REAR SUSPENSION ARM ASSY NO. 1 LH

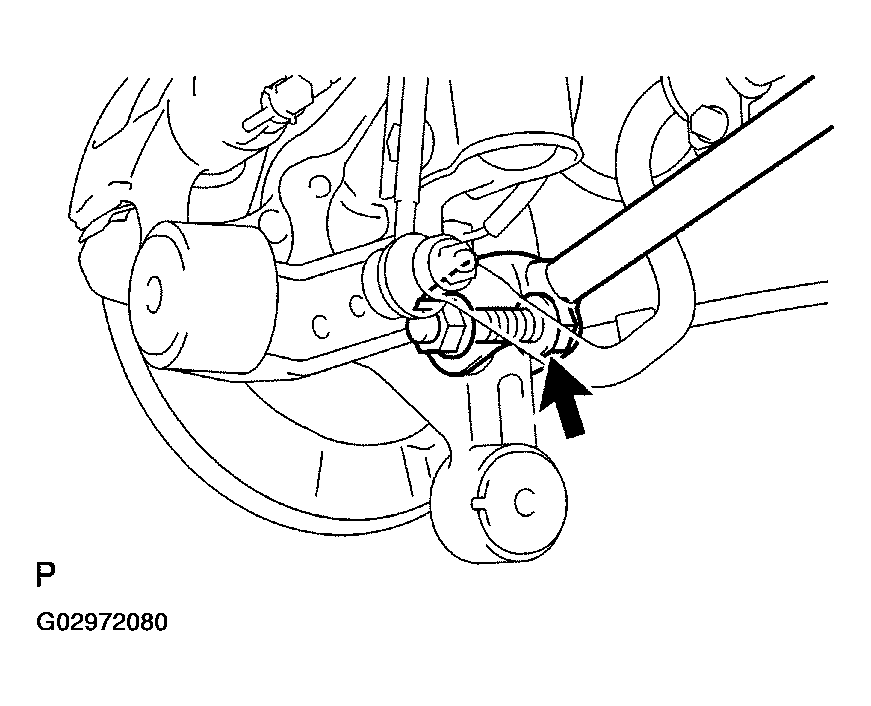

- Remove the bolt, nut and the rear suspension arm No. 1 (outer side) from the rear axle carrier.NOTE: When removing the bolt, keep the nut from rotating.
- Remove the bolt, nut and the rear suspension arm No. 1 (outer side) from the rear axle carrier.
- SEPARATE REAR SUSPENSION ARM ASSY NO. 1 RH
HINT:
Separate the RH side using the same procedures as for the LH side.
- REMOVE REAR SUSPENSION MEMBER SUB-ASSY
- Support the rear suspension member with a jack.

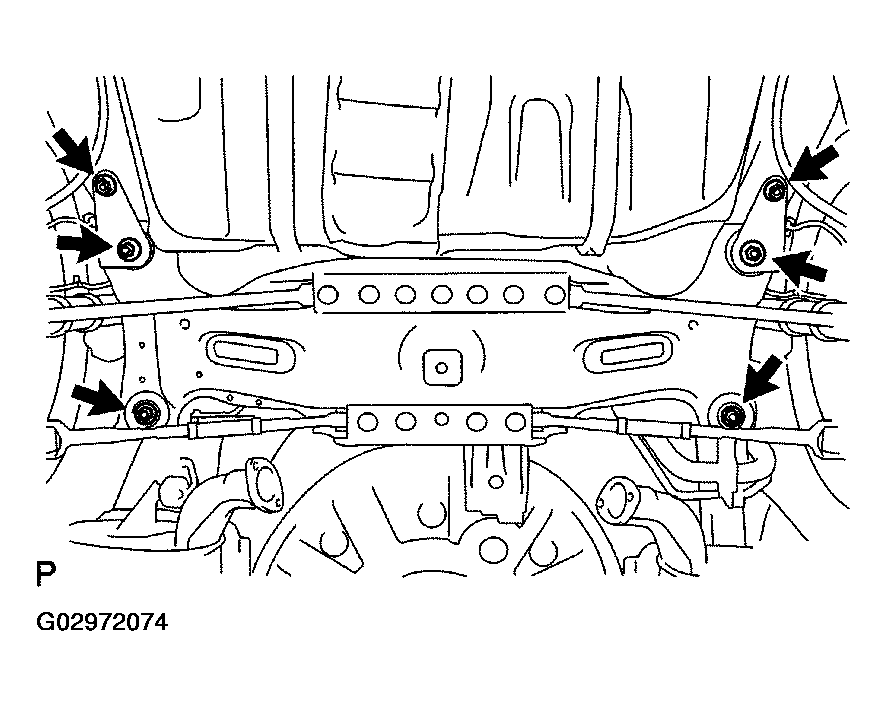

- Remove the 4 nuts, 2 bolts and 4 retainers from the rear suspension member.
- Lower the rear suspension member.
- REMOVE REAR SUSPENSION ARM ASSY NO. 1 LH
- Remove the bolt and rear suspension arm No. 1.
- INSTALL REAR SUSPENSION ARM ASSY NO. 1 LH
- Install the rear suspension arm No. 1 with the bolt, and temporarily tighten the bolt.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
HINT:
- Install the rear suspension arm No. 1 so that the bracket leans toward the front side of the vehicle, as shown in the illustration.
- Ensure that the paint mark faces the rear side of the vehicle.
- Set the rear suspension arm No. 1 in the position shown in the illustration, and fully tighten the bolt.
Torque: 100 N.m (1,020 kgf.cm, 74 ft.lbf)
- Install the rear suspension arm No. 1 with the bolt, and temporarily tighten the bolt.
- INSTALL REAR SUSPENSION MEMBER SUB-ASSY
- Raise the rear suspension member with a jack.

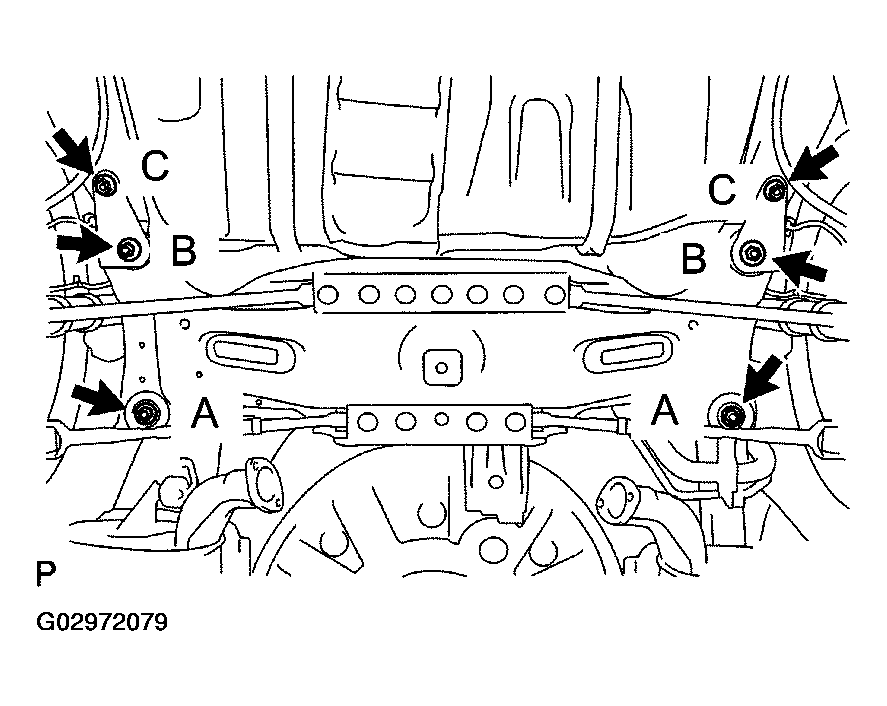

- Install the rear suspension member with the 4 nuts, 2 bolts and 4 retainers.
Torque:
A, B: 55 N.m (561 kgf.cm, 41 ft.lbf)
C: 38 N.m (387 kgf.cm, 28 ft.lbf)
- TEMPORARILY TIGHTEN REAR SUSPENSION ARM ASSY NO. 1 LH
- Connect the rear suspension arm No. 1 (outer side) to the rear axle carrier with the bolt and nut and temporarily tighten the bolt and nut.
HINT:
Insert the bolt from the front side of the vehicle and temporarily install it.
- Connect the rear suspension arm No. 1 (outer side) to the rear axle carrier with the bolt and nut and temporarily tighten the bolt and nut.
- TEMPORARILY TIGHTEN REAR SUSPENSION ARM ASSY NO. 1 RH
HINT:
Temporarily tighten the RH side using the same procedures as for the LH side.
- TEMPORARILY TIGHTEN REAR SUSPENSION ARM ASSY NO. 2 LH
- Connect the rear suspension arm No. 2 (outer side) to the rear axle carrier with the bolt and nut and temporarily tighten the bolt.
HINT:
Insert the bolt from the rear side of the vehicle and temporarily install it.
- Connect the rear suspension arm No. 2 (outer side) to the rear axle carrier with the bolt and nut and temporarily tighten the bolt.
- TEMPORARILY TIGHTEN REAR SUSPENSION ARM ASSY NO. 2 RH
HINT:
Temporarily tighten the RH side using the same procedures as for the LH side.
- TEMPORARILY TIGHTEN STRUT ROD ASSY REAR (SEE REPLACEMENT )
- STABILIZE SUSPENSION
- Jack up the rear axle carrier, placing a wooden block to avoid damage. Apply a load to the suspension so that the installed bolt of the suspension arm assy No. 1 (inner side of the vehicle) is horizontally aligned with the center of the rear axle hub.
- FULLY TIGHTEN REAR SUSPENSION ARM ASSY NO. 1 LH
- Fully tighten the bolt.
Torque: 100 N.m (1,020 kgf.cm, 74 ft.lbf)
NOTE: When installing the bolt, fix the nut and tighten the bolt.
- Fully tighten the bolt.
- FULLY TIGHTEN REAR SUSPENSION ARM ASSY NO. 1 RH
HINT:
Fully tighten the RH side using the same procedures as for the LH side.
- FULLY TIGHTEN REAR SUSPENSION ARM ASSY NO. 2 LH
- Fully tighten the bolt.
Torque: 100 N.m (1,020 kgf.cm, 74 ft.lbf)
NOTE: When installing the bolt, fix the nut and tighten the bolt.
- Fully tighten the bolt.
- FULLY TIGHTEN REAR SUSPENSION ARM ASSY NO. 2 RH
HINT:
Fully tighten the RH side using the same procedures as for the LH side.
- FULLY TIGHTEN STRUT ROD ASSY REAR (SEE REPLACEMENT )
- INSTALL STABILIZER BAR REAR (SEE REPLACEMENT )
- INSTALL HEIGHT CONTROL SENSOR SUB-ASSY REAR RH (w/DISCHARGE HEAD LIGHT)

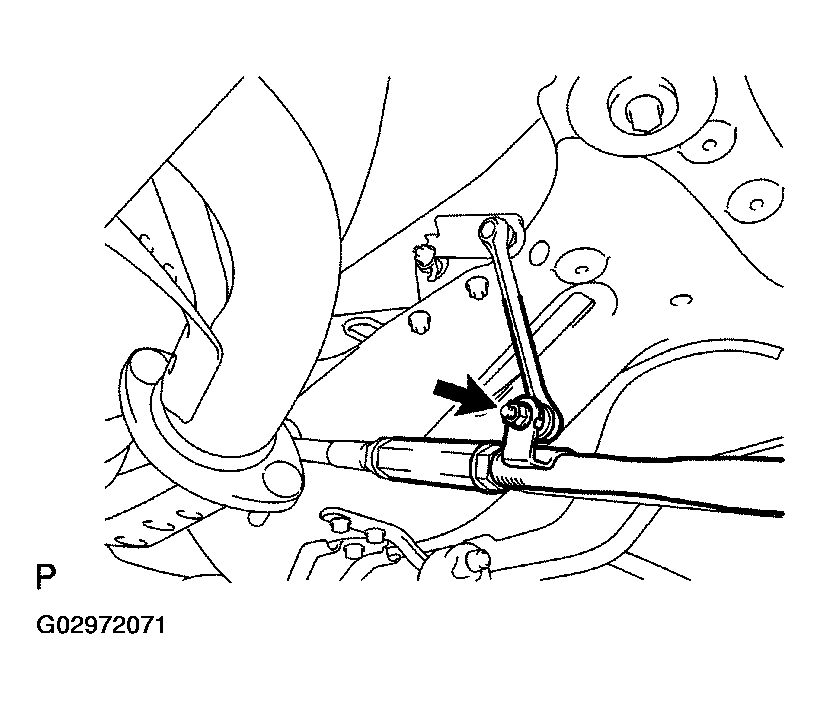

- Install the height control sensor sub-assy rear RH with the nut.
Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
- Install the height control sensor sub-assy rear RH with the nut.
- INSTALL EXHAUST PIPE ASSY CENTER (SEE REPLACEMENT )
- INSTALL REAR WHEEL
Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)
- INSPECT REAR WHEEL ALIGNMENT (SEE ADJUSTMENT )
- HEAD LIGHT AIMING ADJUSTMENT (w/DISCHARGE HEAD LIGHT) (SEE ADJUSTMENT )
