Drive Pinion Shaft Assembly: Removal

WARNING: This page is about a different car, the 2020 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transmission assembly from the vehicle. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>AUTOMATIC TRANSMISSION ASSEMBLY>REMOVAL .
  2. Remove the air breather hose. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>AIR BREATHER HOSE>REMOVAL .
  3. Remove the control valve body. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>CONTROL VALVE BODY>REMOVAL .
  4. Remove the transmission harness. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>TRANSMISSION HARNESS>REMOVAL .
  5. Remove the turbine speed sensor. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>TURBINE SPEED SENSOR>REMOVAL .
  6. Remove the secondary speed sensor. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>SECONDARY SPEED SENSOR>REMOVAL .
  7. Remove the primary speed sensor. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>PRIMARY SPEED SENSOR>REMOVAL .
  8. Remove the inhibitor switch. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>INHIBITOR SWITCH>REMOVAL .
  9. Remove the extension case. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>EXTENSION CASE>REMOVAL .
  10. Remove the transfer clutch assembly. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>TRANSFER CLUTCH>REMOVAL .
  11. Remove the transfer driven gear assembly. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>TRANSFER DRIVEN GEAR>REMOVAL .
  12. Remove the parking pawl. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>PARKING PAWL>REMOVAL .
  13. Remove the reduction driven gear assembly. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>REDUCTION DRIVEN GEAR>REMOVAL .
  14. Remove the oil pan and oil strainer. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>OIL PAN AND STRAINER>REMOVAL .
  15. Remove the transmission control device. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>TRANSMISSION CONTROL DEVICE>REMOVAL .
  16. Remove the transmission case. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>TRANSMISSION CASE>REMOVAL .
  17. Remove the reduction drive gear. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>REDUCTION DRIVE GEAR>REMOVAL .
  18. Remove the primary pulley, secondary pulley and variator chain. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>PRIMARY PULLEY AND SECONDARY PULLEY>REMOVAL .
  19. Remove the reverse brake assembly. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>REVERSE BRAKE ASSEMBLY>REMOVAL .
  20. Remove the forward clutch assembly. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>FORWARD CLUTCH ASSEMBLY>REMOVAL .

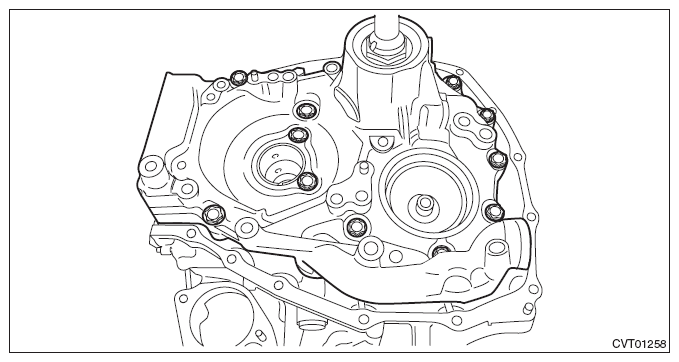

  21. Using the ST, remove the drive pinion retainer.

    Preparation tool:

    ST: SOCKET (E20) (18270KA020)

    G10218883Courtesy of SUBARU OF AMERICA, INC.
  22. Remove the O-rings.
    G08318083Courtesy of SUBARU OF AMERICA, INC.
