Transmission Harness: Removal

WARNING: This page is about a different car, the 2020 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transmission assembly. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>AUTOMATIC TRANSMISSION ASSEMBLY>REMOVAL .

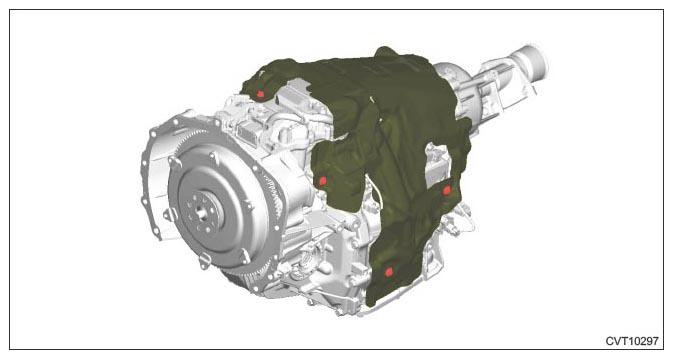

  2. Remove the transmission case cover.
    G11255686Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the air breather hose. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>AIR BREATHER HOSE>REMOVAL .
  4. Disconnect the harness connector from the turbine speed sensor, primary speed sensor, secondary speed sensor and secondary pressure sensor.
    G11255687Courtesy of SUBARU OF AMERICA, INC.
  5. Disconnect the harness connector from the inhibitor switch.
    G11255688Courtesy of SUBARU OF AMERICA, INC.
  6. Disconnect the ground terminal and remove the harness clip.
    G11255689Courtesy of SUBARU OF AMERICA, INC.
  7. Clean the transmission exterior.
  8. Remove the valve cover and gasket.
    G11255663Courtesy of SUBARU OF AMERICA, INC.
  9. Disconnect the harness connector from the control valve body.
  10. Remove the transmission harness.
    G11255664Courtesy of SUBARU OF AMERICA, INC.
  11. Remove the O-rings.
    G08317849Courtesy of SUBARU OF AMERICA, INC.
  12. Remove the harness clip from the transmission, and remove the transmission harness.
