Transfer Clutch: Removal

WARNING: This page is about a different car, the 2020 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transmission assembly from the vehicle. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>AUTOMATIC TRANSMISSION ASSEMBLY>REMOVAL .
  2. Remove the extension case. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>EXTENSION CASE>REMOVAL .
  3. Remove the transfer clutch assembly.
    G08317898Courtesy of SUBARU OF AMERICA, INC.

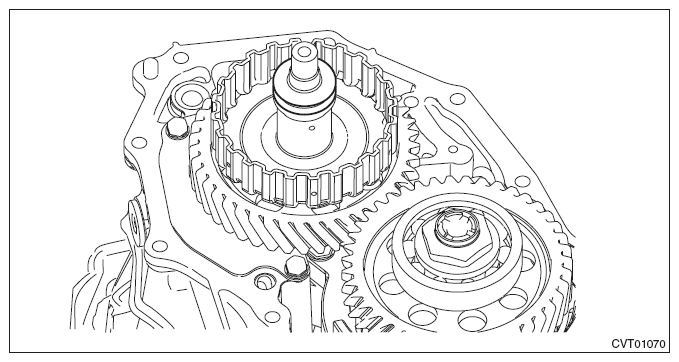

  4. Remove the thrust bearing.
    G10218703Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the seal ring from transfer clutch assembly.
    G08317900Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the seal ring from the transfer driven gear assembly.
    G08317901Courtesy of SUBARU OF AMERICA, INC.
