Extension Case: Removal

WARNING: This page is about a different car, the 2020 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transmission assembly from the vehicle. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>AUTOMATIC TRANSMISSION ASSEMBLY>REMOVAL .
  2. Remove the extension case and transmission hanger.
    NOTE: The total number of extension case mounting bolts is 13.

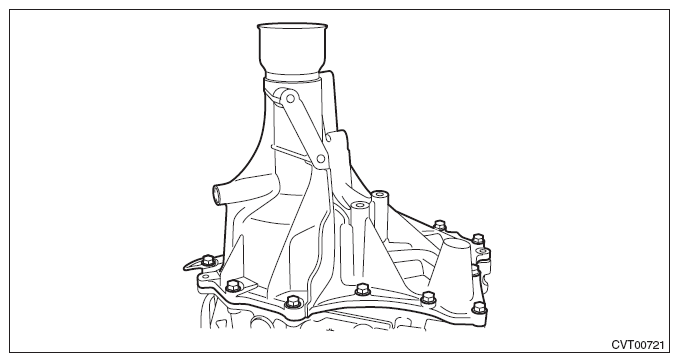

    G10218696Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the O-rings.
    G08317893Courtesy of SUBARU OF AMERICA, INC.
