Inhibitor Switch: Removal

WARNING: This page is about a different car, the 2020 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground terminal from 12V engine restart battery sensor. Refer to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  2. Shift the select lever to the "N" range.
  3. Lift up the vehicle.
  4. Remove the front exhaust pipe. Refer to EXHAUST (H4DO (EXCEPT FOR HEV))>FRONT EXHAUST PIPE>REMOVAL .

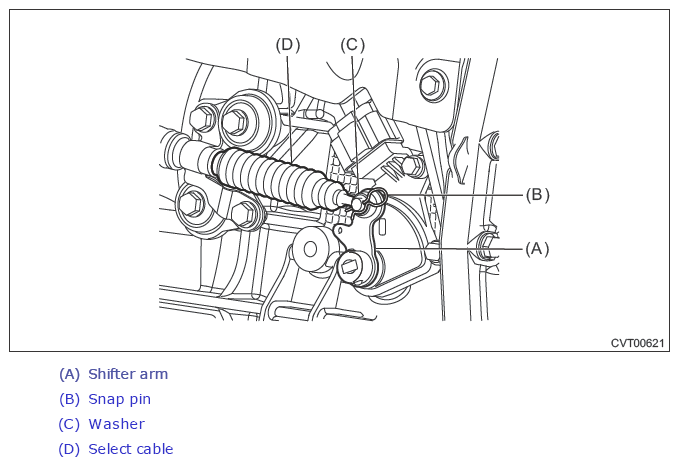

  5. Remove the snap pin and washer from the shifter arm.
    CAUTION: Do not apply excessive load while holding the part (a).
    G13591814Courtesy of SUBARU OF AMERICA, INC.
    G13603499Courtesy of SUBARU OF AMERICA, INC.

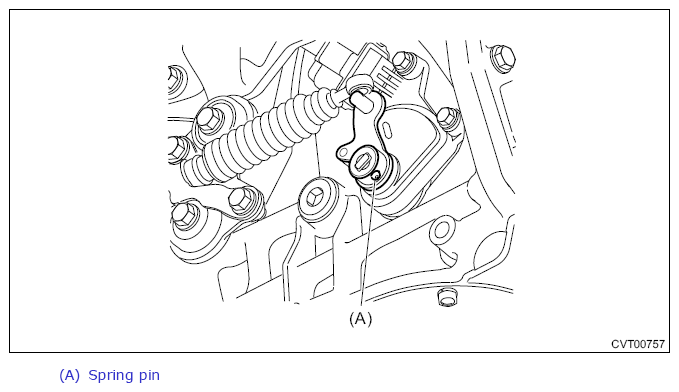

  6. Remove the spring pin and shifter arm.
    G13603500Courtesy of SUBARU OF AMERICA, INC.
  7. Disconnect the inhibitor harness connector.
  8. Remove the inhibitor switch.
    G11255610Courtesy of SUBARU OF AMERICA, INC.
