Camshaft (FA20): Removal

  1. Engine stand Installation (Refer to INSTALLATION )
  2. Removal of engine hanger (Refer to REMOVAL )
  3. Removal of alternator cover (Refer to REMOVAL )
  4. Removal of A/C cover (Refer to REMOVAL )
  5. Removal of V-belt (Refer to REMOVAL )
  6. Generator ASSY removal (Refer to REMOVAL )
  7. Oil level gauge guide removal (Refer to COMPONENTS WITH TORQUE SPECIFICATIONS )
  8. Idler pulley SUB-ASSY NO. 1 and NO. 2 removal (Refer to COMPONENTS WITH TORQUE SPECIFICATIONS )
  9. V-ribbed belt tensioner ASSY removal (Refer to COMPONENTS WITH TORQUE SPECIFICATIONS )
  10. Removal of intake manifold protector (bank 1 side) (Refer to REMOVAL )
  11. Removal of intake manifold protector (bank 2 side) (Refer to REMOVAL )
  12. Fuel delivery pipe SUB-ASSY removal (Refer to REMOVAL )
  13. Disconnection of ventilation hose (Refer to DISASSEMBLY )
  14. Removal of intake manifold (Refer to REMOVAL )
  15. Removal of fuel delivery pipe (bank 2 side) (Refer to REMOVAL )
  16. Removal of fuel delivery pipe (bank 1 side) (Refer to REMOVAL )
  17. Fuel pump ASSY removal (Refer to REMOVAL )
  18. Fuel pump lifter removal (Refer to REMOVAL )
  19. Pump drive case ASSY removal (Refer to REMOVAL )
  20. Vacuum pump ASSY removal (transmission A/T) (Refer to REMOVAL )
  21. Cylinder head plate RR removal (transmission M/T) (Refer to REMOVAL )
  22. Water by-pass pipe NO. 1 removal (transmission A/T) (Refer to REMOVAL )
  23. Water by-pass pipe NO. 1 removal (transmission M/T) (Refer to REMOVAL )
  24. Crankshaft pulley removal (Refer to REMOVAL )
  25. Timing chain cover oil seal removal (Refer to REMOVAL )
  26. Engine wiring disconnection (Refer to DISASSEMBLY )
  27. Chain cover removal (Refer to DISASSEMBLY )
  28. Removal of timing chain (bank 1 side) (Refer to REMOVAL )
  29. Removal of timing chain (bank 2 side) (Refer to REMOVAL )
  30. Piston and valve damage prevention procedure
    1. Use the SST to turn the crankshaft approximately 200° clockwise and align the alignment marks of crankshaft sprocket to the position as shown in the figure.

      SST 18252AA000

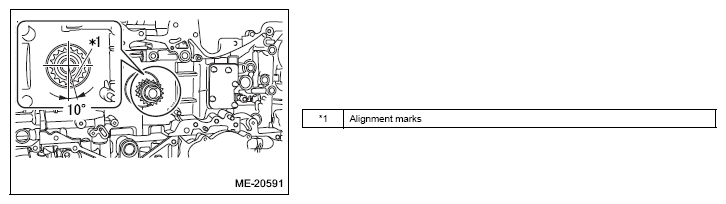

      G12586532Courtesy of SUBARU OF AMERICA, INC.
      CAUTION: Never turn the crankshaft counterclockwise other than when fine-adjusting the alignment mark position. Otherwise the valve and piston may contact.

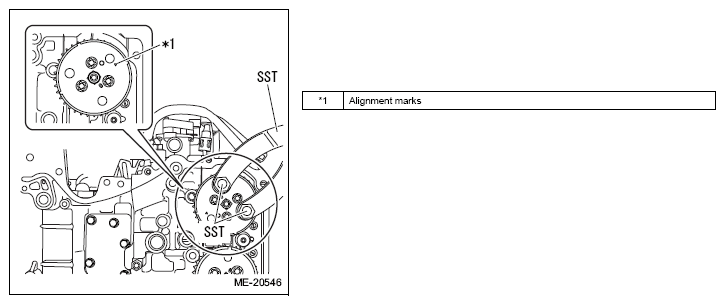

      G12586533Courtesy of SUBARU OF AMERICA, INC.
    2. Using the SST, turn the intake cam sprocket LH approximately 180° clockwise and align the alignment mark of intake cam sprocket LH to the position (zero-lift position) as shown in the figure.

      SST 18355AA000, 18334AA020

      CAUTION:
      • Pay attention when performing the work, since the SST comes off easily.
      • After this work, when the intake valve and exhaust valve lift at the same time, the valve heads contact each other and valve stems may bend. Do not turn the intake camshaft LH and exhaust camshaft LH to the outside of range of zero-lift (in range where it can be turned lightly by hand).
    3. Remove the SST from the crankshaft.
  31. Intake cam sprocket RH removal
    1. Use the SST to secure the intake cam sprocket RH and remove the three bolts.

      SST 18355AA000, 18334AA020, 18270KA010

      CAUTION: Pay attention when performing the work, since the SST comes off easily.
    2. Remove the intake cam sprocket RH.

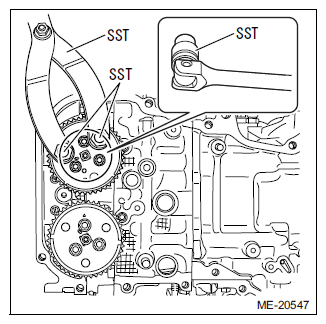

    G11258492Courtesy of SUBARU OF AMERICA, INC.

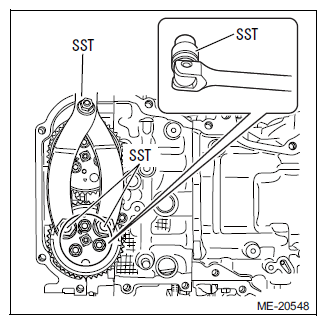

    G11258493Courtesy of SUBARU OF AMERICA, INC.
  32. Exhaust cam sprocket RH removal
    1. Use the SST to secure the exhaust cam sprocket RH and remove the three bolts.

      SST 18355AA000, 18334AA020, 18270KA010

      CAUTION: Pay attention when performing the work, since the SST comes off easily.
    2. Remove the exhaust cam sprocket RH.

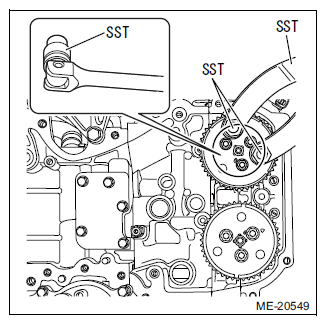

    G11258494Courtesy of SUBARU OF AMERICA, INC.
  33. Intake cam sprocket LH removal
    1. Use the SST to secure the intake cam sprocket LH and remove the three bolts.

      SST 18355AA000, 18334AA020, 18270KA010

      CAUTION: Pay attention when performing the work, since the SST comes off easily.
    2. Remove the intake cam sprocket LH.

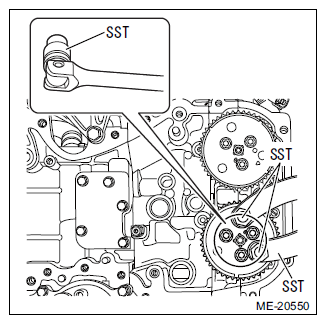

    G11258495Courtesy of SUBARU OF AMERICA, INC.
  34. Exhaust cam sprocket LH removal
    1. Use the SST to secure the exhaust cam sprocket LH and remove the three bolts.

      SST 18355AA000, 18334AA020, 18270KA010

      CAUTION: Pay attention when performing the work, since the SST comes off easily.
    2. Remove the exhaust cam sprocket LH.
  35. Ignition coil ASSY removal (bank 2 side) (Refer to REMOVAL )
  36. Spark plug removal (bank 2 side) (Refer to REMOVAL )
  37. Ignition coil ASSY removal (bank 1 side) (Refer to REMOVAL )
  38. Spark plug removal (bank 1 side) (Refer to REMOVAL )
  39. Removal of rocker cover RH (Refer to REMOVAL )
  40. Cam carrier RH removal (Refer to REMOVAL )
  41. Rocker cover LH removal (Refer to REMOVAL )
  42. Cam carrier LH removal (Refer to REMOVAL )
    Fig 1: Camshaft Cap Bolts Loosening Sequence (Bank 1 Side)
    G12586538Courtesy of SUBARU OF AMERICA, INC.
  43. Camshaft cap removal (bank 1 side)
    1. Loosen the 12 bolts a little at a time equally in the order as shown in the figure and remove them to remove the front camshaft cap RH, intake center camshaft cap RH, intake rear camshaft cap RH, exhaust center camshaft cap RH and exhaust rear camshaft cap RH.
    NOTE: The removed parts must be organized by installation location.
    G12586539Courtesy of SUBARU OF AMERICA, INC.
  44. Camshaft removal (bank 1 side)
    1. Remove the intake camshaft RH and exhaust camshaft RH from the cam carrier RH.
    Fig 2: Camshaft Cap Bolts Loosening Sequence (Bank 2 Side)
    G12586540Courtesy of SUBARU OF AMERICA, INC.
  45. Camshaft cap removal (bank 2 side)
    1. Loosen the 13 bolts a little at a time equally in the order as shown in the figure and remove them to remove the front camshaft cap LH, intake center camshaft cap LH, intake rear camshaft cap LH, exhaust center camshaft cap LH and exhaust rear camshaft cap LH.
    NOTE: The removed parts must be organized by installation location.
    G12586541Courtesy of SUBARU OF AMERICA, INC.
  46. Camshaft removal (bank 2 side)
    1. Remove the intake camshaft LH and exhaust camshaft LH from the cam carrier LH.
