Oil Pump ASSY (FA20): Disassembly

  1. Oil filter removal (Refer to OIL & OIL FILTER (FA20) )
  2. Oil filter union removal (Refer to ENGINE OIL PRESSURE SWITCH ASSY (FA20) )

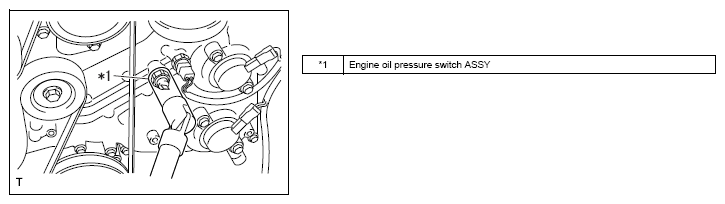

  3. Engine oil pressure switch ASSY removal
    1. Remove the engine oil pressure switch ASSY.
      G12587182Courtesy of SUBARU OF AMERICA, INC.
  4. Engine oil temperature sensor removal
    1. Remove the engine oil temperature sensor.
      G12587183Courtesy of SUBARU OF AMERICA, INC.
  5. Cam position sensor removal (bank 1 intake side)
    1. Remove the bolt, and remove the camshaft position sensor.
    2. Remove the O-ring from the camshaft position sensor.
      G12587184Courtesy of SUBARU OF AMERICA, INC.
  6. Cam position sensor removal (bank 1 exhaust side)
    1. Remove the bolt, and remove the camshaft position sensor.
    2. Remove the O-ring from the camshaft position sensor.
      G12587185Courtesy of SUBARU OF AMERICA, INC.
  7. Cam position sensor removal (bank 2 intake side)
    1. Remove the bolt, and remove the camshaft position sensor.
    2. Remove the O-ring from the camshaft position sensor.
      G12587186Courtesy of SUBARU OF AMERICA, INC.
  8. Cam position sensor removal (bank 2 exhaust side)
    1. Remove the bolt, and remove the camshaft position sensor.
    2. Remove the O-ring from the camshaft position sensor.
      G12587187Courtesy of SUBARU OF AMERICA, INC.
  9. Removal of camshaft timing oil control valve ASSY (bank 1 intake side)
    1. Remove the two bolts and remove the cam timing oil control valve ASSY (bank 1 intake side).
      G12587188Courtesy of SUBARU OF AMERICA, INC.
    2. Remove the O-ring from the camshaft timing oil control valve ASSY.
      G12587189Courtesy of SUBARU OF AMERICA, INC.
  10. Removal of camshaft timing oil control valve ASSY (bank 1 exhaust side)
    1. Remove the two bolts and remove the cam timing oil control valve ASSY (bank 1 exhaust side).
      G12587190Courtesy of SUBARU OF AMERICA, INC.
    2. Remove the O-ring from the camshaft timing oil control valve ASSY.
      G12587191Courtesy of SUBARU OF AMERICA, INC.
  11. Removal of camshaft timing oil control valve ASSY (bank 2 intake side)
    1. Remove the two bolts and remove the cam timing oil control valve ASSY (bank 2 intake side).
      G12587192Courtesy of SUBARU OF AMERICA, INC.
    2. Remove the O-ring from the camshaft timing oil control valve ASSY.
      G12587193Courtesy of SUBARU OF AMERICA, INC.
  12. Removal of camshaft timing oil control valve ASSY (bank 2 exhaust side)
    1. Remove the two bolts and remove the cam timing oil control valve ASSY (bank 2 exhaust side).
      G12587194Courtesy of SUBARU OF AMERICA, INC.
    2. Remove the O-ring from the camshaft timing oil control valve ASSY.
      G12587195Courtesy of SUBARU OF AMERICA, INC.
