Chain Cover Oil Seal (FA20): Removal

  1. Removal of air cleaner case SUB-ASSY (Refer to REMOVAL )
  2. Removal of alternator cover (Refer to REMOVAL )
  3. Removal of A/C cover (Refer to REMOVAL )
  4. Removal of V-belt (Refer to REMOVAL )
  5. Crankshaft pulley removal

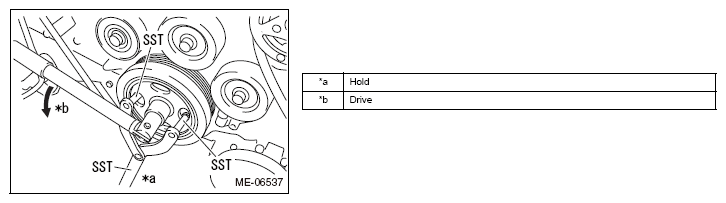

    1. Use the SST to secure the crankshaft pulley.

      SST 18355AA000, 18334AA000

      G12586575Courtesy of SUBARU OF AMERICA, INC.
    2. Remove the crankshaft pulley set bolt to remove the crankshaft pulley.
      G12586576Courtesy of SUBARU OF AMERICA, INC.
    3. Remove the O-ring from the crankshaft pulley boss.
    4. Remove the crankshaft pulley boss.
  6. Chain cover oil seal removal
    1. Using a flat tip screwdriver wrapped with protective tape, remove the chain cover oil seal.
      G12586577Courtesy of SUBARU OF AMERICA, INC.
      CAUTION: Make sure that there are no scratches in the fitting area of crankshaft and chain cover oil seal.
      NOTE: If the crankshaft is scratched, repair it with sandpaper (# 400).
