Vacuum Pump ASSY: Removal

  1. Disconnection of the union to connector tube hose

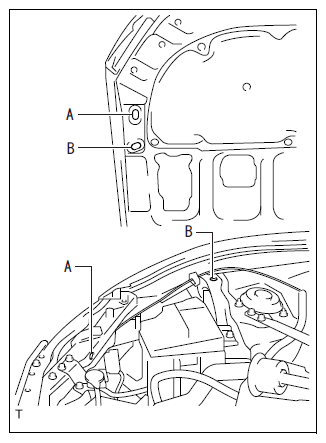

    1. Change the front hood stay position from A to B, and fully open the front hood.
      G12591071Courtesy of SUBARU OF AMERICA, INC.

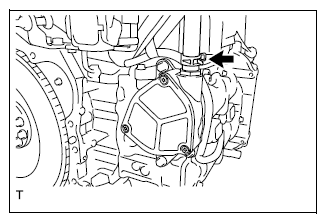

    2. Slide the clamp and disconnect the union to connector tube hose from the vacuum pump ASSY.
      G12591072Courtesy of SUBARU OF AMERICA, INC.
  2. Removal of front upper suspension-to-cowl brace SUB-ASSY RH (Refer to REMOVAL )
  3. Removal of vacuum pump ASSY
    1. Remove 3 bolts.

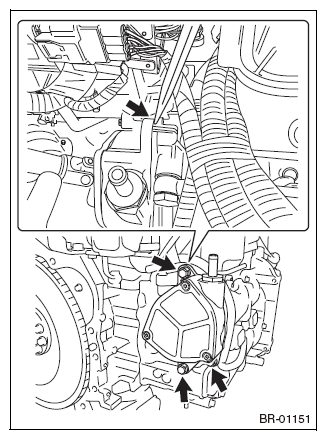

    2. Using a flat tip screwdriver or an equivalent to the position shown in the figure, pry the vacuum pump ASSY to remove it.
      G08557049Courtesy of SUBARU OF AMERICA, INC.
    3. Remove the O-ring.
    4. Remove the liquid gasket from the vacuum pump ASSY and the engine unit.
      G12591074Courtesy of SUBARU OF AMERICA, INC.
