Components With Torque Specifications

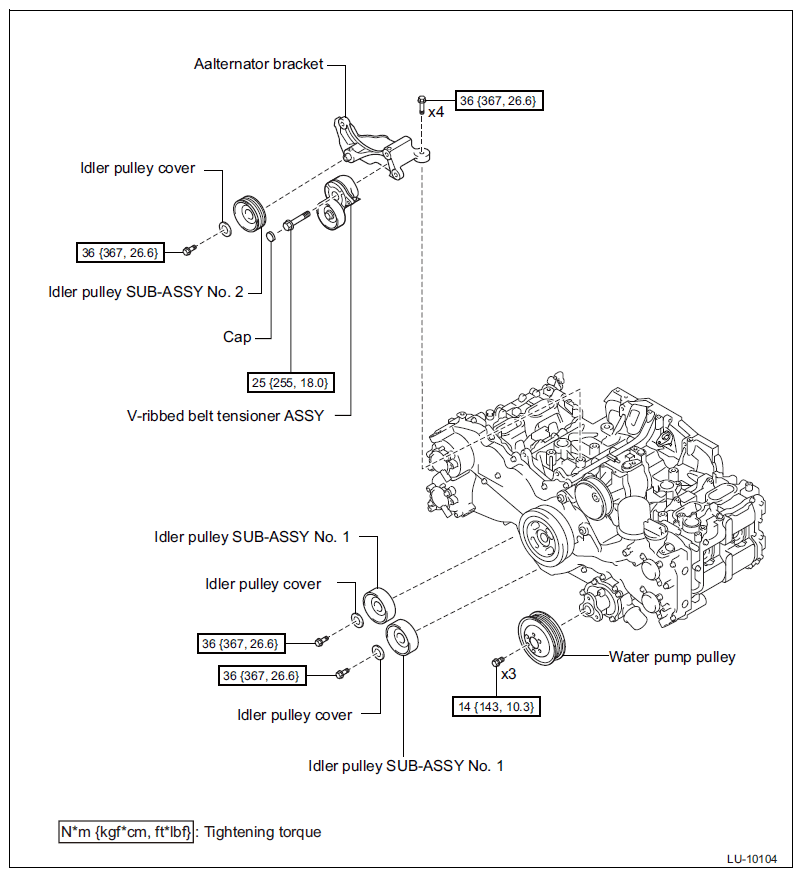

Fig 1: Locating Oil Pump Assembly (FA20) Components (1 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

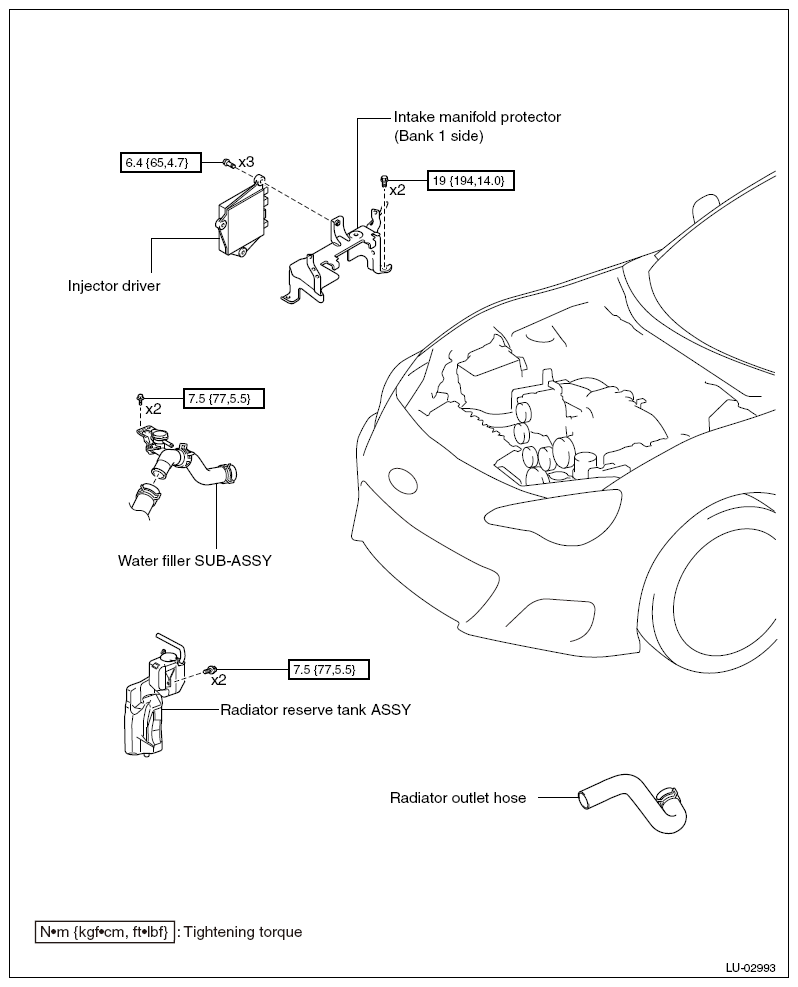

Fig 2: Locating Oil Pump Assembly (FA20) Components (2 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

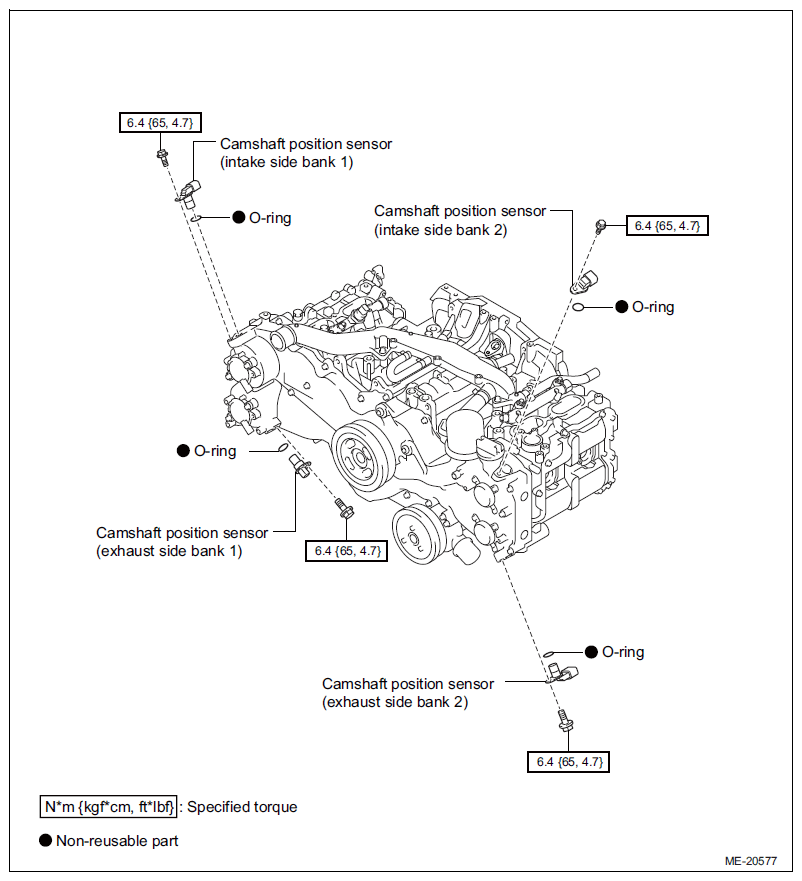

Fig 3: Locating Oil Pump Assembly (FA20) Components (3 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

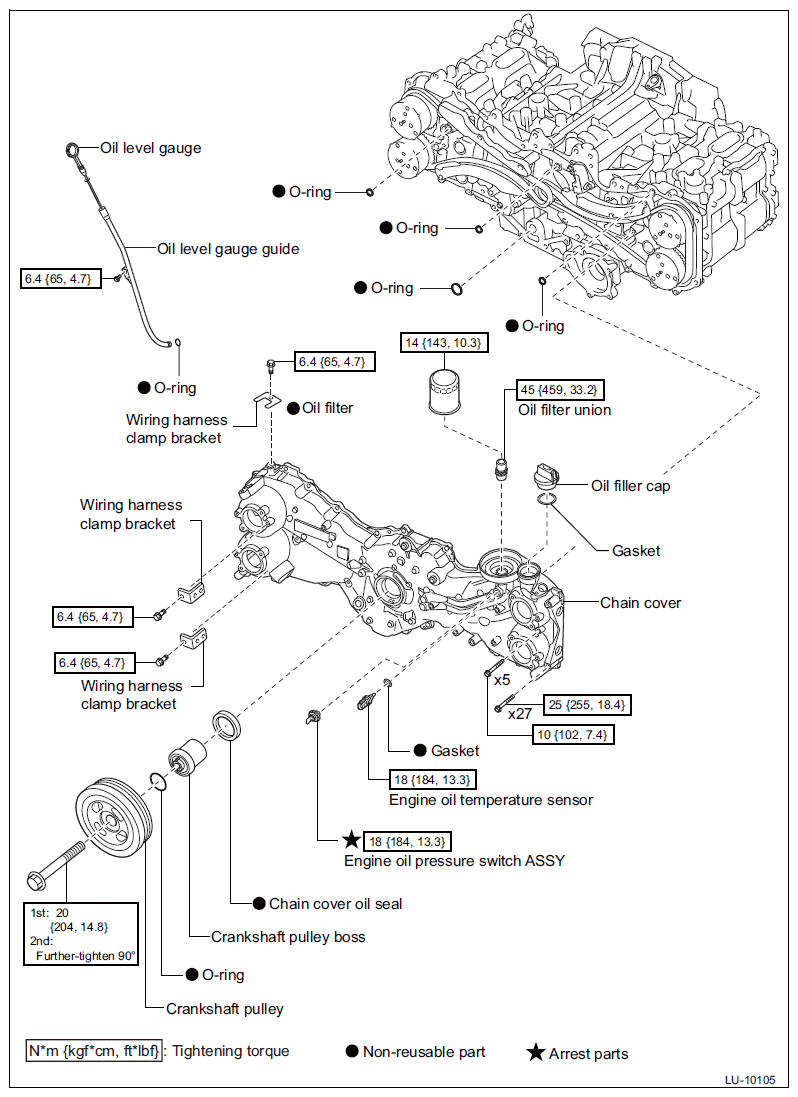

Fig 4: Locating Oil Pump Assembly (FA20) Components (4 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

Fig 5: Locating Oil Pump Assembly (FA20) Components (5 Of 5)

Courtesy of SUBARU OF AMERICA, INC.
