Chain Cover: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Drain the engine oil. Refer to REPLACEMENT .
  2. Lift up the vehicle.
  3. Remove the under cover. Refer to REMOVAL .
  4. Drain engine coolant. Refer to DRAINING OF ENGINE COOLANT .
  5. Remove the front exhaust pipe. Refer to REMOVAL .
  6. Lower the vehicle.
  7. Change the bolt mounting position from (A) to (B), and completely open the front hood.

    Tightening torque:

    20 N.m (2.0 kgf-m, 14.8 ft-lb)

    Fig 1: Identifying Front Hood Damper Bolt Mounting Position
    G06650639Courtesy of SUBARU OF AMERICA, INC.
  8. Loosen the clamp (A) which connects the air intake boot assembly.
  9. Loosen the bolt (B) which secures the air intake boot assembly to the collector cover bracket.
    Fig 2: Identifying Clamp Securing Air Intake Boot Assembly To Collector Cover Bracket
    G08580897Courtesy of SUBARU OF AMERICA, INC.
  10. Remove the air intake boot assembly, and move it to the left side wheel apron.
    Fig 3: Identifying Air Intake Boot Assembly
    G08580898Courtesy of SUBARU OF AMERICA, INC.
  11. Remove the air intake duct. Refer to REMOVAL .
  12. Disconnect the engine harness connector.
    Fig 4: Identifying Engine Harness Connector
    G06649720Courtesy of SUBARU OF AMERICA, INC.
  13. Disconnect the connector from the throttle body.
    Fig 5: Identifying Throttle Body Connector
    G06649721Courtesy of SUBARU OF AMERICA, INC.
  14. Remove the engine harness connector from the engine hanger bracket.
    Fig 6: Identifying Engine Hanger Bracket Harness Connector
    G06649722Courtesy of SUBARU OF AMERICA, INC.
  15. Remove the engine hanger bracket.
    Fig 7: Locating Engine Hanger Bracket Mounting Bolts
    G06649723Courtesy of SUBARU OF AMERICA, INC.
  16. Remove the throttle body from the intake manifold.
    NOTE: Do not disconnect the inlet and outlet hoses of engine coolant.
  17. Attach the ST.

    ST 18360AA020 HANGER

    Tightening torque:

    19 N.m (1.9 kgf-m, 14.0 ft-lb)

    Fig 8: Identifying Special Tool Connected To Inlet And Outlet Hoses Of Engine Coolant
    G06649741Courtesy of SUBARU OF AMERICA, INC.
  18. Remove the grille bracket.
    NOTE: Remove ten clips when removing the grille bracket.
    Fig 9: Locating Grille Bracket Fixing Clips
    G07912600Courtesy of SUBARU OF AMERICA, INC.
  19. Remove the V-belts. Refer to REMOVAL .
  20. Remove the reservoir tank. Refer to REMOVAL .
  21. Remove the radiator main fan & fan motor and radiator sub fan & fan motor. Refer to REMOVAL .
  22. Remove the radiator. Refer to REMOVAL .
  23. Remove the crank pulley. Refer to REMOVAL .
  24. Support the engine with a lifting device and wire ropes.
  25. Remove the front mount from the chain cover.
    Fig 10: Locating Engine Assembly Front Mounting Bolts
    G06649730Courtesy of SUBARU OF AMERICA, INC.
  26. Remove the front mounting bracket from the cradle.
    Fig 11: Locating Cradle Front Mounting Bracket Bolts
    G06649731Courtesy of SUBARU OF AMERICA, INC.
  27. Remove the oil cooler pipe from the chain cover.
    Fig 12: Locating Oil Cooler Pipe Mounting Bolts
    G06649795Courtesy of SUBARU OF AMERICA, INC.
  28. Remove the chain cover.

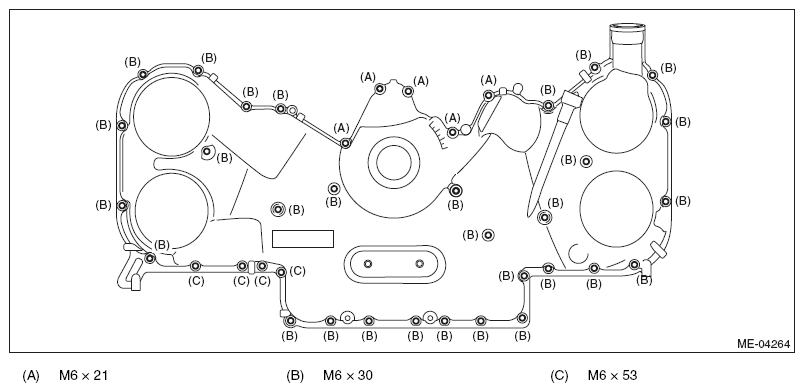

    NOTE: Chain cover installation bolt has three different sizes. To prevent the confusion in installation, keep these bolts on container individually.
    Fig 13: Identifying Chain Cover Mounting Bolts
    G08581305Courtesy of SUBARU OF AMERICA, INC.
