Draining Of Engine Coolant

WARNING: This page is about a different variant/trim than selected.
  1. Lift up the vehicle.
  2. Remove the under cover. Refer to REMOVAL .
  3. Remove the drain plug to drain engine coolant into container.
    NOTE: Remove the radiator cap so that engine coolant will drain faster.

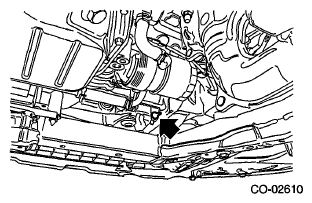

    Fig 1: Locating Drain Plug
    G06651495Courtesy of SUBARU OF AMERICA, INC.
  4. Install the drain plug.
  5. Install the under cover. Refer to INSTALLATION .
