Front Exhaust Pipe: Removal

WARNING: This page is about a different variant/trim than selected.

CAUTION: Vehicle components are extremely hot after driving. Be wary of receiving burns from heated parts.

Disconnect the ground cable from battery.
Lift up the vehicle.
Remove the under cover. Refer to REMOVAL .
Disconnect the front oxygen (A/F) sensor connector (A) and rear oxygen sensor connector (B).

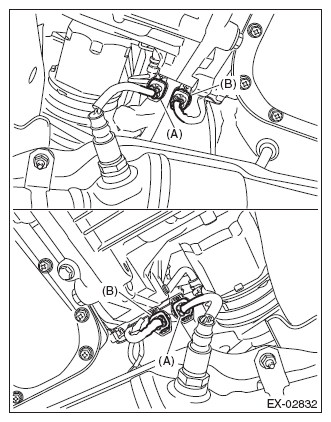

Fig 1: Identifying Front And Rear Oxygen Sensor Connectors
Courtesy of SUBARU OF AMERICA, INC.
Remove the rear exhaust pipe from the front exhaust pipe assembly.

Fig 2: Locating Rear Exhaust Pipe Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the nuts which hold front exhaust pipe assembly onto cylinder heads.
CAUTION: Be careful not to drop the front exhaust pipe assembly.

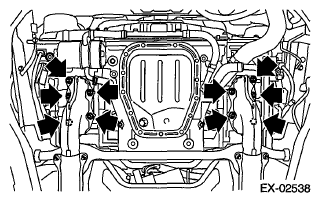

Fig 3: Locating Front Exhaust Pipe Assembly To Cylinder Head Mounting Nuts
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolt which holds front exhaust pipe assembly to hanger bracket.

Fig 4: Locating Front Exhaust Pipe Assembly To Hanger Bracket Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the front exhaust pipe assembly.
CAUTION:
- Be careful not to let the front exhaust pipe assembly fall off when removing, since it is very heavy.
- After removing the front exhaust pipe assembly, do not apply excessive pulling force on the rear exhaust pipe.
Separate the front exhaust pipe (RH) from the front exhaust pipe (LH).

Fig 5: Locating Front Exhaust Pipe Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the front oxygen (A/F) sensor and rear oxygen sensor. Refer to REMOVAL and REMOVAL .
