Oil Pump: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the collector cover.
    NOTE: Follow the steps below when removing the collector cover.
    1. Lift up (A) in two positions at the rear.
    2. Moving (B) in two positions at the front toward the vehicle, lift them up.
      Fig 1: Lifting Oil Pump Cover
      G06651504Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect the ground cable from battery.
  3. Lift up the vehicle.
  4. Remove the under cover. Ref. to REMOVAL , Front Under Cover.
  5. Drain the engine oil. Ref. to REPLACEMENT , Engine Oil.
  6. Drain engine coolant. Ref. to DRAINING OF ENGINE COOLANT , REPLACEMENT, Engine Coolant.
  7. Lower the vehicle.
  8. Remove the radiator. Ref. to REMOVAL , Radiator.
  9. Remove the V-belts. Ref. to REMOVAL , V-belt.
  10. Remove the crank pulley. Ref. to REMOVAL , Crank Pulley.
  11. Remove the chain cover. Ref. to REMOVAL , Chain Cover.
  12. Remove the timing chain. Ref. to REMOVAL , Timing Chain Assembly.
  13. Remove the oil pan lower. Ref. to REMOVAL , Oil Pan.
  14. Remove the stiffener and the oil pump.

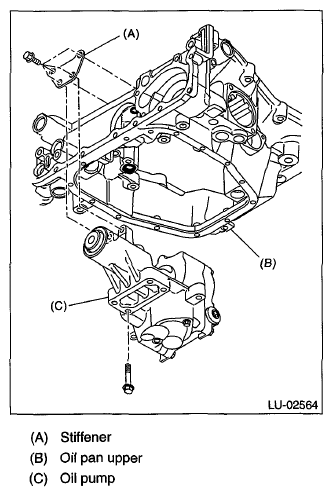

    Fig 2: Identifying Stiffener And Oil Pump
    G06651551Courtesy of SUBARU OF AMERICA, INC.
  15. Remove the strainer from the oil pump.
  16. Remove the O-ring from oil pan upper.
    Fig 3: Locating Oil Pan Upper O-Ring
    G05668068Courtesy of SUBARU OF AMERICA, INC.
