Front Under Cover: Removal
Lift up the vehicle.
Remove the bolts and clips, and remove the front under cover.

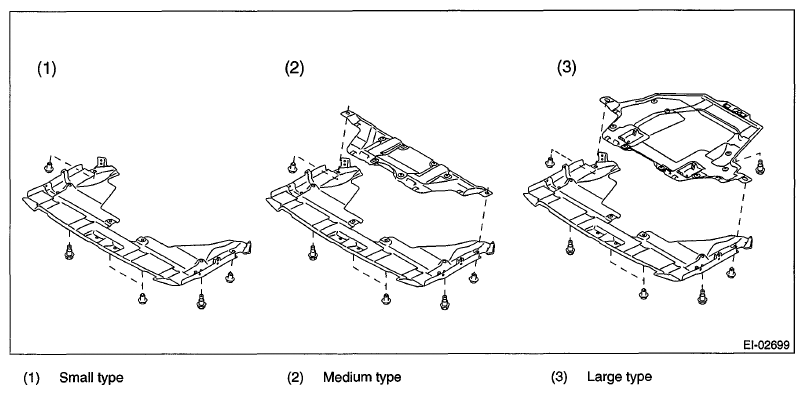

Fig 1: Identifying Front Under Cover Bolts And Clips
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
