Manual Transmission Assembly: Installation

WARNING: This page is about a different variant/trim than selected.

Install the rear cushion rubber to transmission assembly.
Tightening torque:

35 N.m (3.6 kgf-m, 26 ft-lb)
Install the transmission onto engine.
1. Gradually raise the transmission with transmission jack.
2. Loosen the turnbuckle of ST to return the engine assembly to its original position.
3. ) Engage them at splines.
NOTE: Be careful not to strike the main shaft against clutch housing cover.

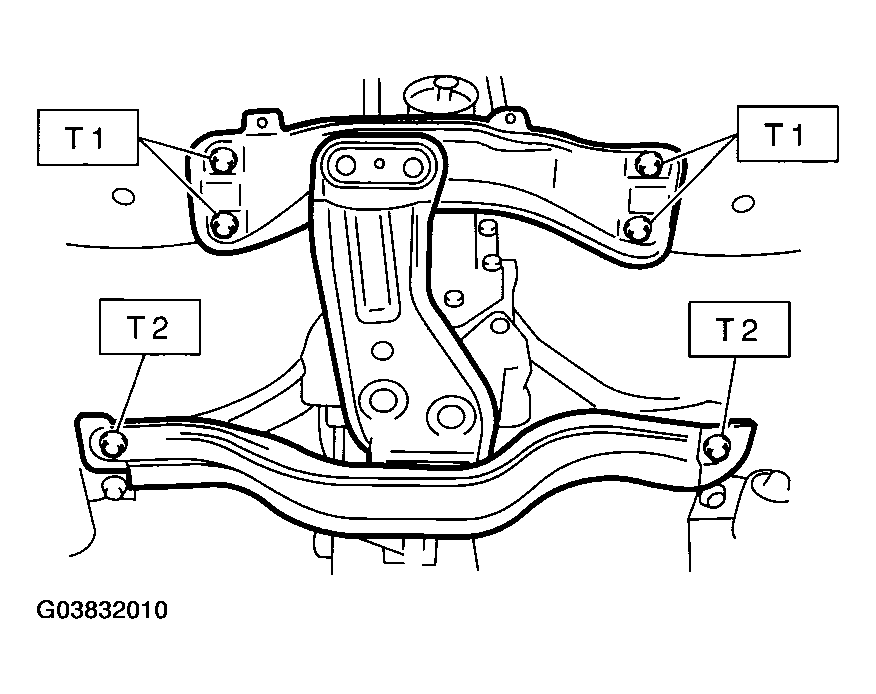

Install the transmission rear crossmember.
Tightening torque:

T1: 75 N.m (7.6kgf-m, 55 ft-lb)

T2:140 N.m (14.3 kgf-m, 103 ft-lb)

Fig 1: Installing Transmission Rear Crossmember
Courtesy of SUBARU OF AMERICA, INC.
Take out the transmission jack.
Tighten the nuts which hold lower side of transmission to engine.
Tightening torque:

50 N.m (5.1 kgf-m, 36.9 ft-lb)

Fig 2: Tightening Nuts
Courtesy of SUBARU OF AMERICA, INC.
Connect the transmission to engine.
1. Install the starter.
  < Ref. to INSTALLATION , Starter. >
2. Tighten the bolts that hold upper side of transmission to engine.
Tightening torque:

50 N.m (5.1 kgf-m, 36.9 ft-lb)

Fig 3: Tightening Bolts
Courtesy of SUBARU OF AMERICA, INC.

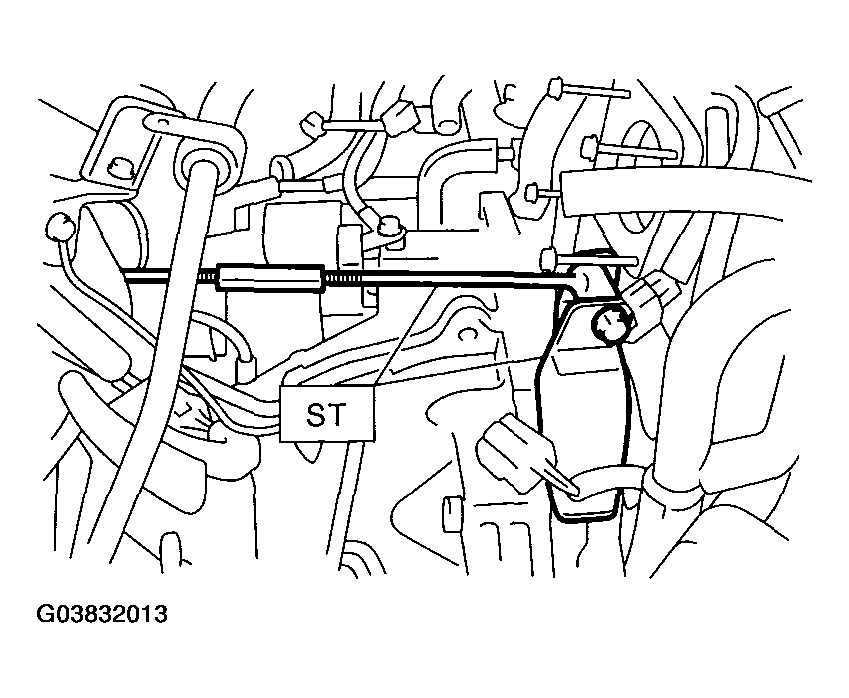

Remove the ST.

Fig 4: Removing ST
Courtesy of SUBARU OF AMERICA, INC.

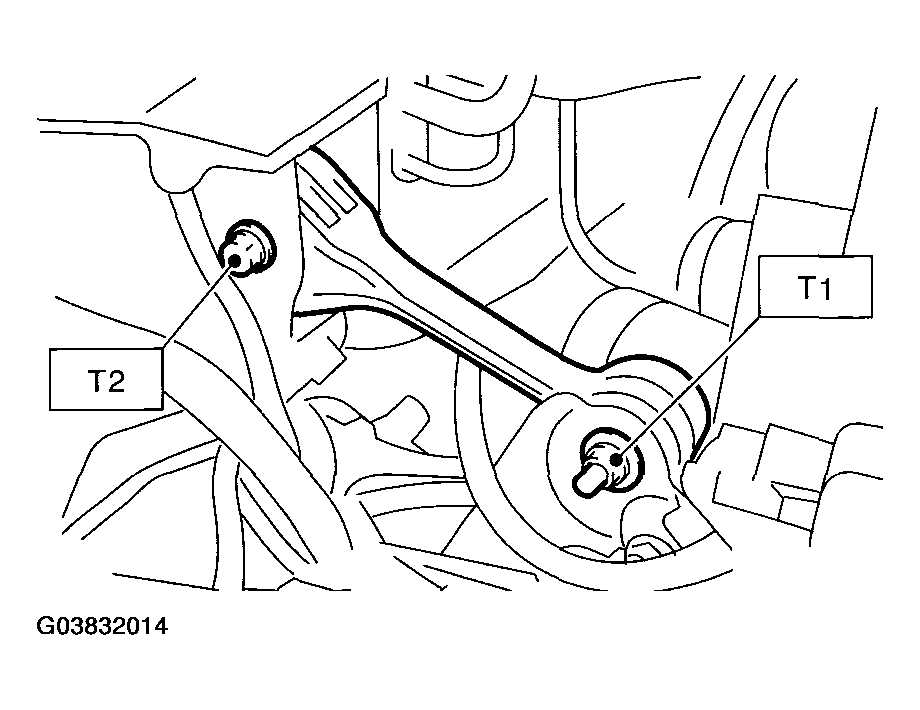

Install the pitching stopper.
Tightening torque:

T1: 50 N.m (5.1 kgf-m, 37 ft-lb)

T2: 58 N.m (5.9 kgf-m, 43 ft-lb)

Fig 5: Installing Pitching Stopper
Courtesy of SUBARU OF AMERICA, INC.
Lift-up the vehicle.
Install the front drive shaft into transmission.

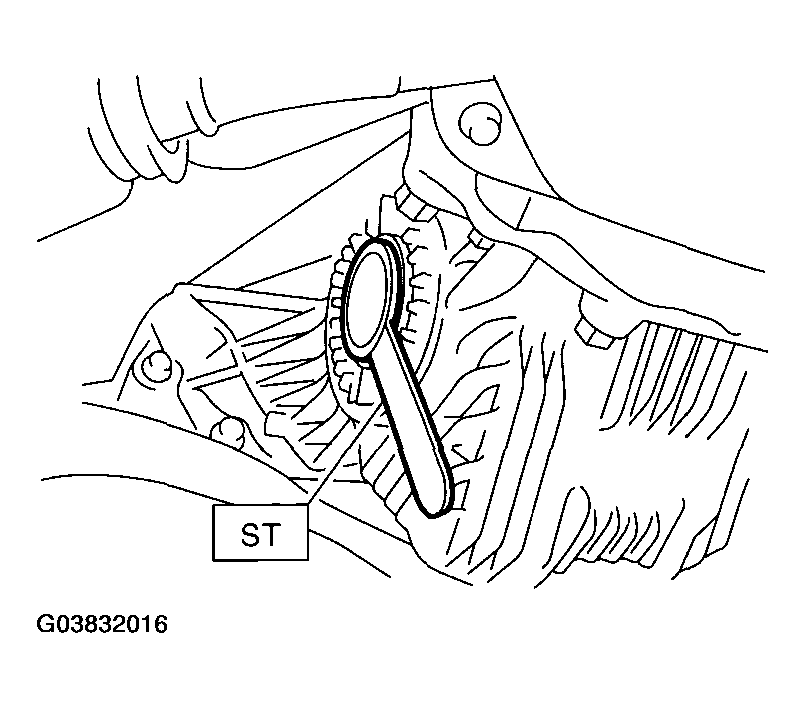

Replace the differential side retainer oil seal. < Ref. to , REPLACEMENT , Differential Side Retainer Oil Seal. >
ST 18675AA000 DIFFERENTIAL SIDE OIL SEAL INSTALLER

NOTE: Be sure to replace the differential side retainer oil seal after the procedure of removing the front drive shaft.

Fig 6: Replacing Differential Side Retainer Oil Seal
Courtesy of SUBARU OF AMERICA, INC.
Install the front drive shaft into transmission.
ST 28399SA010 FRONT DRIVE SHAFT OIL SEAL PROTECTOR

Fig 7: Installing Front Drive Shaft Into Transmission
Courtesy of SUBARU OF AMERICA, INC.

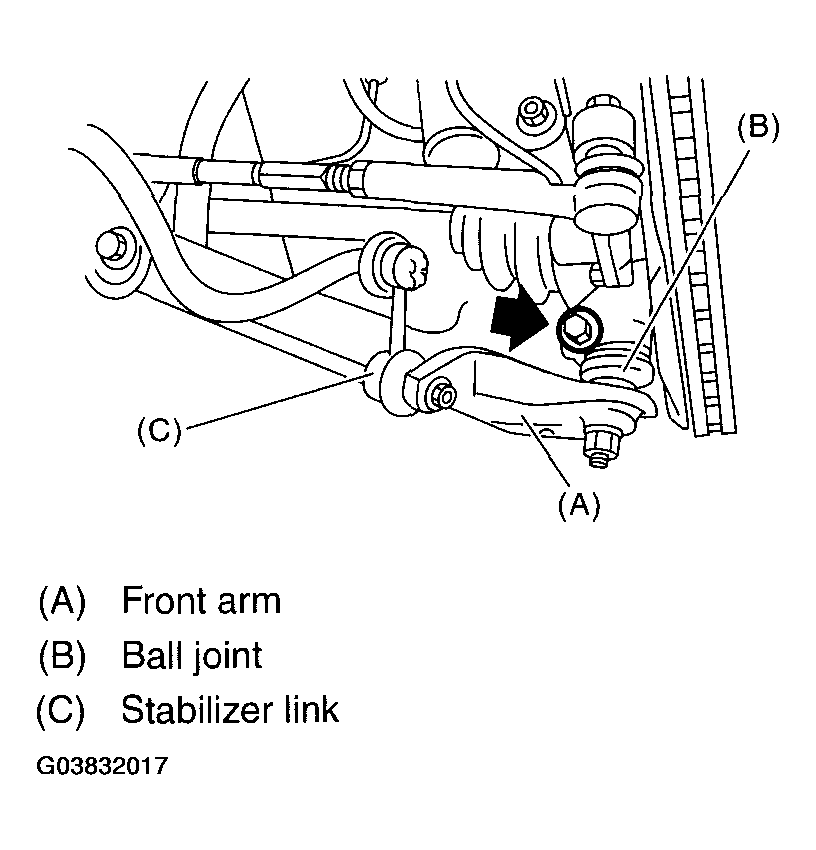

Install the ball joint of lower arm.
Tightening torque:

49 N.m (5.0 kgf-m, 36 ft-lb)

Fig 8: Installing Ball Joint Of Lower Arm
Courtesy of SUBARU OF AMERICA, INC.

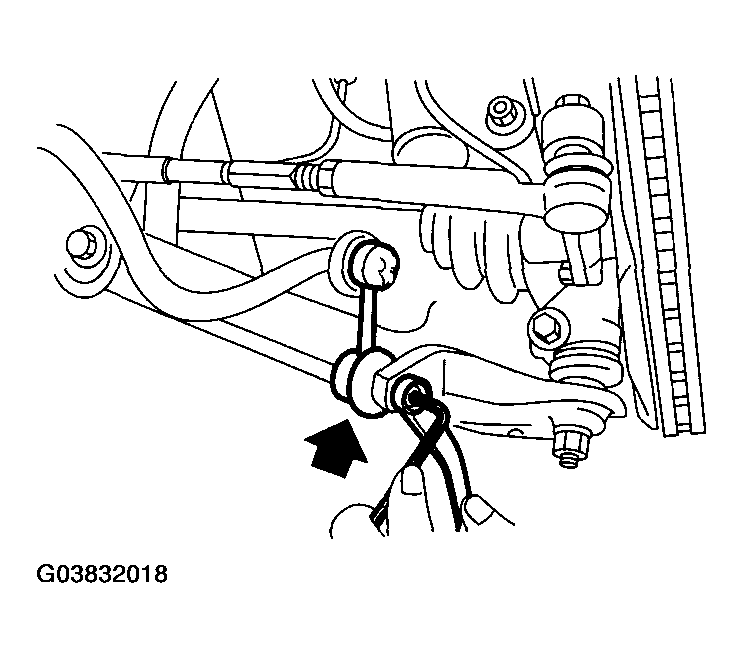

Install the stabilizer link into front arm.
Tightening torque:

45 N.m (4.6 kgf-m, 33.2 ft-lb)

Fig 9: Installing Stabilizer Link Into Front Arm
Courtesy of SUBARU OF AMERICA, INC.
Install the gear shift rod and stay.
1. Install the gear shift rod into transmission.

  Fig 10: Installing Gear Shift Rod Into Transmission
  Courtesy of SUBARU OF AMERICA, INC.
2. Install the stay onto transmission.
Install the propeller shaft. < Ref. to INSTALLATION , Propeller Shaft. >
Install the heat shield cover, (if equipped)
Install the rear exhaust pipe and muffler. (Non-turbo model) < Ref. to INSTALLATION , Rear Exhaust Pipe. > & (Turbo model) < Ref. to INSTALLATION , Muffler. >
Install the front and center exhaust pipe. (Non-turbo model).
< Ref. to INSTALLATION , Front Exhaust Pipe. >
Install the center exhaust pipe. (Turbo model) < Ref. to INSTALLATION , Center Exhaust Pipe. >

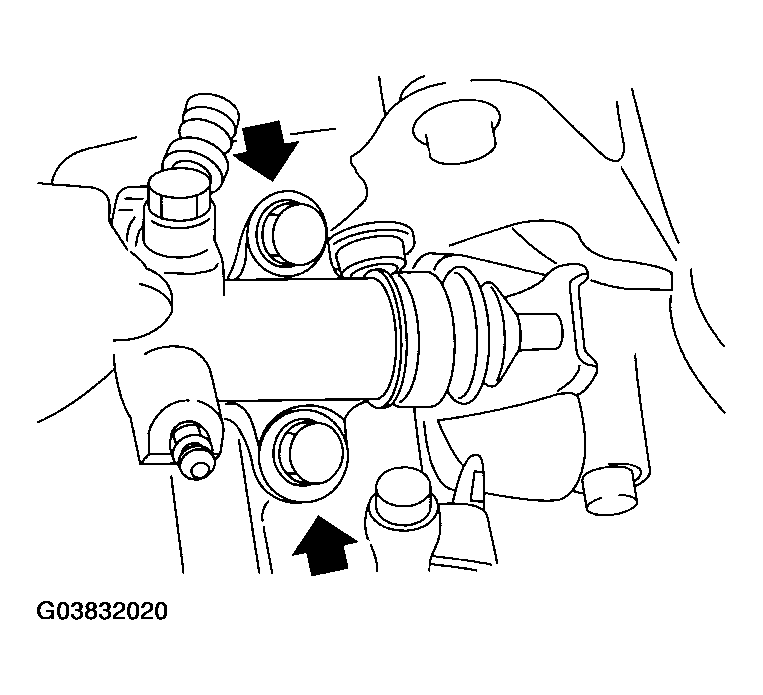

Install the operating cylinder.
Tightening torque:

37 N.m (3.8 kgf-m, 27.5 ft-lb)

Fig 11: Installing Operating Cylinder
Courtesy of SUBARU OF AMERICA, INC.
Connect the following connectors:
1. Transmission ground cable
  Tightening torque:

  13 N.m (1.3 kgf-m, 9.4 ft-lb)
2. Neutral position switch connector
3. Back-up light switch connector
Fill transmission gear oil through the transmission level gauge hole.
Install the air intake chamber stay. (Non-turbo model).
Tightening torque:

16 N.m (1.6 kgf-m, 11.6 ft-lb)
Install the air intake chamber and air cleaner case. (Non-turbo model) < Ref. to INSTALLATION , Air Cleaner Case> < Ref. to INSTALLATION , Air Intake Chamber. >
Install the intercooler. (Turbo model) < Ref. to INSTALLATION , Intercooler. >
Connect the battery ground cable to battery.
Take off the vehicle from lift arms.
