Air Cleaner Case: Installation

WARNING: This page is about a different variant/trim than selected.

Install in the reverse order of removal.

Tightening torque:

Bolt (A): 6.0 N.m (0.6 kgf-m, 4.4 ft-lb)

Nut (B): 7.5 N.m (0.76 kgf-m, 5.5 ft-lb)

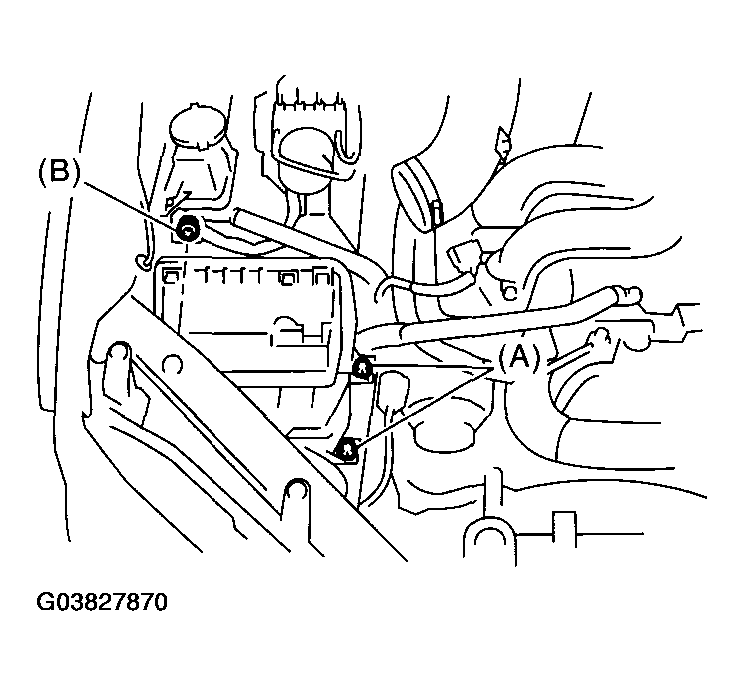

Fig 1: Installing Air Cleaner Case

Courtesy of SUBARU OF AMERICA, INC.

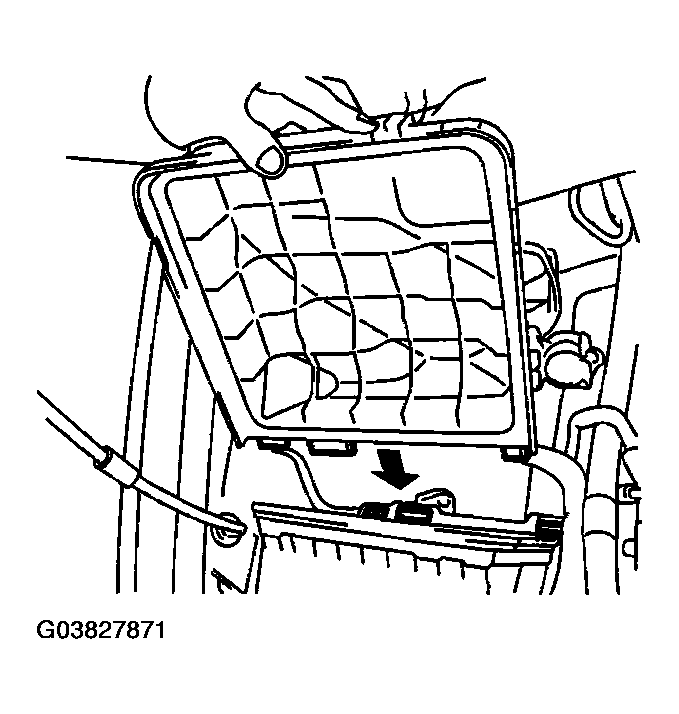

NOTE: Fasten the air cleaner case with a clip after inserting the lower tab of the case.

Fig 2: Fastening Air Cleaner Case With Clip After Inserting Lower Tab Of Case

Courtesy of SUBARU OF AMERICA, INC.
