Front Exhaust Pipe: Installation

WARNING: This page is about a different variant/trim than selected.

Install the front exhaust pipe to center exhaust pipe.
NOTE: Replace gaskets with new ones.

Tightening torque:

30 N.m (3.1 kgf-m, 22.4 ft-lb)

Fig 1: Installing Front Exhaust Pipe To Center Exhaust Pipe
Courtesy of SUBARU OF AMERICA, INC.
Install the front and center exhaust pipe assembly to vehicle.
Temporarily tighten the bolt which installs front and center exhaust pipe assembly to hanger bracket.

Fig 2: Installing Bolt To Front And Center Exhaust Pipe Assembly To Hanger Bracket
Courtesy of SUBARU OF AMERICA, INC.

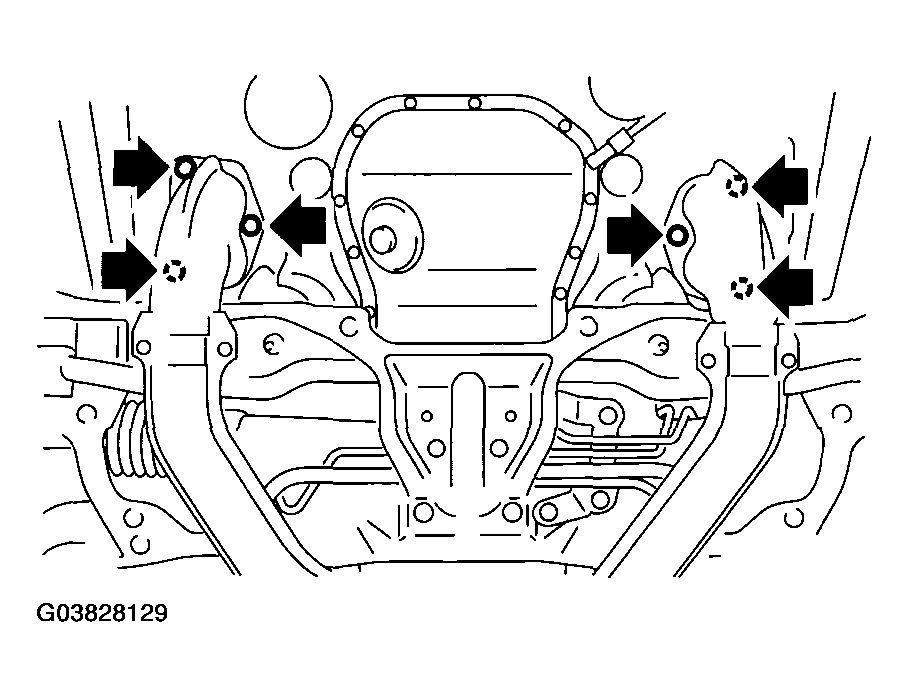

Tighten the nuts which hold front exhaust pipe onto cylinder heads.
Tightening torque:

30N.m (3.1 kgf-m, 22.4 ft-lb)

Fig 3: Tightening Nuts Holding Front Exhaust Pipe Onto Cylinder Heads
Courtesy of SUBARU OF AMERICA, INC.
Install the under cover.
Tighten the bolts which install front and center exhaust pipe assembly to rear exhaust pipe.
Tightening torque:

18 N.m (1.8 kgf-m, 13.0 ft-lb)

Fig 4: Installing Front And Center Exhaust Pipe Assembly To Rear Exhaust Pipe
Courtesy of SUBARU OF AMERICA, INC.
Tighten the bolt which holds front and center exhaust pipe assembly to hanger bracket.
Tightening torque:

35N.m (3.6 kgf-m, 26.0 ft-lb)

Fig 5: Tightening Bolt To Holding Front And Center Exhaust Pipe Assembly To Hanger Bracket
Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.

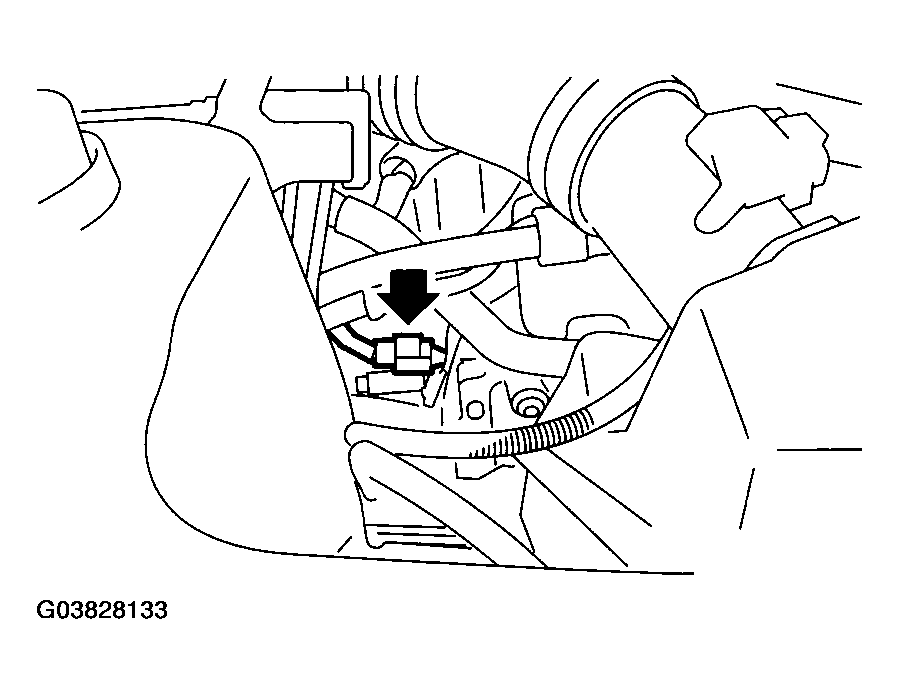

Connect the rear oxygen sensor connector.

Fig 6: Connecting Rear Oxygen Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.

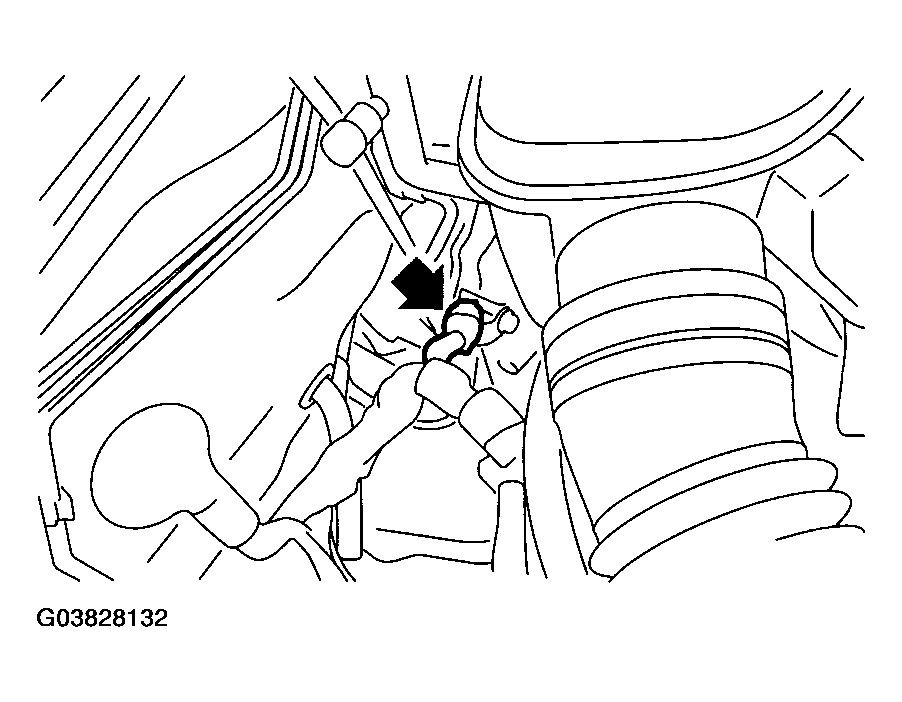

Connect the front oxygen (A/F) sensor connector.

Fig 7: Connecting Front Oxygen (A/F) Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.

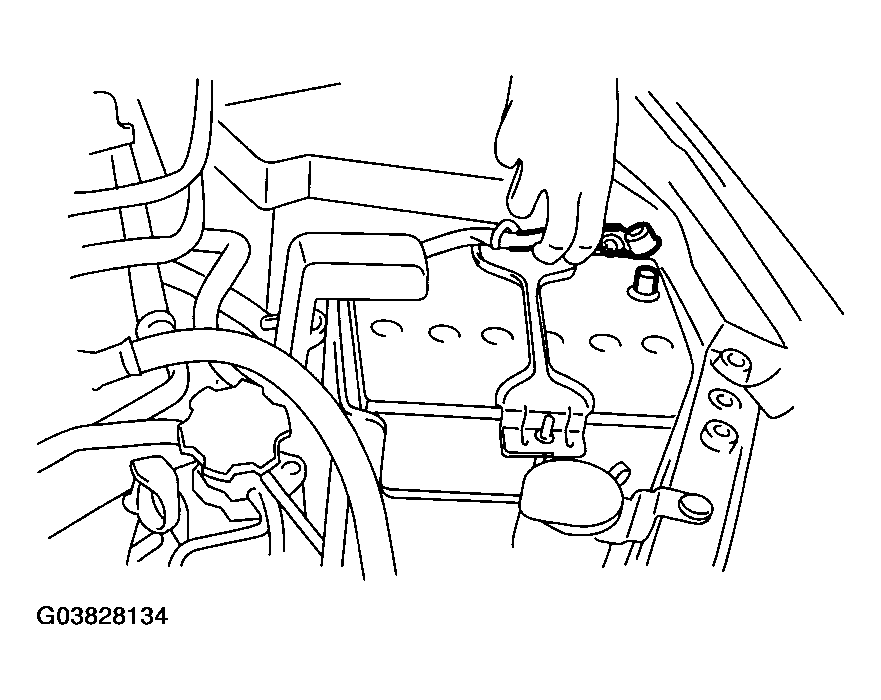

Connect the battery ground cable.

Fig 8: Connecting Battery Ground Cable

Courtesy of SUBARU OF AMERICA, INC.
