Drive Pinion Shaft Assembly: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transmission assembly from vehicle. < Ref. to , REMOVAL , Automatic Transmission Assembly. >
  2. Pull out the torque converter assembly. < Ref. to , REMOVAL , Torque Converter Assembly. >
  3. Remove the input shaft.

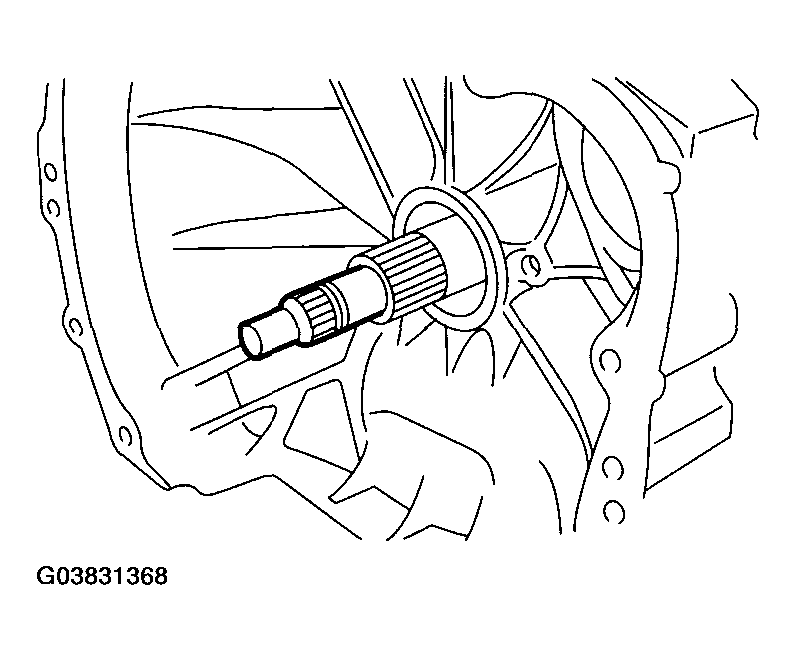

    Fig 1: Removing Input Shaft
    G03831368Courtesy of SUBARU OF AMERICA, INC.
  4. Lift-up the lever on rear side of transmission harness connector, and then disconnect it from the stay.
  5. Disconnect the inhibitor switch connector from the stay.
  6. Disconnect the air breather hose. < Ref. to , REMOVAL , Air Breather Hose. >
  7. Remove the oil charge pipe. < Ref. to , REMOVAL , Oil Charge Pipe. >
  8. Remove the oil cooler inlet and outlet pipes. < Ref. to , REMOVAL , ATF Cooler Pipe and Hose. >
  9. Separate the converter case and transmission case part. < Ref. to , REMOVAL , Converter Case. >
  10. Separate the transmission case and extension case part. < Ref. to , REMOVAL , Extension Case. >
  11. Remove the reduction drive gear. < Ref. to , REMOVAL , Reduction Drive Gear. >
  12. Remove the reduction driven gear. < Ref. to , REMOVAL , Reduction Driven Gear. >
  13. Remove the drive pinion shaft mounting bolt and remove the drive shaft assembly from oil pump housing.

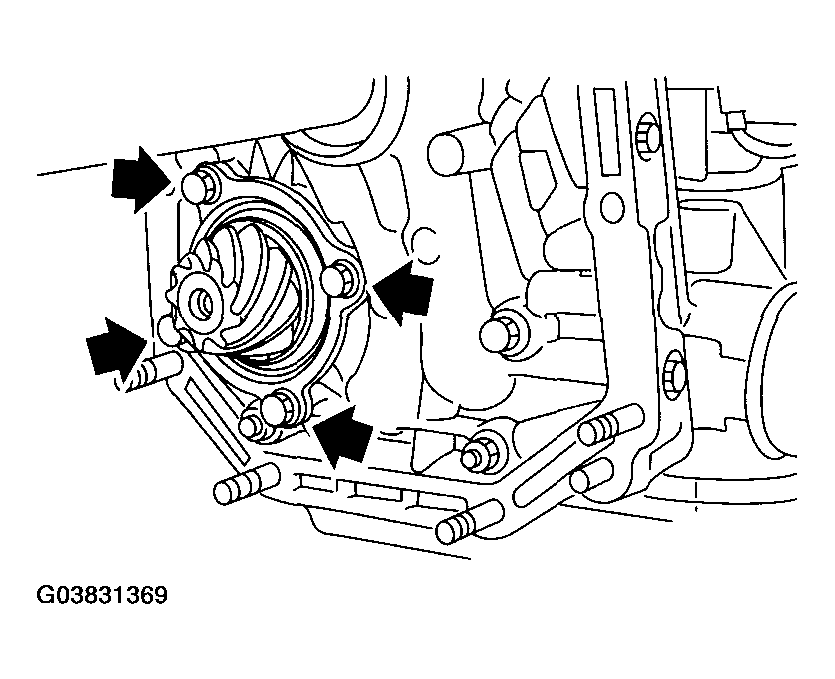

    Fig 2: Removing Drive Pinion Shaft Mounting Bolt
    G03831369Courtesy of SUBARU OF AMERICA, INC.
